Capacitive touch panels have become the universal interface between humans and electronic devices, from smartphones and tablets that billions of people use daily to industrial control systems, medical equipment, automotive infotainment displays, and outdoor kiosks. The technology's superior optical quality, multi-touch capability, and durability have made it the dominant touch solution across virtually all market segments where intuitive, responsive, and reliable touch interaction is required. Understanding capacitive touch panel manufacturing provides insight into the factors that differentiate quality touch solutions from commodity alternatives, enabling product designers, procurement specialists, and quality engineers to make informed decisions when selecting touch screen components for demanding applications.
The capacitive touch panel market continues expanding as new application categories emerge including smart home devices, automotive displays, and Internet of Things interfaces. This growth drives continuous innovation in touch sensor materials, controller technology, and manufacturing processes that improve performance while reducing costs. For organizations sourcing touch panels, understanding these technology trends and manufacturing capabilities enables better specification decisions and supplier selection.

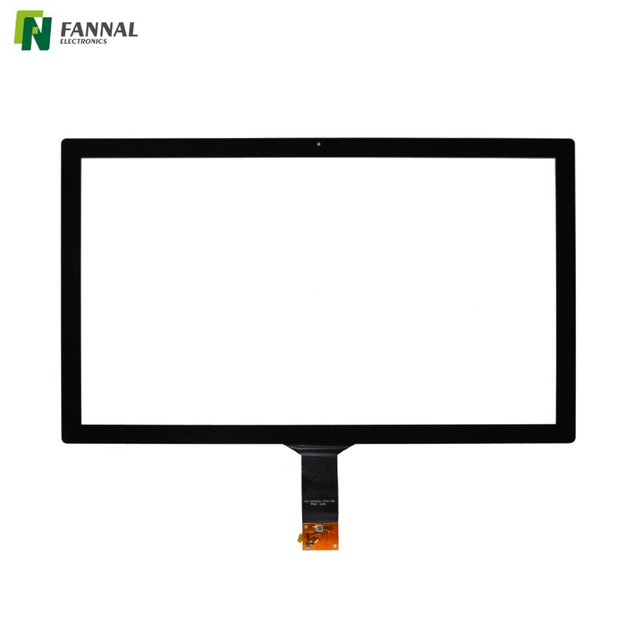

A capacitive touch panel is a transparent input device that detects touch by measuring changes in the electrostatic field at the screen surface. When a finger approaches or contacts the conductive surface of the touch panel, it draws a small amount of current from the electrostatic field, creating a measurable change in capacitance at the touch location. The touch controller—a specialized integrated circuit—interprets these capacitance changes to determine the position, size, and characteristics of touch events with sub-millimeter precision.
The fundamental physics of capacitive touch detection involves measuring femtofarad-level capacitance changes in the presence of human touch. The human body acts as a conductor with typical capacitance to ground of approximately 100 picofarads, creating measurable coupling with the touch sensor's electrostatic field. Controller sensitivity determines the minimum detectable capacitance change, typically requiring signal-to-noise ratios exceeding 20:1 for reliable touch detection in noisy environments.
Unlike resistive touch panels that rely on physical pressure to bring two conductive layers into contact, capacitive touch panels detect touch through the electrical properties of the human body, enabling operation with bare fingers, multi-touch gestures, and high optical clarity without the multiple material layers required by resistive technology. The solid-state construction—with no moving parts—provides superior durability and longevity compared to mechanical switch interfaces. Capacitive touch panels typically achieve lifetimes exceeding 10 million touch cycles without significant performance degradation.
Surface capacitive touch technology applies a uniform voltage to all four corners of a conductive layer coated on the glass surface. Touching the surface draws current from the nearest corner electrodes, and the ratio of current drawn from each corner determines the touch position. Surface capacitive panels offer good durability and optical clarity but are limited to single-touch operation and are more susceptible to interference from moisture on the surface.
Surface capacitive technology was widely used in early touch screen applications including point-of-sale terminals and information kiosks before the emergence of projected capacitive technology. Manufacturing simplicity and lower cost compared to PCAP made surface capacitive attractive for applications that did not require multi-touch capability. However, the multi-touch requirements of smartphones and tablet computers drove adoption of PCAP technology across virtually all consumer touch applications.
Projected capacitive touch technology—commonly called PCAP or multi-touch capacitive—has become the dominant touch technology across virtually all markets. PCAP panels use a grid of transparent electrodes (typically indium tin oxide, ITO, or newer metal mesh materials) patterned on one or two glass layers using photolithography. The electrodes create an electrostatic field that projects above the screen surface, enabling touch detection through a protective cover glass and supporting true multi-touch operation with up to 10 or more simultaneous touch points.
PCAP technology's ability to detect touch through cover glass or other dielectric materials enables the sleek, durable designs that consumer and industrial products require. The projected field also supports operation with thin gloves and conductive styluses, expanding the applicability of touch technology to industrial, medical, and outdoor applications where bare-finger operation may be impractical or undesirable.
Mutual capacitance measures the capacitance between row and column electrode intersections. Touching the screen with a finger reduces the mutual capacitance at affected intersections, enabling detection of multiple simultaneous touch points with high spatial accuracy. Mutual capacitance inherently supports multi-touch operation because each intersection can be measured independently without interference from other touch points.
Self-capacitance measures the capacitance of each electrode to ground. When a finger touches near an electrode, the additional body capacitance increases the electrode's capacitance to ground, enabling touch detection. Self-capacitance provides higher sensitivity than mutual capacitance but has inherent multi-touch ambiguity because a single finger affects multiple adjacent electrodes.
Advanced PCAP controllers use hybrid approaches combining mutual capacitance for primary touch detection with self-capacitance for palm rejection and hover tracking. The hybrid architecture provides the multi-touch capability of mutual capacitance while adding the sensitivity advantages of self-capacitance for features like palm detection and hover sensing. Fannal Electronics PCAP controllers implement sophisticated hybrid algorithms that optimize touch performance across diverse usage scenarios.
The touch controller represents the intelligence of the capacitive touch system, performing continuous scanning of the electrode array, signal processing to extract touch information from raw sensor data, and host communication to report touch events to the operating system. Controller selection significantly impacts touch performance including sensitivity, response speed, power consumption, and environmental robustness.
Modern PCAP controllers integrate analog front-end circuits, digital signal processing, and host interfaces into single-chip solutions that minimize board space and simplify integration. Controllers support various host interfaces including I2C, SPI, USB, and native interfaces optimized for specific operating systems. Fannal Electronics provides controller integration support that ensures optimal touch performance for each application.
PCAP technology inherently supports multi-touch operation, enabling gesture-based interaction including pinch-to-zoom, two-finger rotation, swipe gestures, and drag operations. Multi-touch capability enables more intuitive operation, faster task completion, and richer interactive experiences than single-touch interfaces. The standardization of multi-touch gestures across operating systems has established user expectations for touch interaction that all modern devices must meet.
Fannal Electronics PCAP touch panels support full multi-touch gesture recognition for demanding interactive applications, with controllers capable of tracking 10 or more simultaneous touch points with sub-millimeter positional accuracy. Gesture recognition algorithms distinguish between intentional touch gestures and accidental contacts, preventing false inputs while maintaining responsive operation.
Capacitive touch panels are typically constructed from glass substrates with transparent conductor patterns, achieving optical transmittance exceeding 90%. The single glass layer construction of PCAP panels provides superior optical clarity compared to resistive panels that require multiple air gaps and layers. Fannal Electronics PCAP touch panels incorporate chemically strengthened cover glass with anti-fingerprint and anti-glare coatings for demanding applications. The glass surface provides excellent scratch and abrasion resistance rated to 7H to 9H pencil hardness.
Optical bonding between the touch sensor and cover glass eliminates the air gap that reduces contrast and allows dust contamination. Optical bonding uses either optically clear adhesive (OCA) films or liquid optically clear adhesive (LOCA) to fill the gap between layers, improving optical performance and mechanical robustness. Fannal Electronics offers optical bonding services for applications requiring maximum optical quality.
PCAP controllers sample the touch surface at scan rates from 60Hz to 500Hz, providing touch response latency below 20 milliseconds. High sensitivity enables operation with thin gloves, light finger touches, and capacitive styluses. Fannal Electronics offers gloved-touch PCAP controllers configured for operation with thin medical or industrial gloves, expanding touch applicability to environments where bare-hand operation is impractical.
Touch sensitivity must be balanced against susceptibility to false inputs from moisture, electromagnetic interference, and other noise sources. Advanced controllers implement adaptive sensitivity algorithms that adjust detection thresholds based on environmental conditions, maintaining reliable touch detection across diverse usage environments.
Capacitive touch panels have no mechanical moving parts, eliminating the wear mechanisms that limit the operational life of resistive and mechanical switch interfaces. Fannal Electronics PCAP touch panels routinely achieve operational lifetimes exceeding 10 million touches with no significant performance degradation. The solid-state construction provides superior resistance to shock, vibration, and temperature extremes compared to mechanical alternatives.
Cover glass strength determines the panel's resistance to scratches, impacts, and thermal stress. Chemically strengthened glass produced through ion exchange processes achieves surface compression stresses exceeding 500 MPa, providing excellent resistance to scratching and impact damage. Fannal Electronics specifies chemically strengthened cover glass for all PCAP touch panel products.
Capacitive touch panel manufacturing begins with glass substrate preparation—typically borosilicate or alkaline-free glass in thicknesses ranging from 0.3mm to 3mm. The glass is cleaned to remove contaminants that could affect coating adhesion or optical quality, with multiple cleaning stages using deionized water, chemical cleaners, and plasma treatment. The selection of glass type affects the touch panel's thermal stability, optical quality, and chemical resistance.
One or both surfaces of the glass substrate receive a transparent conductive coating. Indium tin oxide (ITO) remains the dominant transparent conductive material, deposited as a thin film using physical vapor deposition (sputtering). ITO's combination of high optical transparency and electrical conductivity makes it suitable for most touch panel applications, though the coating must be precisely controlled to achieve consistent resistance across the substrate.
Emerging alternatives including silver nanowires, metal mesh, and graphene-based conductive films offer advantages in flexibility, conductivity, and manufacturing cost. Fannal Electronics evaluates and qualifies alternative materials to provide optimal solutions for specific applications, including flexible touch panels using alternative transparent conductors that can withstand bending without cracking.
Photolithography creates precise electrode patterns that define touch sensitivity and spatial resolution. A photosensitive resist is applied over the ITO layer, exposed to UV light through a photomask, developed, then etched to create the electrode pattern. The pattern design balances sensitivity, signal-to-noise ratio, and visual invisibility of the electrode pattern.
Diamond or isotropic etch processes remove the ITO coating from areas not protected by the developed resist, creating the electrode geometry. After etching, resist stripping removes the remaining photoresist, leaving the patterned ITO electrodes. The process must be precisely controlled to achieve consistent line widths, smooth edges, and complete removal of unwanted ITO.
Modern touch sensors increasingly use single-layer sensor designs that reduce manufacturing complexity and cost. Single-layer sensors pattern both row and column electrodes from a single ITO layer, requiring more complex photomasks but reducing material costs and improving manufacturing efficiency.
Cover glass processing includes cutting to final dimensions, edge polishing, hole cutting for cameras or sensors, and surface treatment. Chemical strengthening through ion exchange bath processing increases surface strength by replacing smaller sodium ions with larger potassium ions in the glass surface layer. The compressive stress layer created by chemical strengthening must be deep enough to resist scratch propagation while maintaining optical quality.
Surface coatings applied to cover glass include anti-fingerprint (oleophobic) coatings that repel oils and simplify cleaning, anti-glare coatings that reduce reflections for outdoor readability, and anti-reflective coatings that increase optical transmittance. Fannal Electronics applies these coatings using vacuum deposition processes that ensure uniform coverage and durability.
The touch sensor glass is bonded to the cover glass using optically clear adhesive (OCA) or liquid optically clear adhesive (LOCA). OCA bonding uses pre-cut adhesive films that are laminated between the sensor and cover glass in cleanroom environments. LOCA bonding dispenses liquid adhesive that fills the gap between layers before UV curing solidifies the bond.
Optical bonding eliminates the air gap between sensor and cover glass, improving optical performance by reducing reflection losses at each interface. Bonded assemblies also provide improved mechanical robustness because the adhesive layer absorbs impact energy that would otherwise stress the glass layers directly.
The touch controller is mounted on a flexible printed circuit that connects the sensor electrodes to the host device. Factory calibration programs the controller with touch sensor characteristics including baseline capacitance values, noise profiles, and environmental compensation parameters. Calibration ensures consistent touch performance across production units and different deployment environments.
Fannal Electronics provides controller integration and calibration support for all PCAP touch panel products, ensuring that each assembly meets specified performance criteria before shipment. Calibration data is stored in controller non-volatile memory, providing stable touch performance across power cycles and temperature variations.
Smartphones, tablets, laptops, and smartwatches represent the highest-volume application category for PCAP touch panels. The explosive growth of the smartphone market drove massive investment in touch manufacturing capacity and continuous technology advancement. Fannal Electronics PCAP touch panels serve consumer electronics manufacturers with ultra-thin form factors and competitive pricing at high production volumes.
The convergence of computing, communications, and entertainment in mobile devices created unprecedented demand for high-performance touch interfaces. Touch has become the primary input method for mobile devices, replacing physical keyboards and most physical controls. This paradigm shift has extended to other consumer electronics categories including smart TVs, gaming devices, and home appliances.
Industrial human-machine interface (HMI) applications require touch panels that operate reliably in demanding environments including temperature extremes, humidity, chemical exposure, and electromagnetic interference. Fannal Electronics PCAP touch panels for industrial applications use thicker cover glass, reinforced bonding, and wide-temperature-rated controllers rated for −40°C to +85°C operation, serving factory automation and process control applications.
Industrial touch panels must maintain consistent performance despite electrical noise from motors, variable frequency drives, and other industrial equipment. EMC-hardened controller designs and proper grounding practices ensure reliable touch operation in these challenging environments. Fannal Electronics provides EMC design guidelines and supports customer integration efforts to achieve reliable touch performance in industrial settings.
Automotive touch displays face unique requirements including extended temperature range, vibration resistance, optical performance across diverse lighting conditions, and the palm rejection challenges of large-format touch screens. Automotive touch panels require qualification to AEC-Q100 and AEC-Q200 standards that define environmental, reliability, and quality requirements for automotive electronic components.
The automotive industry's transition from physical switches to touch-based interfaces creates opportunities for touch panel suppliers that can meet stringent automotive requirements. Fannal Electronics develops automotive-qualified PCAP touch panels for center stack displays, instrument clusters, and rear seat entertainment applications.
Medical device touch interfaces must meet strict regulatory requirements including IEC 60601-1 safety standards and FDA device registration requirements. Fannal Electronics PCAP touch panels for medical applications feature sealed designs, antimicrobial coatings, and operation with medical gloves. Medical devices requiring touch interfaces include patient monitors, diagnostic equipment, infusion pumps, and medication dispensing systems.
Antimicrobial coatings provide continuous protection against bacterial growth on the touch surface, important for high-touch devices in healthcare environments. Fannal Electronics sources antimicrobial coatings from qualified suppliers and validates coating effectiveness per applicable standards.
Outdoor kiosk, point-of-sale, and industrial applications require touch panels that operate reliably despite bright sunlight, rain, temperature extremes, and physical abuse. Fannal Electronics IP65-rated PCAP touch panels are engineered for outdoor deployment, incorporating high-brightness displays, heated cover glass for cold climate operation, and ruggedized construction.
Ruggedized touch panels for industrial applications incorporate thick cover glass, reinforced bonding, and extended-temperature controllers that survive harsh operating conditions. Fannal Electronics engineers work with customers to specify ruggedization requirements appropriate for each application's environmental and reliability requirements.
Specification | Fannal PCAP | Standard PCAP Supplier | Resistive Touch | Industry Average PCAP |
|---|---|---|---|---|
Technology | PCAP Mutual + Self | PCAP (Mutual) | Resistive | PCAP |
Cover Glass Thickness | 0.55–5.0mm | 0.7–3.0mm | N/A | 0.7–4.0mm |
Touch Points | Up to 10+ | Up to 10 | 1 | Up to 10 |
Response Time | <15ms | <20ms | <30ms | <20ms |
Optical Transmittance | >90% | >88% | >75% | >87% |
Operating Temperature | −40°C to +85°C | −20°C to +70°C | −15°C to +60°C | −25°C to +75°C |
Glove Support | Yes (configurable) | Basic | Yes | Yes |
Water Resistance | IP65 available | IP54 optional | N/A | IP54 optional |
Customization | Full customization | Limited | Limited | Limited |
Controller Integration | Complete support | Basic | Basic | Varies |
Lead Time | 6–10 weeks standard | 8–12 weeks | 6–8 weeks | 8–10 weeks |
Indium tin oxide's dominance in transparent conductive materials faces challenges from alternative technologies that offer advantages in flexibility, conductivity, and cost. Silver nanowire films provide excellent flexibility and conductivity while using abundant materials. Fannal Electronics evaluates silver nanowire films, copper metal mesh, and graphene coatings for specific application requirements including flexible displays and large-format touch panels.
The supply constraints and cost volatility of indium have motivated development of alternative transparent conductors. While ITO remains dominant for rigid applications, alternative materials are gaining adoption in applications where flexibility or large-area coverage favor alternatives.
Advanced touch systems incorporating force sensing and haptic feedback provide additional input dimensions beyond simple touch position. Force sensing enables pressure-sensitive operation that can distinguish between light taps and firm presses. Haptic feedback uses vibration or other tactile cues to confirm touch registration and provide intuitive feedback during interaction.
Fannal Electronics develops force touch and haptic feedback solutions through engineering customization capabilities, supporting customers with advanced touch requirements beyond standard PCAP functionality. Force sensing can be implemented using strain gauges in the cover glass mounting, capacitive force sensors, or piezoelectric elements integrated into the touch assembly.
Integration of touch sensors directly into display pixel structures eliminates the separate touch layer, reducing thickness and improving optical performance. In-cell touch places touch sensors within the display cell, while on-cell touch places sensors between the display glass and cover glass. Fannal Electronics develops in-cell and on-cell touch solutions for applications requiring ultra-thin form factors and maximum optical quality.
The integration trend reduces component count and manufacturing cost while enabling thinner device profiles. However, integrated touch solutions require close coordination between display and touch engineering teams, increasing design complexity compared to discrete touch modules.
Growing demand for interactive displays in education, corporate collaboration, and digital signage drives development of large-format PCAP touch panels exceeding 40 inches. Large-format touch requires different sensor patterns, increased controller processing capability, and careful attention to signal distribution across the sensor area. Fannal Electronics develops large-format PCAP solutions for applications including interactive whiteboards, conference room displays, and retail kiosks.
Clearly specify multi-touch requirements, gloved operation needs, and stylus support. The number of simultaneous touch points required depends on the application's gesture support requirements—simple point-and-click applications need only single-touch capability while gesture-based interfaces require five or more simultaneous touch points. Fannal Electronics engineering team supports requirement definition and specification development for customers specifying new touch panel applications.
Environmental operating conditions significantly impact specification requirements. Outdoor applications require high-brightness displays, temperature range extensions, and water resistance. Industrial applications require extended temperature range, EMC hardening, and ruggedization for vibration and shock.
Match touch panel environmental specifications to the deployment environment. Fannal Electronics offers IP65-rated PCAP touch panels for outdoor and demanding industrial applications. IP ratings define protection against solid object ingress (first digit) and liquid ingress (second digit), with IP65 providing complete dust protection and protection against water jets from any direction.
Temperature range requirements depend on the application deployment environment. Automotive applications typically require −40°C to +85°C operating range, while consumer applications may tolerate 0°C to +50°C. Fannal Electronics specifies controllers and components rated for the target operating environment.
Fannal Electronics PCAP touch panels use standard I2C and USB interfaces with HID protocol support for native compatibility with major operating systems. HID (Human Interface Device) protocol support enables plug-and-play operation with Windows, Android, Linux, and other operating systems without custom driver installation.
For applications requiring custom touch behavior, Fannal Electronics provides controller configuration tools and software development support. Custom touch firmware can implement application-specific gesture recognition, button areas, and touch filtering algorithms.
Fannal Electronics provides fully customized touch solutions including modified sensor patterns, custom cover glass shapes, and mechanical integration support. Customization options include electrode pattern modifications for specific sensitivity requirements, cover glass machining for holes and notches, and specialized coatings for demanding applications.
Integration support encompasses mechanical design guidelines, electrical interface documentation, thermal analysis, and EMC design recommendations. Fannal Electronics engineers collaborate with customer design teams throughout the product development cycle to ensure successful touch panel integration.
Mechanical integration significantly impacts touch panel performance and reliability. Cover glass mounting design must provide secure retention without creating stress concentrations that could cause glass fracture. Fannal Electronics provides mechanical integration guidelines and 3D CAD models for all PCAP touch panel products, enabling customer design teams to develop compatible mechanical enclosures.
Bezel design affects both aesthetics and touch performance. Narrow bezels maximize display area but require careful consideration of edge touch performance and waterproofing. Fannal Electronics specifies minimum bezel dimensions for reliable edge sealing and optimal touch performance.
Controller calibration should be performed after mechanical integration is complete. Calibration compensates for baseline variations between production units and environmental conditions at the deployment site. Fannal Electronics provides calibration support and documentation, including on-site calibration services for high-volume customers.
Touch parameters requiring calibration include baseline capacitance values, noise thresholds, touch detection sensitivity, and environmental compensation coefficients. Advanced controllers support field calibration that adapts to changing environmental conditions without manual intervention.
Electromagnetic compatibility (EMC) is critical for reliable touch operation in environments with significant electrical noise. Noise sources including power supplies, displays, and wireless transmitters can induce false touch detection if not properly addressed through shielding, filtering, and grounding. Fannal Electronics provides EMC design guidelines and offers EMI-hardened touch controller options for applications with demanding electromagnetic environments.
PCB layout for touch controller circuits requires attention to signal integrity, grounding, and decoupling. Fannal Electronics reference designs provide proven circuit layouts that achieve reliable EMC performance across diverse deployment environments.
Applications requiring protection against moisture, dust, or liquid exposure require environmental sealing at the touch panel perimeter and any cable entry points. Seal design must accommodate thermal expansion and provide reliable sealing across the product lifetime. Fannal Electronics IP65-rated products incorporate proven sealing designs validated through environmental testing.
Q1: What raw substrate parameters differentiate industrial-grade PCAP manufacturing from cheap consumer alternatives?
A: Industrial PCAP manufacturing utilizes alkaline-free borosilicate substrates with a deep ion-exchange chemical strengthening layer (exceeding 500 MPa compressive stress) and a minimum vacuum-deposited cover glass hardness of 7H–9H.
Q2: Why does the photolithographic etching precision of the ITO grid directly impact touch tracking stability in EMI-heavy factory environments?
A: Microscopic consistency in line width and pattern geometry during the photolithography phase ensures tight impedance matching across the mutual-capacitance matrix, preventing signal-to-noise ratio (SNR) degradation under high-voltage inverter noise.
Q3: How does liquid optically clear adhesive (LOCA) bonding mechanically protect sensors compared to standard tape bonding?
A: LOCA full-lamination completely fills the internal air gap, acting as a mechanical shock absorber that cross-links under UV curing to distribute focal impact stress and eliminate localized internal moisture condensation.
Q4: Why do surface water droplets trigger false "ghost touches" on a capacitive matrix, and how is this fixed in firmware?
A: Liquid water alters the local dielectric constant on the cover glass, mimicking a human conductor; modern controllers neutralize this by running hybrid scanning algorithms that cross-reference self-capacitance and mutual-capacitance tracking grids.
