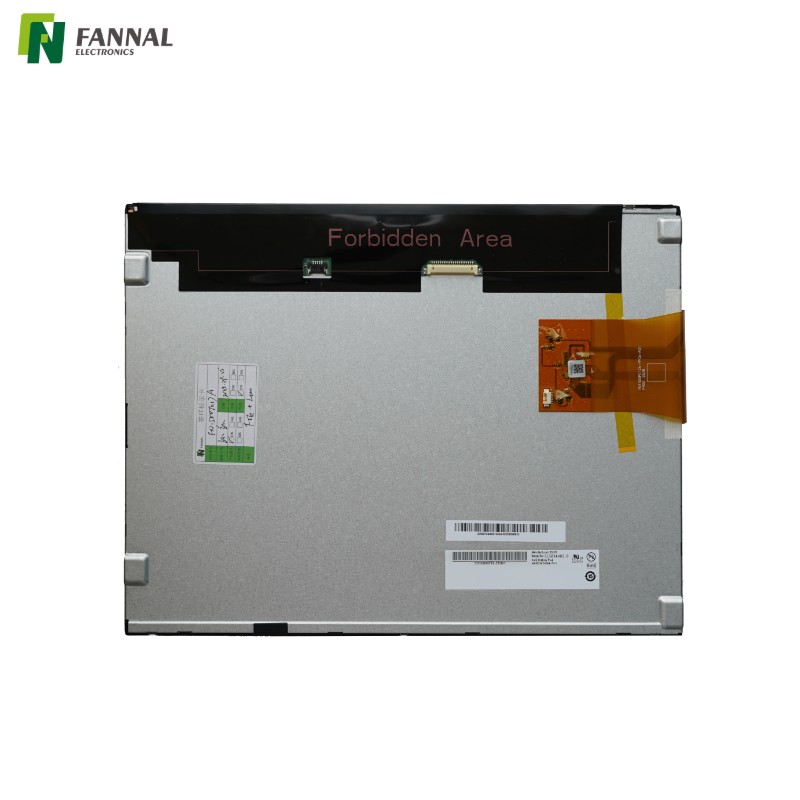

15 Inch Rugged Touch Screen Module | 1024×768 Industrial Display

Name: 15 Inch Rugged Touch Screen Module | 1024×768 Industrial Display
Brand: FANNAL
Rating: 5.0 (1 reviews)

15" Industrial Touch Display Module | Optical Bonding 1024×768

Model:
FN1500T017A
Brand:
FANNAL
Size(inch):
15
Display AA(mm):
304.13*228.1
Operation Temp(℃):
-30~85
Storage Temp(℃):
-30~85
Resolution:
1024x768
Display Interface:
LVDS
TP Interface:
USB
Brightness(cd/m²):
440

Quantity:
Availability:





Inquiry Add to Basket

Rugged Touch Screen Module

Drawing

Specifications

Applications

Customizations

FAQ

Product Features

Superior Visual Clarity with Optical Bonding

Integrating a 15-inch XGA (1024*768) resolution display, this module utilizes OCR (Optical Clear Resin) optical bonding technology. By eliminating the air gap between the touch sensor and the TFT panel, it significantly reduces internal reflections, enhances contrast, and ensures an impressive 88% light transmittance for vivid, sharp visuals.

Industrial-Grade Wide Temperature Resilience

Engineered for mission-critical reliability, the module supports a wide operating temperature range of -30°C to 85°C. Whether deployed in freezing outdoor environments or high-heat industrial plant floors, it maintains stable performance and consistent display logic.

High-Performance Multi-Touch Interface

Equipped with the Microchip mXT1664T3 controller, the capacitive touch system supports up to 10-point multi-touch. The TX32/RX42 sensor channels provide high sensitivity and precision, optimized for professional human-machine interface (HMI) applications.

Robust & Durable Construction

The module features a chemically strengthened cover glass with a 1.1mm sensor thickness, offering enhanced impact resistance and surface durability. It is fully compliant with RoHS 2.0 and REACH environmental standards, meeting the strict material requirements of global markets.

Streamlined Industrial Integration

Designed for seamless system compatibility, the module utilizes a standard LVDS interface for video signals and a plug-and-play USB interface for touch control. With a 3.3V TFT and 5.0V touch power supply, it is easily integrated into a wide range of embedded control systems and industrial PC architectures.

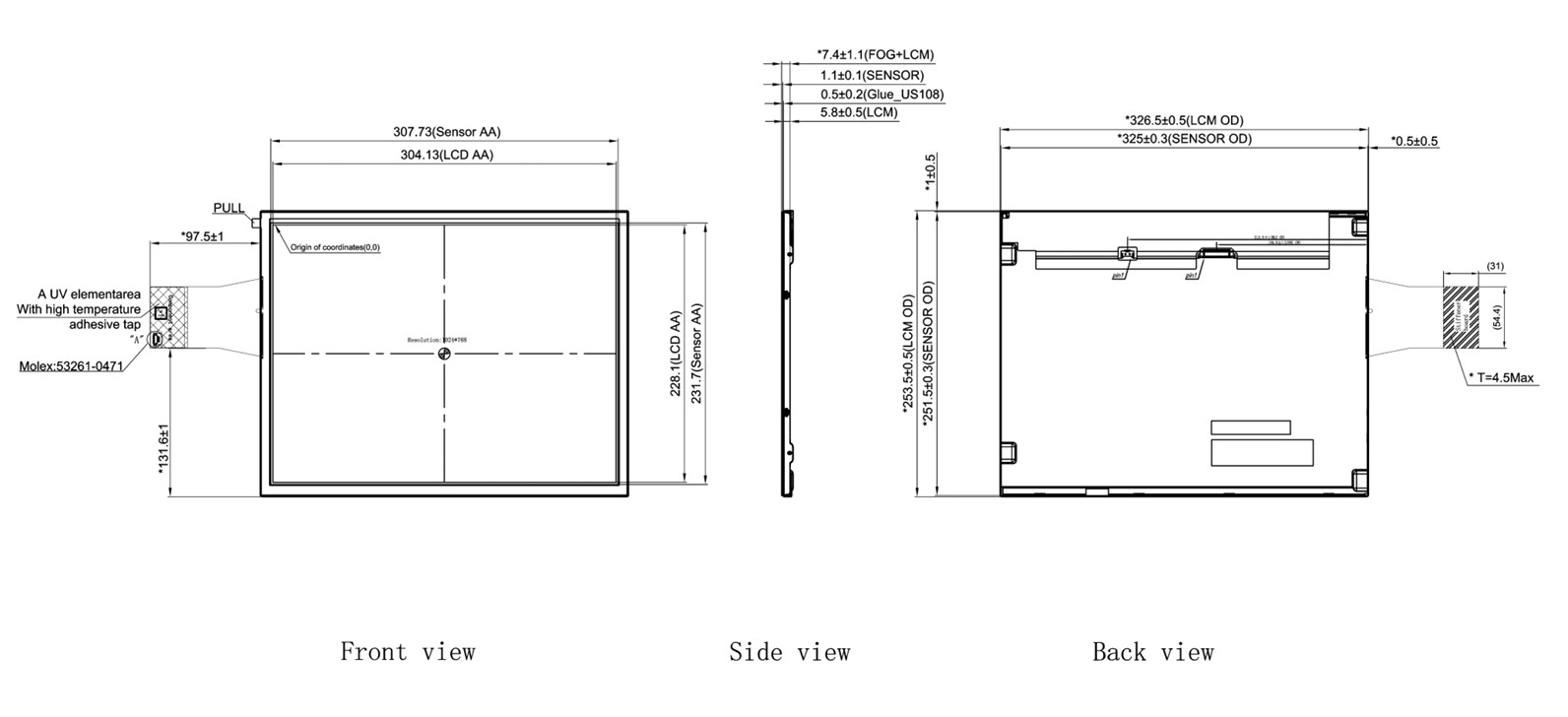

Drawing of FN1500T017A

Specifications

Parameter	Specification
SIZE	15.0 INCH
STRUCTURE	FOG+LCM
BONDING TYPE	OPTICAL BONDING
RESOLUTION	1024*768
COVER THICKNESS	/
TPM LUMINANCE	440 Typ. 350 Min
SENSOR THICKNESS	1.1
BONDING MATERIAL	OCR
TFT INTERFACE	LVDS
TOUCH INTERFACE	USB
TOUCH CONTROLLER	MXT1664T3
TFT DRIVER IC	/
COVER ENHANCEMENT METHOD	CHEMICAL STRENGTHENING
TFT POWER SUPPLY	3.3V
TOUCH POWER SUPPLY	5.0V
ENVIRONMENTAL REQUIREMENTS	RoHS-2.0, REACH
SURFACE HARDNESS	/
NO. OF TOUCH	10
OPERATION TEMPERATURE	55
LIGHT TRANSMITTANCE	88% Min
CHANNELS OF SENSOR	TX32RX42
STORAGE TEMPERATURE	55
UNIFORMITY	75% Min
UNMARKED TOLERANCE	±0.3/±1°
