What Does IK10 Mean for Displays?

The IK rating measures a device’s resistance to mechanical impact. IK10 is one of the highest protection levels, corresponding to 20 joules (20J) of impact energy.

For TFT LCDs and touch screens, achieving IK10 is not just about using thicker glass. It involves a complete system-level design, including:
  • Cover glass strength
  • Optical bonding structure
  • Mechanical reinforcement
  • Mounting method and stress distribution

In practice, IK10 is not a single material specification—it reflects a comprehensive impact-resistant design capability.

IK10 Testing and Validation

IK10 compliance is verified through standardized impact testing, such as:
  • Steel ball impact tests (defined weight and drop height)
  • Multi-point impact tests
  • Pendulum or drop impact tests

Key evaluation criteria include:
  • Whether the glass breaks
  • Whether touch functionality remains operational
  • Whether the display continues to function

Considering test requirements early in the design phase helps reduce development risks
IK code and impact energy (values changed in Amd 1:1998)
IK code IK00 IK01 IK02 IK03 IK04 IK05 IK06 IK07 IK08 IK09 IK10
Impact energy (joules) * 0.15 0.2 0.35 0.5 0.7 1 2 5 10 20

Key Design Factors for IK10 Touch Displays

To achieve IK10 rating, several critical design elements must be considered:


1. Cover Glass Design

  • Typical Thickness: ≥ 4mm (Optimized based on dimensions)
  • Material: Tempered Glass (typically ≥4mm) or Chemically Strengthened Glass (typically <4mm).
  • Surface Treatment: AG (Anti-Glare), AR (Anti-Reflection), and AF (Anti-Fingerprint) coatings.
  • Processing: Precision CNC Hole Drilling, custom shapes, and silk-screened Logos.

Tailored Engineering Support
We provide optimized recommendations for thickness, material selection, and surface finishes based on your specific application and display dimensions. Full customization is available for all mechanical and optical requirements.
10mm-Glass

2. Optical Bonding

  • Increases overall structural strength
  • Reduces risk of glass shattering under impact
  • Improves outdoor readability by reducing reflections

For IK10 projects, optical bonding is typically required


3. Mechanical Structure

  • Reinforced frame or metal bezel
  • Shock absorption design to reduce stress concentration
  • Proper integration between display module and enclosure

4. Mounting Method

  • Embedded mounting is more impact-resistant than floating designs
  • Front mounting improves anti-vandal performance
  • Often combined with sealing structures for IP protection

IK10 Touch Screen Technologies

Different touch technologies perform differently under IK10 requirements:

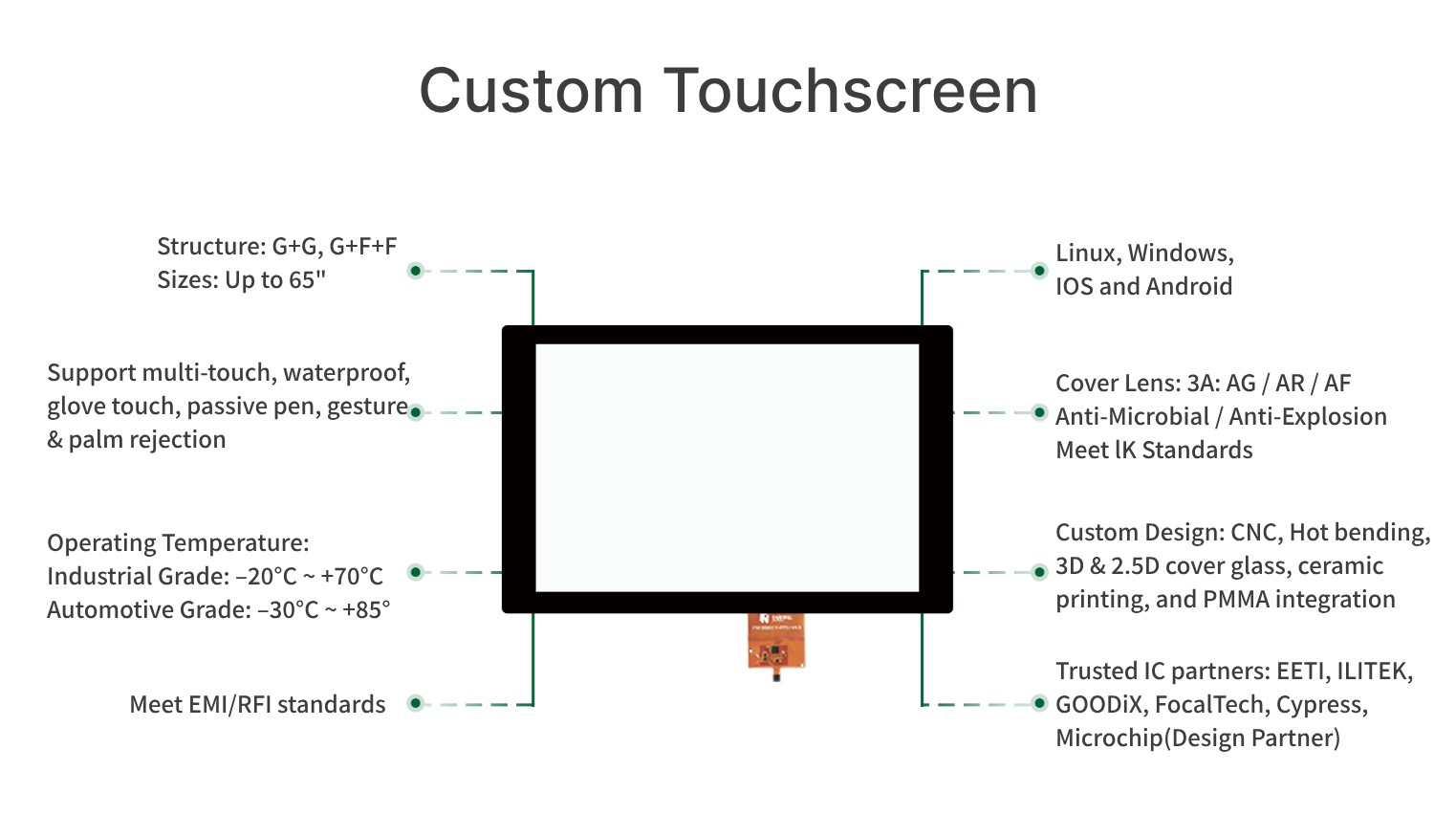

Custom Touchscreen

Resistive Touch

· Naturally impact-resistant
· Suitable for industrial environments
· Limited user experience (single touch, lower transparency)

PCAP (Projected Capacitive Touch)

· Most widely used solution
· Supports multi-touch and glove operation
· Requires thicker cover glass to meet IK10​​​​​​​
VIEW MORE >

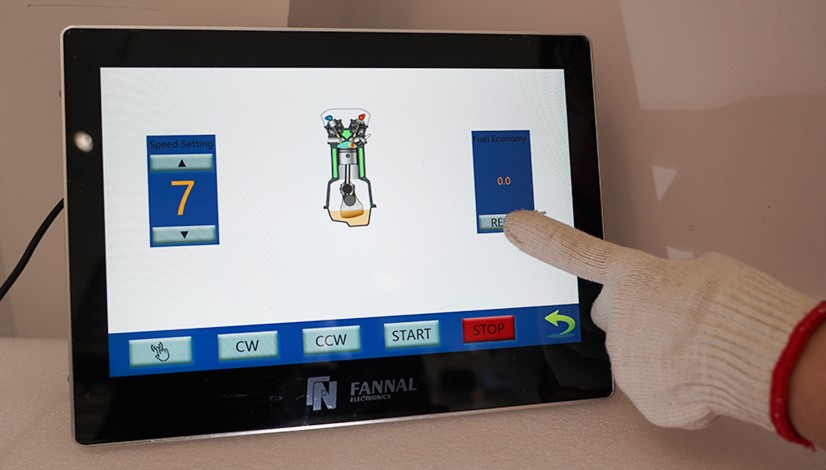

GLOVE TOUCH

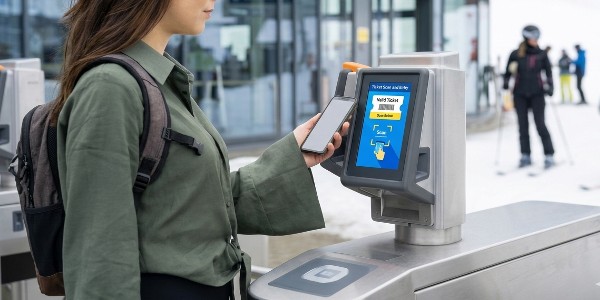

Access Control Gate Display Module

Typical Applications of IK10 Displays

IK10-rated displays are commonly used in environments with high risk of impact or vandalism:
These applications typically involve:
frequent use + potential physical impact or vandalism


IK10 vs IP Ratings: What’s the Difference?

IK and IP ratings are often required together but serve different purposes:
  • IK rating: protection against mechanical impact
  • IP rating: protection against water and dust

For example:
  • IK10 = impact resistance up to 20J
  • IP65 = dust-tight + water jet protection

In real projects, IK10 is often combined with IP65 or IP67

Key Design Factors for IK10 Touch Displays


IK10 displays are typically custom-designed based on application needs. We provide:
IK10 is not a standard product—it is a customized solution based on application requirements
ag

IK10 Display Customization Benefits

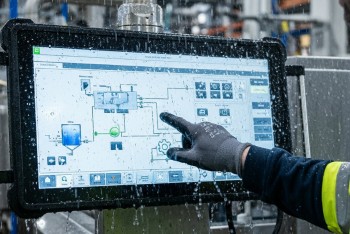

Why Waterproof Touch Matters
The main challenge of IK10 projects lies in system integration rather than individual components:
  • Mechanical structure and display integration
  • Touch sensor and cover glass coordination
  • Balancing optical performance and mechanical strength
  • Testing and certification support
  • Early-stage design consultation
  • IK rating feasibility evaluation
  • Prototyping and validation
  • Long-term supply and version control

FAQ

  • Q Can we provide IK10 testing?

    A
    Yes. Our facility can perform in-house IK10 impact tests. Testing includes steel ball impacts at standard heights and positions to verify glass strength and touch performance.

  • Q Is IK10 the same as vandal-proof?

    A
    No. IK10 is a standard rating; “vandal-proof” is an application description. A vandal-proof device may meet IK10, but IK10 only guarantees resistance to mechanical impact up to 20J.

  • Q Is IK10 suitable for all outdoor applications?

    A
    Not necessarily. IK10 only addresses impact resistance, not weatherproofing. Outdoor installations require IP protection, sunlight-readable brightness, and temperature tolerance in addition to IK10.

  • Q Can IK10 displays be customized for large sizes?

    A
    Yes, IK10 designs can be applied to screens larger than 32 inches. Large displays require thicker glass or reinforced frame structures to maintain IK10 protection across the entire surface.

  • Q How does temperature affect IK10 performance?

    A
    Extreme temperatures can affect touch sensitivity but not structural IK10 compliance. Display electronics and touch sensors need proper thermal management. IK10 rating strictly measures impact, not thermal resilience.

  • Q How does IK10 rating affect long-term display durability?

    A IK10 ensures impact resistance, extending the lifespan in high-risk environments. By withstanding shocks up to 20J, the display glass and touch sensors experience less mechanical stress, reducing maintenance and replacement needs.
