Reliable 10.1" Touch Display for Heavy-Duty Forestry Equipment

Engineered for extreme outdoor environments, this rugged HMI display delivers stable performance under vibration, wide temperature conditions, and direct sunlight exposure.

Home » Outdoor Display for Heavy-Duty Forestry Machinery

Project Overview

A global manufacturer of forestry harvesting systems required a high-reliability HMI display solution for heavy-duty logging machines operating in extreme outdoor environments.

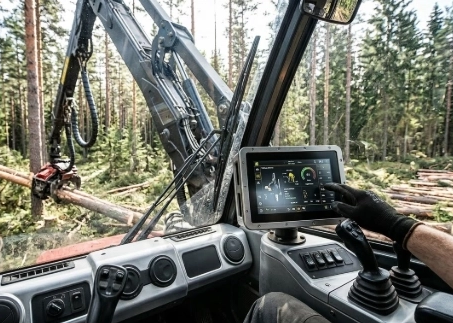

The system integrates dual 10.1-inch touch displays inside the cabin, serving as the primary interface for machine control, diagnostics, and real-time data visualization.

These machines operate in forests, open land, and harsh weather conditions, where standard commercial displays cannot ensure long-term stability.

Key Challenges in Forestry Environments

Forestry machinery presents a unique combination of mechanical, environmental, and optical challenges that demand highly specialized display solutions.

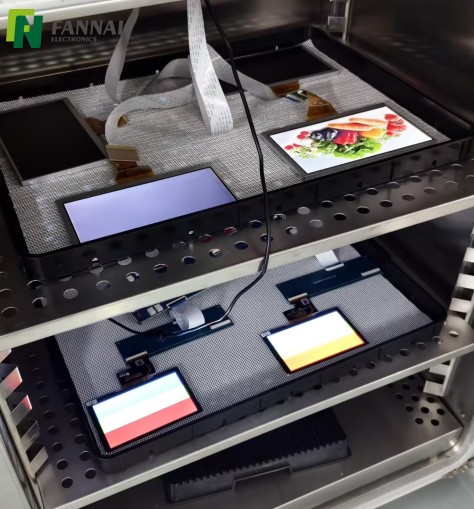

Display screen constant temperature experiment

1. Sunlight Readability in Semi-Outdoor Conditions
Forestry machines often operate at forest edges or in partially open areas, where displays are directly exposed to sunlight for extended periods. This requires stable visibility without contrast washout or reflection interference.

2. Extreme Operating Temperatures
Machines are deployed across different climate regions, requiring the display to function reliably from –30°C cold starts to high-temperature operation inside enclosed cabins during summer.

3. Continuous Shock and Vibration
Heavy-duty logging equipment generates constant mechanical vibration and sudden impact, especially during cutting and off-road movement.

4. Long-Term UV Exposure
Prolonged outdoor exposure can lead to material aging, yellowing, and optical performance loss. Proper UV protection is required to preserve display clarity and durability throughout its service life.

Talk to Our Experts

FANNAL Rugged Outdoor Display Solution

FANNAL delivered a reinforced 10.1-inch TFT + PCAP touch module, specifically engineered for forestry machinery environments.

Display Specifications

· Size: 10.1-inch industrial TFT
· Resolution: 1280 × 800 (WXGA)

· Technology: IPS wide viewing angle

· Brightness: 1000 nits high brightness

· Interface: LVDS (industrial-grade stable transmission)

· Operating temperature: –30°C to +80°C

Touch Panel Design

· Cover Glass: 3mm chemically strengthened glass
· Sensor Structure: 0.7mm DITO sensor
· Controller: Microchip maXTouch T1664T3
· Interface: USB
· Features:
Glove touch support
Strong EMI resistance
Stable performance under vibration

Optical Bonding

· Bonding Method: OCR optical bonding
· Compliance:

RoHS

REACH

· Benefits:

Minimized Reflections
Sunlight Readability
Zero Condensation
Rugged Stability

Reliable Operation in Heavy Machinery

System Stability in Harsh Conditions

The HMI system maintains stable operation under continuous vibration and mechanical impact, ensuring reliable performance in heavy-duty forestry machinery.
Outdoor Visibility & Environmental Durability

The display delivers clear readability in semi-outdoor and direct sunlight conditions, while maintaining long-term reliability under UV exposure and changing environments.
Consistent Touch Interaction

The system ensures accurate and responsive touch performance, even when operators wear gloves or operate in harsh working conditions.
