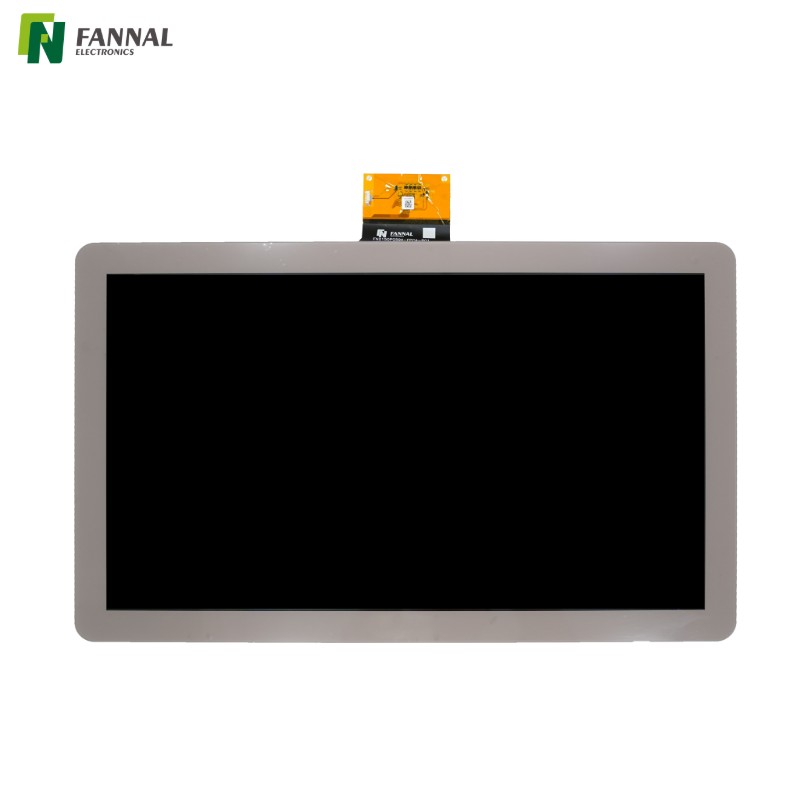

21.5″ Touch Display Module for Smart Gym Equipment

Name: 21.5″ Touch Display Module for Smart Gym Equipment
Brand: FANNAL
Rating: 5.0 (26 reviews)

21.5″ Full HD Touch Display Module for Gym & Fitness Equipment

Model:
FN2150P059A
Brand:
FANNAL
Size(inch):
21.5
Cover OD (mm):
527.64x319.1x2.75
Display AA(mm):
476.06*267.79
Operation Temp(℃):
0~+50
Storage Temp(℃):
-20~+60
Structure:
G+G
Resolution:
1920x1080
Display Interface:
LVDS
TP Interface:
USB
Brightness(cd/m²):
420

Quantity:
Availability:





Inquiry Add to Basket

Gym Touch Display 21.5″ Touch Display

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The 21.5-inch touch display module combines a Full HD IPS TFT LCD with projected capacitive touch technology, providing clear image performance and responsive multi-touch interaction for smart fitness and embedded control applications.

With a 1920 × 1080 resolution, LVDS display interface, and USB touch interface, this module is designed for stable integration into gym equipment, interactive terminals, industrial HMIs, and commercial smart devices. The IPS panel delivers wide viewing angles and consistent color performance, while the capacitive touch structure supports smooth and accurate user interaction.

FANNAL also supports customization services including cover glass modification, optical bonding, interface adjustment, touch tuning, and brightness optimization based on OEM project requirements.

Key Features

Full HD IPS Display

The 1920 × 1080 IPS panel provides sharp image quality, accurate color reproduction, and wide viewing angles for interactive user interfaces.

Capacitive Multi-Touch Technology

Projected capacitive touch supports smooth and responsive multi-touch interaction for modern smart equipment and commercial systems.

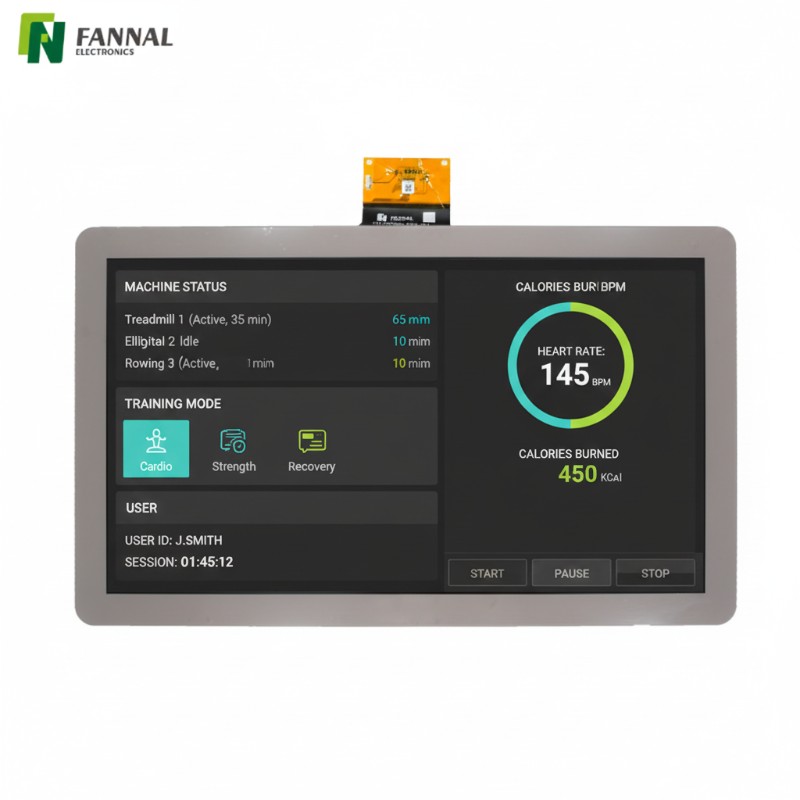

Optimized for Smart Gym Equipment

Designed for fitness consoles and training systems requiring stable touch operation, clear UI visibility, and continuous indoor usage.

Stable LVDS Interface

The LVDS display interface helps ensure reliable signal transmission and compatibility with embedded control platforms.

USB Touch Interface

USB touch connectivity simplifies integration with industrial PCs, Android systems, and embedded controllers.

Wide Viewing Angle IPS Panel

IPS technology maintains consistent image visibility from different viewing positions, suitable for shared or public-use equipment.

Durable Industrial Structure

The touch display module is suitable for high-frequency operation environments such as fitness equipment, kiosks, and industrial terminals.

OEM Customization Support

Optional customization includes optical bonding, cover lens treatment, interface conversion, touch firmware tuning, and mechanical structure adjustment.

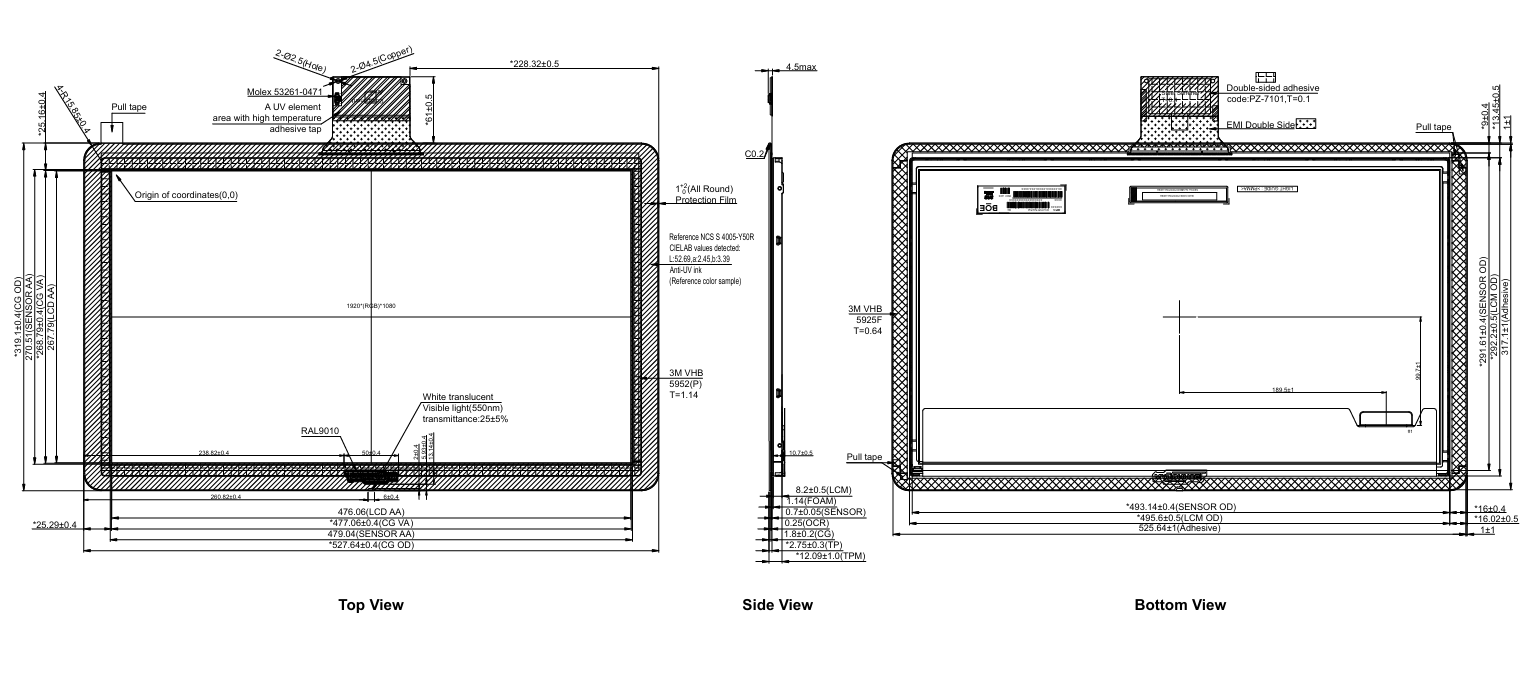

Drawing

Drawing-of-FN2150P059A

Specifications

Size(inch):	21.5
Module:	FN2150P059A
TFT LCD
Resolution:	1920*1080
Brightness（cd/m²）:	420Typ 400Min
Display interface:	LVDS
Panel type:	IPS
Touch panel
Touch type:	Capacitive touch
TP VA (mm):	477.06x268.79
Cover OD (mm):	527.64x319.1x2.75
TP Interface:	USB

Applications

Smart Gym Equipment

Suitable for treadmills, exercise bikes, rowing machines, and interactive fitness consoles requiring responsive touch operation and Full HD UI display.

Interactive Self-Service Kiosks

The large 21.5-inch touch interface supports intuitive user interaction in commercial kiosks and smart service terminals.

Industrial HMI Systems

Widely used in industrial control panels, automation terminals, and embedded monitoring systems requiring stable touch interaction.

Commercial Control Panels

Suitable for intelligent control systems, conference terminals, and building management interfaces.

Medical & Healthcare Devices

The IPS display and capacitive touch interface support medical monitoring systems and healthcare equipment with clear visualization requirements.

Smart Retail Equipment

Applicable to POS terminals, self-checkout systems, and digital service interfaces requiring durable touch functionality.

Case Study: Touch Display Solution for Smart Fitness Equipment

Customer Background

A fitness equipment manufacturer developing a new generation of smart treadmills and indoor cycling systems required a 21.5" Full HD touch display module to serve as the main user interface. The display needed to support interactive workout programs, media playback, and real-time training data.

Technical Challenges

Gym environments present several challenges for touch displays:

Frequent touch interaction during workouts
Sweat and moisture on the screen surface
Continuous operation for long periods in commercial gyms
Integration with the customer's embedded control system and UI software

The customer also required a large, clear display with stable touch response to improve user experience during exercise.

FANNAL Solution

FANNAL developed a 21.5" Full HD capacitive touch display module with IPS LCD and LVDS interface, providing clear visuals and wide viewing angles for fitness applications.

The solution included:

21.5" 1920×1080 IPS display for high-definition workout interfaces and video content
Projected capacitive multi-touch panel with USB interface for smooth interaction
Custom cover glass and mechanical alignment to fit the equipment design
Engineering support for system integration and touch tuning

Result

The customized touch display module enabled the customer to create an intuitive and responsive training interface, allowing users to easily select programs, track performance data, and interact with fitness apps.

The solution is now deployed in commercial gym equipment, improving user engagement and enhancing the overall workout experience.

| Customization & Engineering Capabilities

FANNAL provides complete customization services for touch display modules, covering LCD panel selection, touch sensor design, optical bonding integration, and system-level engineering support.

Our in-house engineering and manufacturing teams support projects from prototype development to mass production, helping customers integrate reliable touch displays into industrial equipment, medical devices, and embedded systems.

Custom Display Options

LCD Panel Selection

We support flexible LCD panel selection based on different project requirements.

Size range: 1.77" – 15.6"
Panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, TIANMA
Display types: IPS / TN / LTPS
Operating temperature options
- Industrial grade: –20°C ~ 70°C
- Automotive grade: –30°C ~ 85°C

Engineering support includes panel selection, display interface matching, and module integration.

Interface & Signal Integration

FANNAL provides interface customization to ensure compatibility with different embedded platforms.

Supported display interfaces include:

SPI
MCU
RGB
MIPI
LVDS
eDP

Our engineers optimize signal routing, EMI shielding, and interface stability for reliable operation.

Backlight Customization

Backlight systems can be customized based on brightness and application requirements.

Module materials: metal / plastic / hybrid structures
High brightness options: up to 30,000 cd/m²
Typical lifetime: up to 50,000 hours

This enables reliable performance in industrial equipment, outdoor devices, and high-brightness environments.

Custom Touchscreen Options

Touch Sensor Design

FANNAL designs projected capacitive touch sensors tailored for different environments.

Structure options: G+G, G+F+F
Multi-touch support
Waterproof touch
Glove touch
Passive stylus support
Gesture and palm rejection

Operating temperature options:

Industrial: –20°C ~ +70°C
Automotive: –30°C ~ +85°C

Touch Controller & Firmware Optimization

Touch performance is optimized through in-house firmware tuning and signal calibration.

Supported controller partners include:

EETI, ILITEK, GOODiX, FocalTech, Cypress, and Microchip (FANNAL design partner).

Engineering capabilities include:

Touch signal optimization
Anti-interference design
EMI / EMC engineering
Long-term touch stability

Optical Bonding Integration

FANNAL provides several optical bonding technologies to improve display performance and durability.

Bonding Type	Size Range	Advantages
OCA Bonding	Up to 15.6"	Automated production for high-volume manufacturing
LOCA / OCR Bonding	Up to 32"	High optical clarity and durability
Silicone Bonding	Up to 32"	Ideal for rugged industrial applications

Optical bonding enhances:

sunlight readability
display contrast
impact resistance
long-term reliability

System Integration Support

Beyond module manufacturing, FANNAL supports system-level integration to help customers accelerate product development.

Engineering services include:

Touch display module design
Mechanical structure alignment
FPC and connector customization
EMI / EMC optimization
Industrial reliability validation

This integrated approach allows customers to deploy fully customized touch display solutions for industrial and embedded applications.

| FAQ

Q1: Is this display only suitable for gym equipment?
No. While optimized for smart gym and fitness systems, this display module is designed as a configurable platform and can be adapted for various embedded and industrial applications.

Q2: Can the brightness or interface be customized for different projects?
Yes. Brightness level, interface type, touch configuration, and mechanical structure can be customized based on specific system requirements.

Q3: Is this display suitable for continuous operation?
Yes. The module is designed for stable performance in commercial and industrial environments with long daily operating hours.

Q4: What type of touch technology is supported?
Projected capacitive touch is supported, with options for different cover glass thicknesses and surface treatments.

Q5: Can this display be integrated into existing control systems?
Yes. The LVDS interface allows straightforward integration with a wide range of embedded and industrial control boards.
