Can sunlight readable LCDs be customized for specific applications?

Yes. Customization options typically include display size, brightness level, touch integration, optical bonding methods, surface treatments, cover glass design, interfaces, and mechanical adaptations to meet application-specific requirements.

What environmental factors should be considered when selecting a sunlight readable LCD?

In addition to brightness requirements, factors such as operating temperature, humidity, UV exposure, vibration, and installation angle should be evaluated to ensure long-term display performance and reliability.

Can sunlight readable LCDs be used with capacitive touch screens?

Yes. Sunlight readable LCDs can be integrated with PCAP touch solutions, including features such as glove touch, waterproof operation, and custom cover glass configurations for outdoor applications.

Do higher brightness displays consume significantly more power?

Higher brightness levels generally require increased power consumption. However, factors such as efficient backlight design, adaptive brightness control, and application-specific brightness tuning can help optimize overall energy usage.

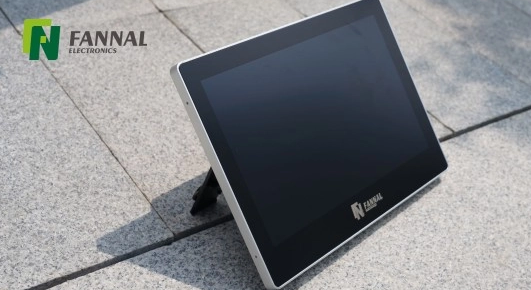

Sunlight Readable LCD Displays for Outdoor Applications

Engineered for visibility in bright environments, FANNAL sunlight readable LCD displays combine high brightness, optical bonding, and industrial-grade reliability to deliver clear images under direct sunlight and challenging outdoor conditions.

Home » Sunlight Readable LCD Display

What Is a Sunlight Readable LCD?

A sunlight-readable LCD is specifically designed to maintain clear visibility in bright ambient environments, including direct sunlight. Unlike standard displays that may appear washed out outdoors, sunlight-readable displays use a combination of high-brightness backlights, optical enhancements, and reflection reduction technologies to improve readability.

For industrial equipment, transportation systems, medical devices, and outdoor kiosks, sunlight readability directly impacts usability, safety, and operational efficiency.

FANNAL TFT PRODUCT ROADMAP-Version 3.pdf

Product List of Available Sunlight Readable LCD

Product Name	Model	Size(inch)	Resolution	Operation Temp(℃)	Storage Temp(℃)	Brightness(cd/m²)
6.2 inch IPS TFT display MIPI interface motorbike application LCD	FN0620D003B	6.2	1024×600	-20~70	-30~80	1500
10.25 " In-Cell Touch Display 1920×720 \| Automotive Display	FN1025D006A	10.25	1920x720	-40~85	-40~90	1000
10.25" Wide-Temp Industrial TFT LCD \| 1280×800 LVDS	FN1025D002A	10.25	1280x800	-30~85	-40~90	1000
6.86 Inch MIPI Bar Type TFT LCD Display Module with 1000 nits	FN0686D004C	6.86	480×1280	-20~65	-30~80	1000
10.3 Inch 1920×720 High Brightness IPS TFT Panel Module	FN103TPM	10.3	1920x720	-30~85	-40~90	1000
4.3 Inch TFT Display 480*272 IPS LCD for Outdoor Hand-held Devices	FN0430D032B	4.3	400x272	-20~70	-30~80	900
7.84 Inch Bar Type TFT Display 400*1280 IPS LCD Panel	FN0784D002A	7.84	400x1280	-20~70	-30~80	1000
3.9 Inch High Brightness TFT Display Module (480×128)	FN0390T003A	3.9	480×128	-20~70	-30~80	800
6.2 inch TFT display 1024*600 high brightness automotive application LCD	FN0620D002C	6.2	1024×600	-30~80	-30~85	1500
6.86 Inch TFT LCD Display 480×1280 LVDS High Brightness 900 nits	FN0686D005A	6.86	480×1280	-20~70	-30~80	900

How Many Nits Are Needed for Sunlight Readability?

The ideal brightness level depends on the application environment.

Environment	Recommended Brightness
Indoor applications	250–500 nits
Bright indoor environments	500–800 nits
Semi-outdoor environments	800–1000 nits
Direct sunlight exposure	1000–1500 nits
High ambient sunlight	1500–2500 nits
Extreme outdoor conditions	2500–3000 nits

Brightness is important, but technologies such as optical bonding and reflection reduction also play a critical role in achieving sunlight readability..

What Makes an LCD Sunlight Readable?

High-Brightness Backlighting

Sunlight-readable LCDs rely on high-brightness backlights to maintain visibility in bright environments. FANNAL supports brightness options up to 3000 nits for various outdoor applications.

• Improved visibility under direct sunlight
• Better readability in outdoor environments

Optical Bonding Technology

Optical bonding removes the air gap between the LCD and cover glass, reducing reflections and improving display performance outdoors.

• Reduced internal reflections
• Improved contrast in sunlight conditions
• Enhanced durability and condensation resistance

AR & AF Surface Treatments

AR and AG surface treatments help minimize reflections and improve viewing comfort in changing lighting conditions.

• Reduced glare from ambient light

• Improved perceived image quality

• Enhanced outdoor readability

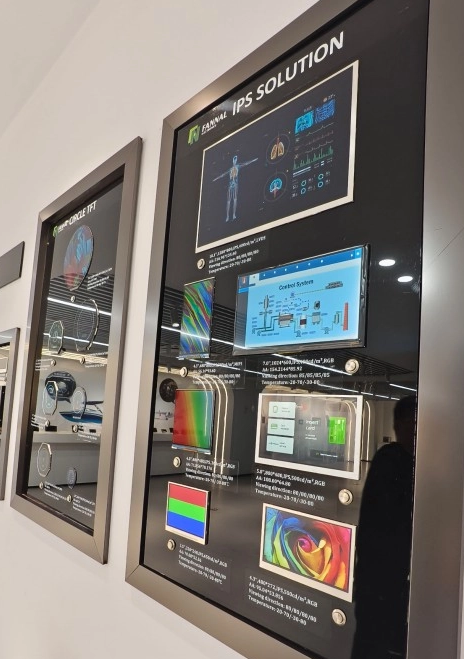

IPS Wide Viewing Angles

IPS technology ensures consistent image quality across wide viewing angles, making displays easier to read from different positions.

• Stable image performance from off angles
• Improved usability for multiple users
• Better visibility in industrial applications

Applications of Sunlight Readable LCD Displays

Sunlight-readable LCDs are widely used in applications that require reliable visibility in bright environments.

Outdoor Self-Service Kiosks: Ensure clear user interaction throughout the day, even under direct sunlight.
Industrial HMI Systems: Support operators working in factories with strong ambient lighting and varying viewing positions.
EV Charging Stations: Provide excellent readability for users in outdoor charging environments.
Agricultural Equipment: Improve visibility for operators using tractors and heavy machinery outdoors.
Transportation Systems: Support vehicle-mounted displays and passenger information systems requiring reliable outdoor performance.
Medical Equipment: Enable portable and mobile medical devices to remain readable in diverse operating conditions.

High Brightness vs. Sunlight Readable LCD

High brightness alone does not automatically make a display sunlight readable.
A true sunlight readable LCD combines multiple technologies, including:

• High-brightness backlighting
• Optical bonding
• Anti-reflective surface treatments
• Wide viewing angle technologies
• Industrial-grade environmental reliability

Without these enhancements, increasing brightness alone may result in higher power consumption and heat generation while offering limited improvement in outdoor visibility.

Need a Custom Sunlight Readable Display Solution?

To meet the demanding requirements of outdoor and high-ambient-light applications, FANNAL provides comprehensive customization services to optimize display visibility, durability, and usability.

High-Brightness LCD

Display sizes from 1.77" to 15.6"
Brightness options up to 3000 nits
IPS, TN, and LTPS panel technologies
Industrial (-20°C to +70°C) and automotive (-30°C to +85°C) temperature support
Long-life backlight designs up to 50,000 hours

Optical Bonding & Surface Treatments

OCA bonding up to 15.6"
LOCA/OCR and Silicone bonding up to 32"
AG (Anti-Glare), AR (Anti-Reflective), and AF coatings
Reduced reflections and improved outdoor contrast
Enhanced durability and condensation resistance

Outdoor Touch Integration

PCAP touch screens up to 65"
Multi-touch, glove touch, and waterproof operation
G+G and G+F+F structures available
Touch IC options from Microchip, EETI, ILITEK, and more
EMC-optimized design for stable performance

Rugged Cover Glass Customization

Glass, PMMA, and PC material options
2.5D/3D cover glass and custom shapes
Silk-screen and ceramic printing
IK impact protection options
UV-resistant and anti-microbial treatments

Talk to Our Experts

FAQ About Sunlight-Readable LCD

Q Can sunlight readable LCDs be customized for specific applications?

A Yes. Customization options typically include display size, brightness level, touch integration, optical bonding methods, surface treatments, cover glass design, interfaces, and mechanical adaptations to meet application-specific requirements.
Q What environmental factors should be considered when selecting a sunlight readable LCD?

A In addition to brightness requirements, factors such as operating temperature, humidity, UV exposure, vibration, and installation angle should be evaluated to ensure long-term display performance and reliability.
Q Can sunlight readable LCDs be used with capacitive touch screens?

A Yes. Sunlight readable LCDs can be integrated with PCAP touch solutions, including features such as glove touch, waterproof operation, and custom cover glass configurations for outdoor applications.
Q Do higher brightness displays consume significantly more power?

A Higher brightness levels generally require increased power consumption. However, factors such as efficient backlight design, adaptive brightness control, and application-specific brightness tuning can help optimize overall energy usage.
