Heavy Machinery Outdoor Touch Display Solutions

By upgrading from a GFF to a G+G structure with specialized UV and thermal management, the failure rate in the field was significantly reduced, ensuring consistent touch performance for operators in the forestry, construction, and mining sectors.
Home » Heavy Machinery Outdoor Touch Display Solutions

Project Overview

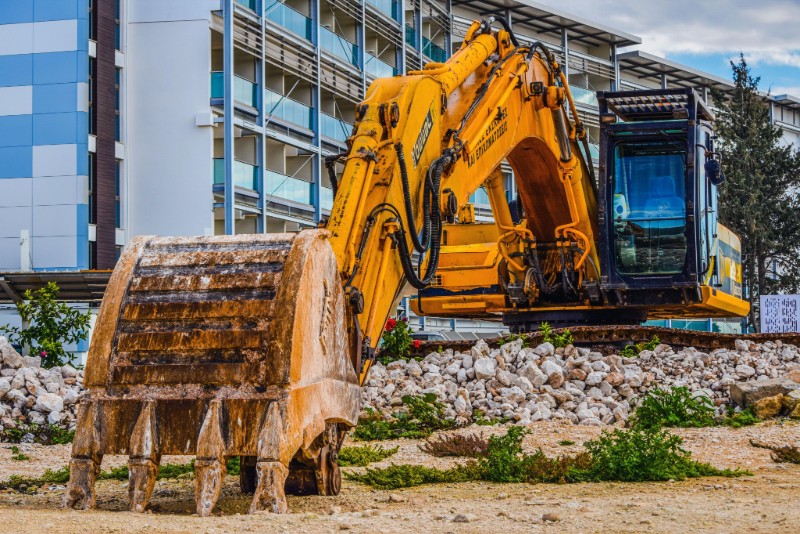

FANNAL collaborated with a leading global heavy machinery manufacturer producing medium and small excavators for markets in China, Europe, India, and Brazil. The project required touch display solutions that could withstand extreme outdoor environments while maintaining high precision and durability.

Key Requirements:
  • Outdoor performance under complex climatic conditions
  • High reliability in industrial applications
  • Integration with irregular instrument panel designs


Key Challenges in Heavy Machinery Display

Strong UV Exposure


Continuous sunlight requires UV-resistant inks and bonding materials to prevent yellowing or peeling.

Irregular Panel Integration


Custom CNC cutting for non-standard angles and shapes to fit complex instrument clusters.

High-Precision Touch in Harsh Conditions


Maintain accurate touch under gloved operation, wet surfaces, and strong EMI interference.

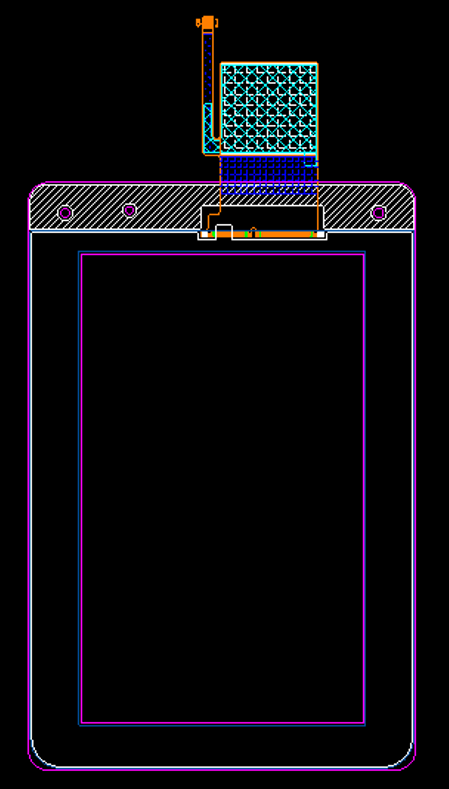

Solution – 10.4" Central Dashboard Touch Display

 Product Structure:
  • G+G (Glass + Glass) structure offers higher optical clarity and mechanical strength than traditional GFF.
 Cover Glass & Surface Treatment:
  • 1.8mm soda-lime glass, chemically strengthened
  • Black UV-resistant silk screen printing
  • Pre-cut IR and transparent holes for sensors
 Sensor:
  • 0.55mm ITO glass, dual-side anti-glare treatment, resistance 60–90Ω
  • Precision silk screen + laser processing
 Cutting & Assembly:
  • Custom CNC irregular cut for instrument panel integration
  • Bonded with UV-resistant SCA adhesive, blocking 97%+ UV, suitable for -40°C to +90°C
 Core Controller:

Proven Results of This Heavy Machinery Outdoor Touch Display

  • Annual shipment: 40,000 sets
  • Solved traditional outdoor display issues: yellowing, touch drift, and failure in extreme conditions
  • Upgraded structure from GFF → G+G + UV-resistant materials improved lifespan in harsh climates
  • Successfully deployed across China, Europe, India, and Brazil, demonstrating global reliability

Request a Solution for Heavy Machinery Applications

Facing touch failure, yellowing, or instability in outdoor environments? We can help you solve it. Tell us your environment, size, and requirements — our engineers will propose a tailored solution.
