17.3 Inch TFT Touch Display with eDP Interface

17.3 Inch Touch Display | 1920×1080 | eDP Interface | Optical Bonding

Model:
FN1730T007A
Size(inch):
17.3
Cover OD (mm):
409.3*276.8*6.65
Operation Temp(℃):
-0~+50
Storage Temp(℃):
-20~+60
Structure:
G+G
Display Interface:
eDP
TP Interface:
USB
Brightness(cd/m²):
410

Quantity:
Availability:





Inquiry Add to Basket

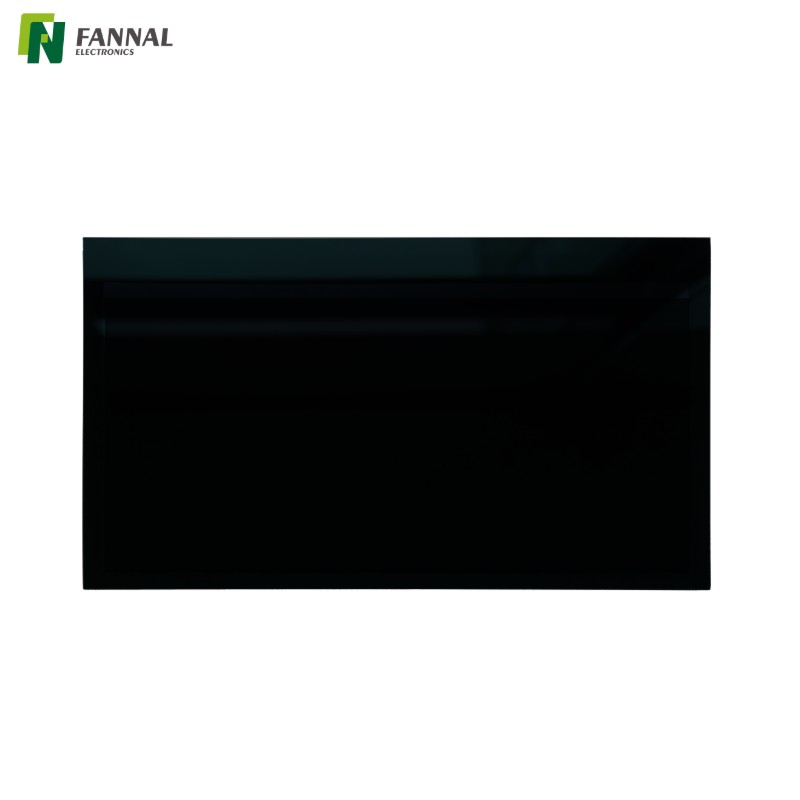

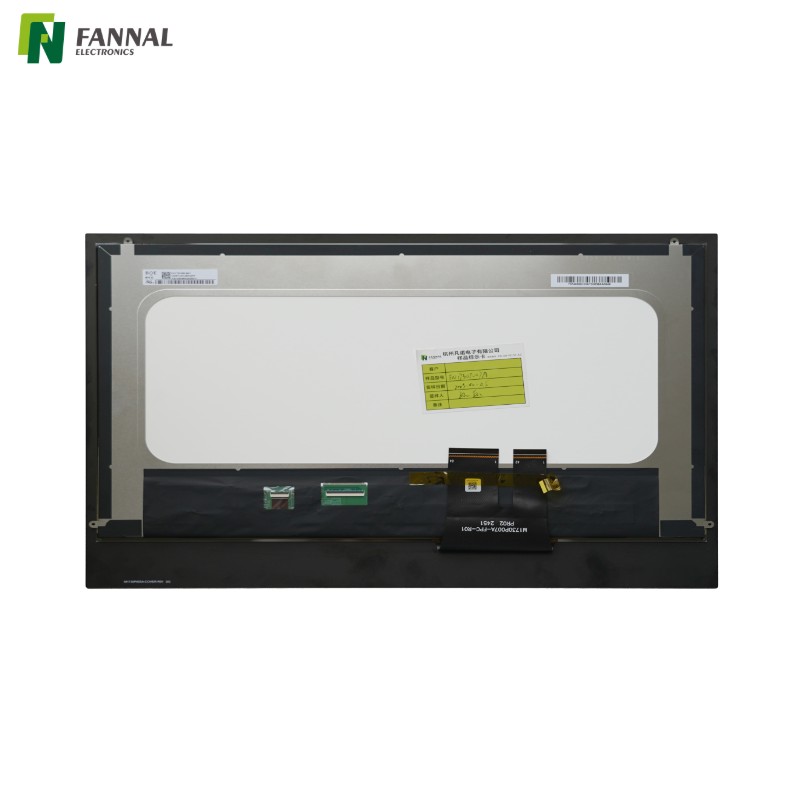

17.3 Inch TFT Touch Display

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

This 17.3-inch touch display is designed for PC-based and embedded systems that require high-resolution output, simplified signal routing, and reliable touch interaction.
With a full HD resolution and eDP interface, the display integrates easily with x86 platforms, single-board computers, and industrial PCs commonly used in modern HMI and terminal applications.

The USB-based 10-point capacitive touch supports intuitive multi-touch interaction without additional controllers, while the optical bonding structure enhances visual clarity and mechanical stability.
Combined with a robust glass structure and consistent optical performance, this display is well-suited for indoor applications such as kiosks, industrial workstations, medical terminals, and embedded control systems.

Designed for long-term integration, the module provides a balanced solution for projects prioritizing system compatibility, clean mechanical design, and dependable performance in controlled environments.

Key Advantages

Direct Compatibility with PC Platforms
eDP is natively supported by most modern x86 motherboards, industrial PCs, and SBCs, eliminating the need for LVDS-to-eDP conversion boards.
Simplified Cabling and Assembly
Compared to multi-pair LVDS wiring, eDP uses fewer signal lines, reducing cable complexity and improving overall system reliability.
Better Support for High-Resolution Displays
eDP handles full HD and higher resolutions more efficiently, making it well suited for large-format displays and information-rich interfaces.
Improved Signal Integrity
Packet-based transmission and embedded clocking help maintain stable image quality over longer connections in PC-based systems.
Lower Integration Risk for System Designers
Using eDP aligns with current PC display standards, helping reduce development time and long-term maintenance concerns for embedded and industrial projects.
Future-Oriented Interface Choice
eDP is widely adopted in modern display architectures, offering better long-term availability compared to legacy LVDS solutions.

Drawing

Specifications

Category	Item	Specification
Display	Size	17.3 Inch
	Resolution Ratio	1920x1080
	Luminance (TPM)	410 Typ. 320 Min.
	TFT Interface	eDP
	TFT Driver IC	/
	Power Supply of TFT	3.3V
Touch	Structure	G+G
	Touch Interface	USB
	No. of Touch	10
	Surface Hardness	7H Min.
	Power Supply of Touch	5.0V
Construction	Cover Lens Thickness	2.0mm
	Sensor Thickness	0.7mm
	Bonding Type	Optical Bonding
	Bonding Material	OCA
	Light Transmittance	85% Min.
Environment	Operation Temperature	0 ~ +50°C
	Storage Temperature	-20 ~ +60°C
	Environmental Requirements	RoHS-2.0

Applications

Industrial PC & All-in-One Systems

Designed for industrial PCs and all-in-one terminals where native eDP output and USB touch integration simplify system design. The large 17.3-inch display supports complex HMI layouts and multi-window operation in factory control rooms and workstations.

Self-Service & Interactive Kiosks

Well suited for indoor kiosks such as information terminals, check-in systems, and service stations. The full-size touch interface enables intuitive user interaction, while optical bonding improves visual clarity and durability for continuous daily use.

Medical Terminals & Clinical Workstations

Applicable to medical carts, diagnostic terminals, and non-critical clinical interfaces where stable display performance and responsive touch interaction are required in controlled indoor environments.

Embedded PC-Based Control Panels

A practical choice for embedded control systems using x86 or SBC platforms, supporting clean integration without additional display conversion hardware.

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Q1. Which types of motherboards can this display connect to?

This display is designed to work with PC motherboards, industrial PCs, and single-board computers that provide native eDP output.

Q2. Is a signal conversion board required?

No. When the host system supports eDP output, the display can be connected directly without LVDS-to-eDP conversion boards.

Q3. How is the touch function integrated into the system?

The capacitive touch panel uses a standard USB interface, allowing it to be recognized as a HID device by most operating systems without additional drivers.

Q4. Is this display suitable for long-term industrial deployment?

Yes. The module is designed for continuous operation in indoor and controlled environments, making it suitable for long-term industrial and professional applications.

Q5. Can this display be customized for project requirements?

Customization options such as cover glass treatment, mechanical adaptation, and cable configuration can be evaluated for OEM and ODM projects.
