10-inch Touch Display Module designed for precision and durability performance.

10-inch Touch Display Module designed for precision and durability performance.

Model:
FN10100068A
Cover OD (mm):
254.96x172.6x1.1
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Display Interface:
LVDS
TP Interface:
USB
Resolution:
1280x800
Brightness(cd/m²):
380

Quantity:
Availability:





Inquiry Add to Basket

10 inch display 10 inch touchscreen 10 inch lcd 10 inch industrial display

Product Features

Product Drawing

Specification

Add Ons

Product Application

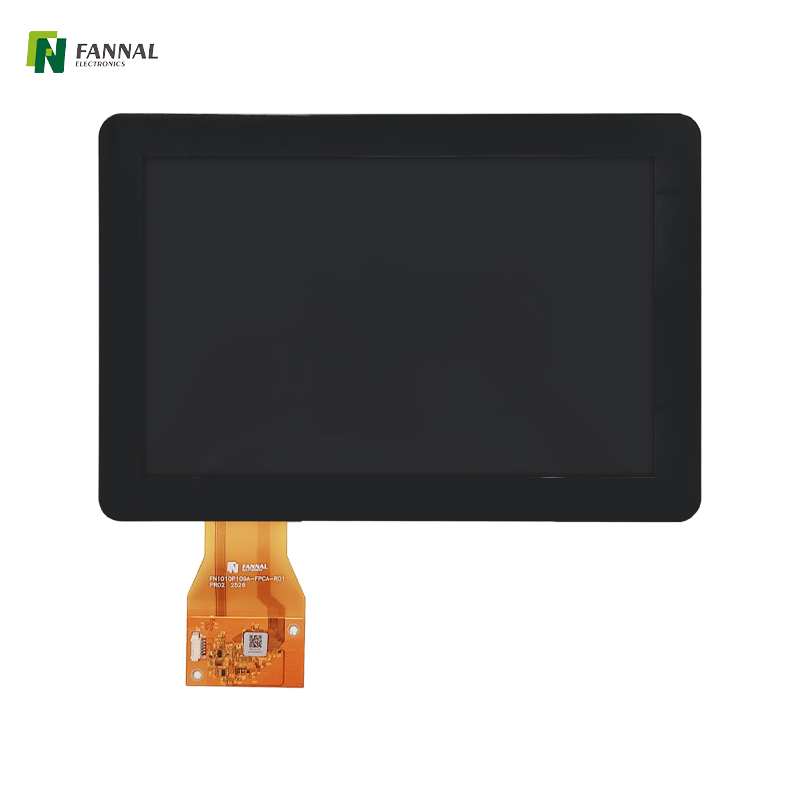

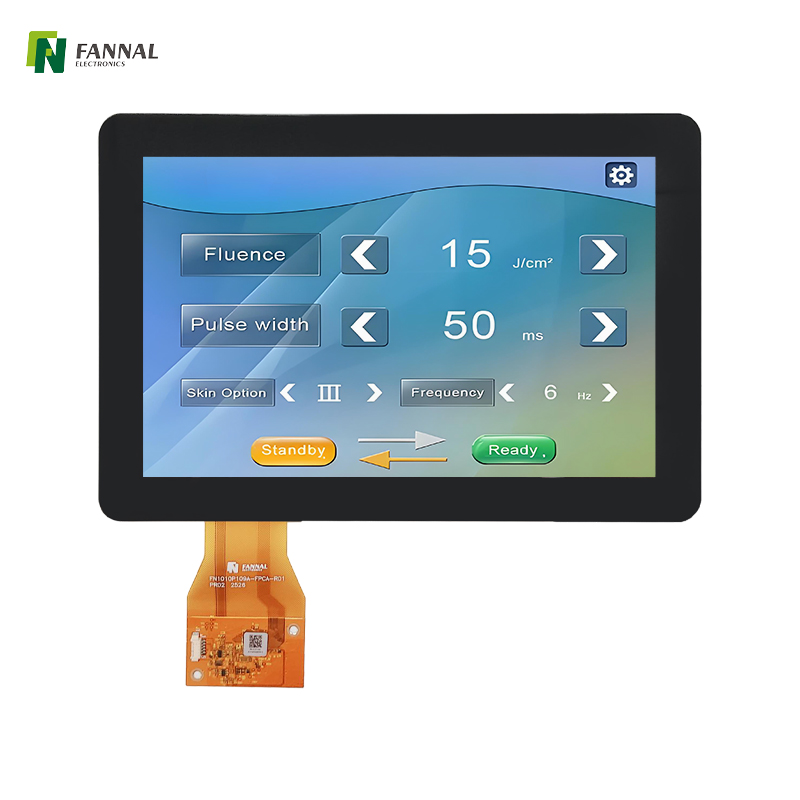

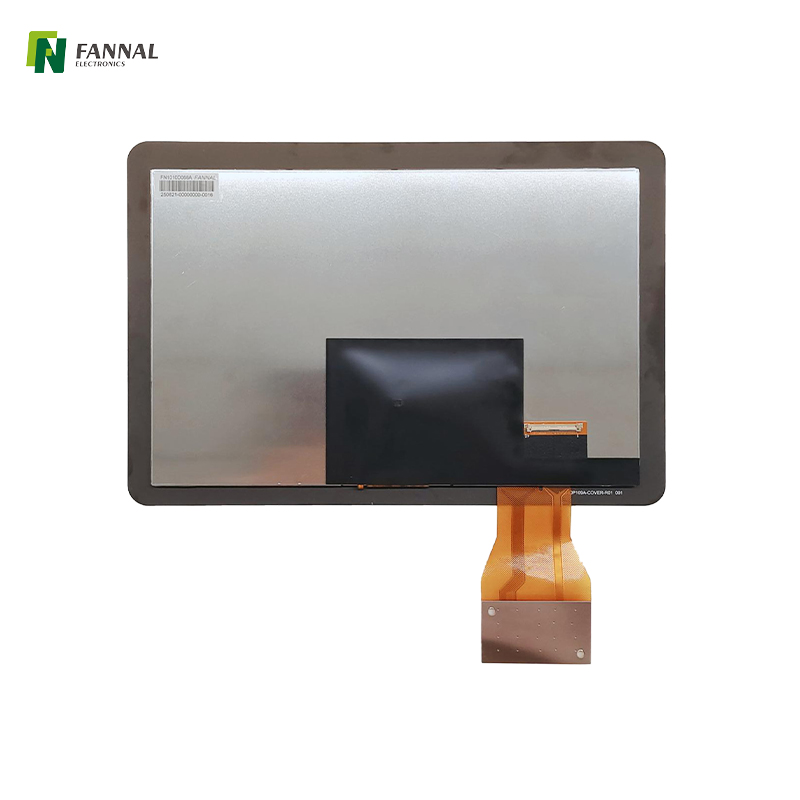

Take your projects to the next level with the FN10100068A 10-inch Touch Display Module—designed for precision, durability, and exceptional performance.

Why Choose this module?

Crisp Resolution: 1280x800 for stunning clarity and detail.
Bright Display: 380 nits luminance ensures perfect visibility, even in bright environments.
Seamless Interaction: 5-point capacitive touch with USB interface for smooth, responsive control.
Durable Design: G+G structure with a surface hardness of 7H Min., built to withstand daily wear and tear.
Wide Compatibility: LVDS TFT interface with air bonding for reliable performance.
All-Weather Reliability: Operates flawlessly in extreme temperatures ranging from -20°C to +70°C.

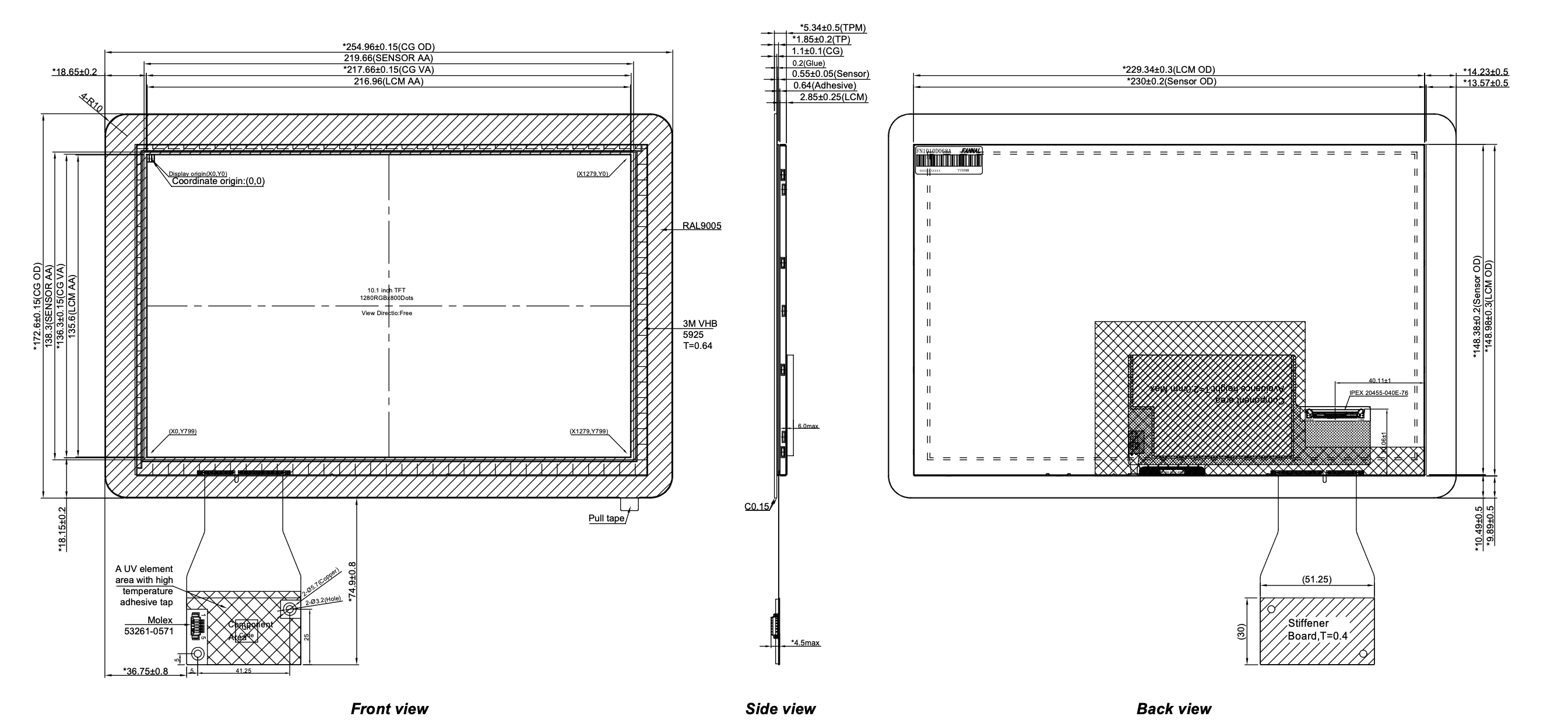

FN1010D068A

General Specifications：

Size(inch):	10.1
Module:	FN10100068A

TFT LCD
Resolution:	1280x800
Brightness（cd/m²）:	380
Display interface:	LVDS
Panel type:	IPS

Touch panel
Touch type:	Capacitive touch
TP VA (mm):	217.66x136.3
TPM Outline Size(mm):	254.96x172.6x5.34
TP Interface:	USB

Customization

COVER LENS:

Shape: cut in special shape, Printing: Silk printing/Ceramic printing, Material: PMMA/Glass, Thickness: 0.55mm~10.0mm, Surface treatment: AG, AR, AF, AB.

Sensor:

Sensor made by FANNAL,Narrow bezel design,Thickness selectable.

FPC:

Required shape available, Touch IC selectable, Interface selectable.

Bonding:

Air bonding/optical bonding, low reflection, All one black effect.

TFT Display:

In house manufacture/sunlight readable display/wide temperature display, IPS TFT display, Automotive grade display.

Add-on:

backlight board, AD board, wire sets.

Application

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
