Is 1920×1080 better than 4K for industrial applications?

Not necessarily. While 4K offers higher detail, it also increases cost and power consumption. 1920×1080 is often the more practical choice for most industrial use cases.

Can 1920×1080 TFT displays be used outdoors?

Yes, but additional enhancements are required. High brightness, optical bonding, and anti-reflection treatments are essential for maintaining visibility in sunlight.

Does higher resolution increase power consumption?

Yes. Higher resolution panels require more processing power and backlight support, which can increase overall system power consumption compared to lower-resolution displays.

What interface is commonly used for 1080p TFT modules?

MIPI, LVDS, and HDMI are commonly used depending on system architecture. MIPI is typical for compact embedded systems, while HDMI is often used for easier integration.

Is 1920×1080 suitable for small-size TFT displays?

Not always. On smaller screens, high resolution increases pixel density but may reduce UI readability without proper scaling. It is more suitable for 10.1 inches and above.

1920×1080 TFT LCD Display | Full HD Industrial Modules

1920×1080 TFT LCD Display Modules (Full HD Solutions)

Compared with lower resolutions, Full HD displays provide clearer graphics, improved readability, and better support for complex UI layouts. FANNAL offers a range of 1920×1080 TFT LCD modules with options for touch integration, high brightness, and optical bonding.

Home » 1920×1080 TFT LCD Display

What is a 1920×1080 TFT LCD Display?

A 1920×1080 TFT LCD is a Full HD flat-panel display that uses TFT technology to provide high-quality imagery.

Here is the breakdown:

1920×1080 Resolution: It contains 2,073,600 pixels in a 16:9 aspect ratio. This is the industry standard for high-definition clarity.
TFT (Thin-Film Transistor): An active-matrix technology where each individual pixel is controlled by its own transistor. This results in faster response times, higher contrast, and sharper text compared to older LCD types.
LCD (Liquid Crystal Display): The base technology that uses liquid crystals and a backlight (usually LED) to create images.

Why it is widely used:

Clarity: It provides enough detail for complex data, schematics, and high-quality video.
Reliability: Industrial versions are built for 24/7 operation and extreme temperatures.
Versatility: It is the "sweet spot" for balancing high resolution with reasonable processing power requirements for industrial controllers.

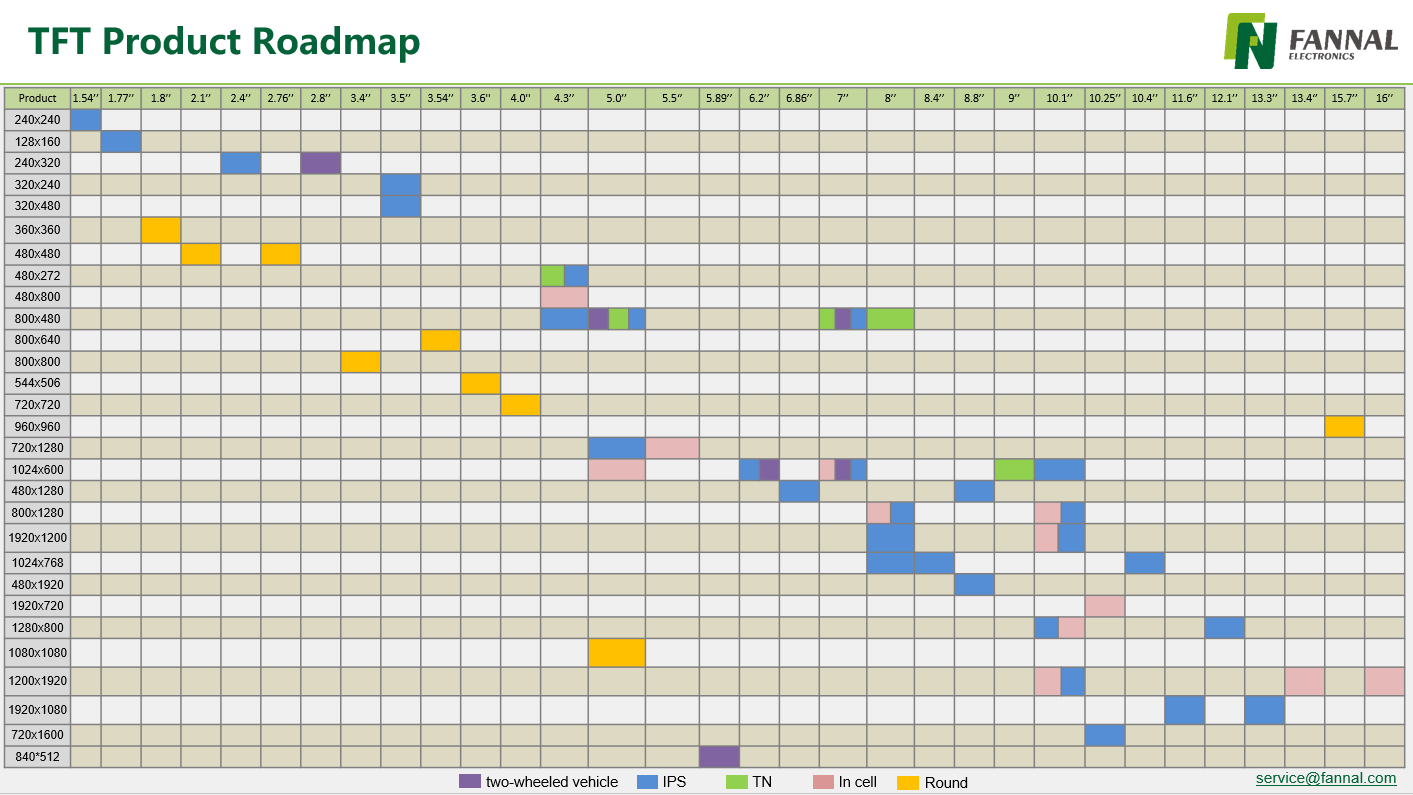

FANNAL TFT PRODUCT ROADMAP-Version 3.pdf

Product List of Available 1920×1080 TFT LCD Modules

Product Name	Model	Size(inch)	Resolution	Operation Temp(℃)	Storage Temp(℃)	Brightness(cd/m²)
17.3 Inch TFT Touch Display with eDP Interface	FN1730T007A	17.3	1920×1080	-0~+50	-20~+60	410
13.3 inch TFT display 1920x1080 resolution with capacitive touch screen	FN133TPM	13.3	1920x1080	-20~70	-20~70	400
15.6" Industrial Embedded Touch Monitor with 10-Point Capacitive Touch	FN1560M001A	15.6	1920×1080	-20~70	-20~70	340
21.5″ Touch Display Module for Smart Gym Equipment	FN2150P059A	21.5	1920x1080	0~+50	-20~+60	420
21.5-inch Projected Capacitive Touch Monitor	FN2150M001A	21.5	1920*1080	0~50	-20~60	212
32-inch Curved Touch Monitor Skill Game Machine	FN32CVM	32	1920*1080	0~50	-20~60	300
11.6 Inch TFT Display High Resolution 1920*1080 IPS LCD	FN1160D001A	11.6	1920x1080	-20~70	-30~80	500

Need a Custom 1920×1080 TFT Display Solution?

If you cannot find a suitable 1920×1080 TFT LCD module from our standard products, we offer full customization services to match your exact application requirements.
From display structure to touch integration and optical performance, our engineering team supports complete design optimization for industrial and embedded systems.

Display & Interface Customization

Customized sizing to fit your mechanical constraints, utilizing high-quality panels from BOE, Innolux, AUO, and Tianma.
Panel types available: IPS, TN, LTPS
Wide interface support: MIPI, LVDS, eDP, HDMI, RGB, MCU
Custom FPC design for connector position, shape, and pin definition
Industrial & automotive temperature ranges available

High Brightness & Backlight Design

Brightness scalable from standard levels up to high-brightness outdoor solutions
Optimized backlight structure for uniformity and long lifetime
Suitable for sunlight-readable and high ambient light environments

Touchscreen Integration

PCAP Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection
Industrial-grade touch controller tuning for EMI resistance and stability
Custom cover lens design (shape, thickness, edge treatment)

Optical Bonding Options

OCA bonding for high-volume and cost-effective production
LOCA bonding for improved contrast and optical clarity
Silicone bonding for rugged and large-size applications

Talk to Our Experts

FAQ

Q Is 1920×1080 better than 4K for industrial applications?

A Not necessarily. While 4K offers higher detail, it also increases cost and power consumption. 1920×1080 is often the more practical choice for most industrial use cases.
Q Can 1920×1080 TFT displays be used outdoors?

A Yes, but additional enhancements are required. High brightness, optical bonding, and anti-reflection treatments are essential for maintaining visibility in sunlight.
Q Does higher resolution increase power consumption?

A Yes. Higher resolution panels require more processing power and backlight support, which can increase overall system power consumption compared to lower-resolution displays.
Q What interface is commonly used for 1080p TFT modules?

A
MIPI, LVDS, and HDMI are commonly used depending on system architecture. MIPI is typical for compact embedded systems, while HDMI is often used for easier integration.
Q Is 1920×1080 suitable for small-size TFT displays?

A Not always. On smaller screens, high resolution increases pixel density but may reduce UI readability without proper scaling. It is more suitable for 10.1 inches and above.

1920×1080 TFT LCD Display Modules (Full HD Solutions)

What is a 1920×1080 TFT LCD Display?

Product List of Available 1920×1080 TFT LCD Modules

Need a Custom 1920×1080 TFT Display Solution?

Display & Interface Customization

High Brightness & Backlight Design

Touchscreen Integration

Optical Bonding Options

FAQ

Q Is 1920×1080 better than 4K for industrial applications?

Q Can 1920×1080 TFT displays be used outdoors?

Q Does higher resolution increase power consumption?

Q What interface is commonly used for 1080p TFT modules?

Q Is 1920×1080 suitable for small-size TFT displays?

Related Topics of 1920×1080 TFT LCD

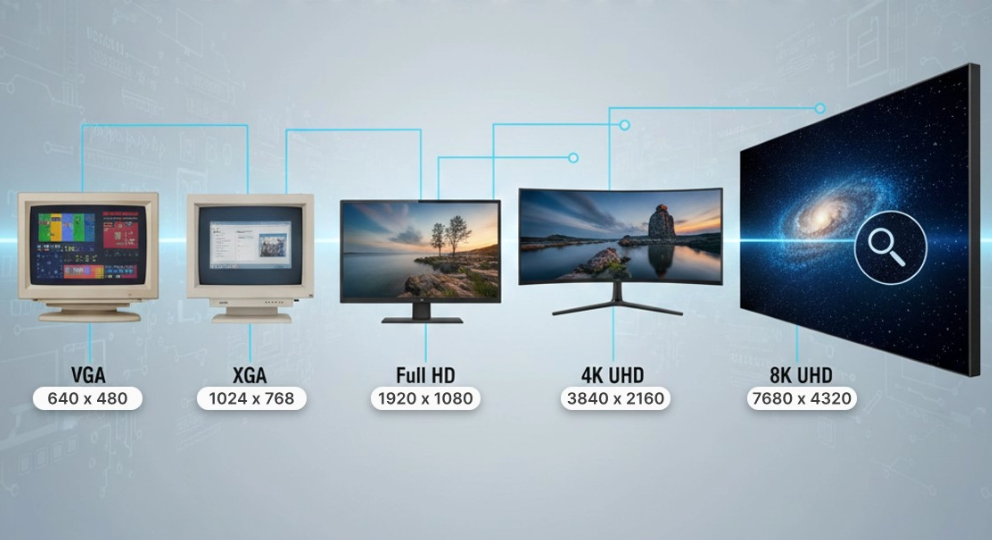

Display Resolutions: From VGA to 8K
