12.3 Inch Automotive TFT Display with Optical Bonding

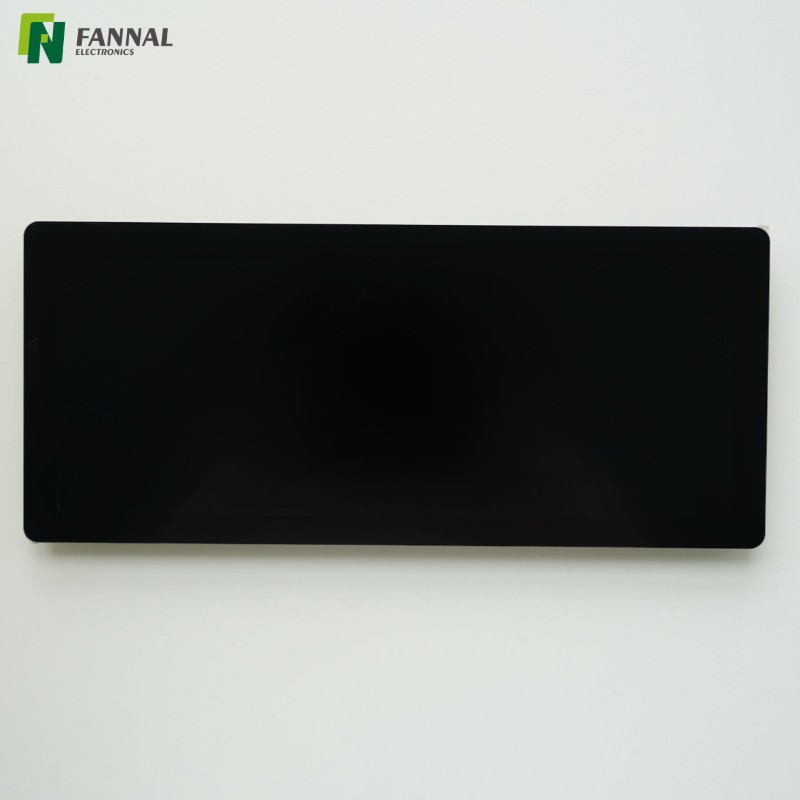

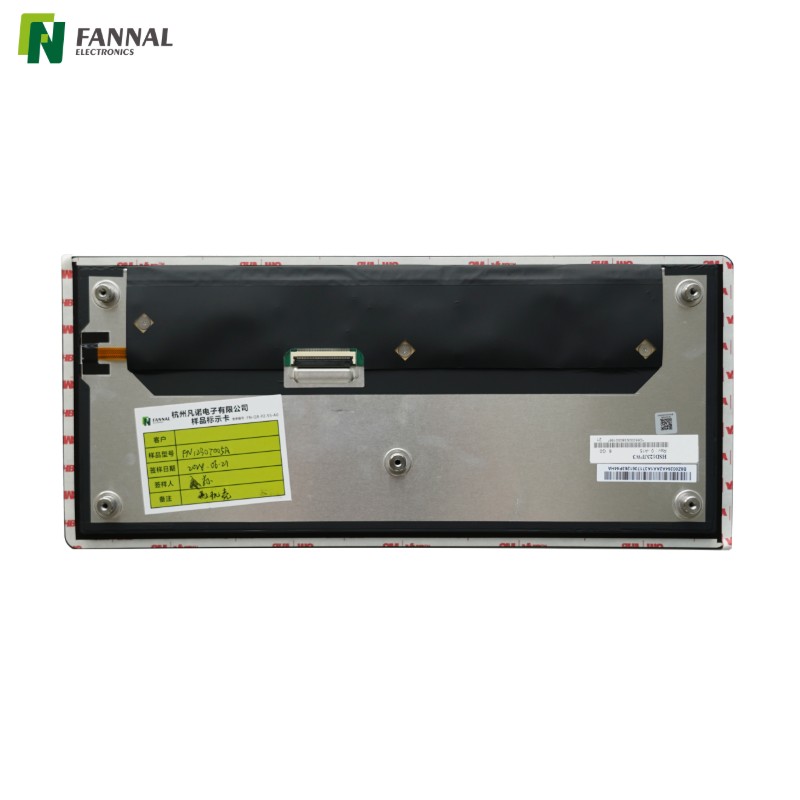

12.3 Inch Automotive TFT Display

Model:
FN1230T005A
Size(inch):
12.3
Cover OD (mm):
320.62*138.62*7.78
Operation Temp(℃):
-30~85
Storage Temp(℃):
-40~90
Structure:
Housing + G + LCM
Resolution:
1920x720
Display Interface:
LVDS
Brightness(cd/m²):
720

Quantity:
Availability:





Inquiry Add to Basket

automotive TFT display

Product Description

Drawing & Specifications

Applications

Customizations

About FANNAL

This 12.3-inch TFT display is designed for automotive-oriented HMI systems that require a wide-format layout, stable signal transmission, and reliable performance under demanding environmental conditions.

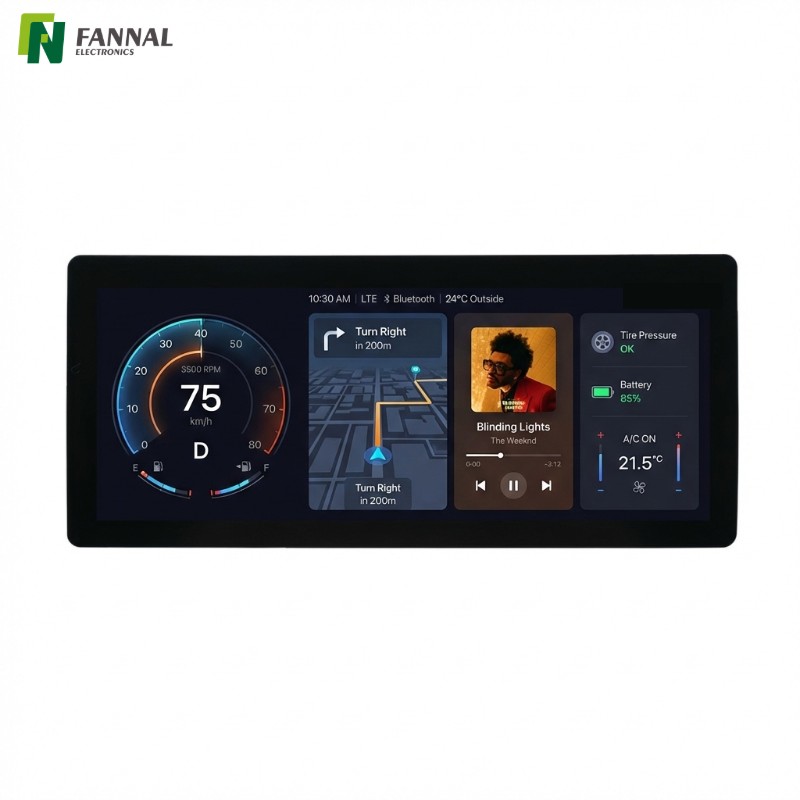

The 1920×720 ultra-wide resolution supports modern dashboard and infotainment interfaces, allowing clear separation of driving information, media, and system status within a single screen.

Featuring an LVDS interface and optical bonding structure, the module delivers consistent image quality while enhancing mechanical stability and vibration resistance—key considerations for in-vehicle applications. The bonded structure also helps reduce internal reflections and fogging, improving visibility in changing temperature and humidity conditions.

With a wide operating temperature range and robust mechanical design, this display is suitable for long-lifecycle automotive and mobility projects, including passenger vehicles, commercial vehicles, and customized vehicle platforms.

Key Advantages

Automotive-Oriented Wide Aspect Ratio
The 12.3-inch ultra-wide format is ideal for digital instrument clusters, infotainment systems, and multi-zone automotive HMI layouts.
Optical Bonding for Enhanced Reliability
Optical bonding with OCA improves shock and vibration resistance while reducing internal reflections and moisture-related fogging.
Stable LVDS Signal Transmission
LVDS interface ensures reliable high-resolution data transfer over longer cable lengths, commonly required in vehicle system layouts.
Improved Visibility in Vehicle Environments
The bonded structure enhances contrast and readability under varying ambient lighting conditions inside the vehicle cabin.
Designed for Wide Temperature Operation
Engineered to maintain stable performance across a broad operating temperature range, supporting use in harsh automotive environments.
Integration-Ready Mechanical Structure
Housing + glass + LCM structure simplifies assembly and supports consistent quality in vehicle-level integration.

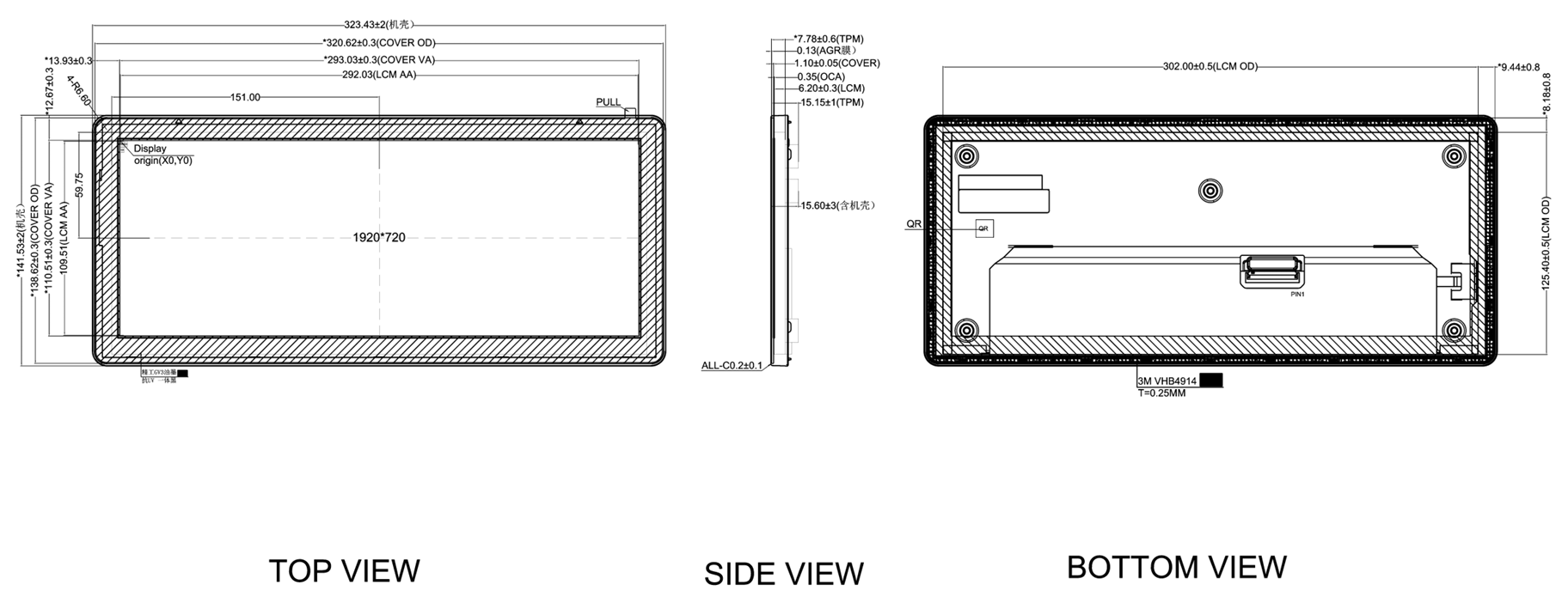

Drawing

Specifications

Parameter	Specification
Size	12.3 Inch
Resolution Ratio	1920x720
Luminance (TPM)	720(Typ.) 550(Min.)
TFT Interface	LVDS
Power Supply OF TFT	3.3V
Structure	Housing + G + LCM
Cover Lens Thickness	1.1mm
Surface Hardness	3H Min (AGARAF)
Bonding Type	Optical bonding
Bonding Material	OCA
Light Transmittance	85% Min
Operation Temperature	-30~85°C
Storage Temperature	-40~90°C
Environmental Requirements	RoHS
