Wide Temperature Display Solutions for Extreme Environments

Wide temperature displays are engineered to maintain reliable operation in cold and hot conditions. Depending on the application, solutions may require industrial-grade TFT LCD panels, temperature-stable touchscreens, reinforced structures, and optical bonding designed for thermal cycling.

Home » Wide Temperature TFT LCD & Touch Displays

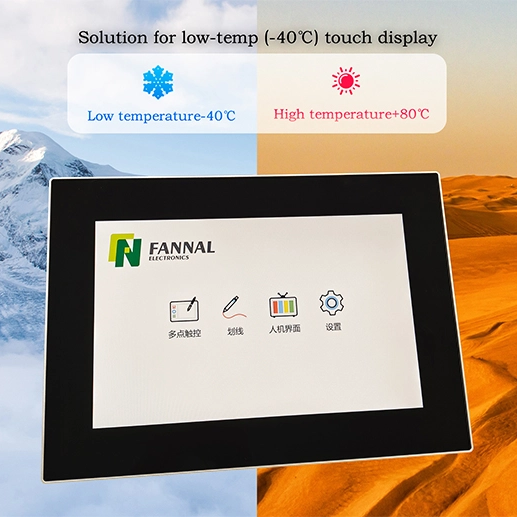

What Is a Wide Temperature Touch Display?

A wide temperature display is a display module designed to operate reliably outside normal commercial temperature ranges.

Standard consumer displays are commonly used in controlled indoor environments. However, industrial terminals, outdoor devices, medical systems, and vehicle equipment often face low-temperature startup, direct sunlight heat load, or rapid temperature changes.

A true wide temperature solution is not only about powering on. It must also maintain:

Stable image quality
Acceptable response speed
Reliable touch operation
Mechanical durability
Long-term component stability

That usually requires coordinated design across the LCD panel, touch sensor, controller firmware, backlight, and bonding materials.

FANNAL TFT PRODUCT ROADMAP-Version 3.pdf

Typical Operating Temperature Ranges

Wide temperature requirements vary by industry and use case.

Common ranges include:

Class	Typical Operating Temperature	Typical Storage Temperature	Typical Applications
Commercial	0°C to 50°C	–10°C to 60°C	Indoor consumer electronics, appliances
Industrial	–20°C to 70°C	–30°C to 80°C	Indoor factory HMI, automation control cabinets.
Extended Industrial	–30°C to 80°C	–40°C to 85°C	Outdoor EV chargers, vending machines, rugged PDAs.
Automotive-Oriented	-30°C to 85°C or -40°C to 85°C	Depends on design	Vehicle HMI, clusters
Custom Wide Temperature	Up to -40°C to 85°C (or project-specific)	Project-specific	Rugged, marine, energy

It is also important to separate:

Operating Temperature: The ambient range where the display must function while powered on.
Storage Temperature: The range the module can withstand while not operating.

For outdoor or vehicle projects, cold-start performance is often more critical than storage rating alone.

Product List of Available Wide Temperature Display

Product Name	Model	Size(inch)	Operation Temp(℃)	Storage Temp(℃)
5.2 Inch PCAP Touch Panel \| Wide Temp -30~80°C	FN052AH001	5.2	-30~80	-40~90
31.5 Inch Wide Temperature Industrial Touch Panel	FN3150P003A	31.5	-40~+70	-40~+70
10.25 " In-Cell Touch Display 1920×720 \| Automotive Display	FN1025D006A	10.25	-40~85	-40~90
12.3 Inch Automotive TFT Display with Optical Bonding	FN1230T005A	12.3	-30~85	-40~90
10.25" Wide-Temp Industrial TFT LCD \| 1280×800 LVDS	FN1025D002A	10.25	-30~85	-40~90
3.2 inch Bar AMOLED display 262x928 MIPI interface OLED screen	FN0320E002A	3.2	-20~+70℃	-40~+80℃
5.9-inch Industrial AMOLED Display	FN0590E001A	5.9	-20~+70℃	-40~+85℃
7.0-inch Industrial Wide Temperature AMOLED Display	FN0700E127A	7	-30~+85	-40~+85
12.6-inch Industrial AMOLED Display	FN1260T001A	12.6	-20~70	-40~80
6.39-inch Industrial AMOLED Display	FN0639E001A	6.39	-20~70	-40~85
2.4-inch Industrial AMOLED Display	FN0240E014A	2.4	-20~80	-40~80
1.504″ Round AMOLED Display Module for Wearable Devices	FN0151E001A	1.504	-20~+70℃	-40~+80℃
7 Inch High Brightness IPS Display with Special-Shaped Cover \| RGB24bit	FN0700194001A	7	-30~85	-40~85
10.3 Inch 1920×720 High Brightness IPS TFT Panel Module	FN103TPM	10.3	-30~85	-40~90
7.0 Inch Automotive TFT Display Hight Resolution 1280*768 Wide Operating Temperature	FN0700D123A	7	-30~+85	-40~+90
10.4 Inch Outdoor TFT Display Resolution 1024*768 IPS LCD	FN1040D002A	10.4	-30~80	-30~80
6.2 Inch Wide Temperature TFT Display High Brightness 1500 Nits Sunlight Readable	FN0620D002A	6.2	-30~+80	-30~+85
6.2 inch TFT display 1024*600 high brightness automotive application LCD	FN0620D002C	6.2	-30~80	-30~85
15 Inch Rugged Touch Screen Module \| 1024×768 Industrial Display	FN1500T017A	15	-30~85	-30~85
5.0" In-Cell TFT LCD Display \| 1024×600 \| 1150 nits	FN0500D060A	5	-30~80	-30~80
7-Inch HD TFT LCD Display Module: 1024x600 Resolution,-30°C to 80°C Wide Temperature Range for Industrial & Outdoor Use	FN0700D138A	7	-30~80	-30~80
10.1 Inch Outdoor TFT Display 1280*800 IPS LCD for industrial applications	FN1010D032A	10.1	-30~80	-30~80
7 inch 1024×600 curved cover TFT display module	FN0700191001A	7	-30-80	-30-85
15.6 Inch In-Cell TFT Display \| 1200×1920 MIPI \| 1000 nits	FN1560W001A	15.6	-30-80	-30-80
9 Inch PCAP Touch Panel \| AG Coating & Custom Icon Printing	FN0900P003B	9	-30~85	-40~85
5 inch High Brightness Display Module for Two-Wheel Vehicles	FN050TPM01	5	-30~85	-40~90

Wide Temperature TFT LCD Challenges

LCD performance changes significantly under temperature stress.
At low temperatures, liquid crystal movement slows down, which may cause:

Slow response time
Motion smear or ghosting
Reduced contrast
Delayed startup behavior

At high temperatures, long-term exposure may accelerate aging of backlight components, polarizers, and adhesives.

To improve reliability, wide temperature TFT designs often require:

Wide-temperature liquid crystal materials
Stable driver tuning
Reinforced backlight structures
Proper heat dissipation planning

Interface signal stability under environmental stress

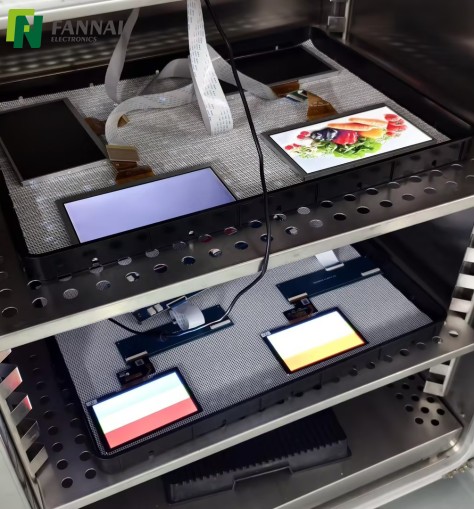

Display screen constant temperature experiment

Wide Temperature Touchscreen Challenges

Touch performance is often the hidden weak point in extreme environments.

In low temperatures, capacitance behavior may shift and gloves are more common. In high temperatures or humid conditions, signal drift and false triggering may occur if the design is not optimized.

A reliable wide temperature touchscreen may require:

Controller parameter tuning across temperature ranges
Waterproof touch logic
Glove touch support
Noise immunity improvement
EMC / EMI design support
Stable multi-touch performance

This is especially important for industrial HMIs, medical devices, and vehicle interfaces.

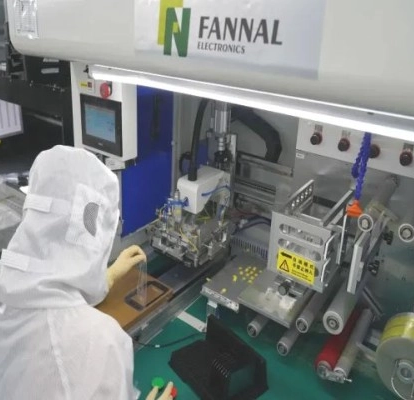

Optical Bonding in Temperature Cycling

Optical bonding improves sunlight readability, impact resistance, and dust protection. However, bonding materials must also survive expansion and contraction caused by repeated temperature changes.

Poorly selected bonding systems may lead to:

Bubble formation
Delamination
Edge lifting
Optical haze
Internal stress marks

For wide temperature projects, bonding method selection should match display size, cover lens structure, and environmental conditions.

Need a Custom Wide Temperature Display Solution?

While we offer a range of standard wide temperature display modules, most industrial projects require specific mechanical, electrical, or optical adjustments

Display & Interface Customization

Resolution and size adjustments based on UI and mechanical constraints
Panel types available: IPS, TN, LTPS
Wide interface support: MIPI, LVDS, eDP, HDMI, RGB, MCU
Custom FPC design for connector position, shape, and pin definition
Industrial & automotive temperature ranges available

High Brightness & Backlight Design

Brightness scalable from standard levels up to high-brightness outdoor solutions
Optimized backlight structure for uniformity and long lifetime
Suitable for sunlight-readable and high ambient light environments

Touchscreen Integration

PCAP Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection
Industrial-grade touch controller tuning for EMI resistance and stability
Custom cover lens design (shape, thickness, edge treatment)

Optical Bonding Options

OCA bonding for high-volume and cost-effective production
LOCA bonding for improved contrast and optical clarity
Silicone bonding for rugged and large-size applications

Talk to Our Experts

FAQ

Q Do wide temperature displays need special bonding materials?

A Often yes. Standard bonding materials may not perform well under repeated thermal cycling. Material selection is important to avoid bubbles, haze, or delamination.
Q How long do wide temperature displays typically last?

A Lifetime depends on brightness level, thermal design, duty cycle, and environment. In many industrial applications, backlight lifetime is a key reference rather than panel life alone.
Q Will touch sensitivity change in cold or hot environments?

A
It can. Temperature shifts may affect capacitance sensing behavior. Proper controller tuning and sensor design help maintain stable touch performance across the operating range.
Q How do I choose between –20°C, –30°C, and –40°C solutions?

A Selection depends on the real operating environment, startup conditions, and safety margin. Many projects specify a lower temperature than normal weather conditions to improve field reliability.
Q Can wide temperature displays be used in direct sunlight?

A Yes, but temperature resistance alone is not enough. Outdoor use usually also requires high brightness, optical bonding, UV-resistant materials, and anti-reflection surface treatment.
Q Does a wide temperature display guarantee instant startup at low temperatures?

A Not always. A display may be rated for low-temperature operation, but startup speed can still slow down in extreme cold. For critical outdoor or vehicle applications, a heater or cold-start optimization may be recommended.
