Projected capacitive touch panels (PCAP) have become an essential component of modern touch-sensitive devices, from smartphones to interactive kiosks. Their reliability, responsiveness, and precision make them a preferred choice in a variety of applications. But how exactly do these touch panels work? In this article, we will dive into the intricacies of projected capacitive technology, its operation, and the advantages it offers.
Projected capacitive touch panels are a type of capacitive touch technology used in many consumer electronics and industrial devices. Unlike resistive touch panels, which rely on pressure to register input, PCAP panels detect touch through changes in electrical fields. The term "projected" refers to the fact that these systems have a grid of conductive elements projected onto the panel, enabling the detection of touch without direct physical pressure.

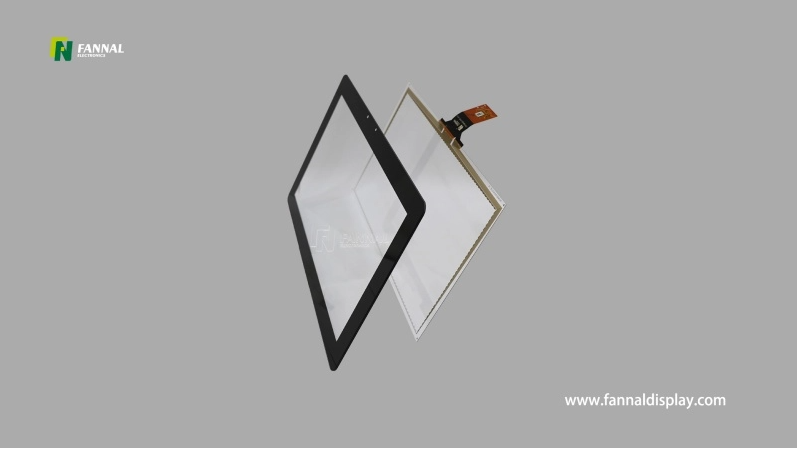

These panels are composed of multiple layers, with a sensor layer and a glass panel as the most notable components. The sensor layer typically contains a grid of electrodes arranged in a pattern. When a user touches the screen, they alter the electric field at that location, allowing the system to detect the exact position of the touch.
At the core of the projected capacitive touch technology is the concept of capacitive sensing. The human body is conductive, so when you touch a capacitive touchscreen, it alters the electrical field around the point of contact. Let’s break down how this works in more detail:
A projected capacitive touch panel uses a sensor grid made of conductive material, typically indium tin oxide (ITO). This grid is placed under the surface of the screen. It consists of two layers of electrodes—one for horizontal and one for vertical sensing. These electrodes create an electrical field across the surface of the panel.
When you touch the screen, the electrical charge at the point of contact is disrupted due to the conductive nature of your finger. The sensor grid detects this change in capacitance, as the human body acts as a conductor. This disruption is recorded and translated into coordinates, identifying the exact location of the touch on the screen.
To interpret the changes in the electric field, the system relies on complex algorithms that map the location of the touch. These algorithms can also differentiate between multiple touches, allowing for multi-touch gestures such as pinch-to-zoom or rotation.
After detecting the change in capacitance, the information is sent to a controller. The controller processes the signal, determining the precise location of the touch and sending this data to the device's operating system for action, such as opening an app or selecting an item.
The outer layer of the projected capacitive touch panel is usually made of hardened glass to protect the delicate sensor grid underneath. The glass layer is transparent, ensuring that the user can see the display while interacting with the touchscreen.
There are two primary types of projected capacitive touch panels: single-touch and multi-touch. Here’s a look at each:
In single-touch systems, only one point of contact can be detected at a time. These types of panels are usually found in older devices or applications where multi-touch functionality is not required. Single-touch panels are simpler and often less expensive.
The more common type, multi-touch capacitive panels, can detect multiple points of contact simultaneously. This makes them ideal for modern devices like smartphones, tablets, and interactive displays. With multi-touch capabilities, users can perform gestures like pinch, zoom, swipe, and rotate, offering a more intuitive and interactive experience.
Projected capacitive touch panels offer several advantages over other touch technologies. Let’s take a look at the key benefits:
Since PCAP screens do not require physical pressure to detect input, they offer extremely high sensitivity. Even the lightest touch can be detected accurately, leading to precision that is crucial for various applications, especially in industries like medical devices and gaming.
The glass layer that covers a projected capacitive panel is typically scratch-resistant and can withstand significant wear and tear. The absence of mechanical parts also reduces the likelihood of screen degradation over time, making PCAP panels ideal for long-term use.
As mentioned earlier, PCAP technology excels at multi-touch detection, which is vital for modern applications. Users can interact with the interface in multiple ways, such as zooming in or out, rotating images, or swiping between screens.
The transparent nature of the technology and the sleek, thin design of PCAP screens make them ideal for aesthetic and functional design. They provide high-quality displays that are both visually appealing and responsive.
Projected capacitive touch panels are known for their resilience in diverse environments. They are unaffected by dirt, moisture, or dust, which is a significant advantage in outdoor or industrial settings where conditions can be less than ideal.
While projected capacitive touch panels offer numerous benefits, they are not without their downsides. Let’s explore a few of the limitations of this technology.
Compared to resistive touch panels, PCAP panels tend to be more expensive. The materials and manufacturing processes involved in creating a projected capacitive screen contribute to this higher cost, which can make them less appealing for budget-conscious applications.
PCAP technology requires conductive input, which means it only works with a finger or a specially designed stylus. Gloves, especially thick gloves, and other non-conductive objects, such as a pen, will not register on the screen, which could limit functionality in certain use cases.
Projected capacitive touch panels are susceptible to static interference, which can affect the accuracy and responsiveness of the touch. This is particularly a concern in environments with high electromagnetic interference (EMI) or static electricity.
Projected capacitive touch panels are widely used across a range of industries. Some of the most common applications include:
The most popular use for PCAP technology is in smartphones and tablets. These devices require precise, responsive touchscreens that can support multi-touch gestures. Apple's iPhone and iPad, for example, use PCAP screens for their touch functionality.
Many public kiosks, such as those found in shopping malls, airports, and museums, use projected capacitive touch panels to offer intuitive and interactive experiences. The ability to support multi-touch input is especially valuable in these applications.
In industries like manufacturing and automation, PCAP panels are used in machines that require precise control. The panels are durable and can withstand harsh environments, making them ideal for factory floors and other demanding settings.
Modern vehicles are increasingly incorporating touchscreen interfaces for controlling navigation, entertainment, and other systems. Projected capacitive technology is often used in these automotive touch panels, as it provides the necessary sensitivity and durability for in-car use.
As technology continues to evolve, projected capacitive touch panels will likely become even more advanced. We can expect improvements in touch accuracy, response time, and multi-touch functionality. Additionally, flexible touch panels and larger screens are expected to expand the potential applications of PCAP technology in industries such as wearables, augmented reality (AR), and virtual reality (VR).
Projected capacitive touch panels have revolutionized the way we interact with devices, offering unparalleled sensitivity, durability, and multi-touch functionality. These panels operate by detecting the changes in electric fields when touched by a conductive object, and they offer a sleek, responsive experience. While they have some drawbacks, such as higher cost and sensitivity to static, their advantages far outweigh these limitations in many applications. As the demand for touch-sensitive technology continues to grow, projected capacitive touch panels will remain at the forefront of user interaction, powering everything from smartphones to industrial machines.
