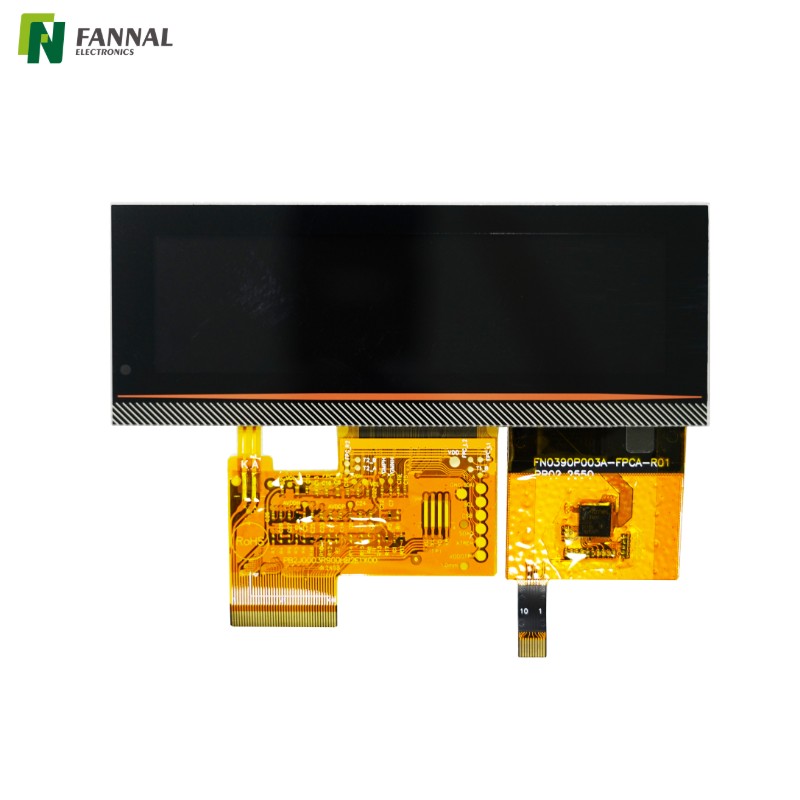

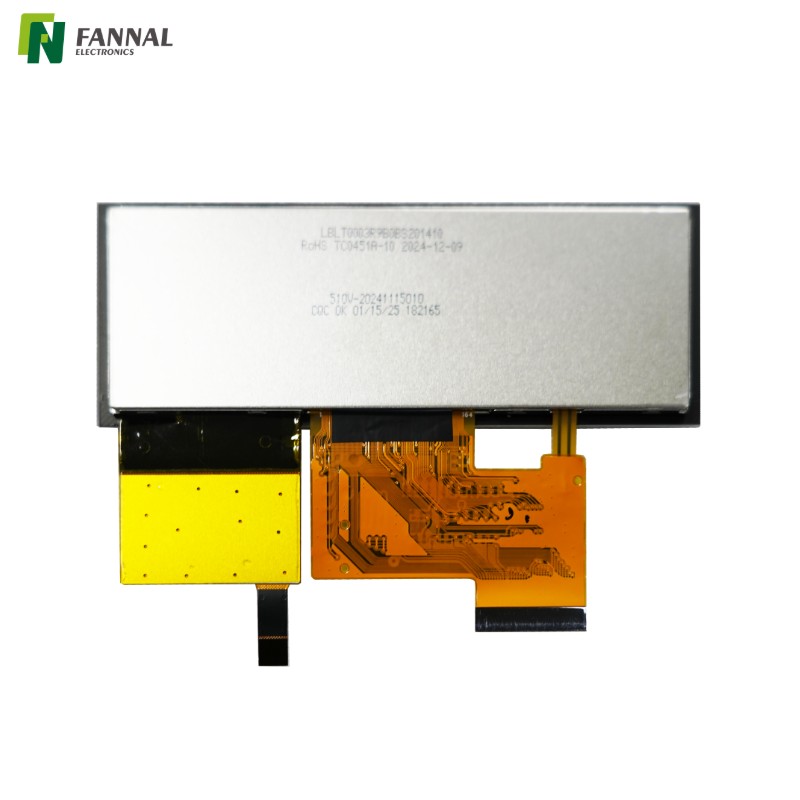

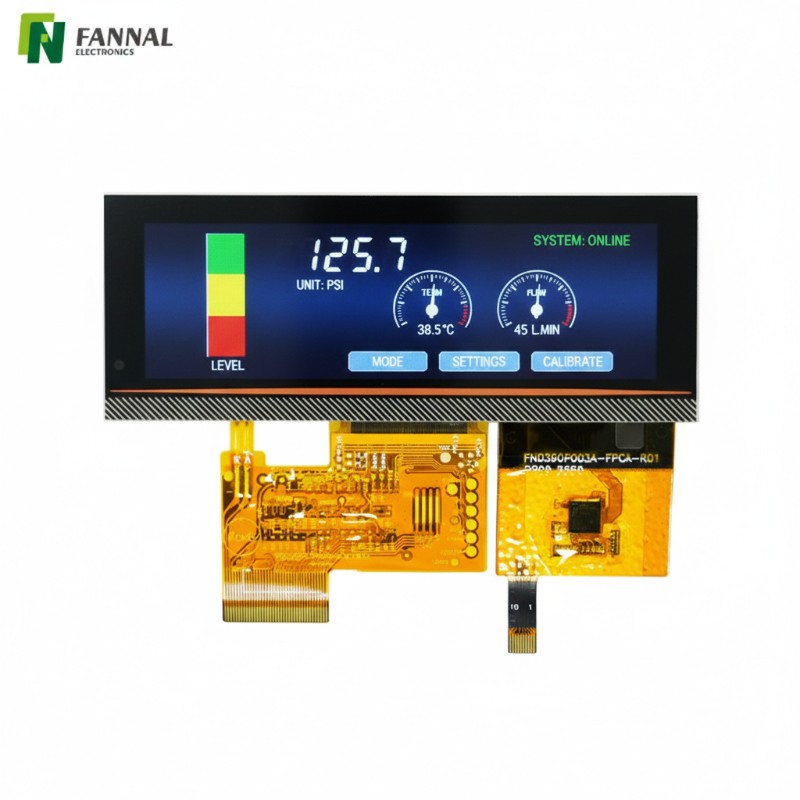

3.9 Inch High Brightness TFT Display Module (480×128)

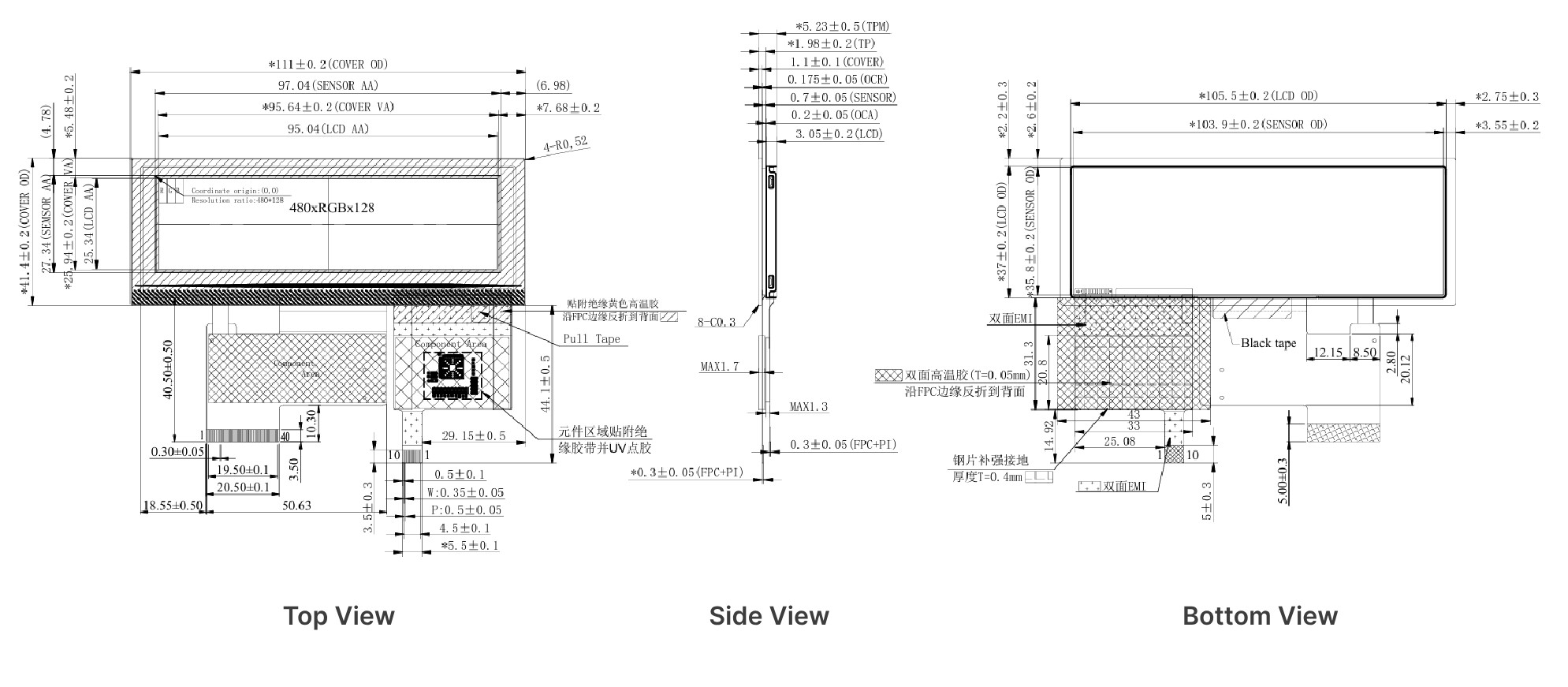

Drawing

Specifications

Applications

Vehicle & Mobility Instruments

• Two-wheel vehicle dashboards

• Electric scooter / motorcycle instrument clusters

• Auxiliary vehicle status displays

Industrial Control & Monitoring

• Compact control panels

• Equipment status displays

• Embedded industrial terminals

Outdoor & Semi-Outdoor Equipment

• Charging stations

• Outdoor measurement devices

• Portable industrial instruments

Medical & Professional Devices

• Portable diagnostic equipment

• Medical monitoring instruments

• Handheld professional terminals

Energy & Metering Systems

• Smart meters

• Power monitoring devices

• Energy management terminals

Automotive Display	Kiosk touch screen	Railway display	E-bike display
Outdoor display	Industrial display	Medical touch screen	Gym-screen
Engineering Plant	Motorcycle display	Vending Machine Display	Embedded display

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

FAQ

Q1: Is this display suitable for outdoor use under direct sunlight?

Answer:
This display provides typical brightness of 800 nits, which is suitable for semi-outdoor environments, vehicle dashboards, and high ambient light conditions.
For direct sunlight applications, higher brightness options (1000 nits or above) can be customized upon request.

Q2: Can the touch panel operate correctly with water, mist, or wet fingers?

Answer:
Yes. The capacitive touch panel is specially designed for waterproof and anti-false touch performance.
It supports reliable operation under heavy water splashing, surface water drops, mist, and wet finger conditions, without unintended activation.

Q3: How does the display perform in long-term outdoor or high-humidity environments?

Answer:
The module is designed for stable operation in high-humidity and temperature-varying environments.
With proper sealing and optical bonding, it maintains reliable display and touch performance under condensation, fog, and long-term outdoor exposure.

Q4: Is this display suitable for vibration and mobile equipment?

Answer:
Yes. The mechanical structure and panel integration are designed for mobile and instrument applications, providing good resistance to vibration and mechanical shock when properly mounted.

Q5: Can this model be supplied for long-term projects with stable lifecycle?

Answer:
Yes. This model is designed for industrial projects with long-term availability.
Lifecycle management, version control, and long-term supply support are provided for mass production programs.
