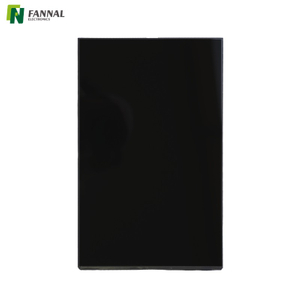

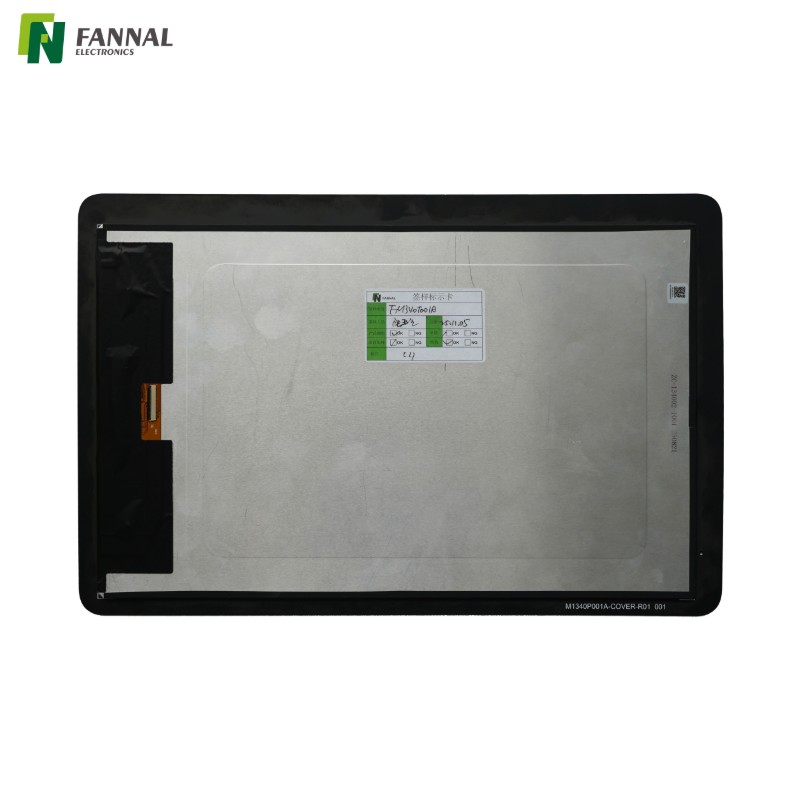

13.4 Inch In-cell TFT Touch Display with MIPI Interface

13.4 Inch TFT Touch Display

Model:
FN1340T001A
Size(inch):
13.4
Cover OD (mm):
209.8*320.8*3.9
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Structure:
G+LCM (In-cell)
Resolution:
1200×1920
Interface:
MIPI
Brightness(cd/m²):
270

Quantity:
Availability:





Inquiry Add to Basket

13.4 Inch TFT Touch Display

Product Description

Drawing & Specifications

Applications

Customizations

About FANNAL

This 13.4-inch TFT display integrates touch functionality directly into the LCD cell using an In-cell structure, reducing layer count while improving optical clarity and overall module slimness.
Compared with traditional add-on touch solutions, the In-cell design minimizes reflection and internal light loss, making it well suited for information-dense interfaces and professional embedded systems.

Featuring a 1200 × 1920 resolution and MIPI interface, the display supports smooth image transmission and efficient system integration in modern embedded platforms. The durable cover glass, high light transmittance, and stable touch performance make it a practical choice for industrial HMI, control terminals, and customized equipment requiring long-term reliability rather than consumer-oriented aesthetics.

Designed for OEM and ODM projects, this module balances mechanical robustness, visual consistency, and integration flexibility, helping reduce system thickness while maintaining dependable performance in real-world operating environments.

Key Advantages

Slimmer Module Design
By integrating touch sensors directly into the LCD cell, the In-cell structure significantly reduces overall thickness compared to add-on touch solutions, enabling more compact and streamlined device designs.
Improved Optical Clarity
Fewer optical layers mean reduced internal reflections and light loss, resulting in clearer images and more consistent visual performance across the display area.
Higher Light Transmittance Efficiency
The simplified stack structure allows more backlight to pass through the display, improving brightness efficiency without increasing power consumption.
Enhanced Touch Responsiveness
Touch detection closer to the pixel layer improves signal accuracy and responsiveness, particularly beneficial for detailed UI interaction and information-dense interfaces.
Better Mechanical Stability
The integrated structure reduces the number of bonded layers, lowering the risk of delamination and improving long-term reliability in professional and industrial environments.
Simplified System Integration
Combining display and touch into a single module helps reduce component count, streamline assembly, and improve overall system consistency for OEM and ODM projects.

Drawing

Specifications

Parameter	Specification
Size	13.4 INCH
Resolution Ratio	1200 * 1920
Luminance	270 Typ / 220 Min
TFT Interface	MIPI
TFT Driver IC	FT8201P
TFT Power Supply	1.8V
Surface Hardness	7H Min
Light Transmittance	90% Min
Uniformity	75% Min
Structure	G+LCM (In-cell)
Cover Thickness	1.1 mm
Touch Interface	IIC
Touch Controller	FT8201P
Unmarked Tolerance	±0.3 / ±1°

Applications

Industrial HMI & Control Terminals

The 13.4-inch vertical-format display is well suited for industrial HMI systems where clear information layout and reliable touch interaction are required. The In-cell structure supports slim device design while maintaining optical clarity for data-heavy interfaces.

Embedded Information Panels

Ideal for embedded equipment displaying system status, diagnostics, or process data. The high resolution and consistent visual performance support complex UI layouts without increasing module thickness.

Professional Equipment Interfaces

Used in specialized equipment such as automation controllers, testing instruments, and custom machinery where long-term stability and precise touch input are more critical than consumer-grade visual effects.

Smart Building & Access Control Systems

Suitable for wall-mounted control panels, building management terminals, and access control interfaces that require a clean appearance, durable cover glass, and reliable operation.

Customized OEM / ODM Devices

A practical choice for OEM and ODM projects requiring a large-format touch display with integrated structure, simplified assembly, and predictable supply for long product lifecycles.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

About FANNAL

Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Touchscreens, and Touch Monitors manufacturing.

One-Stop Solution: Full in-house process for touch screen, display, and optical bonding

Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more — timely local support.

Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions.

Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons.

Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant.

Certificates

FAQ

Q1. What are the main advantages of In-cell touch compared to add-on touch solutions?

In-cell touch integrates the touch function directly into the LCD cell, reducing layer count, improving optical clarity, and enabling a slimmer module compared to external touch solutions.

Q2. Is In-cell touch suitable for industrial applications?

Yes. In-cell displays are well suited for industrial and professional equipment where stable performance, reduced mechanical complexity, and long-term reliability are required.

Q3. Does In-cell touch affect display brightness or image quality?

In most cases, In-cell structures improve light transmittance efficiency by reducing optical layers, helping maintain image clarity without increasing power consumption.

Q4. How does In-cell touch impact system integration?

By combining display and touch into a single module, In-cell designs reduce component count and simplify mechanical and electrical integration for embedded systems.

Q5. Is this display suitable for outdoor use?

This display is designed for indoor and controlled-light environments. For outdoor or direct sunlight applications, brightness and system-level enhancements should be evaluated.
