15 Inch Industrial Touch Screen Display | LVDS TFT

Name: 15 Inch Industrial Touch Screen Display | LVDS TFT
Brand: FANNAL
Rating: 5.0 (81 reviews)

15 Inch Industrial Touch Screen Display | LVDS TFT, Optical Bonding Ready

Model:
FN1500T019A
Brand:
FANNAL
Size(inch):
15
Cover OD (mm):
341(H) x 268(V) x 12.24(T)
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~70
TP VA (mm):
305.1(H) x 229.1(V)
Structure:
G+G
Resolution:
1024 * 768
Display Interface:
LVDS
TP Interface:
USB
Brightness(cd/m²):
290 Typ. / 230 Min.

Quantity:
Availability:





Inquiry Add to Basket

tft touch display

Drawing

Specifications

Applications

Customizations

Why FANNAL?

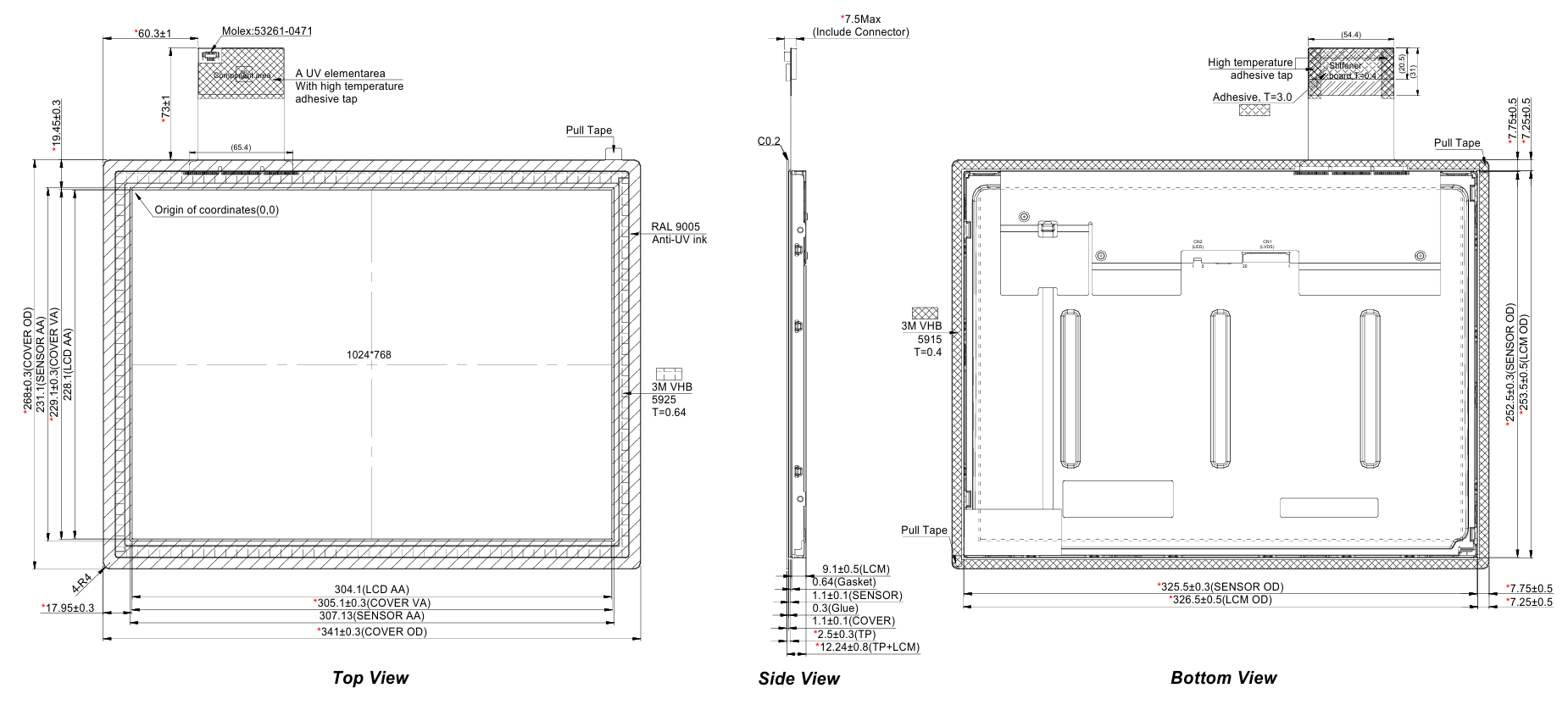

Drawing

Specifications

Category	Item	Specification	Remark
Display	TFT Part Number	G150XNE-L02	Follow Spec
	Active Size	15.0 Inch (Diagonal)
	Resolution	1024 * 768
	Luminance	290 Typ. / 230 Min. (cd/m²)
	TFT Interface	LVDS
	Uniformity	75% Min.
Touch	Structure	G + G (Glass + Glass)
	Touch Controller	ILI2511
	Touch Interface	USB
	Touch Points	10 Points	Finger support
	Channels of Sensor	TX27 * RX37
	Touch Transmittance	85% Min.
Mechanical	Outline Dimension	341(H) x 268(V) x 12.24(T) mm
	View Area	305.1(H) x 229.1(V) mm
	Cover Thickness	1.1 mm	Chemical Strengthening
	Sensor Thickness	1.1 mm
	Surface Hardness	≥ 7H	750g load
	Bonding Type	Air Bonding	Double-sided Tape
Environment	Operating Temp.	-20°C ~ +70°C
	Storage Temp.	-30°C ~ +70°C
	Humidity	10% ~ 90%
	Compliance	RoHS-2.0, REACH
	Unmarked Tolerance	±0.5 / ±1°

Applications

Industrial HMI Panels
Designed for human-machine interface (HMI) systems, this 15-inch 1024×768 display offers stable LVDS connectivity and responsive multi-touch input, making it suitable for control panels in manufacturing and automation equipment.

Medical & Laboratory Equipment
With its durable G+G touch structure and reliable performance in controlled environments, the module can be integrated into diagnostic devices, lab instruments and medical control interfaces.

Industrial Control Systems
The combination of USB touch and LVDS display ensures easy integration with embedded boards and industrial PCs, supporting applications such as PLC control systems and monitoring terminals.

Self-Service & Kiosk Terminals (Indoor)
Suitable for indoor kiosks and operator terminals where moderate brightness is sufficient, and durability is required for frequent user interaction.

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

Why Choose FANNAL?

FANNAL, founded in 2011, is a specialist in touch display solutions, delivering high-quality products and technical services worldwide. We design and manufacture in-house custom Displays, PCAP touch screens, and optical bonding. Our solutions serve industrial, outdoor, medical, automotive and other applications.

We are a fast-growing high-tech company financially backed by SECO, a European leader in electronic devices and embedded computing. We hold ISO 9001, ISO 14001, ISO 45001, ISO 13485, and IATF 16949 certifications. Our products are REACH and RoHS compliant, with test reports or declarations available upon request.

With stable quality and engineering support, FANNAL helps customers stay competitive and differentiate their products globally.

Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Touchscreens, and Touch Monitors manufacturing.

One-Stop Solution: Full in-house process for touch screen, display, and optical bonding

Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more — timely local support.

Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions.

Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons.

Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant.

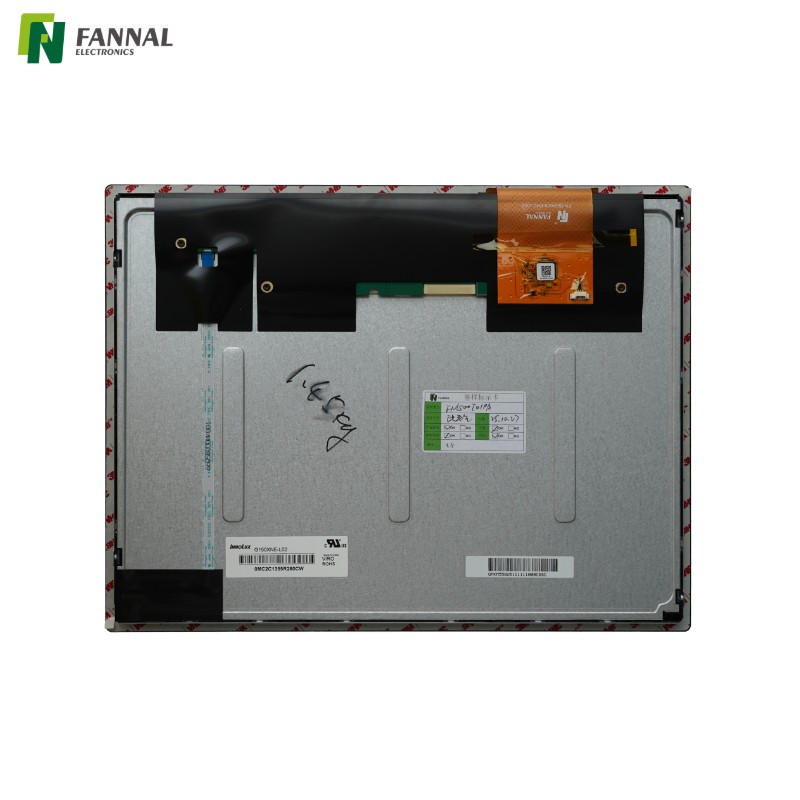

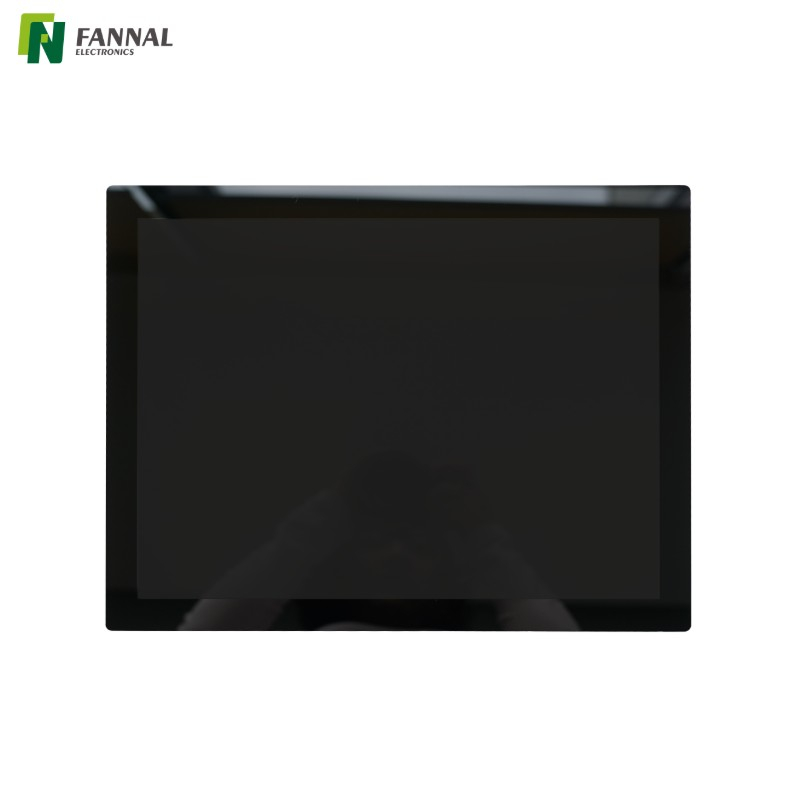

Album

FAQ

1. Can the G150XNE-L02 touch display be used as a replacement for other 15-inch 1024×768 LCD modules?

Yes, it can replace most 15-inch 1024×768 LVDS TFT displays. Compatibility depends on interface, mounting and backlight specifications.
Before replacement, confirm connector type, signal mapping and mechanical dimensions to avoid integration issues.

2. Is optical bonding available for this touch display module?

Yes, optical bonding is available as a customization option. It improves contrast, reduces reflection and enhances display clarity.
This upgrade is recommended for high ambient light environments or applications requiring better optical performance.

3. What systems are compatible with the USB touch interface?

The USB touch interface supports Windows, Linux and Android systems. No additional drivers are required in most standard environments.
For customized firmware or special OS, touch tuning and driver support can be provided if needed.

4. Is this display suitable for outdoor or sunlight-readable applications?

No, the standard version is not designed for direct sunlight use. Its brightness level is optimized for indoor or controlled environments.
For outdoor scenarios, higher brightness and optical bonding enhancements are recommended.

5. Can the touch panel be customized for gloves or wet conditions?

Yes, the touch panel can be tuned for glove and water operation. Sensitivity adjustments depend on the use case.
This is commonly required in industrial, medical or outdoor-assisted environments.

6. How stable is the long-term supply of this display module?

Long-term supply is supported for industrial projects. Alternative components and lifecycle management can be arranged if needed.
This helps reduce risks related to panel discontinuation and ensures project continuity.
