15 inch Industrial Touch Monitor for Machine Control Systems

The display integrates a high-brightness IPS panel, industrial-grade touch controller, and reinforced cover glass to ensure reliable operation in vibration-prone and low-temperature environments.
Home » Industrial Touch Monitor for Machine Control Systems

Project Overview

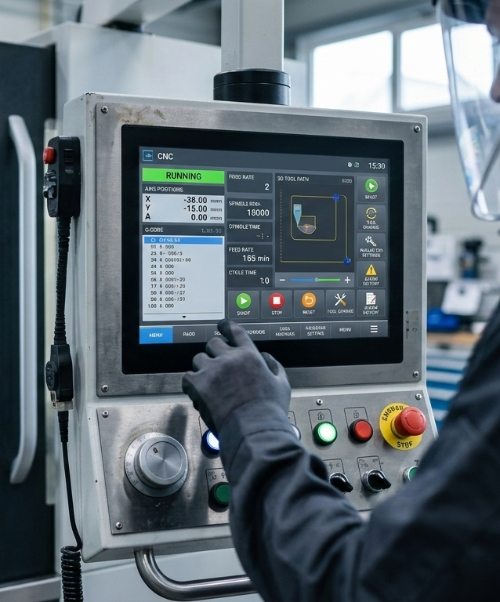

Application: Industrial machine control systems used in equipment such as CNC machines, automation machinery, and industrial production systems.
Panel Size: 15-inch industrial touch monitor
Core Requirement:

Project Background:
The project required a 15-inch industrial touch monitor solution capable of operating reliably in vibration-prone industrial environments. The customer also requested a complete assembly, including TPM, mechanical frame, and cable integration to simplify equipment installation.

Custom Industrial Touch Display Solution Design

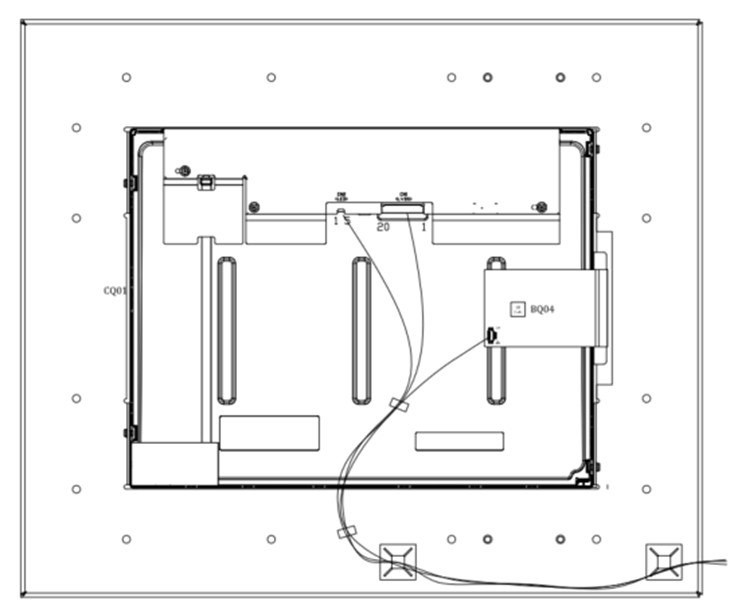

To meet these requirements, FANNAL developed an integrated TPM + mechanical frame + cable assembly solution. The module was delivered as a complete monitor assembly, allowing the customer to install the unit directly into their equipment.
  • Display Module
    The display module uses an Innolux industrial-grade LCD panel.

    Key specifications include:
    · Resolution: 1280 × 800
    · Interface: LVDS
    · Brightness: 1000 cd/m²
    · Viewing Angle: 80/80/80/80 (IPS)
    · Lifetime: 50,000 hours
    · Operating Temp: -20°C ~ 85°C
    · Storage Temp: -30°C ~ 80°C

    The IPS technology ensures consistent viewing quality from multiple angles.
  • Touch System
    The touch sensor adopts a DITO structure combined with a Microchip maXTouch mxT1664T3 controller.

    This industrial touch solution provides:
    · Stable multi-touch operation
    · Strong noise immunity
    · Reliable performance in vibration environments

    The module supports dual USB interfaces for flexible system integration.
  • Cover Glass
    The touch panel uses a 4 mm black cover glass made from AGC glass substrate with chemical strengthening treatment.

    Surface processing includes anti-glare etched glass, providing improved readability in bright environments.

    Gloss level: 70 ± 15

    This structure improves both durability and usability in industrial settings.

Deployment Result of the Industrial Touch Monitor Solution

The integrated touch monitor solution helped the customer streamline equipment integration while maintaining reliable operation in demanding industrial environments.

The final system delivered:
  • High visibility in semi-outdoor environments with a 1000 cd/m² IPS display
  • Stable touch performance supported by an industrial-grade Microchip controller
  • Improved durability with 4 mm chemically strengthened anti-glare cover glass
  • Simplified system assembly through an integrated TPM, frame, and cable design

The solution is now deployed in industrial machine control equipment, supporting stable operation in environments with vibration, temperature variation, and continuous usage requirements.

Need a Custom Industrial Touch Display for Your Equipment?

FANNAL provides customized touch displays, high-brightness LCD modules, and full TPM integration for industrial applications.

Contact our engineering team to discuss your project.
