Project Overview

Application: industrial control equipment used in valve control systems, pressure monitoring devices, and hot runner controllers.
Panel size: 7 inch TPM
Annual Volume: 1000 pcs
Core Requirement:  These systems are typically installed in industrial environments where high brightness, wide temperature tolerance, and reliable touch performance are required.

The project required a 7-inch industrial touch display module capable of operating reliably under demanding environmental conditions.


Key Challenges of This Industrial Touch Display Case

  • Small Production Volume

    The project required a customized display, but the annual volume of 1,000 units made a fully bespoke design economically unfeasible. We addressed this by providing an adapted existing solution to balance performance and cost.


End-to-End Design & Support by FANNAL

Adapted Standard Solution

With an annual demand of around 1000 units, developing a fully custom display module would increase cost and lead time.

FANNAL therefore adapted an existing display solution to meet the customer’s requirements.

Key customizations included:
  • Modified cover glass design
  • Added customer-specified connection cables
  • Optimized touch interface support

Direct Support from FANNAL

FANNAL provided direct order and shipment support, bypassing traditional distributor channels.

This enabled:
  • Faster engineering feedback
  • Flexible project coordination
  • Quick adaptation of existing solutions for small-volume projects
  • Rapid sample delivery to support faster product development
  • Direct factory access, including on-site manufacturing review

Engineering Support

Beyond supplying the display module, FANNAL also provided engineering guidance during the integration process.

Support included:
  • Expert design consultation and deep involvement in new product development (NPD).
  • Technical consultation on plastic part bonding and assembly
  • Integration recommendations for reliable module installation
  • Support during the customer's new product development process

Technical Implementation by FANNAL

Touch Panel Design

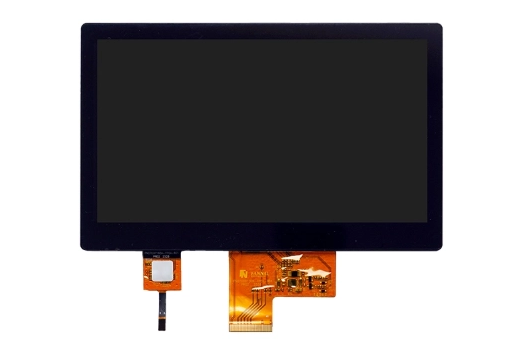

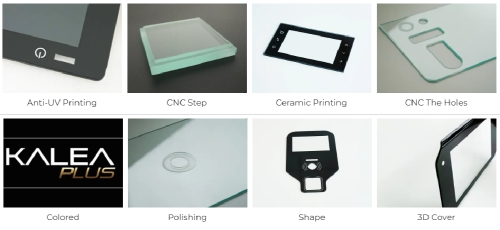

Cover Glass

More >>
  • 1.8 mm black cover glass
  • AGC glass substrate
  • Chemical strengthening
  • AG etched surface treatment

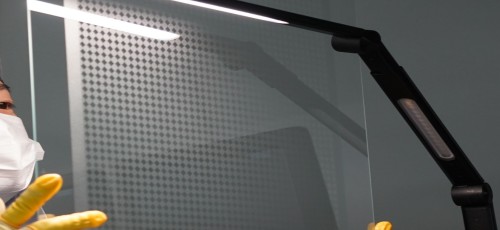

Touch Sensor

More >>
  • DITO sensor structure
  • Controller: Microchip maXTouch mxT1664T3
  • Dual interface: IIC + USB
This configuration provides stable multi-touch performance and flexible system integration

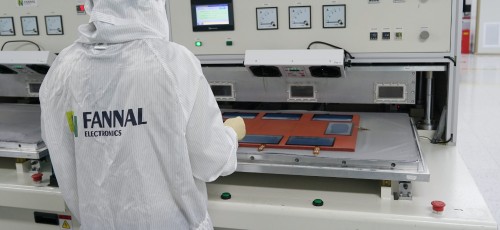

Touch Integration

More >>
  • TP bonding: SCA optical bonding
  • TPM integration: frame bonding structure
This design balances optical performance and manufacturing efficiency.

Display Module

Display Performance

More >>
  • Size: 7 inch
  • Resolution: 1024 × 600
  • Viewing Angle: IPS, 85 / 85 / 85 / 85 (Full Viewing Angle)
  • Brightness: 1100 cd/m²

Reliability & Environmental Performance

  • Display Interface: LVDS
  • Backlight Lifetime: 50,000 hours
  • Operating Temperature: -20 ~ 70 °C
  • Storage Temperature: -30 ~ 80 °C

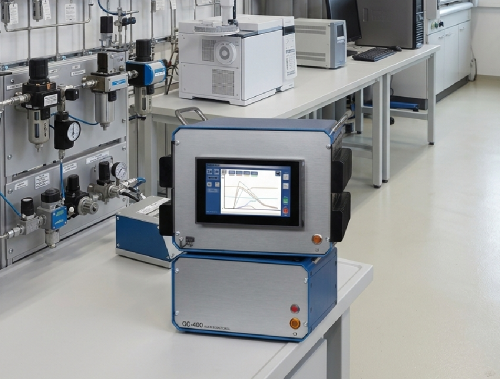

Result of This 7 inch High-Brightness Touch Display

The delivered display module successfully met the customer’s requirements for brightness, durability, and system integration.

The solution has been applied in multiple industrial control devices including:
  • Valve control systems
  • Pressure measurement equipment
  • Hot runner controllers

The project demonstrates FANNAL’s ability to adapt standard display platforms for low-volume industrial applications while maintaining reliable performance.
