What outdoor installation scenarios are these displays designed for?

FANNAL outdoor displays are designed for kiosks, transportation terminals, charging stations, marine equipment and outdoor control interfaces exposed to ambient light and weather conditions.

How do you address false touch caused by rain or moisture?

FANNAL optimizes touch tuning, border design and surface treatments to minimize unintended touch caused by water, condensation and environmental moisture.

How do outdoor displays handle long-term exposure and aging?

Material selection, optical bonding and structural stability are designed to reduce degradation caused by UV exposure, temperature cycling and environmental stress.

Are outdoor displays suitable for unattended public systems?

Yes. Outdoor display solutions are commonly used in public-facing and unattended systems where durability and low maintenance are important.

Can outdoor display solutions be customized?

Yes. FANNAL supports customization of display configuration, touch structure, cover glass treatments and system integration.

Outdoor Display Solutions

ISO 9001–certified, Engineered for long-term reliability in harsh outdoor environments.

Home » Application » outdoor display

Design Realities in Outdoor Display Projects

Based on deployed outdoor projects, display systems must be engineered with the following real-world constraints in mind:

Sunlight readability without glare or washout
Stable operation across wide temperature ranges
Long-term UV exposure resistance
Glove, wet-touch, and polarized sunglasses usability
Impact resistance and safety requirements in public or industrial environments

How Fannal Engineers Outdoor Displays？

Based on deployed outdoor projects, Fannal’s outdoor display solutions are engineered around the following key technical requirements:

Display Module (LCM) Design

Industrial-grade LCD cells with a clearing point ≥105 °C to avoid blackening at high temperatures
UV-cut and high-temperature-resistant polarizers for outdoor exposure
High-brightness, wide-temperature backlight design (typically ≥800 nits for small-size outdoor panels)
Optional transflective LCD configuration for enhanced sunlight readability

Reliability criteria defined per project, aligned with customer-specific environmental and lifecycle requirements

Touch System Design

≥3.0 mm soda-lime or ≥2.0 mm aluminosilicate cover glass, designed to meet IK08 or higher impact resistance
Anti-glare (AG) surface treatment to reduce specular reflection under direct sunlight
UV-resistant organic ink for cover glass printing to prevent long-term discoloration
PCAP sensor structure optimized for glove operation and water interference rejection

Touch controller selection supporting wet conditions and stable glove detection

Optical Bonding & Materials

OCA/OCR materials are qualified for UV exposure and solar radiation standards
Bonding structures validated under high/low temperature cycling and outdoor reliability tests

Talk to Our Experts

Outdoor Applications

Fannal outdoor display solutions have been deployed across a wide range of real-world applications, including:

Outdoor kiosks & access terminals
Marine and vehicle-mounted control panels
Heavy-duty machinery HMIs (forestry, construction, agriculture)
Agricultural guidance and control systems
Outdoor vending & ticketing systems
Two-wheel vehicle instrument clusters (e-bike, etc.)

Outdoor Touch Display Case Studies

Below are several real-world projects demonstrating how our custom touch display modules are designed to meet different environmental and reliability requirements.

Heavy Machinery Outdoor Touch Display Solutions
10.4-inch Touch Display

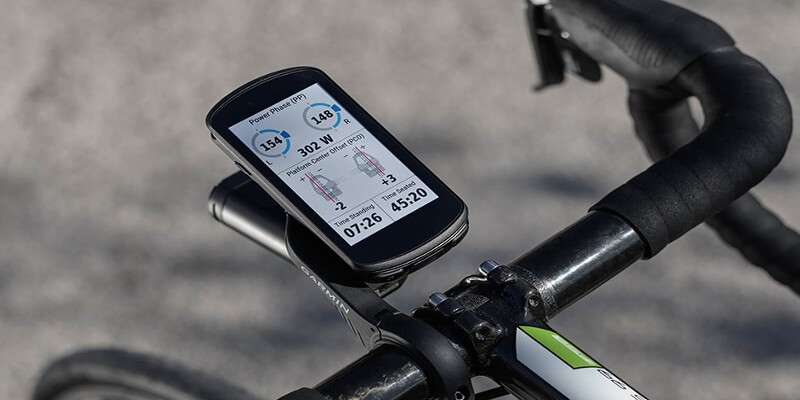

Outdoor E-bike Dashboard Touch Display Solution
3.5-inch Outdoor TPM
Precision Agricultural Displays Optimized for Navigation & Control
12.1-inch & 10.1-inch Touch Display

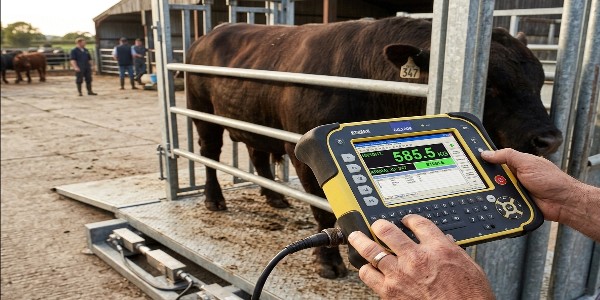

Rugged Display Solution for Livestock Weighing Systems
7-inch Display

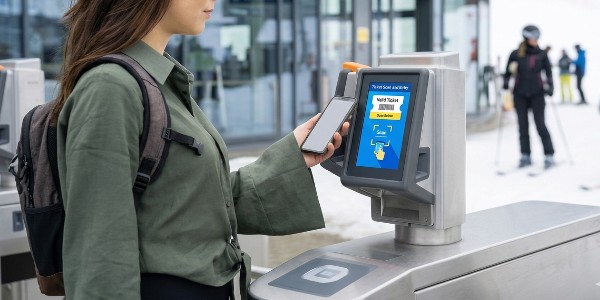

Touch Display Solutions for Ticketing and Access Control Systems
27-inch & 7-inch Outdoor TPM

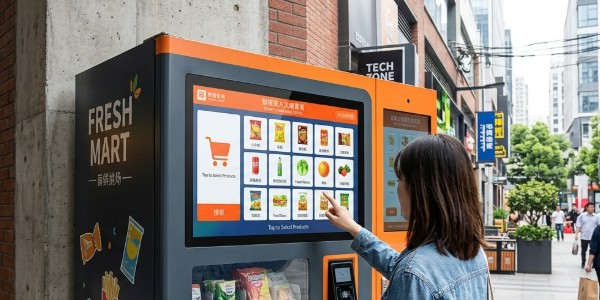

Outdoor Vending Machine Touch Display Solution
27-inch Large-Format Interactive Display

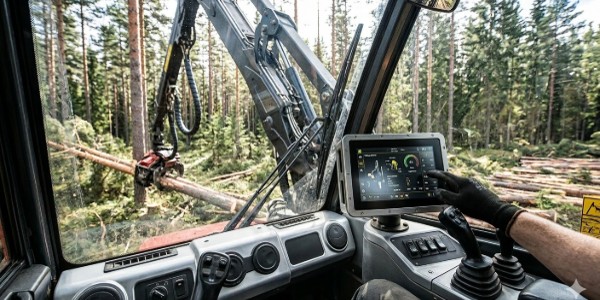

Reliable Touch Display for Heavy-Duty Forestry Equipment
10.1-inch Display

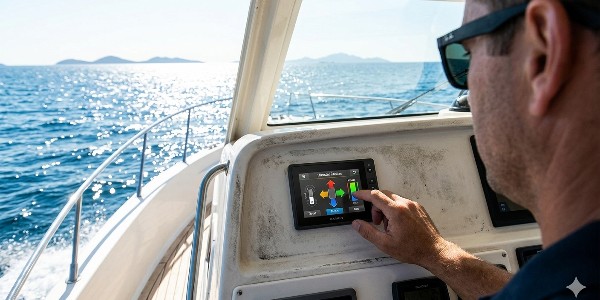

Marine Control Display Solution for Harsh Environments
3.5-inch & 4.3-inch TPM

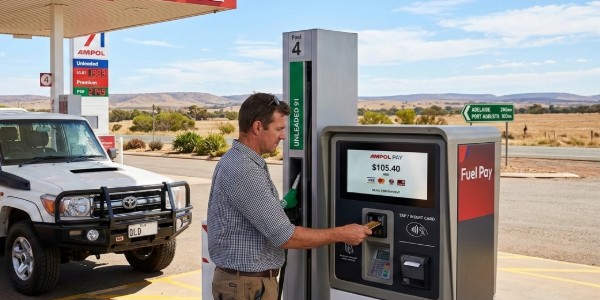

Outdoor Touch Display for Fuel Payment Terminals
12.1-inch Touch Display

Related Products

13.3 Inch Touch Display 800×480 IPS Display Panel

13.3 Inch Touch Display 1920x1080 IPS Display Panel bonded with capacitive touch

7 inch Capacitive Screen G+G 16:9 I²C Multi-touch Industrial Capacitance Panel Commercial Capacitance Scree

7 Inch Capacitive Touch TFT Display with Optical Bonding

10.4 Inch Outdoor TFT Display Resolution 1024*768 IPS LCD

3.5 Inch Sunlight Readable TFT Display Resolution 320*240 with Double Interfaces SPI RGB

5.0 Inch IPS TFT Display standard resolution 800*480

6.86 Inch MIPI Bar Type TFT LCD Display Module with 1000 nits

10.25 " In-Cell Touch Display 1920×720 | Automotive Display

6.2" capacitive touch display module With a luminance of up to 1500 nits

8.4 inch TFT display 1024*768 1000nits high brightness outdoor LCD

10.1 Inch Outdoor LCD Sunlight Readable And High Resolution 1920*1200

FAQ

Q Can outdoor display solutions be customized for different project requirements?

A Fannal supports customization across display configuration, touch structure, cover glass treatment, and system integration, allowing outdoor display solutions to be adapted to different environmental and installation needs.
Q Are these outdoor displays suitable for unattended or public-facing systems?

A Yes. Our outdoor display solutions are commonly used in public-facing and unattended installations where stability, durability, and reduced maintenance are critical design considerations.
Q How do outdoor displays handle long-term exposure and aging?

A Outdoor deployments often involve years of continuous operation. Fannal designs focus on material selection, optical bonding, and structural stability to reduce performance degradation caused by UV exposure, temperature cycling, and environmental stress over time.
Q How do you address false touch caused by rain, condensation, or surface moisture?

A Outdoor touch performance is handled at the system level. Fannal optimizes touch tuning, border design, and surface treatments to minimize false or unintended touch events caused by water, condensation, or environmental moisture.
Q What outdoor installation scenarios are these displays designed for?

A Fannal outdoor displays are intended for fixed outdoor and semi-outdoor installations such as kiosks, transportation terminals, charging stations, marine-adjacent equipment, and outdoor control interfaces where displays are exposed to ambient light and weather conditions.
