7 Inch 1024×600 Capacitive Touch Screen LCD LVDS Interface

Model:
FN07000160A
Cover OD (mm):
170x107x1.1
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Display Interface:
LVDS
TP Interface:
IIC
Resolution:
1024x600
Brightness(cd/m²):
420

Quantity:
Availability:





Inquiry Add to Basket

7 inch display 7 inch touchscreen 7 inch lcd 7 inch industrial display 7 Inch 1024×600

Product Features

Product Drawing

Specification

Add Ons

Product Application

Revolutionize Your Display Experience with the 7-Inch TFT Display

Ready to elevate your projects with cutting-edge display technology? Meet the 7.0-Inch TFT Display—a perfect blend of performance, durability, and precision. Designed for professionals and innovators alike, this display is your go-to solution for seamless visuals and responsive touch.

Specifications at a Glance

Size: 7.0 Inch
Interface: TFT - LVDS | Touch - IIC
Sensor Thickness: 0.55mm
Touch Controller: Microchip
No. of Touch Points: 5
Operation Temperature: -20°C to +70°C

What Our Customers Are Saying

"This touch display exceeded my expectations! The touch responsiveness and brightness are unmatched. Perfect for my industrial project!" – Sarah T.

Don’t Miss Out!

Upgrade your project today with the 7-Inch TFT Display trusted by professionals worldwide. Experience unmatched quality, precision, and reliability.

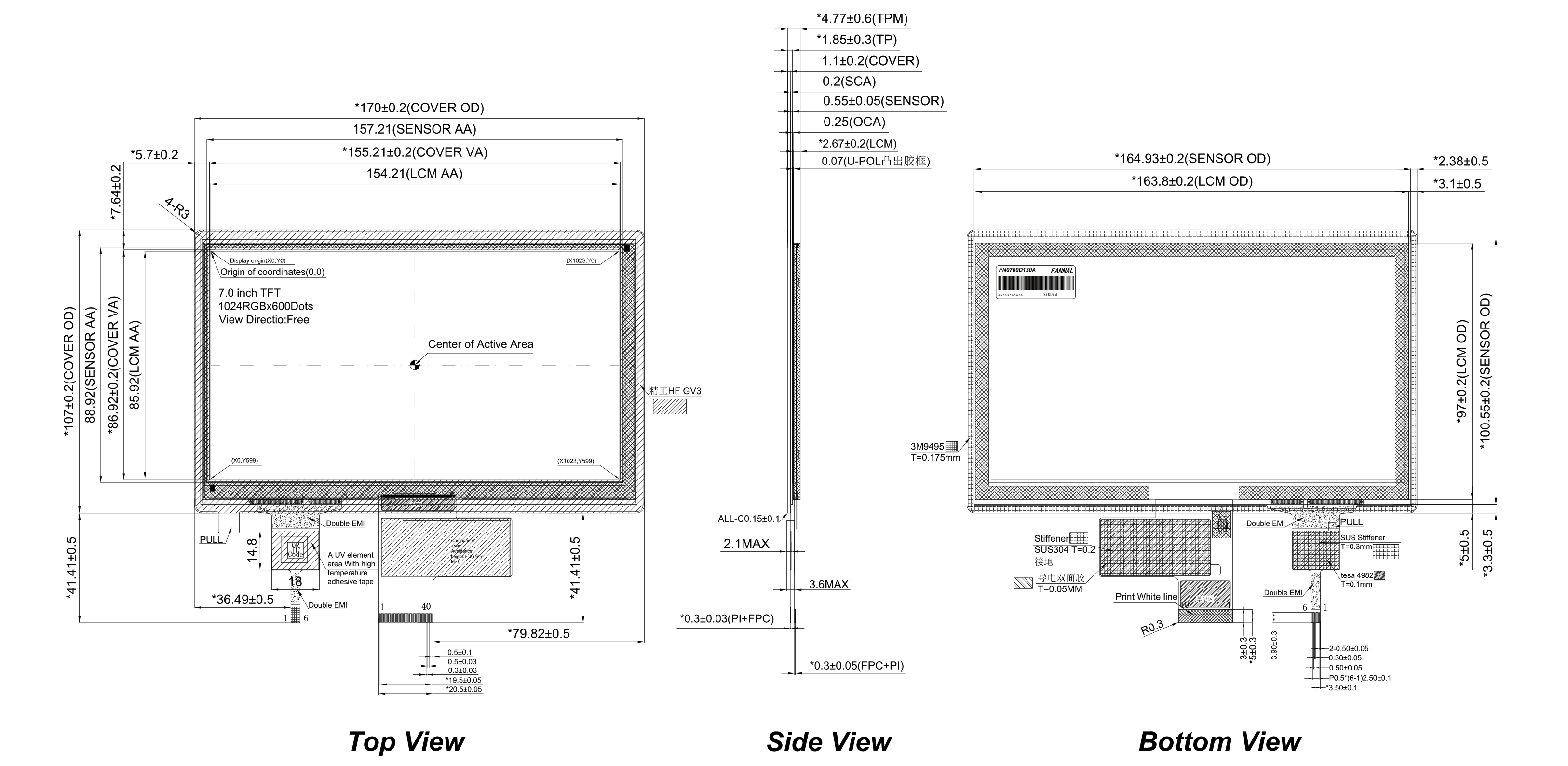

FN0700T160A drawing

General Specifications：

Size(inch):	7
Module:	FN07000160A

TFT LCD
Resolution:	1024x600
Brightness（cd/m²）:	420
Display interface:	LVDS
Panel type:	IPS

Touch panel
Touch type:	Capacitive touch
TP VA (mm):	155.21x86.92
TPM Outline Size(mm):	170x107x4.77
TP Interface:	IIC

Customization

COVER LENS:

Shape: cut in special shape, Printing: Silk printing/Ceramic printing, Material: PMMA/Glass, Thickness: 0.55mm~10.0mm, Surface treatment: AG, AR, AF, AB.

Sensor:

Sensor made by FANNAL,Narrow bezel design,Thickness selectable.

FPC:

Required shape available, Touch IC selectable, Interface selectable.

Bonding:

Air bonding/optical bonding, low reflection, All one black effect.

TFT Display:

In house manufacture/sunlight readable display/wide temperature display, IPS TFT display, Automotive grade display.

Add-on:

backlight board, AD board, wire sets.

Application

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
