A capacitive touch panel is a transparent touch sensor that detects touch by measuring changes in capacitance rather than physical pressure. It is widely used in smartphones, industrial HMIs, medical devices, automotive displays, self-service kiosks, and many other interactive systems.

Unlike resistive touch panels, which rely on pressure to complete an electrical circuit, capacitive touch panels respond to the electrical properties of a conductive object such as a finger or a compatible stylus. This allows for faster response, higher optical clarity, longer service life, and support for multi-touch gestures.

Today, projected capacitive (PCAP) technology has become the dominant solution for industrial touch displays because it combines excellent user experience with high durability and reliable performance in demanding environments.

How Does a Capacitive Touch Panel Work?

A capacitive touch panel consists of several transparent conductive layers, typically made from indium tin oxide (ITO), arranged on a glass substrate. These conductive patterns create an electrostatic field across the touch surface.

When a conductive object, such as a finger, approaches the panel, it changes the local capacitance. The touch controller continuously scans the sensor grid, detects these capacitance changes, calculates the touch coordinates, and sends the position information to the host system.

Unlike mechanical switches or resistive touch screens, no physical deformation of the panel is required.

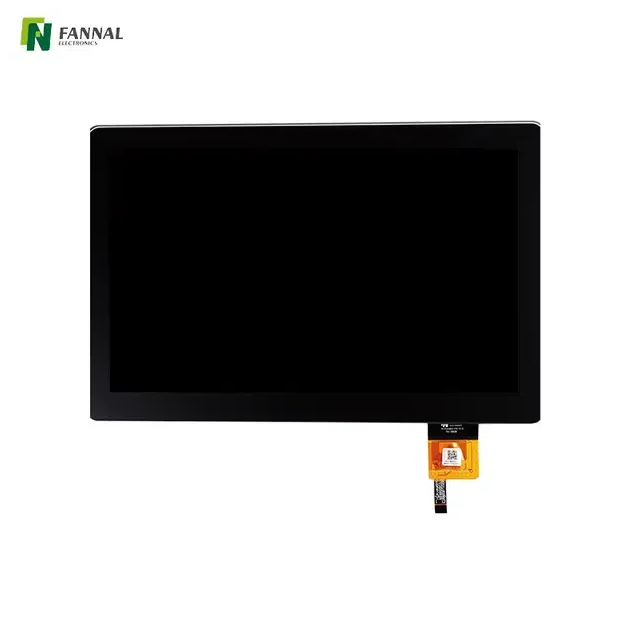

A typical projected capacitive touch panel includes:

• Cover glass

• Transparent ITO sensor layer

• Optical adhesive (optional)

• Controller IC

• Flexible printed circuit (FPC)

The touch controller plays a critical role in distinguishing valid touch signals from electrical noise, moisture, and environmental interference.

Types of Capacitive Touch Panels

Although "capacitive touch panel" is often used as a general term, there are several different sensing technologies available.

Surface Capacitive Touch

Surface capacitive touch panels apply a conductive coating across a single glass layer. When a finger touches the surface, the controller measures the current drawn from the four corners to determine the touch location.

Advantages include:

• Simple construction

• Low manufacturing cost

• Good optical clarity

However, surface capacitive technology has several limitations:

• Supports only single-touch input

• Lower touch accuracy

• More susceptible to electrical interference

• Difficult to support thick cover glass

As a result, surface capacitive touch is now used mainly in legacy equipment rather than modern industrial products.

Projected Capacitive (PCAP) Touch

Projected capacitive (PCAP) technology is the most widely adopted capacitive touch solution today.

Instead of using a continuous conductive coating, PCAP employs a matrix of transparent electrodes arranged in rows and columns. The touch controller measures changes in mutual capacitance at each intersection to determine touch position with high precision.

Compared with surface capacitive technology, PCAP offers:

• Multi-touch support

• Higher accuracy

• Better durability

• Improved resistance to electrical noise

• Support for thicker cover glass

• Better compatibility with optical bonding

Because the sensing electrodes are located beneath the cover glass, the touch surface remains protected from scratches, chemicals, and everyday wear.

This architecture makes PCAP the preferred solution for industrial control panels, medical equipment, automotive displays, outdoor kiosks, and other applications requiring long-term reliability.

Self-Capacitance vs. Mutual Capacitance

Projected capacitive touch systems generally use one of two sensing methods.

Self-Capacitance

Each electrode is measured independently relative to ground.

Advantages include:

• High touch sensitivity

• Good performance for single-touch applications

• Better detection through thicker cover glass

However, self-capacitance cannot accurately distinguish multiple simultaneous touch points because multiple fingers create ambiguous signal patterns.

Mutual Capacitance

Mutual capacitance measures the coupling between transmitter and receiver electrodes arranged in a grid.

When a finger approaches the panel, it changes the mutual capacitance at a specific intersection, allowing the controller to determine the exact touch location.

Compared with self-capacitance, mutual capacitance provides:

• Accurate multi-touch detection

• Better palm rejection

• Higher positional accuracy

• More stable gesture recognition

For this reason, nearly all modern smartphones, tablets, industrial HMIs, and automotive touch displays use mutual-capacitance PCAP technology.

Capacitive Touch Panel vs. Resistive Touch Panel

Although capacitive touch technology dominates most modern products, resistive touch panels are still used in certain industrial applications.

The two technologies differ fundamentally in how they detect touch.

*Modern projected capacitive systems can support glove operation through controller tuning and sensor optimization.

Unlike resistive touch panels, PCAP technology enables smoother interaction, higher light transmission, and better long-term durability. However, applications involving thick protective gloves, extremely low cost requirements, or simple single-touch interfaces may still favor resistive technology.

Advantages of Capacitive Touch Panels

Capacitive touch panels have become the preferred solution for most modern display systems because they combine excellent optical performance with long-term reliability.

Key advantages include:

• High light transmission for clearer images

• Smooth, responsive touch experience

• Multi-touch gesture support

• Scratch-resistant glass surface

• Long operational lifetime with no mechanical wear

• Easy integration with optical bonding

• Excellent resistance to dust and contaminants

• Stable performance under frequent daily use

For industrial applications, these advantages translate into lower maintenance requirements, improved user experience, and greater system reliability over extended operating lifecycles.

Can Capacitive Touch Panels Work with Gloves or Water?

A common misconception is that capacitive touch panels only work with bare fingers. While this was true for early generations of capacitive technology, modern projected capacitive (PCAP) touch panels can be optimized to support glove operation, water rejection, and harsh industrial environments.

Whether a capacitive touch panel performs reliably depends on several factors, including the touch controller IC, sensor design, cover glass thickness, and firmware tuning.

Glove Touch

Standard capacitive touch panels detect the small electrical coupling between a conductive object and the sensor. Thick insulating materials reduce this coupling, making ordinary gloves difficult to detect.

However, industrial PCAP systems can improve glove performance by:

• Increasing touch sensitivity through controller configuration

• Optimizing the sensor electrode pattern

• Selecting high-performance touch controller ICs

• Adjusting firmware for glove mode

With proper design, many industrial touch panels can operate reliably while users wear work gloves, medical gloves, or lightweight protective gloves.

Water and Moisture

Water droplets can alter the electric field of a capacitive sensor and generate false touch signals if the controller cannot distinguish between water and actual touch input.

Modern industrial touch systems often include water rejection algorithms that:

• Ignore stationary water droplets

• Distinguish fingers from moisture

• Reduce false triggering caused by rain or condensation

These features are particularly important for outdoor kiosks, marine equipment, agricultural machinery, and industrial control systems.

What Factors Affect Capacitive Touch Performance?

Touch performance depends on far more than the touch panel itself. In industrial applications, overall system integration often determines whether a touch interface operates reliably.

Several design factors have a significant impact on touch sensitivity and stability.

Cover Glass Thickness

A thicker cover glass improves mechanical strength but increases the distance between the user's finger and the sensing electrodes.

As glass thickness increases, touch sensitivity decreases unless the sensor and controller are specifically designed to compensate.

Typical industrial cover glass ranges from 1 mm to more than 6 mm, depending on impact resistance and environmental requirements.

Electromagnetic Interference (EMI)

Industrial equipment frequently operates near motors, inverters, switching power supplies, and other sources of electrical noise.

Without proper grounding, shielding, or controller tuning, EMI can cause:

• False touches

• Reduced sensitivity

• Unstable cursor movement

• Missed touch events

Careful PCB layout, shielding, grounding, and firmware optimization are essential for reliable operation.

Controller IC Performance

The touch controller is the "brain" of the capacitive touch system.

Modern controller ICs provide advanced features such as:

• Multi-touch detection

• Glove mode

• Water rejection

• Noise suppression

• Palm rejection

• Automatic calibration

Selecting the appropriate controller is often as important as selecting the touch sensor itself.

Environmental Conditions

Industrial touch displays are frequently exposed to:

• High temperatures

• Low temperatures

• High humidity

• Vibration

• Dust

• Chemical exposure

These environmental factors can affect sensor stability and long-term reliability, making environmental testing an important part of product validation.

Why Is Optical Bonding Commonly Used with Capacitive Touch Panels?

Optical bonding has become a common solution for industrial capacitive touch displays because it improves both optical performance and mechanical reliability.

Instead of leaving an air gap between the cover glass and the display, optical bonding fills the space with a transparent adhesive such as OCA or OCR.

This provides several advantages.

Improved Sunlight Readability

Eliminating internal reflections increases optical transmission and improves display visibility under bright ambient light.

For outdoor equipment, this often results in significantly better readability than air-bonded displays.

Better Mechanical Strength

The bonded structure distributes mechanical stress more evenly across the display assembly, improving resistance to vibration and impact.

This is particularly valuable for transportation, industrial automation, and mobile equipment.

Reduced Condensation

Removing the internal air gap minimizes the risk of internal fogging caused by temperature changes or humidity.

Enhanced Thermal Performance

The bonding material also provides an additional thermal conduction path, helping transfer heat away from the display and improving long-term reliability in high-temperature environments.

Industrial Applications of Capacitive Touch Panels

Projected capacitive touch technology is now widely used across industrial and commercial applications because it combines durability, excellent optical performance, and intuitive user interaction.

Typical applications include:

• Industrial HMIs and automation equipment

• Medical devices and diagnostic instruments

• Automotive infotainment and control displays

• EV charging stations

• Outdoor kiosks

• Self-service terminals

• Marine electronics

• Agricultural machinery

• Smart home control panels

• Retail POS systems

Compared with consumer electronics, these applications often require extended operating temperatures, glove support, resistance to vibration, and long product lifecycles.

How to Choose the Right Capacitive Touch Panel

Selecting a capacitive touch panel involves more than choosing the correct screen size. Engineers should evaluate the complete operating environment and system requirements.

Key considerations include:

• Display size and aspect ratio

• Cover glass thickness and strength

• Required touch points

• Operating temperature range

• Outdoor readability requirements

• Optical bonding

• Glove operation

• Water resistance

• EMC/EMI compatibility

• Interface type (USB, I²C, SPI, or UART)

• Touch controller IC

• Surface treatments such as anti-glare (AG), anti-reflection (AR), or anti-fingerprint (AF)

• Mechanical integration with the enclosure

For custom projects, balancing these factors early in the design process helps reduce development risk and improves long-term system reliability.

Conclusion

Capacitive touch panels have become the standard touch technology for modern industrial, medical, automotive, and commercial devices because they provide fast response, high optical clarity, excellent durability, and support for advanced multi-touch interaction.

Projected capacitive (PCAP) technology, in particular, offers significant advantages over older touch solutions, especially when combined with appropriate controller tuning, optical bonding, and mechanical design.

However, successful implementation depends on more than selecting the right touch panel. Cover glass thickness, environmental conditions, controller performance, EMI management, and system integration all play important roles in achieving reliable long-term performance.

Understanding these design considerations allows engineers to choose a touch solution that not only delivers a better user experience but also meets the reliability requirements of demanding industrial applications.

FAQ

What is the difference between a touch panel and a touch screen?

A touch panel is the transparent sensor that detects user input, while a touch screen generally refers to the complete assembly consisting of both the display and the touch panel. In many industrial products, the touch panel is laminated to the LCD using optical bonding to form an integrated touch display.

Is projected capacitive (PCAP) better than resistive touch?

For most modern applications, yes. PCAP provides higher optical clarity, supports multi-touch gestures, offers better durability, and delivers a more responsive user experience. Resistive touch remains suitable for applications requiring operation with any type of stylus or very thick gloves.

Can capacitive touch panels work with gloves?

Yes. Many industrial PCAP touch panels support glove operation through optimized sensor design, appropriate touch controller ICs, and firmware tuning. The achievable glove thickness depends on the overall system design.

Can capacitive touch panels work in wet environments?

Yes, provided the touch controller supports water rejection algorithms. Proper controller configuration and sensor design help distinguish actual touch input from rain, condensation, or water droplets.

How thick can the cover glass be on a capacitive touch panel?

The maximum cover glass thickness depends on the sensor design and touch controller performance. Many industrial PCAP solutions support cover glass from approximately 1 mm to over 6 mm, with some customized systems supporting even thicker glass.

How long does a capacitive touch panel typically last?

Unlike mechanical switches, capacitive touch panels have no moving parts and therefore experience very little mechanical wear. When properly designed and integrated, industrial capacitive touch panels can provide reliable operation for many years, with overall service life typically determined by the display module or backlight rather than the touch sensor itself.
