10.1 inch 1280x800 touch TFT display module

10.1 inch 1280x800 Touch TFT Display Module – Capacitive Touch IPS LVDS

Model:
FN101TPM
Size(inch):
10.1
Cover OD (mm):
261.76*180.4*3.88
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Resolution:
1280x800
Display Interface:
LVDS
TP Interface:
USB
Brightness(cd/m²):
500

Quantity:
Availability:





Inquiry Add to Basket

touch display manufacturer touch TFT display module 10.1 inch touch display

Features

Drawing & Specification

Application

Customization

About FANNAL

Features

10.1″ High-Resolution Display – 1280 × 800 resolution delivers crisp visuals and wide viewing angles, suitable for clear and detailed UI.
Capacitive Touch Panel – Responsive multi-touch capacitive touch interface with USB connection for intuitive interaction.
IPS TFT Panel Technology – Provides consistent colors and wide viewing direction from all sides.
LVDS Interface – Standard LVDS display interface ensures stable signal transmission and compatibility with many embedded systems.
Enhanced Outdoor Visibility – 500 cd/m² brightness combined with anti-glare (AG) and anti-fingerprint (AF) surface treatments improves readability in bright conditions without over-claiming “sunlight readable.”
Compact and Robust Design – Slim cover dimensions (261.76 × 180.4 × 3.88 mm) and surface treatments for usability in varied environments.
Industrial Temperature Range – Works reliably from -20°C to +70°C and stores between -30°C and +80°C.

Drawing

屏幕截图 2024-10-28 173230

Specification

Size(inch):	10.1
Module:	FN101TPM

TFT LCD
Resolution:	1280x800
Brightness（cd/m²）:	500
Display interface:	LVDS
Panel type:	IPS

Touch panel
Touch type:	capacitive touch
TP VA (mm):	217.36x136
Cover OD (mm):	261.76x180.4x3.88
TP Interface:	USB
Driver IC:	Microchip

Application

This 10.1″ touch TFT display module is suitable for many fields requiring interactive visual interfaces:

Industrial Control Panels — Touch-enabled HMI for machinery and automation systems.
Embedded Devices & Controllers — Custom equipment requiring a touch interface and LVDS display integration.

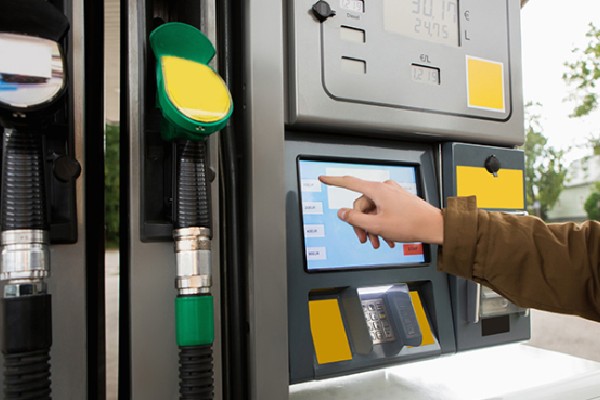

Kiosks & POS Systems — Interactive point-of-sale and information terminals.

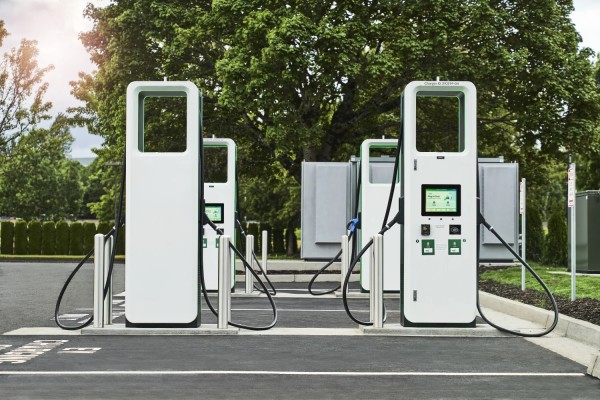

Outdoor & Public Displays (Bright Environments) — With an anti-glare surface and mid-level brightness, suitable for shaded outdoor use and bright indoor spaces; not engineered for direct midday sun.
Medical & Healthcare Devices — Control and display panels for diagnostic or monitoring equipment.

Industrial Panels

Medical Equipment

Fitness Equipment

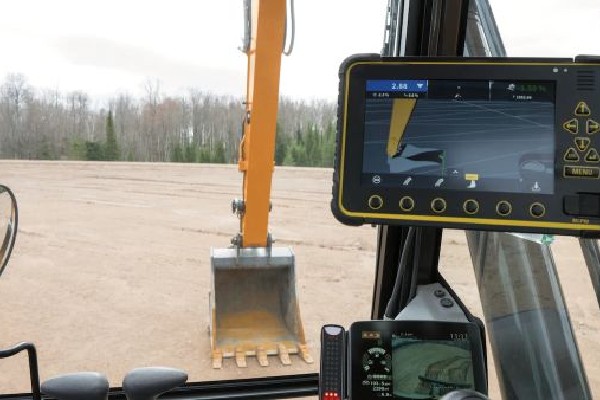

Engineering Plant

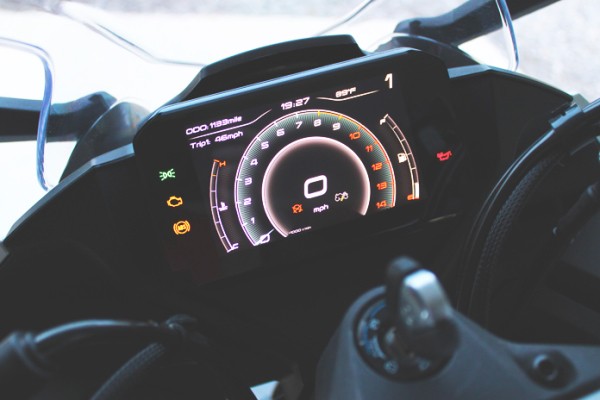

Motorbike

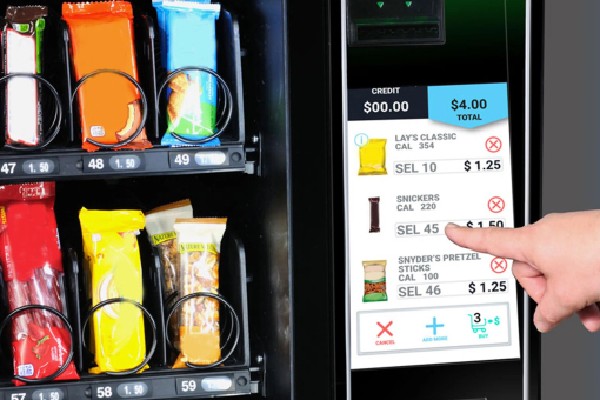

Vending Machine

Home Application

Customization

COVER LENS:

Shape: cut in special shape, Printing: Silk printing/Ceramic printing, Material: PMMA/Glass, Thickness: 0.55mm~10.0mm, Surface treatment: AG, AR, AF, AB.

Sensor:

Sensor made by FANNAL,Narrow bezel design,Thickness selectable.

FPC:

Required shape available, Touch IC selectable, Interface selectable.

Bonding:

Air bonding/optical bonding, low reflection, All one black effect.

TFT Display:

In house manufacture/sunlight readable display/wide temperature display, IPS TFT display, Automotive grade display.

Add-on:

backlight board, AD board, wire sets.

About FANNAL

Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Touchscreens, and Touch Monitors manufacturing.

One-Stop Solution: Full in-house process for touch screen, display, and optical bonding

Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more — timely local support.

Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions.

Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons.

Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant.

Album

FANNAL Ablum

FAQ

Q1: Is this display truly readable in sunlight?

A:
This module has a 500 cd/m² brightness level and anti-glare/anti-fingerprint surface treatments for improved readability under bright ambient light. However, compared with high-brightness outdoor models (≥1000 nits), it is better suited for shaded outdoor use or bright indoor conditions, not direct peak sunlight.

Q2: What interfaces do I need to drive this display and touch?

A:
This display uses LVDS for video input, and the touch panel communicates via USB. LVDS requires an appropriate controller or driver board if your source doesn’t output LVDS directly. The USB touch usually plugs into any USB host like a PC or embedded controller that supports HID touch.

Q3: Can the touch work without external drivers?

A:
For typical PC/Android/Linux hosts, USB touch is often plug-and-play. For embedded systems without native USB host support, you may need a USB host interface or microcontroller with USB support to handle touch reports.

Q4: What surface treatments are included on this module?

A:
This display includes anti-glare (AG) and anti-fingerprint (AF) coatings to reduce reflections and smudges, improving usability in bright or high-use environments.

Q5: Can this display module be customized for different environments?

A:
Yes — options like different cover lens materials, optical bonding, FPC shapes, and touch controller IC selections are available for volume and project orders.
