An In-Cell display integrates touch-sensing functionality into the display cell structure rather than using a separate touch sensor assembled on top of the LCD.
This changes the way the display and touch functions are designed and integrated. Instead of treating the LCD and touch sensor as two independent components, the touch-sensing structure becomes part of the display cell itself.
That does not mean an In-Cell display is automatically thinner, more responsive, or better suited to every application. The actual result depends on the display architecture, touch-sensing implementation, controller, cover glass, and complete module design.
To understand where In-Cell technology fits, it helps to start with the structure itself.
In-Cell is a touch integration architecture in which the sensing function is incorporated into the display cell.
In a display using a separate touch panel, the LCD and touch sensor are developed as distinct components and then assembled into a complete touchscreen module.
With In-Cell technology, the touch-sensing elements are integrated into the display cell during the display manufacturing process.

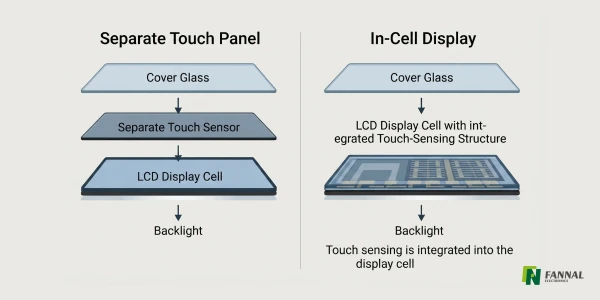

A simplified representation is:
Separate Touch Structure
Cover Glass → Touch Sensor → LCD → Backlight
In-Cell Structure
Cover Glass → LCD with Integrated Touch Sensing → Backlight
These diagrams are intentionally simplified. Actual In-Cell structures can differ in electrode arrangement, sensing architecture, and layer construction.
The important distinction is not the exact number of layers. It is where the touch-sensing function is implemented.
With In-Cell, it is part of the display cell rather than a separately manufactured touch-sensing panel.
For capacitive In-Cell implementations, touch is detected by measuring changes in an electrical field or capacitance caused by a finger.
A simplified signal path looks like this:
Touch → Integrated Sensing Structure → Touch Controller → Host System
The process can be broken down into several stages:
Stage | What Happens |
|---|---|
1. Touch input | A finger changes the electrical characteristics at a particular location on the display. |
2. Sensing | Integrated sensing electrodes detect the resulting electrical change. |
3. Signal processing | The touch controller processes the detected signals and filters unwanted interference. |
4. Coordinate calculation | The controller determines the position of the touch. |
5. Host communication | Touch coordinates or touch events are sent to the host system. |
The display image follows a different signal path.
Typically:
Host System → Display Interface → Display Driver → LCD
while touch information travels in the opposite direction:
Touch Controller → Touch Interface → Host System
This distinction matters when integrating an In-Cell display into an industrial system. Display data and touch data are separate functions, even though the touch-sensing structure is integrated into the display cell.
The key difference between In-Cell and a separate touch panel is the location of the sensing structure.
With a conventional separate touch solution, the touch sensor is manufactured independently from the LCD. The two components are then combined during module assembly.
In an In-Cell design, the display cell itself incorporates structures that perform the required touch-sensing function.
That means the display cell needs to accommodate two functions:
Generating and controlling the image
Detecting changes associated with user touch
This creates a closer relationship between display and touch design.
The sensing structure has to operate within an environment that already contains the circuitry and electrical activity required to drive the LCD pixels.
For that reason, In-Cell is not simply a conventional LCD with a touch sensor "moved inside." The display architecture itself has to support the integrated sensing function.
The exact physical structure varies between technologies and manufacturers, so a generic layer diagram should not be interpreted as the construction of every In-Cell display.
A simplified conceptual structure is:
Cover Glass
│
▼
Display / Touch Cell
├─ Pixel circuitry
├─ Display electrodes
└─ Integrated touch-sensing structure
│
▼
TFT / Display Cell
│
▼
Backlight Additional components may be present in a real module, including polarizers, adhesives, FPCs, optical bonding materials, protective glass, and other mechanical structures.
This is why it is useful to distinguish In-Cell architecture from the complete display module.
In-Cell tells you how touch sensing is integrated. It does not describe every other layer in the finished product.
One of the main engineering challenges is that the display and touch functions share the same physical environment.
An LCD continuously controls its pixels to produce an image. At the same time, the touch system needs to detect relatively small electrical changes caused by a finger.
These two operations can interact electrically.
The touch system therefore needs to distinguish a genuine touch signal from electrical activity associated with display operation and the surrounding system.
This is one reason the touch controller and sensing architecture matter so much.
A statement such as:
"This is an In-Cell display, so it has better touch sensitivity."
is too broad to be technically useful.
Actual touch performance can depend on the sensing implementation, controller, firmware, cover glass, environmental conditions, and system-level electrical design.
In-Cell describes the architecture; it does not guarantee a particular level of touch performance.
Although the touch-sensing function is integrated into the display cell, the complete module still contains multiple components.
Component | Primary Function | Engineering Consideration |
|---|---|---|
Display cell | Generates the image and incorporates the touch-sensing structure | Display and touch functions have to operate within the same cell architecture |
Touch-sensing structure | Detects electrical changes associated with touch | Specific implementation affects sensing behavior |
Touch controller | Processes sensing signals and calculates touch coordinates | Controller, firmware, and tuning influence touch performance |
Cover glass | Protects the display and provides the user-facing surface | Thickness and material can affect touch response |
FPC | Connects the display module with the host system | Length, pinout, connector, and routing may affect integration |
Backlight | Provides illumination for the LCD | Brightness and optical performance depend on the complete module |
Optical bonding/adhesive | Joins selected layers where required | Affects optical stack, reflections, and mechanical construction |
This is an important distinction: integrated touch does not mean a display module consists of only one component.
The touch function may be integrated into the cell, but the rest of the display system still needs to be engineered around it.
The touch controller is the link between the integrated sensing structure and the host system.
Its basic job is to convert electrical changes detected by the sensing structure into usable touch information.
A simplified sequence is:
Sensing → Signal Processing → Touch Position → Communication
Depending on the specific solution, the controller may also handle filtering, noise rejection, multi-touch processing, and other touch-related functions.
The resulting touch information is then transmitted to the host system through the supported communication interface.
This is why the touch controller should not be treated as an afterthought.
Two displays can both use In-Cell technology while having different touch controllers and therefore different system-level characteristics.
The most fundamental difference is the integration point.
Aspect | In-Cell Display | Separate Touch Panel |
|---|---|---|
Touch integration | Integrated into the display cell structure | Implemented as a separate touch-sensing component |
Display/touch development | More closely integrated at the display-cell level | Display and touch sensor can be developed more independently |
Assembly | Touch function is incorporated during display manufacturing | Touch sensor is assembled with the display |
Module architecture | More highly integrated | More modular |
Customization approach | Depends strongly on the selected display architecture | Separate touch component may provide different customization options |
Engineering focus | Display and touch need to be considered together | Display and touch can often be evaluated as separate components before integration |
This does not mean one architecture is universally better.
A separate touch panel can provide useful flexibility for certain customized applications. In-Cell can be attractive when a more integrated display/touch architecture fits the product requirements.
The appropriate choice depends on the actual system rather than the technology name alone.
When evaluating an In-Cell display, it is easy to focus on one statement:
"Touch is integrated into the LCD."
That explains the architecture, but it does not tell you whether the display will work well in a particular product.
The complete system still needs to meet requirements for:
Display resolution
Brightness
Contrast
Viewing angle
Touch performance
Cover glass
Display and touch interfaces
Operating temperature
Mechanical dimensions
Optical performance
System compatibility
For example, integrating touch into the display cell may reduce the need for a separately assembled touch sensor, but it does not automatically guarantee higher brightness or better touch performance.
Those characteristics depend on the complete display construction.
For industrial applications, the more useful question is therefore not simply:
"Is In-Cell better?"
It is:
"Does this particular In-Cell architecture meet the display, touch, optical, mechanical, and electrical requirements of the product?"
That question leads into the practical considerations of selecting and integrating an In-Cell display, which we will examine in the next part.

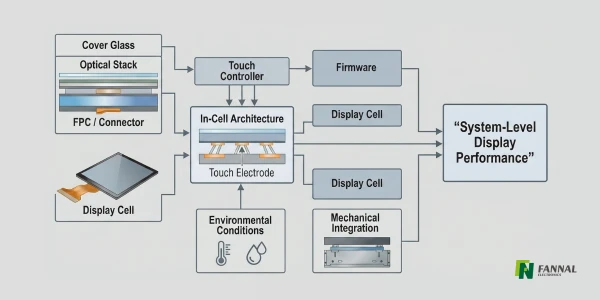

Understanding how In-Cell touch is integrated into the display cell is only the first step. For an actual product, the more important question is whether the complete In-Cell display can meet the application's mechanical, optical, electrical, and touch requirements.
An In-Cell architecture can simplify some aspects of display integration, but it does not remove the need for system-level engineering.
The performance of an In-Cell display is determined by the complete module, not by the In-Cell architecture alone.
Requirement | What to Evaluate | Why It Matters |
|---|---|---|
Touch performance | Sensitivity, response, multi-touch, glove or wet-touch requirements | The In-Cell architecture alone does not guarantee a particular touch performance |
Optical performance | Brightness, transmittance, reflection, contrast, viewing conditions | The complete optical stack determines what the user actually sees |
Cover glass | Thickness, material, surface treatment, dimensions | Cover glass can affect both touch response and mechanical protection |
Electrical integration | Display interface, touch interface, controller compatibility, noise environment | Display and touch signals must work reliably with the host system |
Mechanical integration | Module dimensions, FPC position, connector, mounting structure | The display must physically fit the finished product |
Environmental conditions | Temperature, moisture, vibration, contamination, outdoor lighting | Industrial environments can place requirements beyond normal indoor use |
Customization | Display size, cover glass, FPC, connector, touch configuration | Not every In-Cell platform supports the same level of customization |
This is why an In-Cell display should be evaluated as a display module, not simply as a touch technology.
It can reduce the number of separately assembled components in the display stack, but it is not correct to assume that every In-Cell display will have a specific thickness advantage.
The final thickness depends on the complete construction, including:
Cover glass
Polarizers
Display cell
Adhesive layers
Optical bonding
Backlight
Mechanical frame
FPC and connector arrangement
For example, if a product uses a relatively thick protective cover glass, the total module can still be substantial even if the touch function is integrated into the display cell.
Therefore, when thickness is a critical requirement, compare the complete module dimensions, not just the touch architecture.
Potentially, but again, there is no universal performance guarantee.
A separate touch panel introduces additional material and interfaces into the optical stack. Depending on the construction, these interfaces can contribute to reflection or reduce the amount of light reaching the user.
An In-Cell architecture can reduce the need for a separate touch-sensing layer, which may simplify part of the optical structure.
However, the actual visual result still depends on the entire module.
Important factors include:
LCD brightness
Cover glass
Optical bonding
Surface treatment
Polarizers
Ambient light
Reflection control
For an outdoor or high-ambient-light application, for example, choosing In-Cell alone is not enough to make a display sunlight-readable.
The optical design still needs to be evaluated as a whole.
They can, but In-Cell technology by itself does not guarantee glove-touch performance.
Glove operation depends on the complete touch system.
Important variables can include:
Touch-sensing architecture
Touch controller
Controller firmware
Glove material
Glove thickness
Cover glass
Touch sensitivity
Environmental electrical noise
A bare finger and a thick industrial glove present very different electrical conditions to a capacitive touch system.
Therefore, if glove operation is a requirement, it should be specified and tested as an application requirement rather than inferred from the term "In-Cell."
The same principle applies to water or moisture.
An In-Cell display may be designed for applications where wet-touch operation is required, but In-Cell itself does not automatically make a touchscreen waterproof or wet-touch capable.
Water can change the electrical conditions around the touch surface and create signals that the controller needs to distinguish from intentional touches.
The actual result depends on the touch sensor, controller, firmware, cover glass, surface treatment, and environmental conditions.
For industrial equipment used outdoors, in kitchens, medical environments, or other wet conditions, wet-touch performance should therefore be validated on the actual display configuration.
This depends heavily on the specific display platform.
Some aspects of an In-Cell module may be customized around the selected display cell, while changing the underlying display architecture can require a much more substantial development process.
Potential customization areas can include:
Display dimensions
Resolution
Brightness
Cover glass
Touch configuration
FPC length and shape
Connector
Interface
Mechanical dimensions
Optical bonding
However, these parameters are not always independent.
For example, changing the FPC is fundamentally different from changing the display cell. Increasing cover glass thickness can also affect touch performance and therefore may require validation of the touch system.
This is why custom In-Cell display development should begin with the complete product requirements, rather than a list of isolated specifications.
The FPC is easy to overlook because it does not affect what the user sees on the front of the display.
From an integration perspective, however, it can become a practical limitation.
The standard FPC may not match:
Required length
Exit direction
Connector position
Connector type
Pinout
Available installation space
Required bend path
For a standard product, this may not be an issue.
For a customized industrial display, the FPC may need to be adapted to the actual PCB and enclosure.
This is especially important when the display and touch functions use different signal paths or when the module uses a high-speed display interface.
A display can therefore be electrically functional on a test bench and still require FPC customization before it can be integrated into the final product.
In-Cell displays can be considered for applications that require an integrated display and touch interface.
Typical application areas include:
Application | Typical Requirement to Consider |
|---|---|
Industrial HMI | Compact integration, reliable touch, long operating periods |
Control panels | Touch interaction combined with a clear display interface |
Medical equipment | Display readability, touch behavior, cleanable surface, mechanical integration |
Automotive systems | Compact module construction, optical performance, environmental requirements |
Portable industrial equipment | Space constraints, touch interaction, mechanical integration |
Instrumentation | Clear visual information combined with user input |
These are application categories rather than guarantees that In-Cell is the preferred architecture.
The actual choice should be based on the display size, environmental conditions, touch requirements, mechanical structure, customization level, and system interface.
In-Cell is not automatically the best solution for every touchscreen application.
A separate touch architecture may make more sense when the project requires a particular touch sensor structure, unusual cover glass configuration, or a level of customization that does not fit the available In-Cell platform.
Some common decision points are:
Project Requirement | Engineering Question |
|---|---|
Highly customized touch structure | Can the selected In-Cell architecture support the required sensor design? |
Unusual cover glass | Will the glass thickness and material remain compatible with the touch system? |
Glove or wet touch | Has the complete touch system been validated under the actual conditions? |
Custom mechanical dimensions | Is there a suitable In-Cell display platform for the required geometry? |
Custom FPC / connector | Can the display connection be adapted to the host PCB? |
High customization level | Would a separate touch architecture provide more practical flexibility? |
Cost or volume constraints | Does the complete development and production approach make sense for the project? |
This is an important distinction between technology selection and product selection.
An In-Cell architecture may be technically attractive, but the available display platform still has to match the actual project.
Instead of asking which technology is "better," it is more useful to compare the complete solutions against the product requirements.
Evaluation Area | In-Cell Display | Separate Touch Display |
|---|---|---|
Touch integration | Integrated into display cell | Separate touch-sensing component |
Module architecture | Highly integrated | More modular |
Optical stack | Can reduce the need for an additional touch layer | Depends on touch sensor and bonding structure |
Mechanical integration | Depends on available In-Cell platform | More flexibility may be available in some configurations |
Touch customization | Dependent on display architecture | Can offer different sensor/configuration options |
Cover glass flexibility | Depends on touch system and platform | Depends on separate touch sensor design |
FPC / connector customization | Depends on display module | Can be configured according to the overall solution |
System-level performance | Depends on complete display/touch implementation | Also depends on complete display/touch implementation |
Best choice | When the integrated architecture fits the application | When modularity or specific customization is more important |
The last two rows are particularly important.
Neither architecture guarantees better performance by itself. The engineering decision should be based on the specific display, touch controller, mechanical structure, optical stack, and environmental requirements.
This is the point worth keeping in mind when evaluating In-Cell technology.
In-Cell tells you how touch sensing is integrated into the display. It does not define the complete performance of the display.
An In-Cell display may provide advantages in module integration, but actual performance still depends on the complete system.
For example:
In-Cell does not automatically guarantee glove touch.
In-Cell does not automatically guarantee wet touch.
In-Cell does not automatically guarantee higher brightness.
In-Cell does not automatically guarantee a thinner finished module.
In-Cell does not automatically provide unlimited customization.
These are engineering outcomes that depend on the specific implementation.
For an industrial display project, the right approach is to start with the application's requirements and then determine whether the available In-Cell architecture can satisfy them.
An In-Cell display integrates touch-sensing functionality into the display cell instead of using a separate touch-sensing panel.
This changes the architecture of the display module and allows display and touch functions to be integrated more closely.
But In-Cell should not be treated as a standalone performance specification.
The final result depends on the interaction between the display cell, touch-sensing structure, touch controller, cover glass, optical stack, FPC, interfaces, mechanical design, and operating environment.
For industrial applications, the most useful question is therefore not:
"Is In-Cell better than a separate touch display?"
It is:
"Does the specific In-Cell display configuration meet the requirements of the final product?"
That includes the requirements for display performance, touch behavior, optical performance, mechanical integration, electrical compatibility, and environmental conditions.
Not exactly. In-Cell describes where the touch-sensing function is integrated within the display architecture, while capacitive touch describes the sensing principle. Many In-Cell implementations use capacitive sensing, but the two terms are not interchangeable.
The complete system still requires touch-control functionality to process the sensing signals and communicate touch information to the host system. Whether the controller is implemented as a separate component or integrated into another part of the system depends on the specific architecture.
It can eliminate the need for a separately assembled touch-sensing component, but it does not mean that all layers above the display disappear. Cover glass, adhesives, polarizers, optical bonding materials, and other module components may still be present.
It can be suitable for industrial HMIs when the selected display meets the required brightness, touch behavior, temperature range, mechanical dimensions, interfaces, and environmental conditions. The In-Cell architecture alone is not enough to determine suitability.
Yes. These technologies address different aspects of the display. In-Cell describes touch integration within the display cell, while optical bonding describes how display layers are bonded together. They can therefore be used in the same display solution.
At minimum, the project should define the required display size, resolution, brightness, interface, touch requirements, cover glass, mechanical dimensions, operating environment, and host-system connection. For customized projects, FPC, connector, mounting, and optical requirements may also need to be defined.
