5.0" In-Cell TFT LCD Display | 1024×600 | 1150 nits

Name: 5.0" In-Cell TFT LCD Display | 1024×600 | 1150 nits
Brand: FANNAL
Rating: 5.0 (49 reviews)

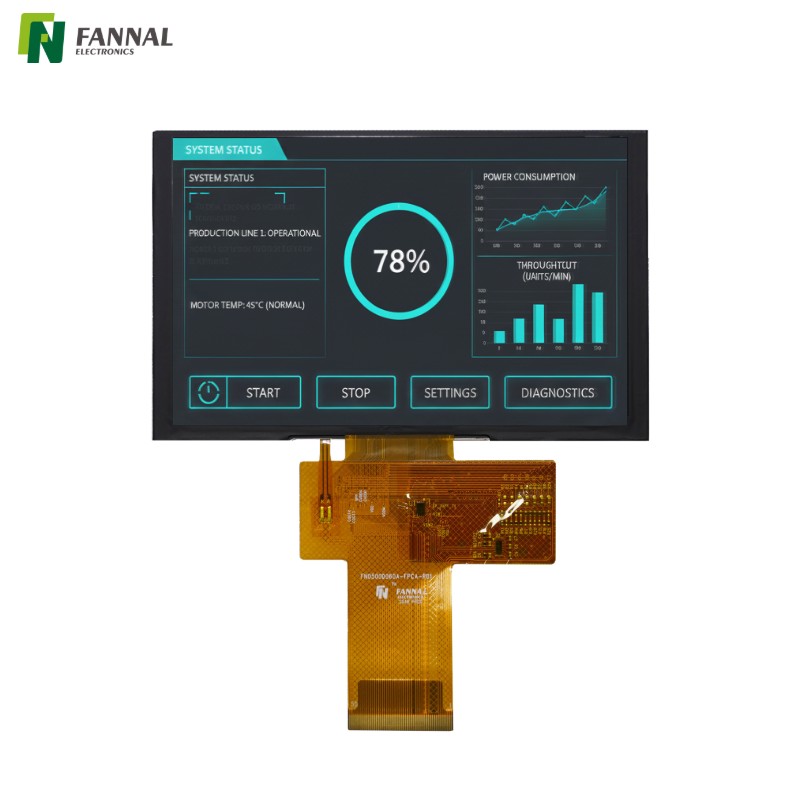

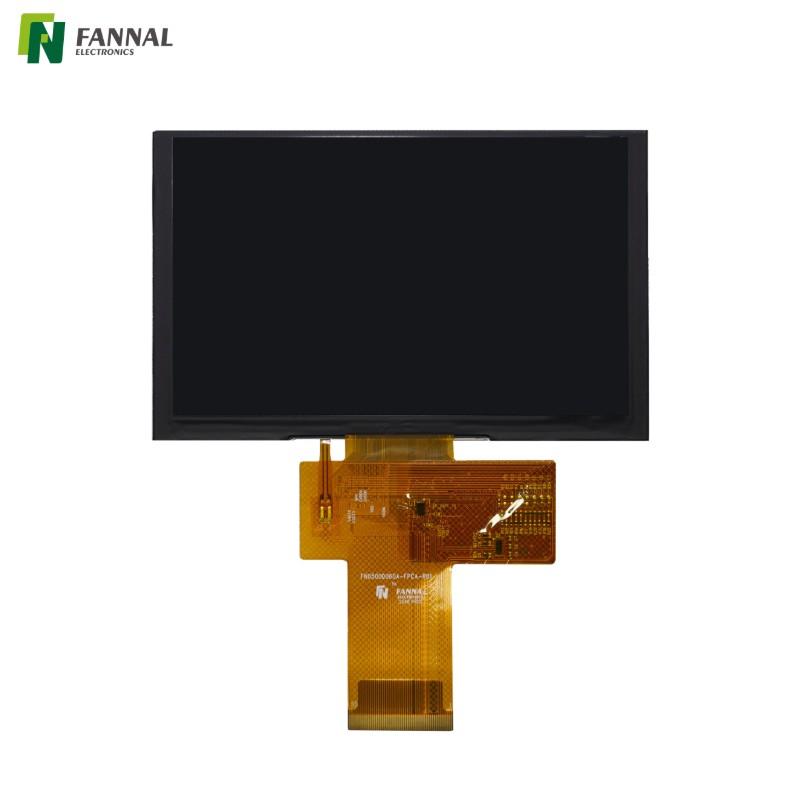

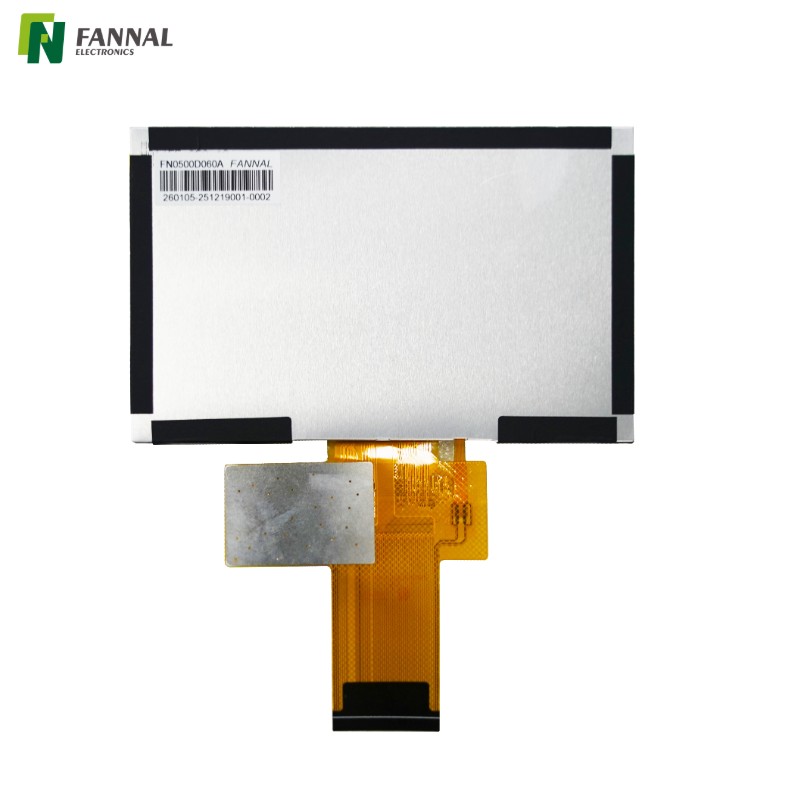

5.0-Inch In-Cell TFT LCD Module, 1024×600, 1150 nits, RGB Interface

Model:
FN0500D060A
Brand:
FANNAL
Size(inch):
5
Cover OD (mm):
120.76*75.86*2.55
Operation Temp(℃):
-30~80
Storage Temp(℃):
-30~80
Contrast Ratio:
1200：1
Resolution:
1024×600
Direction:
FREE
Display Interface:
RGB
Brightness(cd/m²):
1150

Quantity:
Availability:





Inquiry Add to Basket

5.0 inch In-Cell tft lcd display In-Cell TFT

Features

Drawing & Specifications

Applications

Customizations

About FANNAL

Key Features

Integrated In-Cell Touch Architecture

Touch sensing layer is embedded directly into the LCD cell, eliminating a separate touch panel and reducing internal reflection for improved optical clarity and faster touch response.

High Brightness for Demanding Environments

With typical luminance up to 1150 nits, the display maintains excellent readability under strong ambient light and semi-outdoor conditions.

High Contrast, Normally Black Display Mode

A typical 1200:1 contrast ratio combined with a normally black mode ensures deeper blacks, sharper images, and stable color performance across viewing angles.

Free Viewing Direction

Designed with wide and flexible viewing angles, allowing consistent visibility from different installation orientations and user positions.

Compact Module Design

In-cell integration enables a thinner and lighter display stack, supporting space-constrained embedded systems and compact device designs.

Standard RGB Interface

RGB interface allows easy integration with a wide range of embedded processors and control boards commonly used in industrial systems.

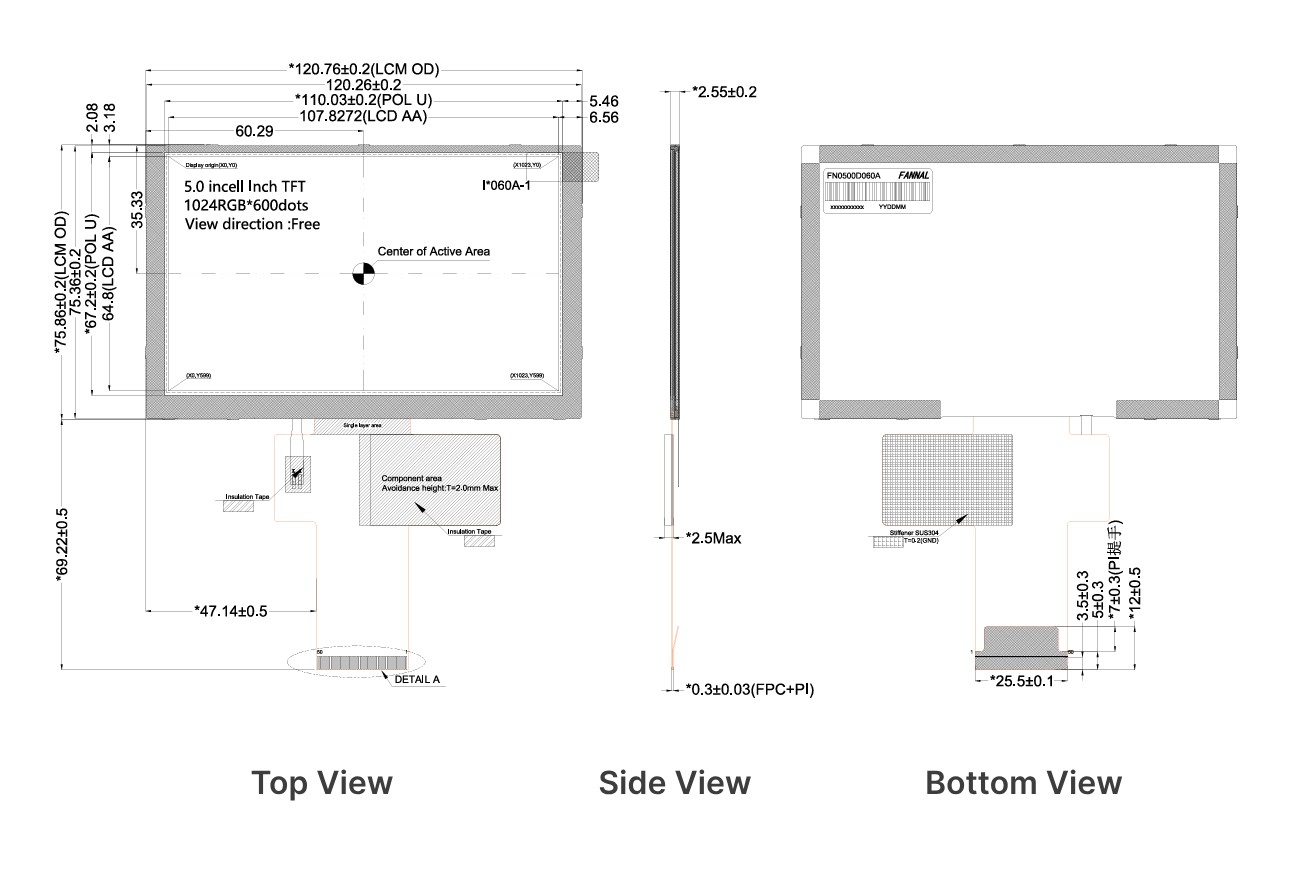

Drawing

Specifications

Category	Item	Specification
Basic Spec	Screen Size	5.0 inch
	Resolution	1024×600 dots
	LCD Type	Transmissive
	Display Mode	Normally Black (IPS-like)
	Viewing Direction	Free (Full Viewing Angle)
Optical Spec	Luminance	1150 cd/m² (Typ) / 920 cd/m² (Min)
	Contrast Ratio	1200:1 (Typ)
	Uniformity	80% (Min)
Hardware	Interface	RGB
	Driver IC	ST72325

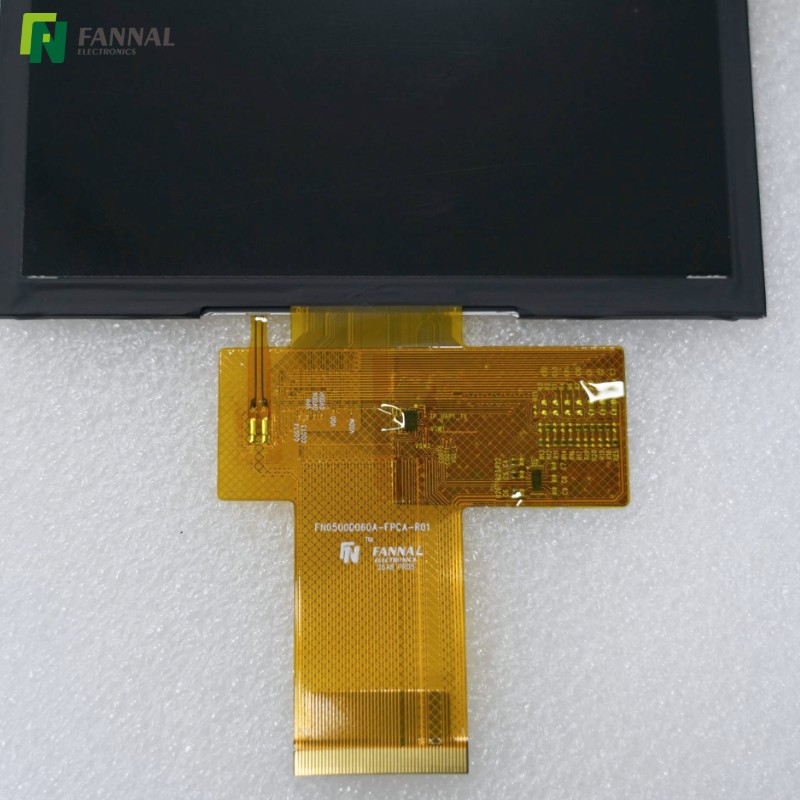

	Connection Type	FPC Plug-in
	Power Supply	3.3V
Physical	Module Outline (OD)	120.76×75.86×2.55 mm
	Active Area (AA)	107.82×64.8 mm
	Thickness	2.55 mm
Reliability	Operation Temperature	-30°C to +80°C
	Storage Temperature	-30°C to +80°C
	Compliance	RoHS-2.0

Typical Applications

Industrial Control Panels

Compact HMI interfaces for machinery, automation equipment, and system control units requiring responsive touch input and high brightness.

Medical Equipment Interfaces

Display and touch input for diagnostic devices, monitoring systems, and portable medical instruments where clarity and reliability are critical.

Automotive & Transportation Systems

Embedded displays for vehicle subsystems, control modules, and transportation equipment with limited installation space.

Outdoor & Semi-Outdoor Terminals

Monitoring and control interfaces for energy systems, charging stations, or measurement devices exposed to strong ambient light.

Smart Devices & Embedded Systems

Touch-enabled displays for custom embedded platforms requiring a clean design and integrated touch functionality.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

About FANNAL

Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Touchscreens, and Touch Monitors manufacturing.

One-Stop Solution: Full in-house process for touch screen, display, and optical bonding

Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more — timely local support.

Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions.

Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons.

Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant.

Certificates

FAQ

Q1 What is an in-cell display and how does it differ from traditional touch solutions?

In-cell technology integrates the touch sensor within the LCD cell itself, unlike traditional designs that add a separate touch panel on top of the display. This reduces thickness, improves optical performance, and minimizes internal reflections.

Q2 Is this display suitable for outdoor use?

The display’s high brightness (up to 1150 nits) makes it suitable for semi-outdoor and high ambient light environments. Full outdoor use depends on the enclosure design and system-level protection.

Q3 Does the in-cell structure affect touch responsiveness?

No. In-cell touch designs typically offer faster response times due to the reduced distance between the display pixels and the touch sensing layer.

Q4 Can the display be customized for different system requirements?

Yes. Parameters such as brightness, interface configuration, viewing angle optimization, and surface treatment can be adjusted to meet specific project needs.

Q5 Is this display compatible with industrial-grade controllers?

The standard RGB interface supports integration with commonly used industrial and embedded processors. Interface compatibility can be confirmed during project evaluation.

Q6 Can this 5.0" display be part of a larger in-cell display series?

Yes. This model serves as a reference design within the In-Cell Displays series, and similar configurations can be developed across multiple sizes and resolutions.
