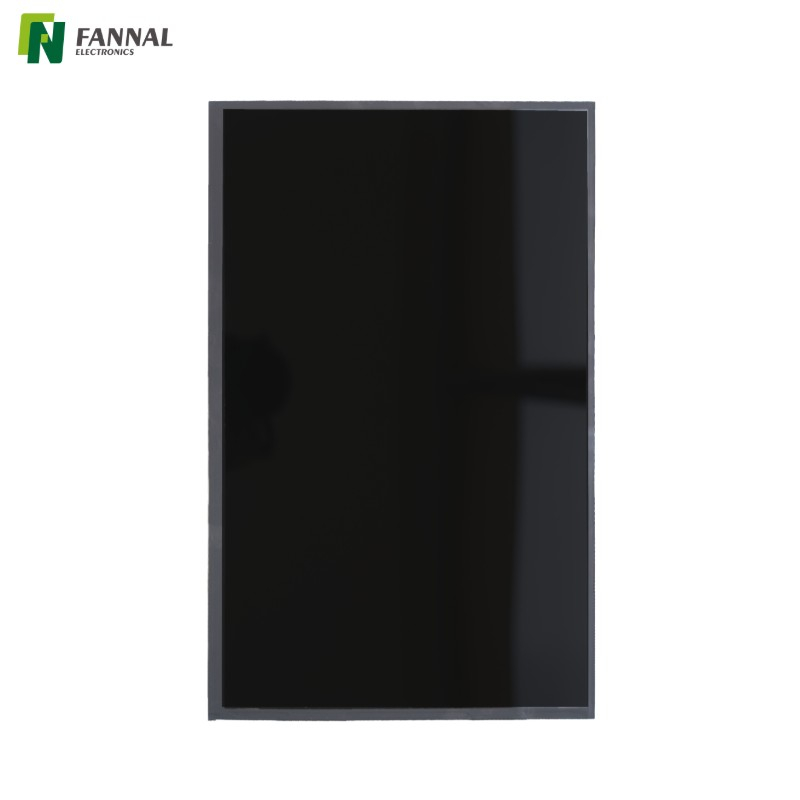

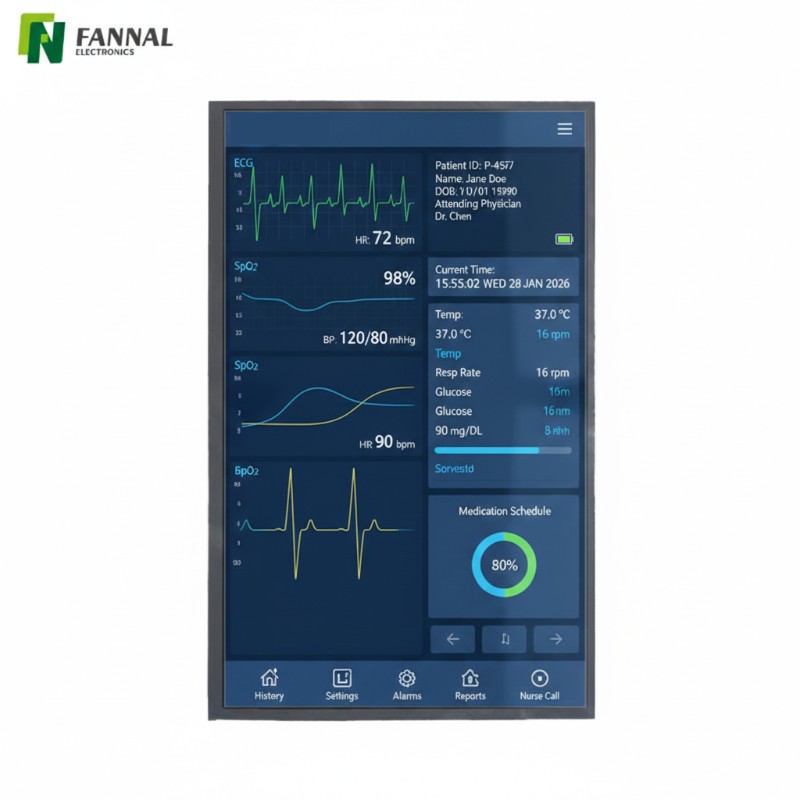

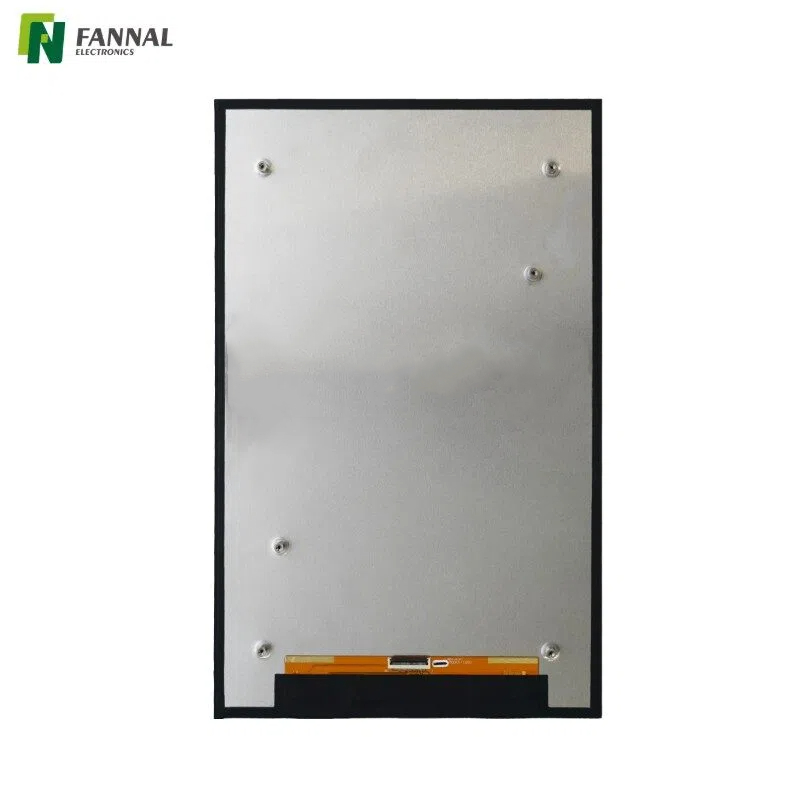

15.6 Inch In-Cell TFT Display | 1200×1920 MIPI | 1000 nits

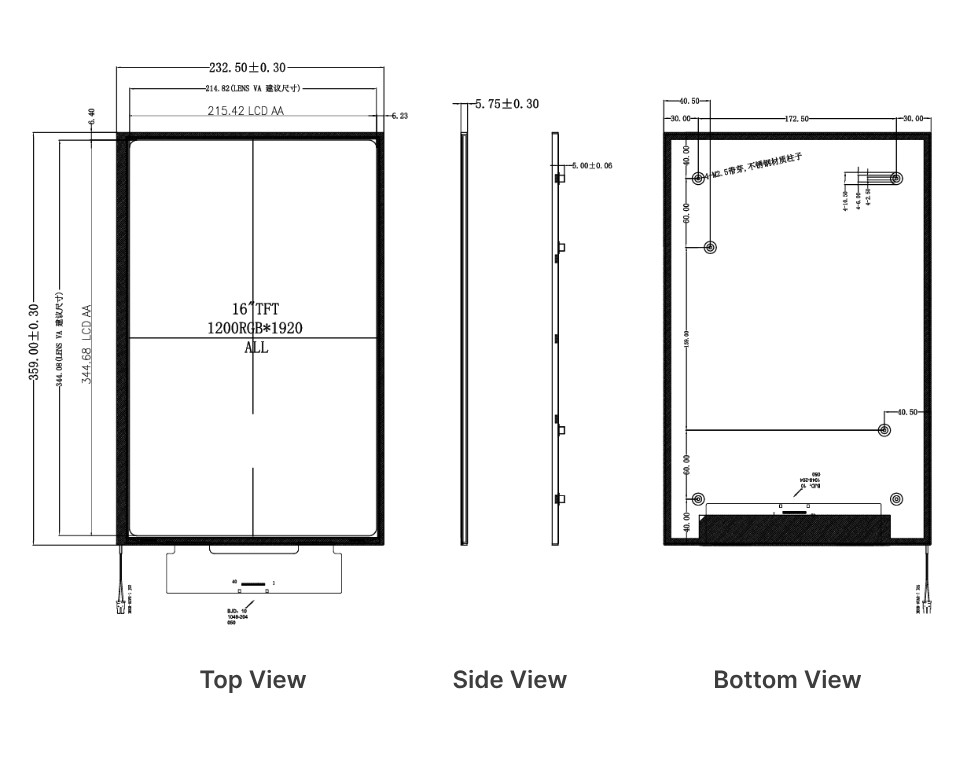

Drawing

Specifications

Applications

This 15.6 inch high-luminance in-cell TFT display is designed for systems operating under high ambient light and extreme temperature conditions, where visibility and reliability are critical.

Typical applications include:

• Outdoor and semi-outdoor industrial equipment
  The 1000 nits luminance ensures clear visibility in environments with strong ambient light, such as outdoor kiosks, charging stations, and industrial terminals.

• Transportation and vehicle-mounted systems
  Wide operating temperature support makes it suitable for applications exposed to temperature fluctuations, including rail systems, agricultural machinery, and special-purpose vehicles.

• Industrial automation and monitoring panels
  The large 16 inch display area supports complex data visualization and real-time monitoring in harsh industrial environments.

• Energy, utility, and infrastructure equipment
  Designed for control and monitoring systems used in power distribution, energy management, and infrastructure facilities with demanding environmental conditions.

Automotive Display	Kiosk touch screen	Railway display	E-bike display
Outdoor display	Industrial display	Medical touch screen	Gym-screen
Engineering Plant	Motorcycle display	Vending Machine Display	Embedded display

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Why Choose FAANAL?

Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Touchscreens, and Touch Monitors manufacturing.

One-Stop Solution: Full in-house process for touch screen, display, and optical bonding

Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more —  timely local support.

Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions.

Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons.

Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant.

Album

FAQ

Q1: Is this display suitable for high ambient light or outdoor environments?

Yes. With a typical luminance of 1000 nits, this display is designed to maintain good visibility in high ambient light conditions commonly found in outdoor and semi-outdoor industrial applications.

Q2: What makes this display suitable for extreme temperature environments?

The display supports an extended operating temperature range from -30°C to +80°C, allowing stable performance in environments with significant temperature variation.

Q3: Does the in-cell structure affect reliability in harsh environments?

The in-cell structure simplifies the display stack and reduces additional layers, which can help improve structural stability in demanding industrial conditions.

Q4: Can this display be used in continuous operation systems?

Yes. It is designed for industrial systems that require long-term and continuous operation under high brightness and wide temperature conditions.

Q5: Is this display recommended for standard consumer electronics?

No. This model is intended for industrial and professional systems rather than consumer-grade electronics.
