From COG to TPM: Understanding Touch Display Module Abbreviations

If you are new to the touch display industry, the array of abbreviations—COG, FOG, LCM, TPM—can feel confusing. As a display module manufacturer, we often explain these “industry shorthand” terms to our customers and partners. Here’s a clear guide to help you understand how a display module evolves from a bare panel to a fully functional touch display.

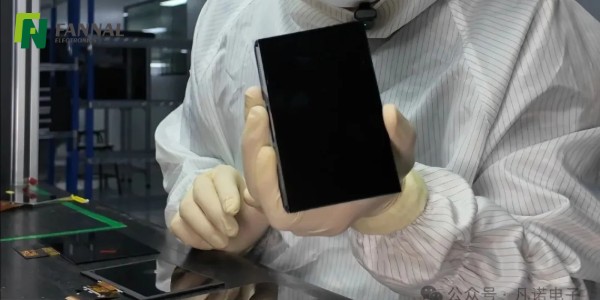

What is an LCD Panel?

An LCD Panel is the core glass substrate of a display module.
It shows images but does not have a driver and cannot emit light on its own. Think of it as a “brain without power,” controlling liquid crystal molecules to modulate light. In our projects, this is the foundation on which everything else is built.

Note: In most modern displays, the LCD panel is actually a TFT LCD (Thin-Film Transistor LCD). TFT is a type of active-matrix technology that uses thin-film transistors to control each pixel individually, enabling higher resolution, better image stability, and faster response compared to passive LCDs.
In practice, when customers refer to an “LCD,” they usually mean a TFT LCD module.

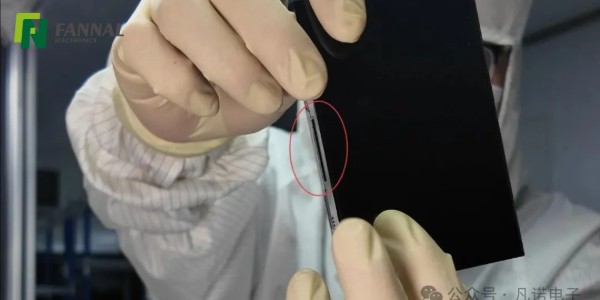

What is COG (Chip On Glass)?

COG is a method where the driver IC is directly mounted on the LCD glass.
This allows the panel to actually display images. We often use COG for small modules such as car dashboards, wearable devices, and industrial screens. It offers compact size, fast response, and fits into space-constrained designs.

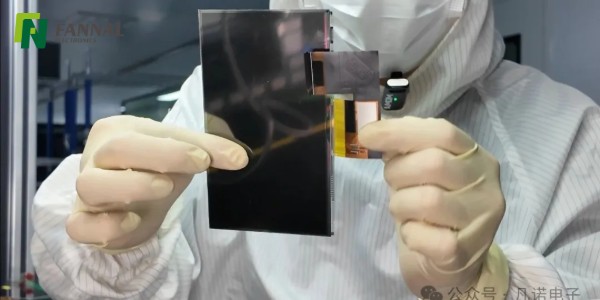

What is FOG (Film On Glass)?

FOG refers to a COG combined with an FPC (Flexible Printed Circuit).
The FPC acts like a soft bridge, connecting the COG signals and power to the mainboard. FOG makes integration easier for our customers.

Note: Other related packaging terms include COF (Chip On Film), COB (Chip On Board), and TAB (Tape Automated Bonding), each with slightly different features.

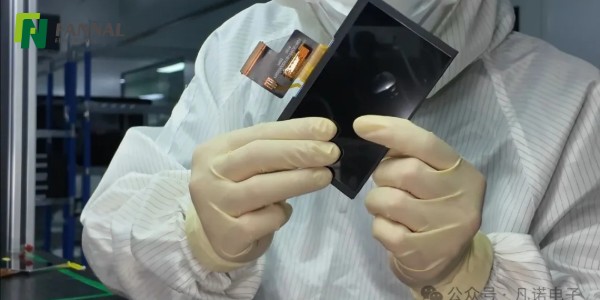

What is LCM (Liquid Crystal Module)?

LCM is a complete display module that includes the LCD panel, driver IC, FPC, and backlight unit (BLU).
It is a ready-to-use display: connect the power, and the image appears. In our experience supplying industrial and medical modules, LCM specifications like size and resolution are key parameters customers request.

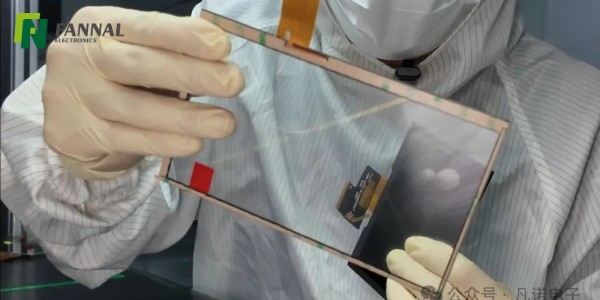

What is TP (Touch Panel)?

TP is a touch panel that detects finger or stylus input.
Common structures include G+G (glass cover + glass sensor) and G+F (glass cover + film sensor). The choice affects touch feel, thickness, and cost. As a manufacturer, we evaluate these structures based on the target application.

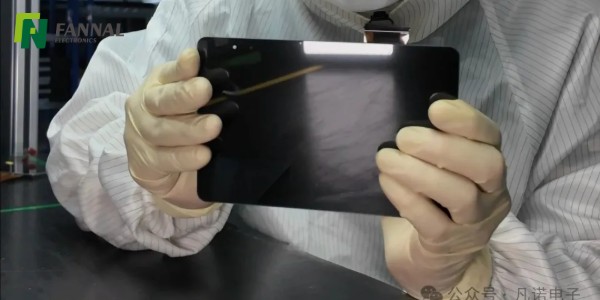

What is TPM (Touch Panel Module)?

TPM combines a touch panel with an LCM into one integrated unit.
Using optical bonding methods such as OCA or OCR, TPM provides both display and touch functions. We design TPMs for interactive applications in automotive, medical, and industrial devices, ensuring reliability and clarity.

For high-integration projects, TDDI (Touch and Display Driver Integration) can combine touch and display functions into a single chip. In industrial applications, we often prefer separate ICs to maintain stability and flexibility.

Other Common Terms in Touch Display Modules

• COF (Chip On Film) – more flexible for larger displays

• COB (Chip On Board) – cost-effective but larger in size

• TAB (Tape Automated Bonding) – older bonding method

• TDDI(Touch and Display Driver Integration) – integrates touch and display driver into one chip

These terms are worth knowing for understanding module design and terminology.

Summary: Module Structure Flow

A touch display module typically evolves as follows:

LCD Panel → COG → FOG → BLU → LCM → TP → Optical Bonding → TPM

Each step adds structure and functionality. Understanding this flow helps you see why abbreviations like COG, FOG, LCM, and TPM are not just letters—they represent real module features and design considerations we deal with as a manufacturer.

FAQ

Q: Is optical bonding necessary for TPM?

No, but it is strongly recommended in most applications.
Compared to air bonding, optical bonding (OCA/OCR) reduces reflection, improves contrast, and enhances durability. In outdoor, medical, and industrial environments, it is often considered essential.

Q: What is the difference between TDDI and traditional touch solutions?

TDDI integrates touch and display driver functions into a single chip.
This reduces component count and module thickness. However, in industrial applications, separate touch and display ICs are still commonly used for better flexibility and system stability.

Q: Why are some displays hard to read under sunlight?

The main reasons are insufficient brightness and surface reflection.
Besides increasing backlight brightness (nits), optical bonding and anti-reflective treatments can significantly improve sunlight readability.

Q: Can touch screens work with gloves or water?

Yes, but they require specific design and tuning.
Standard capacitive touch may not respond well to gloves or moisture, but controller tuning and sensor design can enable glove touch and water-resistant operation, especially in industrial and medical devices.

Q: Where is the polarizer located in a TPM?

The polarizer is part of the LCD panel inside the LCM, not the touch panel.
It is attached to the LCD glass and sits below the touch panel, playing a key role in controlling light and enabling image display.
