TFT vs. LCD vs. In-Cell: What’s the Real Difference?

In the display industry, terms like LCD, TFT, and In-Cell are often used interchangeably.
However, they actually describe different layers of display technology.
Misunderstanding these terms can lead to incorrect product selection, unrealistic expectations, or improper system design.

This article explains the differences from an engineering perspective, focusing on how each term fits into the overall display architecture.

1. What Is LCD?

LCD (Liquid Crystal Display) refers to a display technology, not a specific product structure.

LCDs form images by controlling the light transmission of liquid crystal molecules under an electric field, typically combined with a backlight unit.
This definition applies regardless of:

• Screen size

• Color or monochrome

• Touch or non-touch

• Industrial or consumer use

In other words:

LCD defines how images are created, not how pixels are driven or how touch is integrated.

Today, LCD is one of the most widely used display technologies across industrial, medical, automotive, and commercial applications.

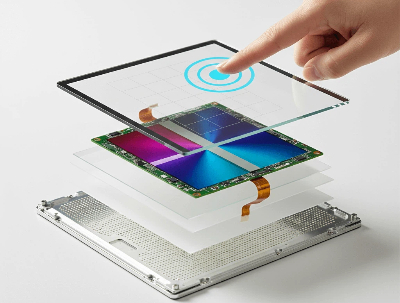

2. What Is TFT?

TFT (Thin-Film Transistor) is not a display technology, but a pixel-driving method used within LCDs.

In a TFT-LCD:

• Each pixel (or sub-pixel) is controlled by an individual thin-film transistor

• This structure is known as an active-matrix LCD

Compared to passive-matrix LCDs (such as TN, STN, or FSTN), TFT offers:

• Faster response time

• Higher resolution support

• Better contrast and viewing stability

A critical clarification:

TFT is a subset of LCD, not an alternative to it.

Most modern color LCDs—and some monochrome LCDs—are TFT-based.

3. Why TFT Is Often Confused as a Separate Category

In practice, many people associate:

• “LCD” with monochrome displays

• “TFT” with color displays

This confusion comes from historical market usage, not from technical definitions.

• Early monochrome LCDs were commonly passive-matrix designs

• Color LCDs almost universally adopted TFT active-matrix structures

• Over time, “TFT” became shorthand for “color LCD” in commercial language

Technically, however:

• Monochrome TFT LCDs do exist

• They are simply less common due to cost and application economics

So the correct hierarchy remains:

LCD → includes both passive-matrix and TFT (active-matrix) structures

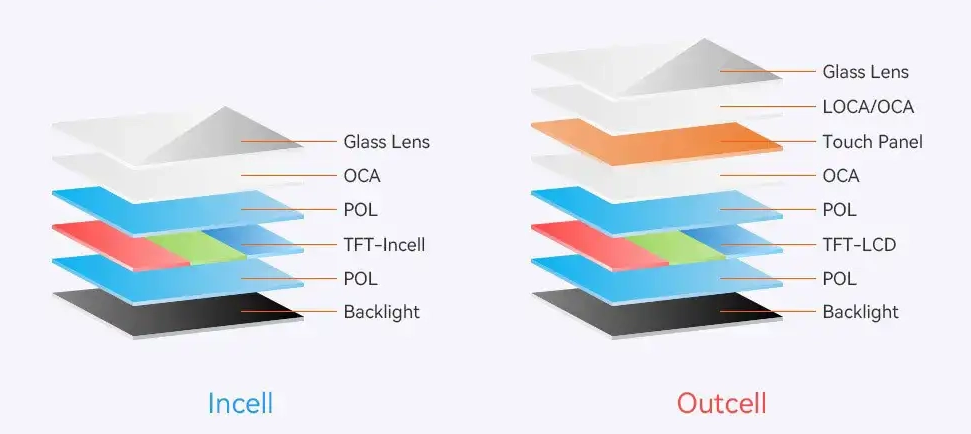

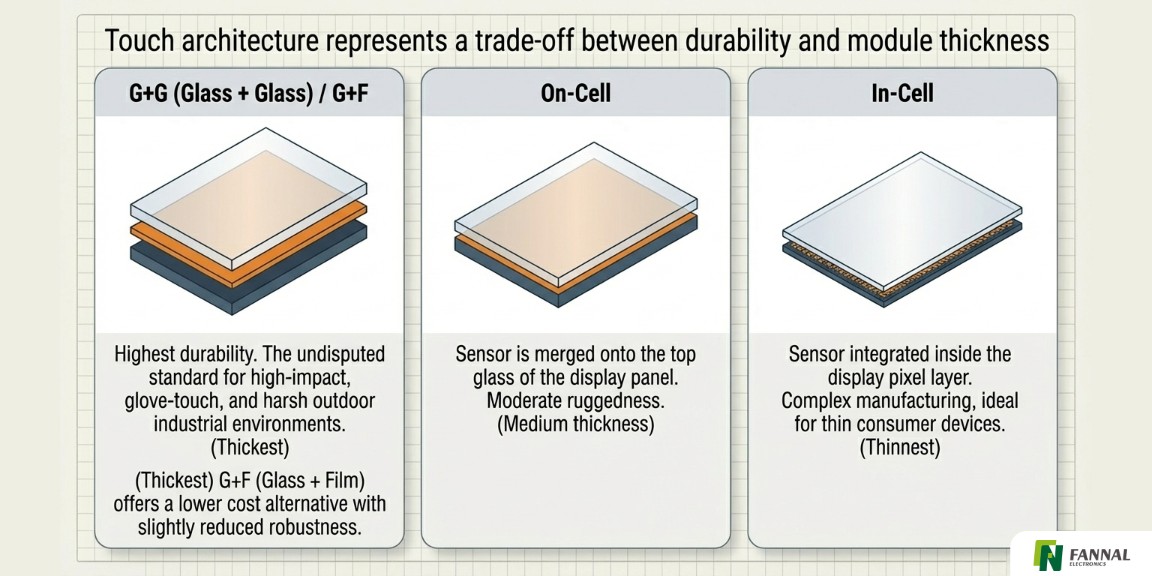

4. What Is In-Cell Technology?

In-Cell does not describe a display type or a driving method.

Instead, it refers to how touch functionality is integrated into an LCD module.

In conventional designs:

• The LCD and the touch panel are separate layers

• Touch sensing is added on top of the display

With In-Cell technology:

• Touch sensing electrodes are embedded inside the LCD cell

• The display and touch functions share the same structural layers

Key point:

In-Cell changes the module structure and integration level, not the LCD or TFT fundamentals.

5. Key Differences at a Glance

This table highlights why these terms should not be compared at the same level, even though they often are.

6. How These Terms Work Together in Real Products

In most modern industrial applications, a complete description would look like:

TFT-LCD with In-Cell touch integration

In practice, this is often shortened for convenience, but understanding the full structure helps clarify:

• Design limitations

• Optical performance expectations

• Integration complexity

7. Which Term Actually Matters for Your Application?

Each term answers a different engineering question:

• LCD → What display technology is used?

• TFT → How are pixels driven and controlled?

• In-Cell → How is touch integrated into the display structure?

For system designers:

• TFT-LCD defines image quality and electrical behavior

• In-Cell defines mechanical thickness, optical path, and integration efficiency

They complement each other rather than compete.

8. Final Takeaway

The confusion between TFT, LCD, and In-Cell comes from mixing technology categories with structural design choices.

A precise understanding can be summarized as:

LCD is the display technology, TFT is the driving method, and In-Cell is the touch integration architecture.

Understanding this distinction enables more informed decisions when selecting or customizing display solutions—especially in industrial and system-level designs.
