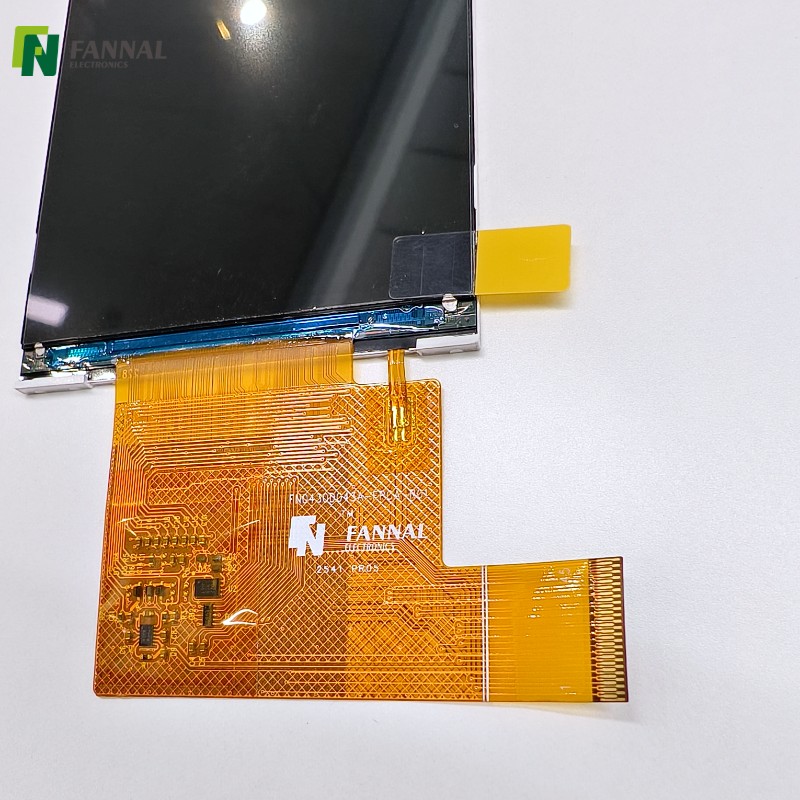

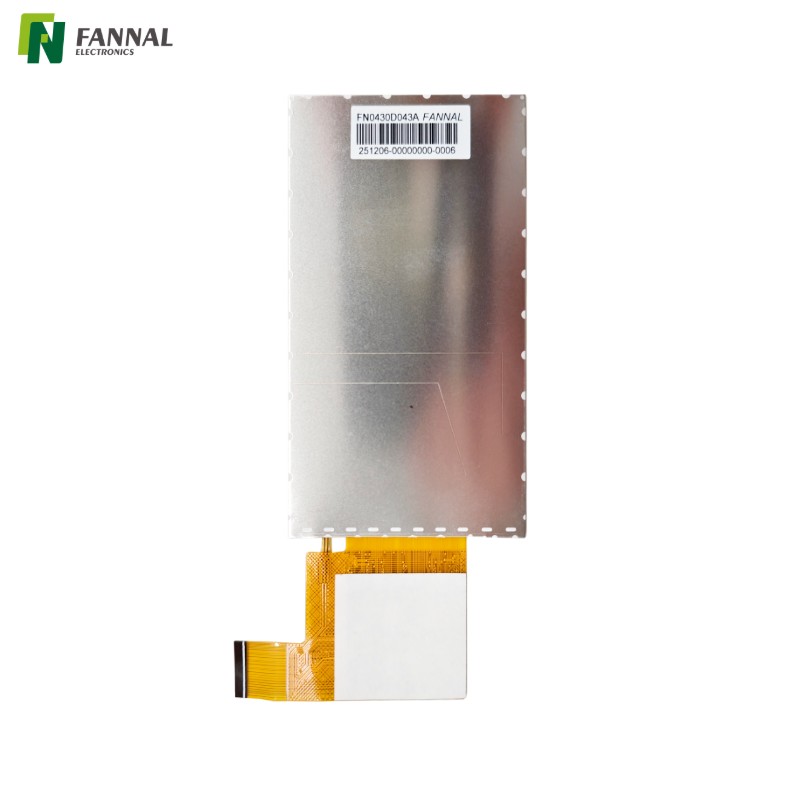

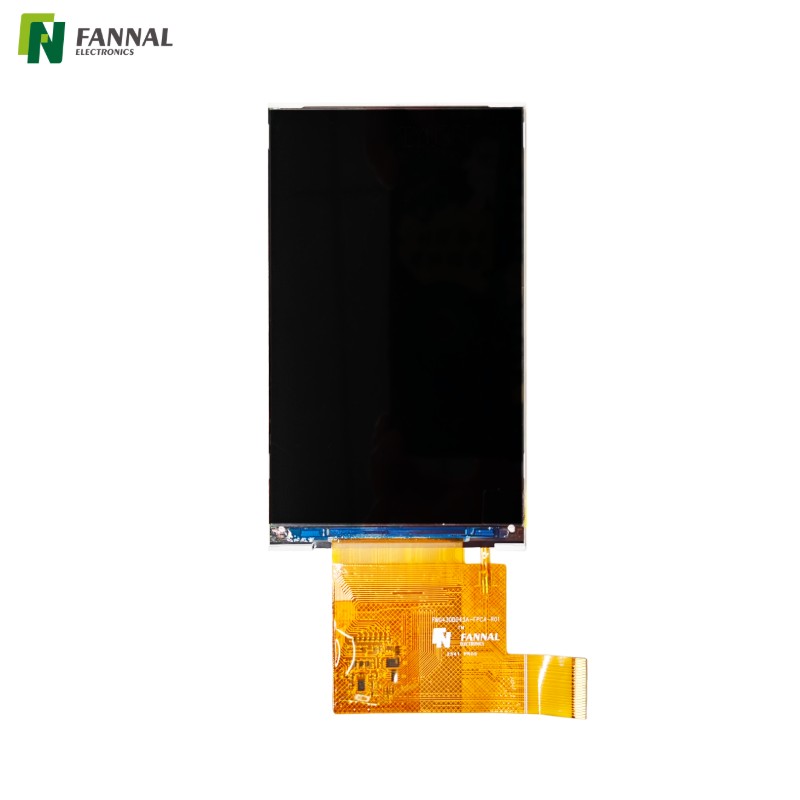

4.3" In-Cell TFT LCD Display | 480×800 | MIPI Interface

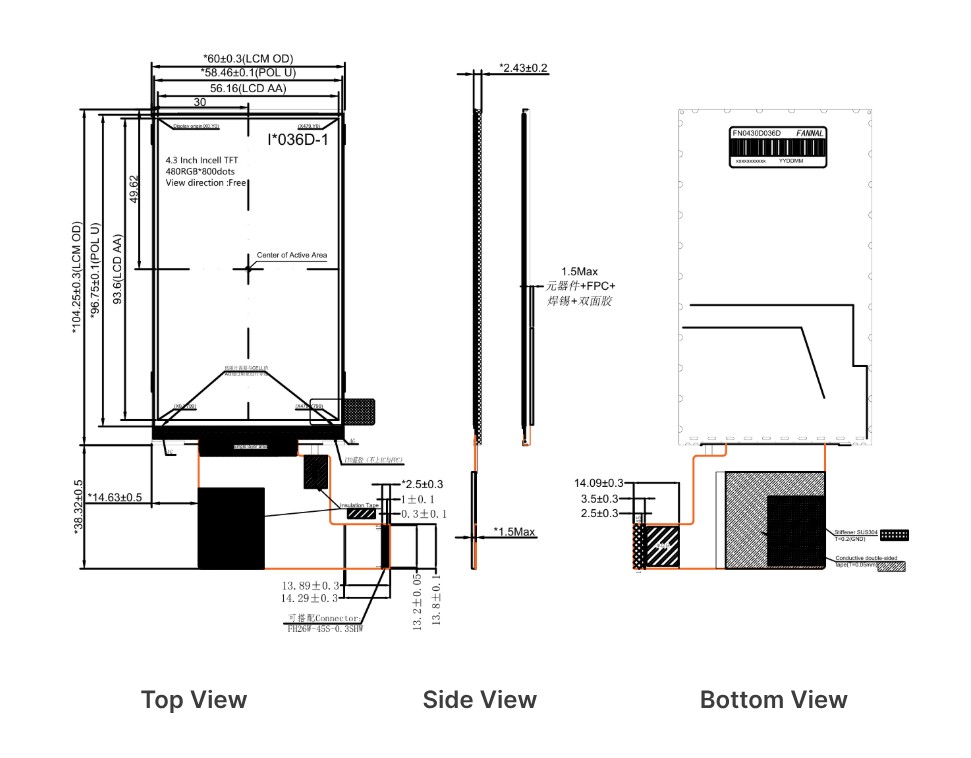

Drawing

Specifications

Applications

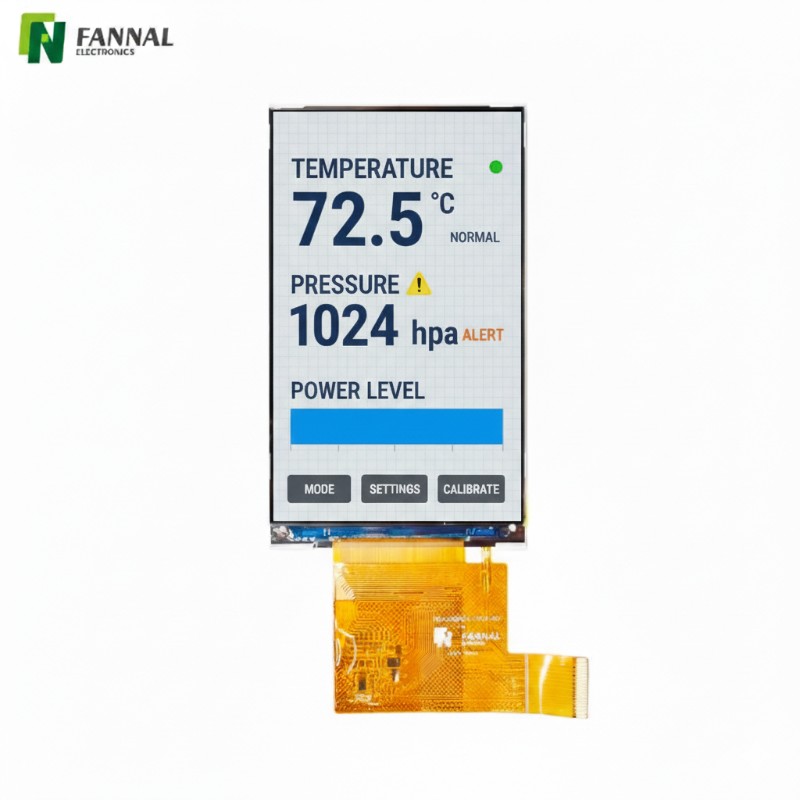

• Compact Industrial Control Interfaces

Touch-enabled displays for small control panels, machine settings, and equipment status interfaces where space is limited.

• Handheld Embedded Devices

Ideal for portable terminals, diagnostic tools, and handheld controllers requiring a responsive touch interface and compact display size.

• Embedded HMI Systems

Used in embedded human–machine interfaces for automation equipment, measurement devices, and system controllers.

• Medical & Laboratory Equipment

Display and touch input for non-diagnostic medical devices and laboratory instruments requiring clear UI and stable operation.

• Smart Terminals & Custom Embedded Platforms

Suitable for customized embedded systems that require an integrated touch display with a clean mechanical design.

Automotive Display	Kiosk touch screen	Railway display	E-bike display
Outdoor display	Industrial display	Medical touch screen	Gym-screen
Engineering Plant	Motorcycle display	Vending Machine Display	Embedded display

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

About FANNAL

FANNAL, founded in 2011, is a specialist in touch display solutions, delivering high-quality products and technical services worldwide. We design and manufacture in-house custom Displays, PCAP touch screens, and optical bonding. Our solutions serve industrial, outdoor, medical, automotive and other applications.

We are a fast-growing high-tech company financially backed by SECO, a European leader in electronic devices and embedded computing. We hold ISO 9001, ISO 14001, ISO 45001, ISO 13485, and IATF 16949 certifications. Our products are REACH and RoHS compliant, with test reports or declarations available upon request.

With stable quality and engineering support, FANNAL helps customers stay competitive and differentiate their products globally.

Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Tuchscreens, and Touch Monitors manufacturing.

One-Stop Solution: Full in-house process for touch screen, display, and optical bonding

Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more —  timely local support.

Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions.

Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons.

Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant.

Quality Control

FAQ

Q1: What is in-cell touch technology?

In-cell technology integrates the touch sensing layer directly into the LCD cell, removing the need for a separate touch panel. This reduces overall thickness and improves optical performance compared to traditional touch structures.

Q2: Is this display suitable for outdoor use?

With a typical brightness of 500 nits, the display is suitable for indoor and controlled lighting environments. Outdoor or direct sunlight use depends on enclosure design and system-level protection.

Q3: Does the in-cell structure affect touch accuracy or reliability?

No. In-cell touch technology typically provides fast and stable touch response due to the reduced distance between the touch sensor and display pixels.

Q4: What interface does this display use?

This module uses a MIPI interface, commonly supported by modern embedded processors and system-on-modules. Interface compatibility should be confirmed during system design.

Q5: Can this display be customized?

Yes. Display parameters such as brightness tuning, viewing angle optimization, interface configuration, and surface treatment can be adjusted based on project requirements.

Q6: Is this display part of a larger in-cell display series?

Yes. This 4.3-inch module is part of FANNAL’s In-Cell Displays series, which can be extended to other sizes and specifications using a consistent design approach.
