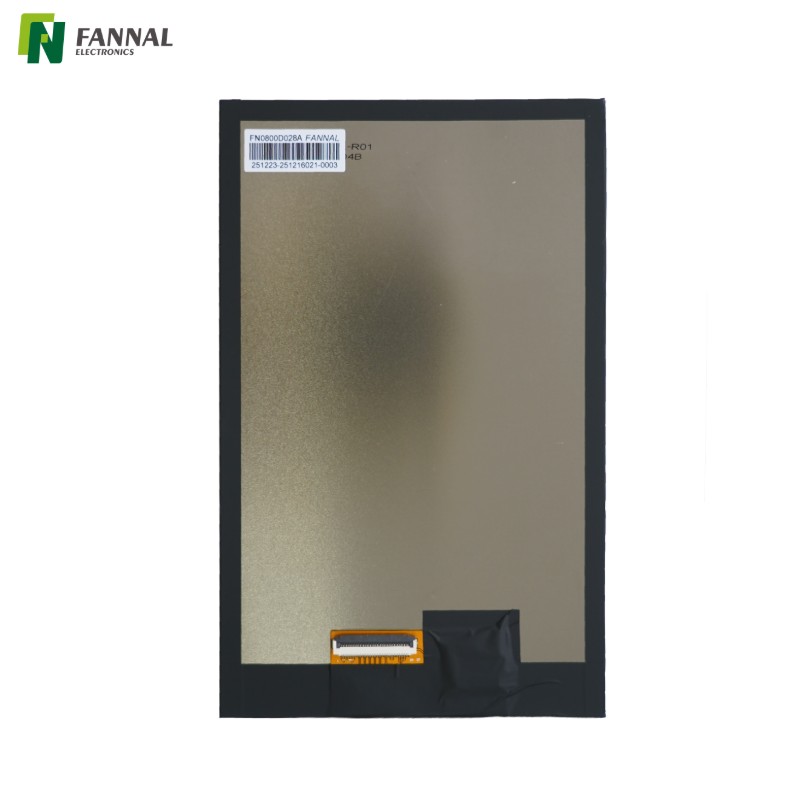

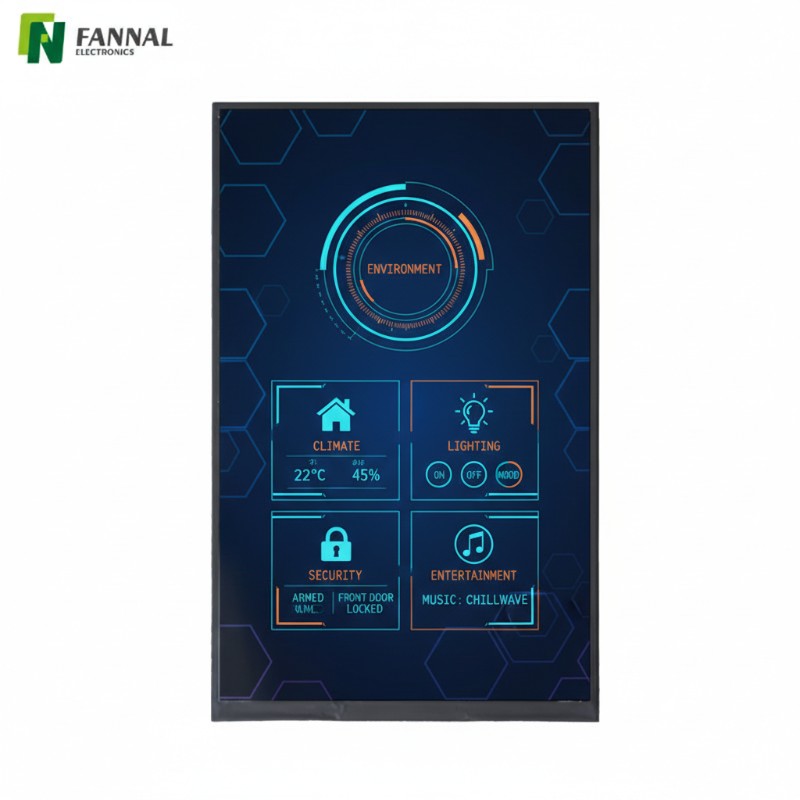

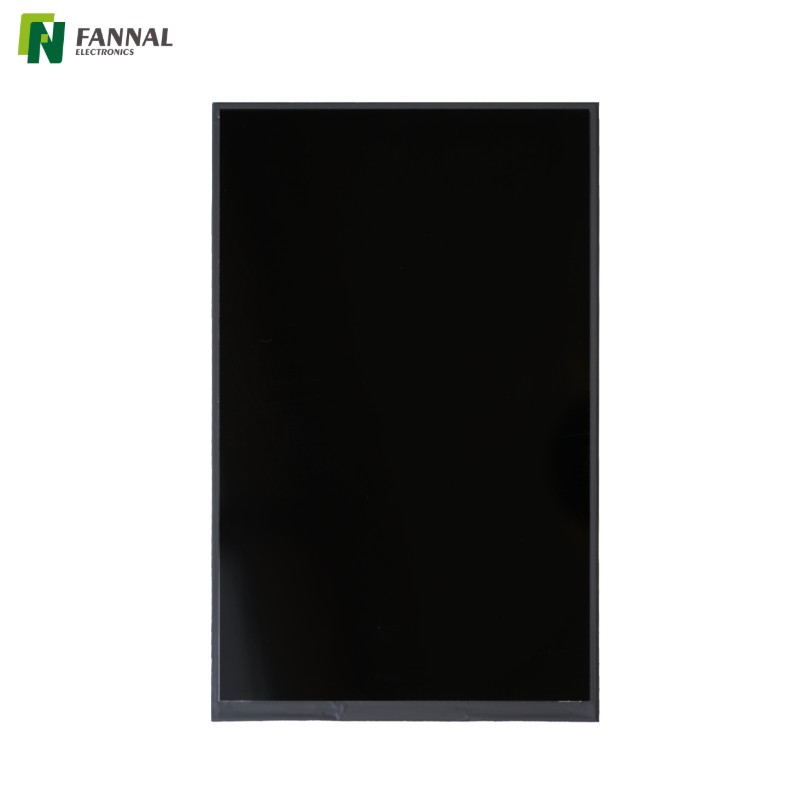

8.0 Inch In-Cell TFT Display | 800×1280 MIPI

Specifications

Applications

This 8.0-inch in-cell TFT display is well-suited for embedded systems that require a compact form factor, stable image quality, and efficient signal integration.

Typical applications include:

• Handheld industrial terminals
  Compact in-cell structure helps reduce overall module thickness, making it suitable for portable and space-constrained devices.

• Industrial HMI and control panels
  Stable contrast and wide viewing angle support clear visual output in control interfaces and operator panels.

• Medical and diagnostic equipment
  Integrated display structure simplifies system design and supports reliable performance in professional environments.

• Smart instrumentation and measurement devices
  MIPI interface enables efficient data transmission for embedded processors, commonly used in smart meters and analyzers.

• Embedded display systems for OEM devices
  Designed for customized embedded solutions where integration efficiency and structural simplicity are important.

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

About FANNAL

FANNAL, founded in 2011, is a specialist in touch display solutions, delivering high-quality products and technical services worldwide. We design and manufacture in-house custom Displays, PCAP touch screens, and optical bonding. Our solutions serve industrial, outdoor, medical, automotive and other applications.

We are a fast-growing high-tech company financially backed by SECO, a European leader in electronic devices and embedded computing. We hold ISO 9001, ISO 14001, ISO 45001, ISO 13485, and IATF 16949 certifications. Our products are REACH and RoHS compliant, with test reports or declarations available upon request.

With stable quality and engineering support, FANNAL helps customers stay competitive and differentiate their products globally.

Quality Control

FAQ

Q1: Is this 8.0 inch in-cell TFT display integrated with touch functionality?

No. The in-cell structure refers to the internal display architecture. Touch functionality can be integrated separately depending on project requirements.

Q2: What type of systems is the MIPI interface suitable for?

The MIPI interface is commonly used in embedded systems and SoC-based platforms, enabling high-speed data transmission and simplified system integration.

Q3: Can this display be customized for OEM or ODM projects?

Yes. Customization options may include interface adaptation, mechanical structure adjustment, and optical configuration based on specific application needs.

Q4: Is this display suitable for outdoor or sunlight-readable applications?

This model is designed for indoor or controlled-light environments. For outdoor or high-brightness requirements, higher luminance configurations can be evaluated separately.

Q5: What industries typically use this type of in-cell TFT display?

This display is commonly used in industrial equipment, medical devices, smart instruments, and embedded OEM systems where compact structure and stable performance are required.
