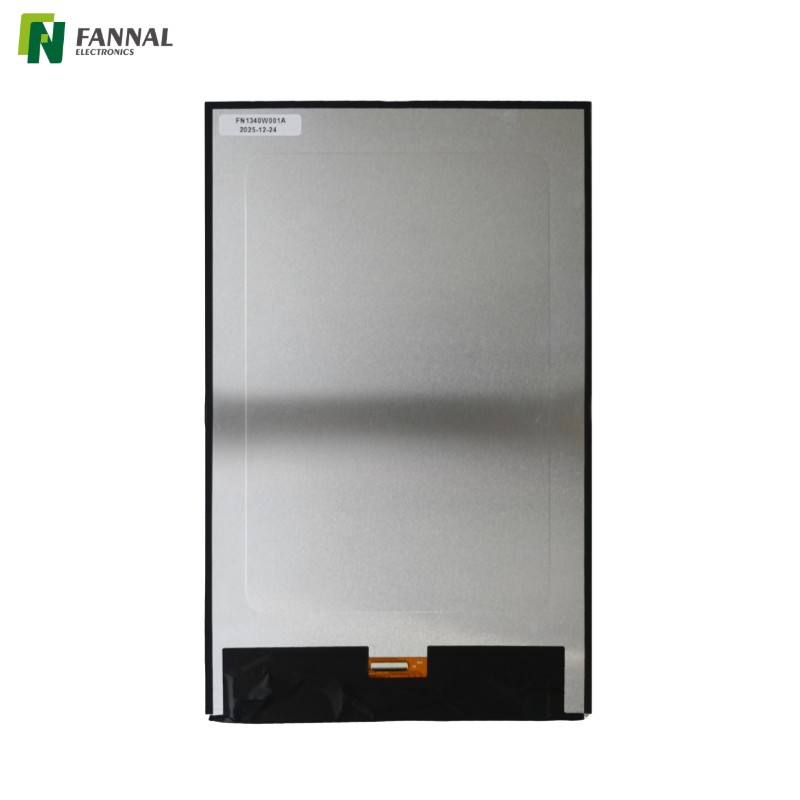

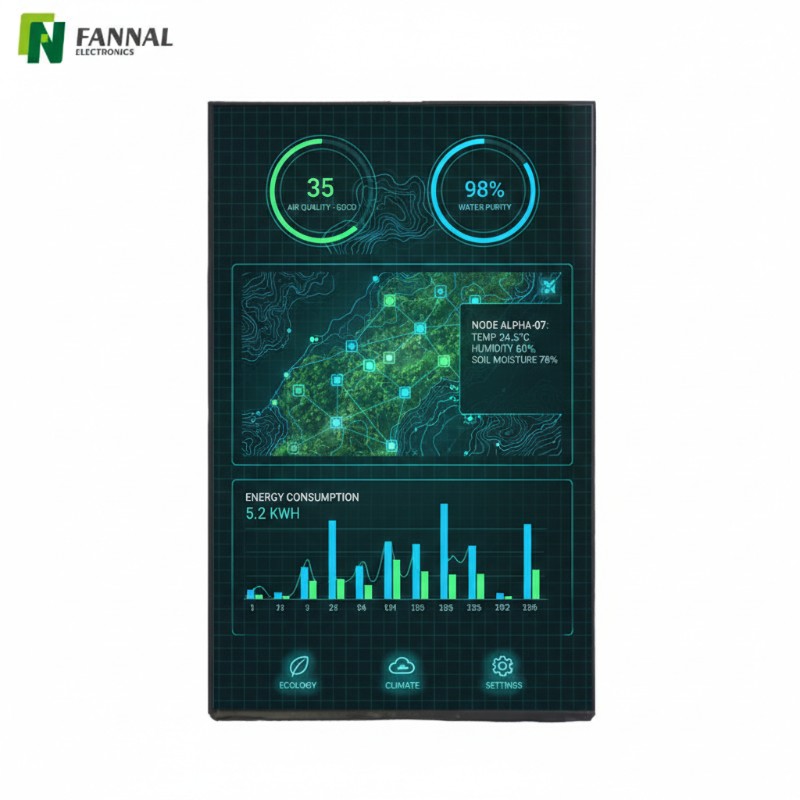

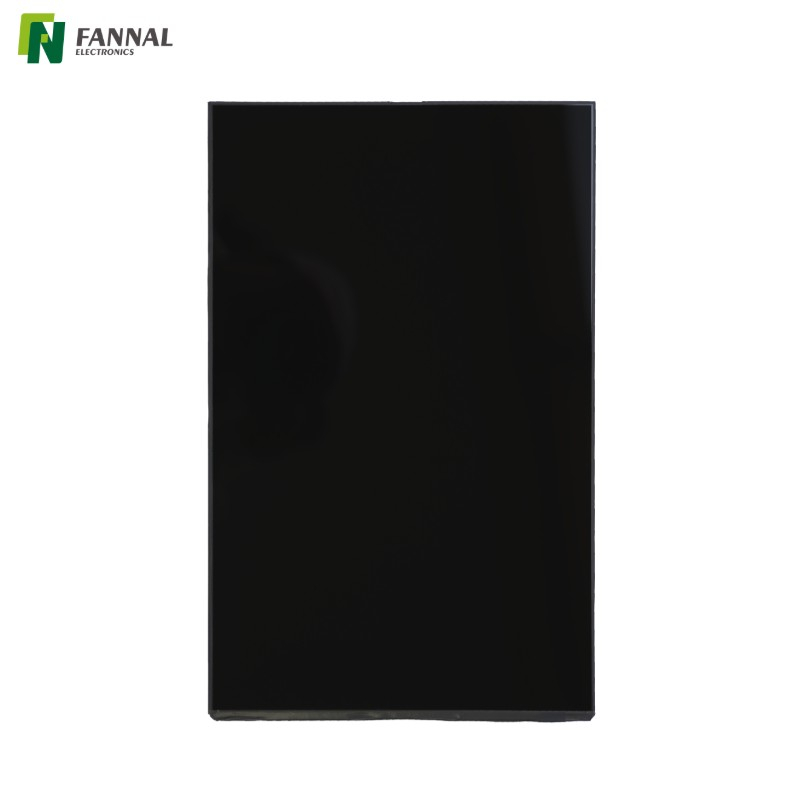

13.3 Inch In-Cell TFT Display | 1200×1920 MIPI

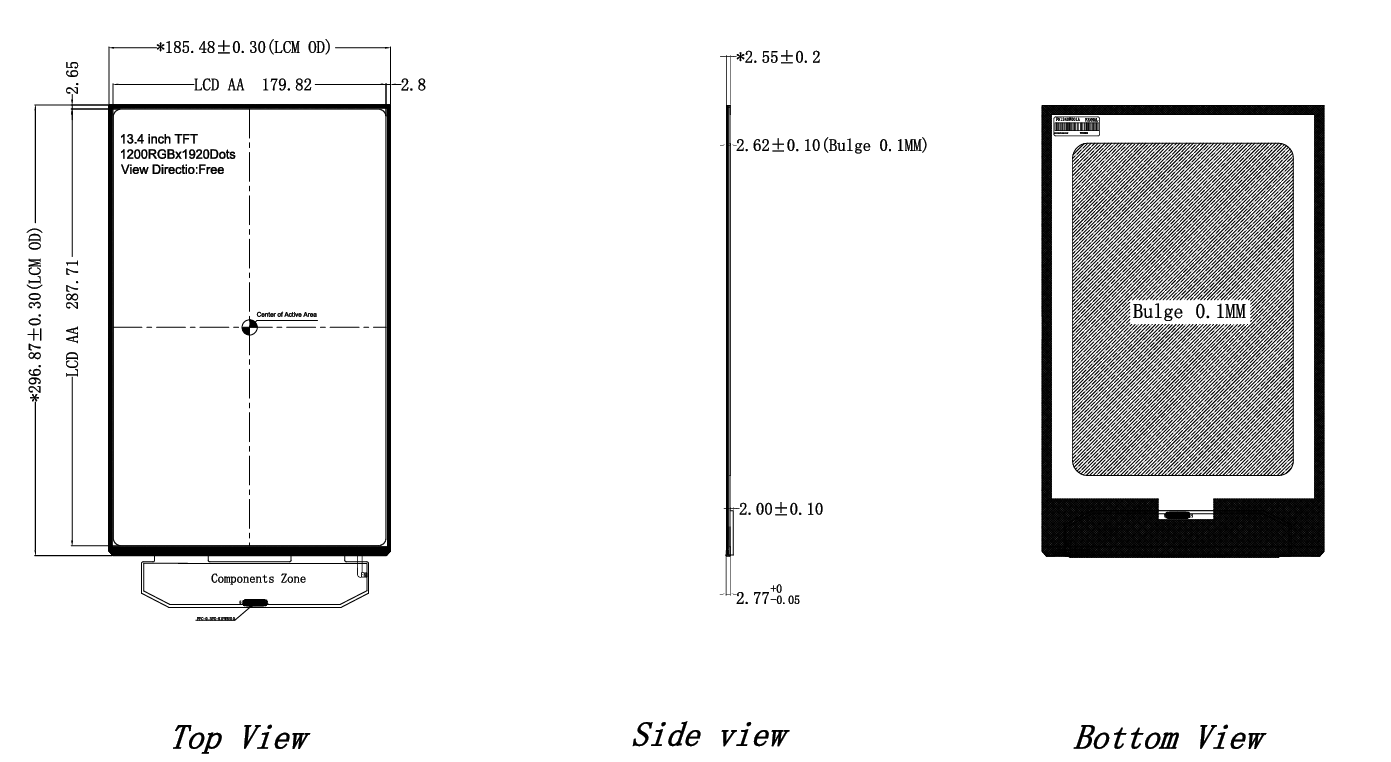

Drawing

Specifications

Applications

This large-size in-cell TFT display is suitable for systems that require a wide display area, stable operation across temperature variations, and efficient structural integration.

Typical applications include:

• Industrial HMI and operator panels
  The 13.3 inch size provides a clear interface for complex control layouts, while wide temperature support ensures reliable operation in industrial environments.

• Medical and laboratory equipment
  Large active area enables detailed data visualization, waveform display, and interface clarity in professional medical systems.

• Embedded control systems for industrial automation
  In-cell structure helps simplify module integration in embedded designs with limited internal space.

• Smart inspection and diagnostic equipment
  Suitable for systems requiring high-resolution display and stable performance in non-consumer operating conditions.

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

About FANNAL

Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Tuchscreens, and Touch Monitors manufacturing.

One-Stop Solution: Full in-house process for touch screen, display, and optical bonding

Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more —  timely local support.

Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions.

Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons.

Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant.

Certificates

FAQ

Q1: What are the advantages of using an in-cell TFT structure for large-size displays?

In-cell structure integrates functional layers within the display stack, helping reduce module thickness and simplify system-level design for large-format embedded applications.

Q2: Does the wide operating temperature range affect image stability?

The display is designed to maintain stable visual performance across its specified operating temperature range when used within recommended conditions.

Q3: Is this display intended for continuous industrial operation?

Yes. The operating temperature range and electrical characteristics make it suitable for long-term use in industrial and professional equipment.

Q4: Can this 13.4 inch display support custom mechanical or system integration?

Customization may be available for mechanical structure, interface adaptation, and system-level integration based on project requirements.

Q5: Is this display suitable for consumer-grade tablets or multimedia devices?

This display is primarily designed for embedded and professional systems rather than consumer multimedia products.
