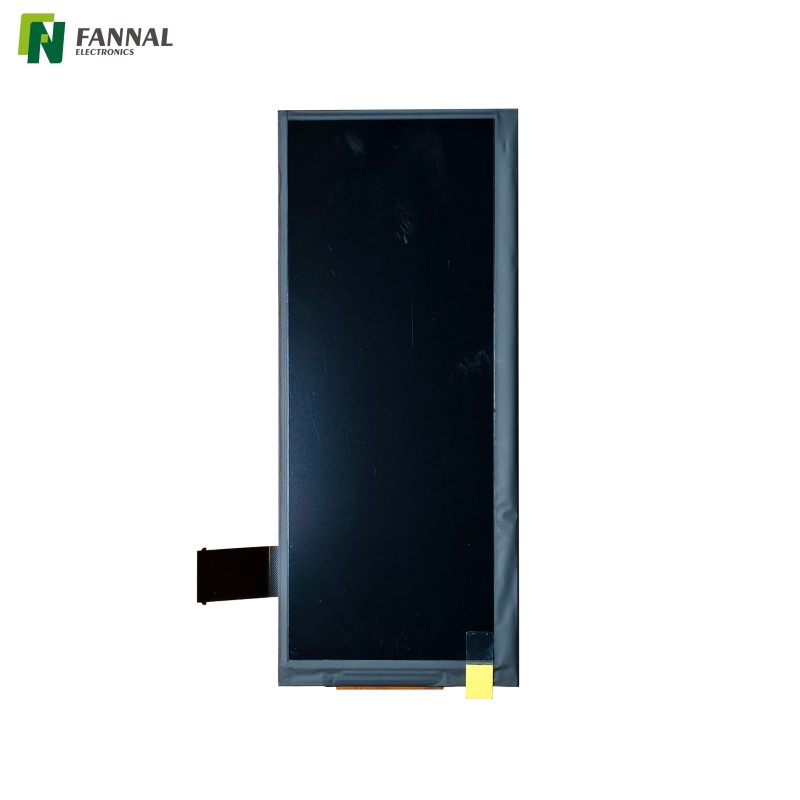

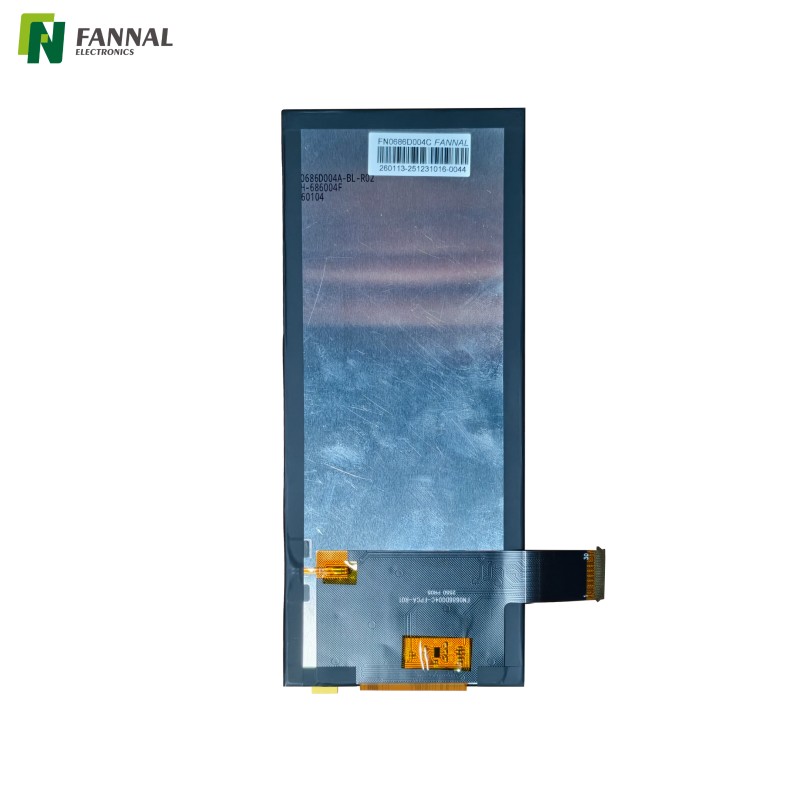

6.86 Inch MIPI Bar Type TFT LCD Display Module with 1000 nits

Name: 6.86 Inch MIPI Bar Type TFT LCD Display Module with 1000 nits
Brand: FANNAL
Rating: 5.0 (90 reviews)

6.86 Inch Bar Type TFT LCD Display | 1000 nits MIPI IPS Display Module

Model:
FN0686D004C
Brand:
FANNAL
Size(inch):
6.86
Display AA(mm):
60.192(H) × 160.512(V)
Operation Temp(℃):
-20~65
Storage Temp(℃):
-30~80
Contrast Ratio:
1500:1
Resolution:
480×1280
Direction:
FREE
Display Interface:
MIPI
Brightness(cd/m²):
1000

Quantity:
Availability:





Inquiry Add to Basket

Bar Type TFT LCD

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The 6.86-inch bar type TFT LCD display module is designed for embedded systems requiring a long-format display with high brightness and wide viewing performance. Featuring a 480×1280 resolution and MIPI interface, this display delivers clear vertical content presentation for industrial and commercial applications.

With 1000 cd/m² luminance and Normally Black display mode, the module maintains excellent visibility under strong ambient lighting conditions. The IPS full viewing angle design ensures consistent color and image quality from different directions, making it suitable for interactive HMI systems and public-facing equipment.

Powered by the ST7703I driver IC, this TFT display supports stable image transmission and efficient integration into customized devices. Its slim bar-type structure is ideal for space-constrained designs requiring modern UI layouts.

Features

High Brightness Display

1000 cd/m² luminance improves readability in bright indoor environments and semi-outdoor installations.

Bar Type Display Design

6.86-inch stretched format supports vertical UI layouts, status panels, and narrow-space installations.

IPS Full Viewing Angle

ALL viewing direction technology provides consistent colors and visibility from multiple angles.

MIPI Interface

MIPI interface enables high-speed data transmission and efficient integration with embedded platforms.

Normally Black Display

Normally Black mode enhances contrast performance and delivers deeper visual appearance.

Industrial Integration Ready

Compatible with customized touch panels, cover glass, optical bonding, and mechanical modifications.

Drawing

Specifications

Display Specification Table (6.86")

Parameter	Specification	Unit
LCD size	6.86(Diagonal)	inch
Resolution Ratio	480(H) × 1280(V)	pixels
Pixel Pitch	0.1254(H) x 0.1254(V)	mm
Active Area	60.192(H) × 160.512(V)	mm
Module Size	72.42(W) × 173.79(H) × 6.5(D)	mm
Display Mode	Normally Black
Interface	MIPI
Pixel Arrangement	RGB Vertical Stripe
View Direction	ALL	O'clock
Power Supply	3.3	V
Power Consumption	0.166(Typ)	W
Weight	96Typ	g
Luminance	1000(Typ.)	cd/m²
Driver IC	ST7703I

Pin Description Table

Pin No.	Symbol	I/O	Description
1	GND	P	Ground.
2	VCI	P	Power supply.
3	VCI	P	Power supply.
4	VCI	P	Power supply.
5	GND	P	Ground.
6	RESET	I	Reset pin.
7	TE	I	Tearing effect output signal.
8	GND	P	Ground.
9	GND	P	Ground.
10	MIPI_DATA3_N	I	MIPI data input.
11	MIPI_DATA3_P	I	MIPI data input.
12	GND	P	Ground.
13	MIPI_DATA2_N	I	MIPI data input.
14	MIPI_DATA2_P	I	MIPI data input.
15	GND	P	Ground.
16	MIPI_CLK_N	I	MIPI clock input.
17	MIPI_CLK_P	I	MIPI clock input.
18	GND	P	Ground.
19	MIPI_DATA1_N	I	MIPI data input.
20	MIPI_DATA1_P	I	MIPI data input.
21	GND	P	Ground.
22	MIPI_DATA0_N	I	MIPI data input.
23	MIPI_DATA0_P	I	MIPI data input.
24	GND	P	Ground.
25	NC	-	No connection.
26	NC	-	No connection.
27	LEDK	P	LED power cathode.
28	LEDK	P	LED power cathode.
29	LEDA	P	LED power anode.
30	LEDA	P	LED power anode.

Backlight Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Notes
Forward Current Voltage	VF	5.6	6.2	6.8	V	Note 1
Forward Current	If		480		mA
Backlight Power Consumption	Wbl	-	3.0	-	W
LED Lifetime	-	30000	-	-	Hrs	Note 2

Note 1: Under LCM operating, the stable forward current should be input. And forward voltage is for reference only.

Note 2: Optical performance should be evaluated at Ta =25℃. If the LED is driven by high current, high ambient temperature & Humidity condition. The lifetime of LED will be reduced. Operating life means the brightness goes down to 50% initial brightness. Typical operating lifetime is estimated data.

Typical Applications

Industrial control panels
Smart retail shelf displays
EV charging station interfaces
Transportation information systems
Smart home control panels
Medical monitoring equipment
Elevator control interfaces
Embedded HMI terminals
Digital signage sub-displays
Queue management systems

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

What is a bar type TFT LCD display used for?

Bar type TFT LCD displays are commonly used in industrial equipment, transportation systems, retail displays, and embedded HMI applications requiring narrow or elongated screen layouts.

Is this 6.86 inch TFT display suitable for outdoor use?

The 1000 nits high brightness makes it suitable for bright indoor and semi-outdoor environments. Full outdoor use may require additional optical bonding and UV protection.
