Home » Products » TFT Displays » Industrial Displays » 10.25" Wide-Temp Industrial TFT LCD | 1280×800 LVDS

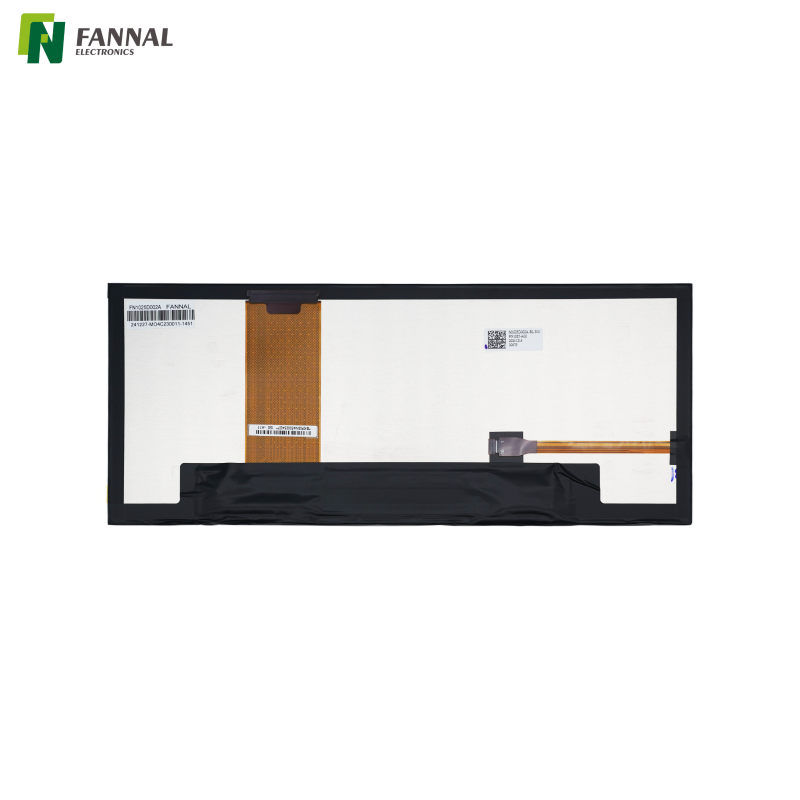

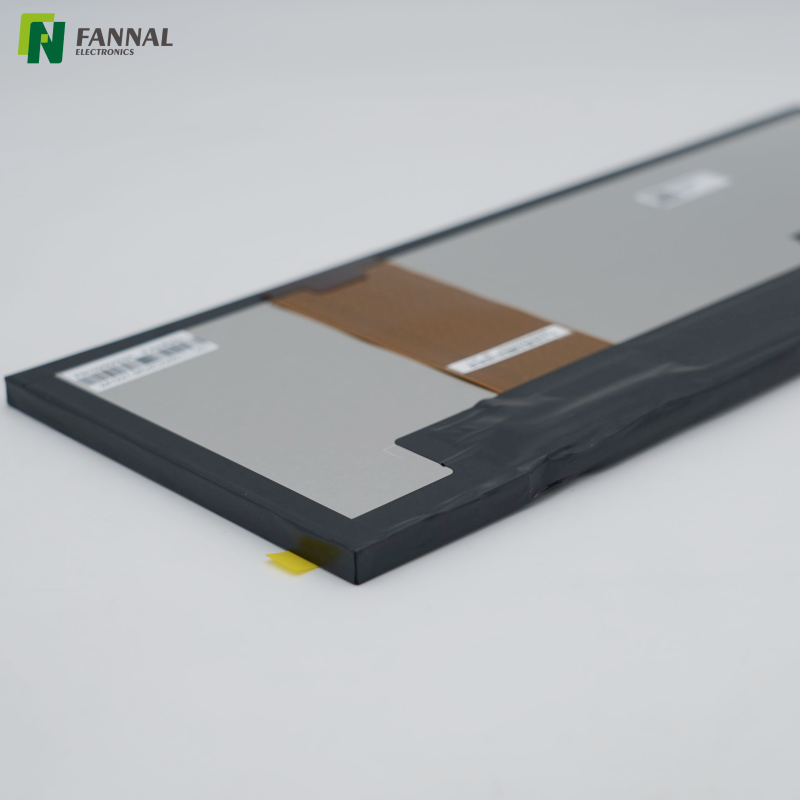

10.25" Wide-Temp Industrial TFT LCD | 1280×800 LVDS

Name: 10.25" Wide-Temp Industrial TFT LCD | 1280×800 LVDS
Brand: FANNAL
Rating: 5.0 (29 reviews)

10.25" Wide-Temperature High-Brightness Industrial TFT LCD | 1280×800 LVDS

Model:
FN1025D002A
Brand:
FANNAL
Size(inch):
10.25
Display AA(mm):
243.8 x 91.44
Operation Temp(℃):
-30~85
Storage Temp(℃):
-40~90
Resolution:
1280x800
Direction:
85/85/85/85
Display Interface:
LVDS
Brightness(cd/m²):
1000

Quantity:
Availability:





Inquiry Add to Basket

10.25 Inch Industrial TFT LCD

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The 10.25-inch industrial TFT LCD features a 1280×800 resolution, high brightness up to 1000 cd/m², and wide-temperature operation.
Designed with an LVDS interface and stable optical performance, it is well suited for industrial and embedded systems operating in demanding environments.

Features

High Definition
Featuring 1280×800 (WXGA) resolution, this panel delivers sharp and crisp visuals, ensuring that complex data and UI elements are rendered with precision on its 10.25-inch widescreen.
Sunlight Readable
With a high brightness of 1000 cd/m², the display remains perfectly legible even in high-ambient light or direct sunlight environments, making it ideal for outdoor or brightly lit applications.
Extreme Durability
Engineered for Wide-Temperature operation, the module maintains stable performance under harsh environmental conditions, resisting the performance degradation typically caused by heat or cold.
Reliable Connectivity
Utilizing an LVDS Interface, the panel ensures high-speed, low-power data transmission with superior noise immunity, providing a stable and reliable signal for mission-critical systems.
Ultra-Wide Viewing
Designed with Wide Viewing Angles, it offers consistent color reproduction and image clarity from virtually any direction, allowing for multi-operator visibility without distortion.
Superior Contrast
The Normally Black display mode delivers deep black levels and significantly improved contrast, providing a premium visual experience with vibrant colors and sharp dark-scene details.
Industrial Longevity
Purpose-built for Long-Term Operation, this module is optimized for the rigorous demands of industrial and embedded systems, ensuring a stable lifecycle and 24/7 reliability.

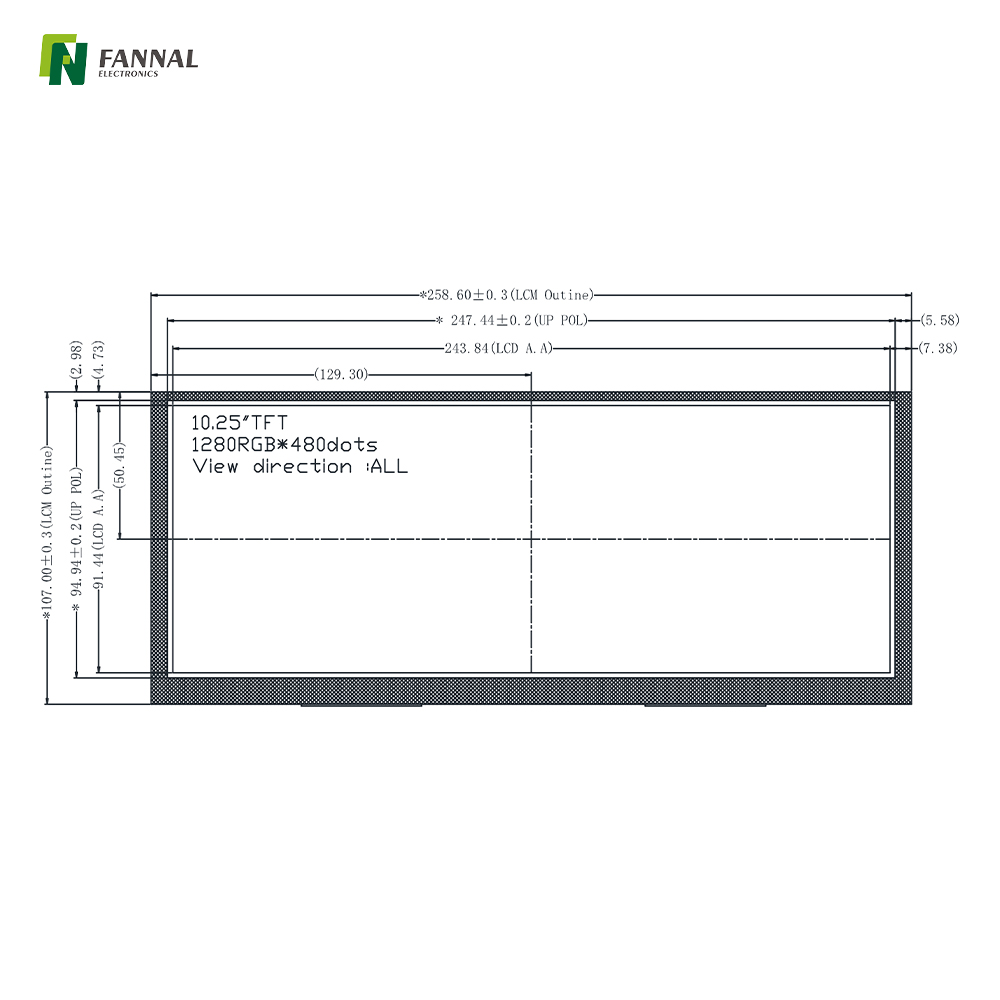

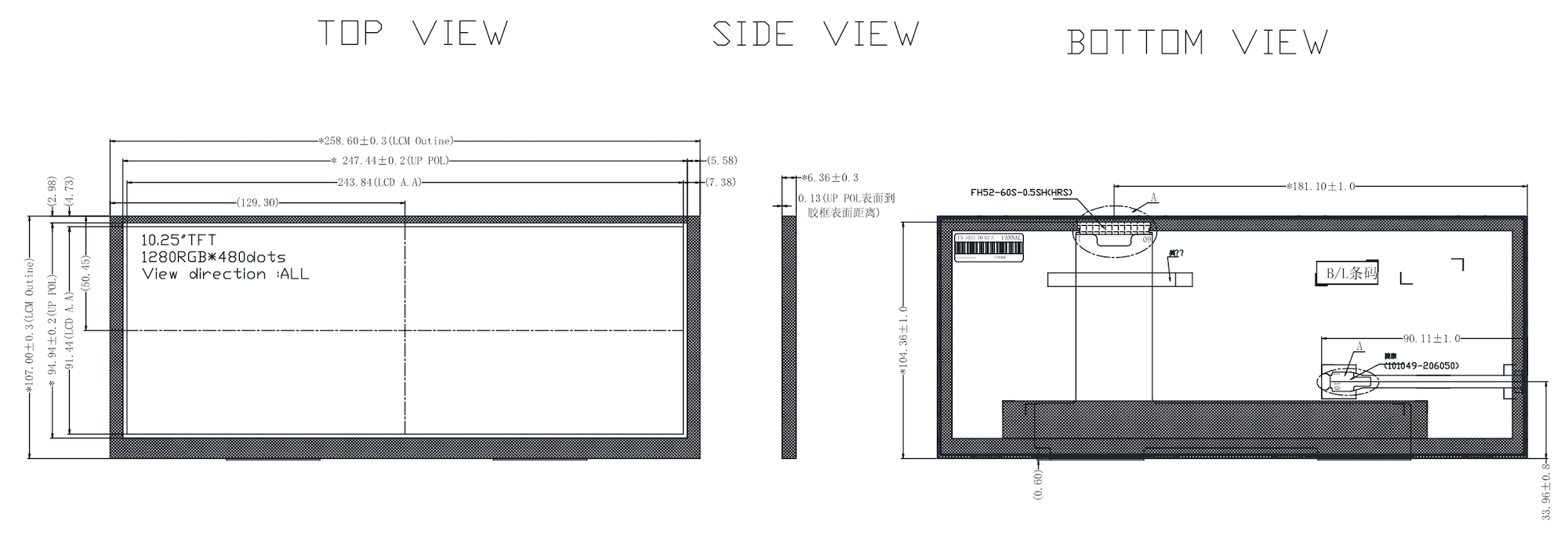

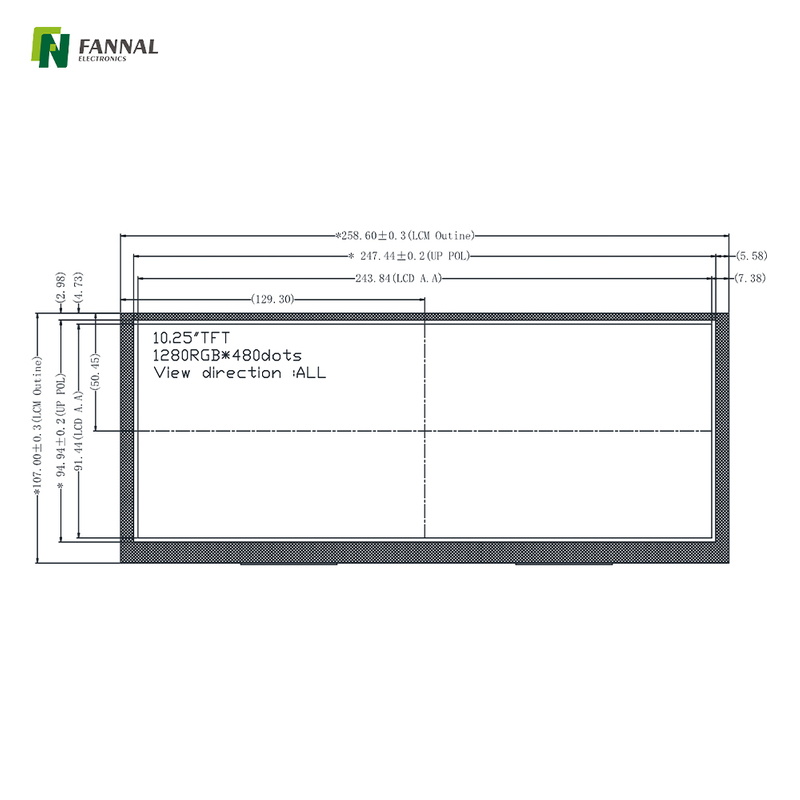

Drawing

Specifications

Item	Description	Unit
LCD Screen Size	10.25	inch
Active Area	243.8 x 91.44	mm
Resolution	1280 x 480	px*
Viewing Angle	85 / 85 / 85 / 85	-
Luminance	1000	cd/m²
Interface	LVDS	-
TP Module	FN1025D002A	-
Outline Dimension	258.6 x 107.0 x 6.36	mm

Applications

Industrial control panels and HMI systems
Industrial automation equipment
Vehicle-mounted and transportation displays
Medical and diagnostic equipment displays
Test, measurement, and monitoring systems
Embedded systems requiring high-brightness TFT displays

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Q1: How does the ultra-wide aspect ratio optimize space in specialized equipment?

Answer: Spatial Optimization. The bar-type 10.25" format is specifically engineered for modern industrial racks and vehicle cockpits. It maximizes horizontal data visualization—perfect for real-time wave monitoring or multi-parameter dashboards—without the vertical bulk of traditional screens.

Q2: Will this module simplify the certification process for medical or transit projects?

Answer: EMI Compliance & Stability. Built with an industrial-grade circuit architecture, this panel offers stable electromagnetic performance. By minimizing signal interference at the component level, it reduces the risk of radiation failure during system-level certifications (like CE, FCC, or medical standards), significantly accelerating your time-to-market.

Q3: Can this display be seamlessly integrated with customized touch interfaces?

Answer: Modular Scalability. The structural design provides specific tolerances for PCAP (Projected Capacitive) touch sensor integration. We offer professional Optical Bonding services to create a unified touch-display module, eliminating the risk of internal dust or moisture ingress common in manual assembly.

Q4: How does the "Normally Black" technology enhance professional UI design?

Answer: Visual Seamlessness. Unlike standard panels that may suffer from light leakage, the Normally Black mode ensures a deep, pure black background. This is ideal for modern "Dark Mode" UIs, creating a high-end, seamless appearance where the screen edges practically disappear into the equipment's bezel.
