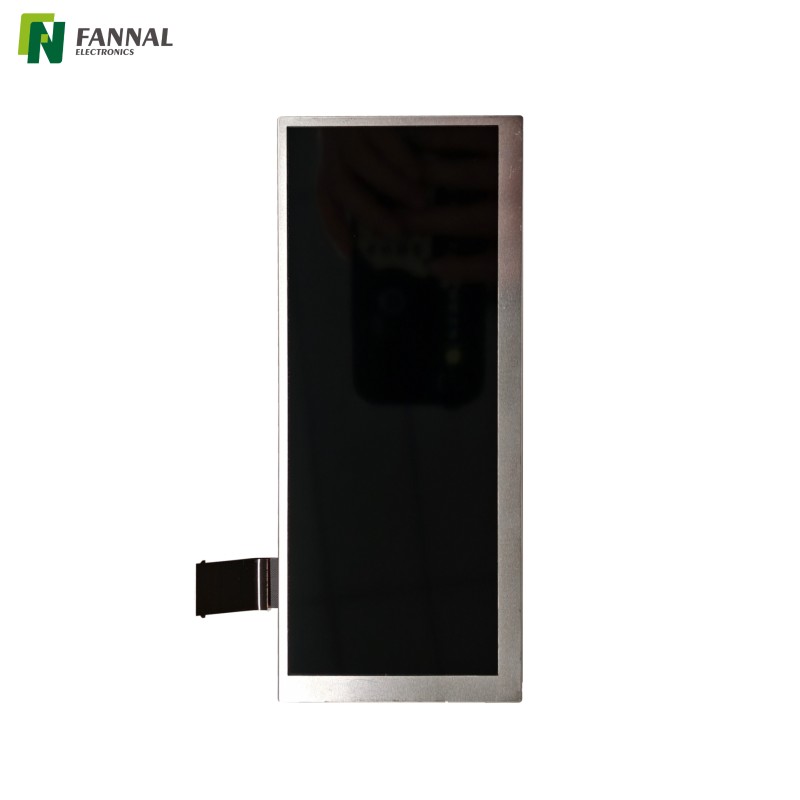

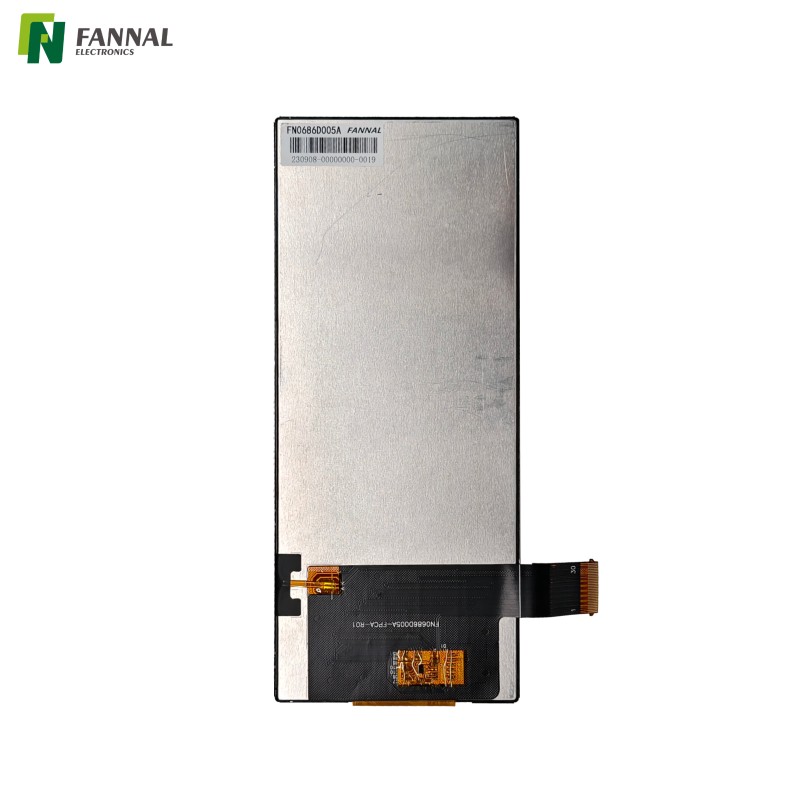

6.86 Inch TFT LCD Display 480×1280 LVDS High Brightness 900 nits

Name: 6.86 Inch TFT LCD Display 480×1280 LVDS High Brightness 900 nits
Brand: FANNAL
Rating: 5.0 (38 reviews)

6.86 Inch Bar Type TFT LCD Display Module for Embedded & Industrial Devices

Model:
FN0686D005A
Brand:
FANNAL
Size(inch):
6.86
Display AA(mm):
60.192*160.512
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Contrast Ratio:
1500:1
Resolution:
480×1280
Display Interface:
LVDS
Brightness(cd/m²):
900

Quantity:
Availability:





Inquiry Add to Basket

tft lcd display

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The 6.86-inch TFT LCD display module features a 480 × 1280 resolution and a high-brightness panel up to 900 nits, making it suitable for embedded and industrial display applications requiring clear visibility and stable performance.

With an LVDS interface, wide viewing angle, and compact bar-type structure, this display module is well suited for smart control systems, transportation equipment, medical devices, industrial HMIs, and customized electronic terminals.

FANNAL also supports capacitive touch integration, optical bonding, cover glass customization, and interface optimization based on project requirements.

Key Features

High Brightness

Up to 900 nits luminance ensures clear visibility in bright indoor environments and high-ambient-light applications.

Bar-Type Display Design

The elongated display structure is suitable for dashboard systems, smart control panels, transportation displays, and compact embedded devices.

Stable LVDS Interface

Supports LVDS signal transmission for reliable display performance in industrial and embedded systems.

Wide Viewing Angle

Designed with all viewing direction support to maintain consistent image quality from different viewing positions.

Low Power Consumption

Typical power consumption is only 0.165W, helping reduce overall system energy usage.

Compact Module Structure

Slim and compact module dimensions simplify integration into space-constrained equipment designs.

Custom Integration Support

Optional capacitive touch panel, optical bonding, cover lens, and interface customization are available for OEM projects.

Drawing

Specifications

Parameter	Specification	Unit
LCD size	6.86 (Diagonal)	inch
Resolution Ratio	480(H)*1280(V)	pixels
Pixel Pitch	0.1254(H)*0.1254(V)	mm
Active Area	60.192(H)*160.512(V)	mm
Module Size	72.42(W)173.79(H) 6.5(D)	mm
Display Mode	Normally Black
Interface	LVDS
Pixel Arrangement	RGB stripe
View Direction	ALL
Power Supply	2.8	V
Power Consumption	0.165 (Typ.)	W
Weight	105 (Typ.)	g
Luminance	900 (Typ.)	cd/m^2
Driver IC	NV3051F

Pin Interface Definition

PIN	SYMBOL
1	VDD
2	VDD
3	RESET
4	STBYB
5	GND
6	RXIN0N
7	RXIN0P
8	GND
9	RXIN1N
10	RXIN1P
11	GND
12	RXIN2N
13	RXIN2P
14	GND
15	RXCLKN
16	RXCLKP
17	GND
18	RXIN3N
19	RXIN3P
20	GND
21	CSB
22	GND
23	SDI
24	SELB
25	GND
26	L/R
27	U/D
28	SCK
29	LEDK
30	LEDA

Backlight Driving Conditions

Parameter	Symbol	Min.	Typ.	Max.	Unit	Notes
Forward Current Voltage	VF	5.6	6.2	6.8	V	Note 1
Forward Current	If		480		mA
Backlight Power Consumption	Wbl	-	3.0	-	W
LED Lifetime	-	30000	-	-	Hrs	Note 2

NOTE 1：Under LCM operating, the stable forward current should be input. And the forward voltage is for

reference only.

NOTE 2：Optical performance should be evaluated at Ta=25℃. If the LED is driven by high current, high

ambient temperature & humidity conditions. The lifetime of initial brightness. Typical operating lifetime is

estimated data.

Applications

Automotive Dashboard Displays

The bar-type 480 × 1280 resolution layout is suitable for digital instrument clusters, secondary dashboard screens, EV control interfaces, and in-vehicle information displays.

Smart Transportation Systems

High brightness up to 900 nits helps improve visibility in transportation equipment, ticketing systems, and public information terminals operating under strong ambient lighting.

Industrial HMI Equipment

The compact long-strip structure fits industrial control panels, machine interfaces, automation systems, and embedded monitoring devices with limited installation space.

Medical Monitoring Devices

Wide viewing angle performance supports medical instruments and portable healthcare equipment requiring stable image visibility from different viewing positions.

Smart Home Control Panels

Suitable for wall-mounted smart home controllers, centralized control systems, and intelligent building management interfaces.

Portable Embedded Devices

Low power consumption and compact module dimensions make the display suitable for handheld terminals, portable testing equipment, and battery-powered embedded systems.

Instrumentation & Measurement Systems

The elongated display format works well for data visualization, status indication, and parameter monitoring applications in professional equipment.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

What is a 6.86-inch bar type TFT LCD display commonly used for?

A 6.86-inch bar type TFT LCD is commonly used in dashboards, transportation systems, and industrial control panels. Its elongated layout is ideal for compact UI designs and status display interfaces.

Compared with standard widescreen displays, bar-type LCD modules can fit narrow installation spaces while still providing sufficient information display area for embedded systems.

Is a 900-nit TFT LCD display suitable for bright environments?

Yes. A 900-nit TFT LCD display provides improved readability under strong indoor lighting and semi-outdoor conditions.

High-brightness LCD modules are widely used in transportation equipment, industrial HMIs, and smart terminals where standard brightness displays may appear dim or difficult to read.

Why do industrial devices use LVDS TFT LCD displays?

LVDS interfaces provide stable high-speed signal transmission with lower electromagnetic interference. This makes them suitable for industrial and embedded systems requiring reliable long-term operation.

LVDS TFT LCD modules are commonly integrated into control systems, medical equipment, and transportation devices due to their signal stability and compatibility with embedded hardware platforms.

Can this 6.86-inch TFT LCD support touch screen integration?

Yes. The display can be integrated with a capacitive touch panel based on project requirements.

Optional services may include optical bonding, cover glass customization, touch controller integration, and interface optimization for industrial or embedded applications.

What are the advantages of a bar-type LCD display over a standard LCD?

Bar-type LCD displays are designed for narrow and elongated installation spaces. They are suitable for dashboards, smart control panels, and compact embedded devices.

Compared with traditional aspect ratios, stretched TFT displays allow more flexible UI layouts while helping reduce overall device size.
