FN0430D032B
-20~70
-30~80
400x272
ALL
SPI
900
Customizable
Availability: | |
---|---|
Quantity: | |

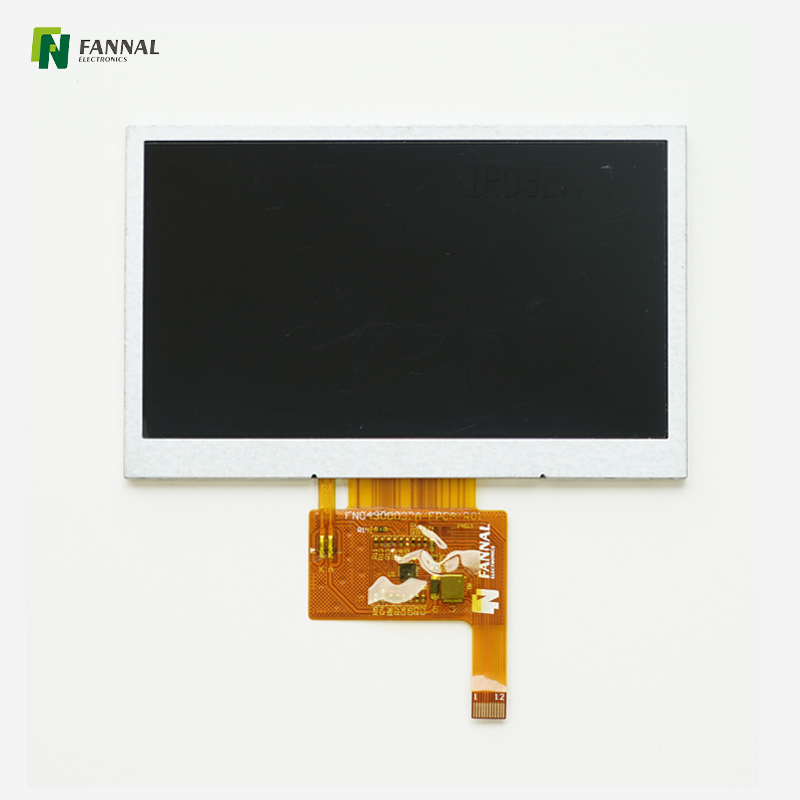

4.3 inch TFT display, 480x272, SPI+RGB 24bit, Industrial LCD Screen, 900cd/m²
This 4.3 inch is developed with a standard 480x272 high-resolution IPS screen and SPI+RGB 24bit interface. A built-in HDMI interface enhances the connectivity of this screen, simplifying the connection between the display and other devices. With HDMI, the need for complex cabling is reduced, allowing plug-and-play integration with PCs, Raspberry Pi boards, laptops, and various other embedded systems. This makes the display compatible with modern operating systems such as Windows, Linux, and Android, making it a flexible solution for engineers and developers who require seamless interoperability between devices. A small-sized high-brightness TFT display typically used in handheld gadgets, medical devices, and outdoor equipment, these displays feature high luminance, often exceeding 900 nits, allowing for clear readability under direct sunlight. Despite their small size, they offer vibrant colors, sharp image quality, and wide viewing angles. With low power consumption and fast response times, small TFT high-brightness displays are ideal for portable devices that demand both efficiency and performance in challenging lighting conditions.
General Specifications:
LCD size(inch): | 4.3 (Diagonal) |
Resolution: | 480(H)×272(V) |
Pixel Pitch: | 0.198(H)×0.198(V) |
Active Area(mm): | 95.04(H)×53.856(V) |
Module Size(mm): | 105.5(W)x167.2(H)×3.0(D) |
Display Mode(mm): | Normally Black, Transmissive |
Interface: | SPI 4Line |
View Direction: | ALL |
Power Consumption(W): | 3.3(Typ.) |
Luminance(cd/m2): | 900(Typ.) |
Operating Temperature(°C): | -20~+70 |
Storage Temperature(°C): | -30~+80 |
Interface:
Pin No. | Symbol | I/O | Description |
1 | VLED | P | Power supply for LED anode input. |
2 | VLED_GND | P | Powe supply for LED cathode input. |
3 | BL_EN | I | LED enable signal. |
4 | BL_PWM | I | PWM dimming control signal of LED converter. |
5 | VDD | P | Supply analog voltage. |
6 | GND | P | Ground. |
7 | CSB | I | Chip selection signal. Internal pull high. |
8 | RST | I | Reset signal input. Active low, Internal pull high. |
9 | SCL | I | Pixel clock input signal. Internal pul low. |
10 | D/C | I | Data or command select signal. “1” is data a, “0” is command. |
11 | SDI | I | Serial data input. Internal pull low. |
Electrical Characteristics:
Parameter | Symbol: | Min. | Typ. | Max. | Unit |
LED Lifetime | - | 30000 | - | - | Hrs |
Customization
CTP
Structure: GG, GFF,Size:1.8* ~ 55",Touch with Water/Salt Water/Sweat,Meet EMI/RFI Standards,Linux/Windows/IOS and Android,Customization on Cover: AG/AR/AF Meet IK Standards,Multi-touch Solution,True Touch with Gesture and Palm Rejection,Finger/Glove and Passive Pen Input.
AD Board
We can provide complete accessories, including backlight board, AD Board and wire sets.
Application
With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
