Ultra-high brightness LCDs are specialized display modules designed with a luminance of 1000 nits or higher to ensure complete sunlight readability in outdoor or high-ambient light environments. Investing in this technology is essential because it eliminates screen "washout," reduces eye strain for operators, and ensures critical data remains visible under direct sunlight—factors that are non-negotiable for medical, marine, and outdoor industrial terminals.
In today’s industrial display market, a standard indoor TFT LCD typically provides 250–500 nits brightness. However, for outdoor equipment, transportation systems, EV chargers, marine electronics, and industrial HMI devices, this level is no longer sufficient.
In 2026, displays with 1000 nits or higher brightness are widely considered the practical benchmark for ultra-high brightness LCDs.
The reason is simple: modern industrial devices are increasingly deployed in environments exposed to direct sunlight, strong ambient lighting, or reflective glass surfaces. If operators cannot clearly read the screen, operational efficiency, safety, and user experience immediately suffer.
Ultra-high brightness TFT LCDs are specifically designed to maintain visibility under these challenging conditions while balancing power consumption, thermal stability, and long-term reliability.
Many industrial devices initially use standard brightness displays because of lower cost and reduced power requirements. However, once deployed outdoors or near windows, readability problems quickly appear.
Common issues include:
Washed-out images under sunlight
Reduced contrast due to reflections
Difficult touchscreen interaction in bright conditions
Operator fatigue caused by poor visibility
Increased error rates in industrial control systems
Even an IPS display with excellent viewing angles may become difficult to read if brightness is insufficient.
This is especially critical for systems such as:
EV charging stations
Smart lockers
Medical carts near bright lighting
Agricultural machinery
Transportation control terminals
In these applications, sunlight readability is not a premium feature — it is a functional requirement.
A few years ago, 700–800 nits was often marketed as “high brightness.” Today, that level is usually only adequate for semi-outdoor environments.
For true outdoor readability, many industrial projects now target:
Environment |
Recommended Brightness |
|---|---|
Indoor HMI systems |
250–500 nits |
Bright indoor / near windows |
700–1000 nits |
Semi-outdoor equipment |
1000–1200 nits |
Direct sunlight outdoor systems |
1200–1500+ nits |
However, brightness alone does not determine display performance.
A poorly optimized 1500-nit display with high surface reflection can still perform worse than a properly engineered 1000-nit display with optical bonding and anti-reflective treatment.
This is where real industrial display engineering becomes important.
One of the biggest misconceptions in the display industry is assuming that increasing backlight brightness automatically solves outdoor visibility problems.
In reality, ultra-high brightness LCD design requires balancing several factors simultaneously:
Brightness output
Power consumption
Heat generation
LED lifespan
Optical efficiency
Mechanical reliability
Display uniformity
Increasing brightness without optimizing thermal design can significantly reduce LED lifetime and create long-term reliability risks.
For industrial equipment expected to operate continuously for years, stability matters just as much as brightness.
Optical bonding is one of the most important technologies used alongside ultra-high brightness TFT LCDs.
By eliminating the air gap between the LCD and cover glass, optical bonding reduces internal reflection and improves perceived contrast under sunlight.
Key benefits include:
Improved sunlight readability
Lower surface reflection
Better optical clarity
Reduced fogging and condensation risk
Enhanced mechanical durability
Improved touch accuracy
In many cases, a 1000-nit display with optical bonding can outperform a non-bonded display with significantly higher raw brightness.
This also helps reduce unnecessary power consumption because the system does not rely solely on stronger backlights to overcome reflections.
Higher brightness directly increases power consumption and heat generation.
Without proper thermal management, excessive heat may cause:
Uneven brightness
Color shifting
Reduced LED lifespan
Image retention issues
Touch instability
Accelerated component aging
Industrial-grade ultra-high brightness displays therefore often require:
Optimized LED backlight structures
Efficient driver IC control
Heat dissipation materials
Thermal simulation validation
Long-duration aging tests
For long-lifecycle industrial projects, thermal stability is often more important than achieving the highest possible brightness number.
Many commercial-grade displays can briefly achieve very high brightness levels, but maintaining stable luminance over thousands of operating hours is far more difficult.
Industrial customers increasingly prioritize:
Long-term luminance stability
Consistent color performance
Stable operation in harsh environments
Long product lifecycle availability
Reduced maintenance frequency
A properly engineered ultra-high brightness LCD should balance brightness and durability instead of maximizing specifications at the expense of reliability.
For example, industrial TFT modules designed around 1000-nit brightness can often maintain more stable long-term performance than aggressively overdriven backlight systems.
Outdoor charging stations operate under direct sunlight and require clear visibility for payment, navigation, and operational status interfaces.
Bus terminals, railway systems, and smart traffic infrastructure require sunlight-readable displays for continuous public operation.
Marine environments introduce strong reflections, UV exposure, and varying weather conditions, making high brightness and optical bonding essential.

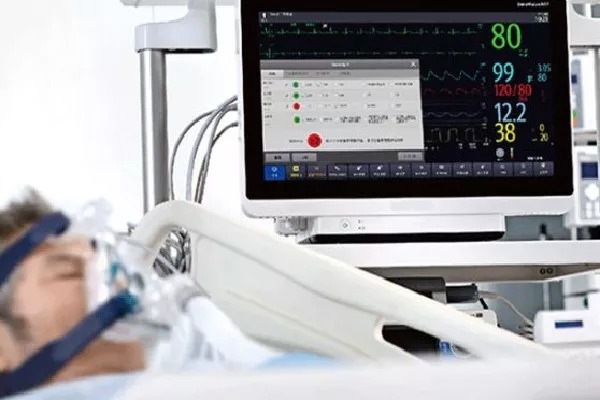

Mobile medical systems and healthcare devices near strong lighting conditions require high contrast and reliable readability.
Factory HMI systems often operate in bright environments where visibility directly impacts operational efficiency and safety.

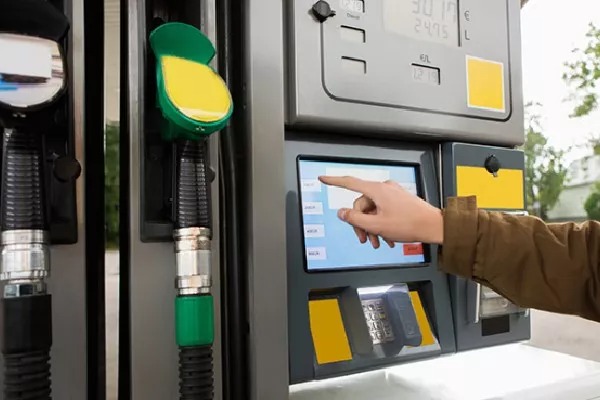

Interactive kiosks depend heavily on display readability to improve user interaction and reduce operational friction.
When evaluating a high brightness TFT LCD, engineers should consider more than just luminance specifications.
Important factors include:
Actual outdoor operating environment
Reflection control technology
Optical bonding availability
Thermal design capability
Interface compatibility
Long-term supply stability
Wide temperature performance
Power consumption constraints
The best solution is usually not the brightest display available, but the most balanced design for the real deployment environment.
Ultra-high brightness LCDs are no longer niche products reserved for specialized outdoor systems. They have become essential components for modern industrial equipment, transportation infrastructure, medical devices, and smart commercial systems.
As industrial interfaces continue moving into brighter and more demanding environments, display readability directly affects usability, operational safety, and long-term reliability.
However, true high-performance display engineering is not simply about increasing brightness numbers. The most effective industrial display solutions combine:
1000+ nits brightness
Optical bonding
Thermal management
Long-life backlight design
Stable industrial-grade performance
For OEM and embedded projects, selecting the right ultra-high brightness LCD requires balancing visibility, power efficiency, durability, and lifecycle support rather than focusing on brightness alone.
Most industrial outdoor applications require at least 1000 nits for acceptable sunlight readability. Direct sunlight environments may require 1200–1500+ nits.
Not necessarily. Excessive brightness increases heat and power consumption. Optical bonding and anti-reflective design are equally important for outdoor visibility.
High brightness displays are typically around 700–1000 nits, while ultra-high brightness LCDs usually exceed 1000 nits for demanding outdoor applications.
Optical bonding reduces internal reflections and improves contrast, making displays easier to read under sunlight without relying only on higher backlight brightness.
Yes. Higher brightness generally increases power consumption and heat generation, which is why thermal management becomes critical.
Common applications include EV charging stations, transportation systems, marine electronics, industrial automation, medical devices, and outdoor kiosks.
