UV Cutoff Technology for Outdoor Touch Screens

When discussing outdoor display reliability, most engineers focus on:

• High temperature

• Humidity and rain

• Dust and contamination

• Vibration or impact

However, one often underestimated factor is ultraviolet (UV) radiation.

UV exposure is a primary cause of long-term degradation in outdoor touch displays — especially in high-brightness TFT LCD systems used in kiosks, EV chargers, industrial terminals, and vehicle-mounted equipment.

Over time, UV radiation accelerates:

• Polarizer yellowing

• Optical adhesive degradation

• Color shift

• Reduced brightness uniformity

• Shortened panel lifetime

If your outdoor display is aging faster than expected, missing UV protection may be the reason.

What Is UV Cutoff Technology?

UV cutoff technology refers to a special glass or coating treatment that blocks ultraviolet radiation before it reaches sensitive display components.

It is typically integrated into:

• Cover glass

• Touch panel glass

• Optical bonding stack

Unlike simple anti-glare or anti-reflection treatments, UV cutoff specifically targets high-energy wavelengths that cause material degradation.

A Practical Comparison: With and Without UV Cutoff

Two touch panels with identical thickness and structure were tested under UV detection equipment.

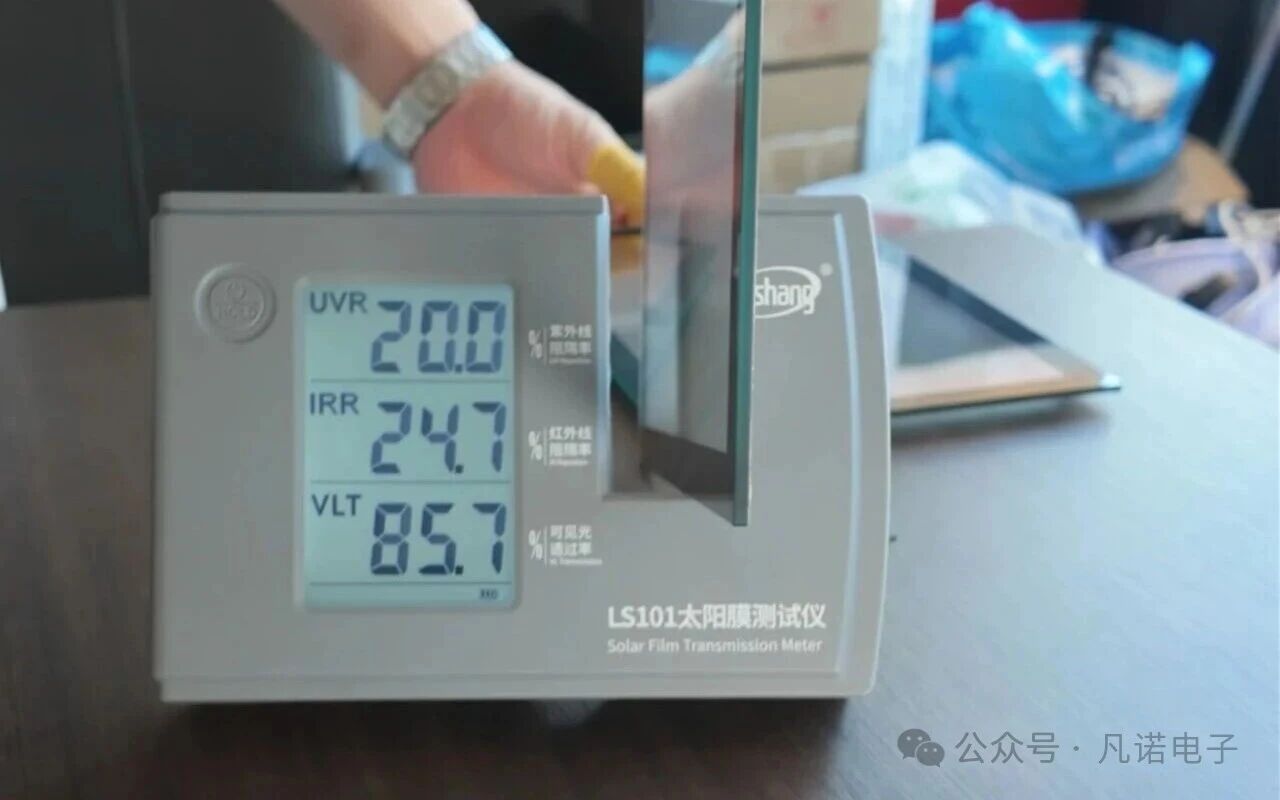

Without UV Cutoff Treatment

• UV blocking rate: ~20%

• IR blocking rate: ~24.7%

• Visible light transmittance: ~85.7%

Result: Most ultraviolet radiation passes through the glass and directly impacts the polarizer and LCD layers.

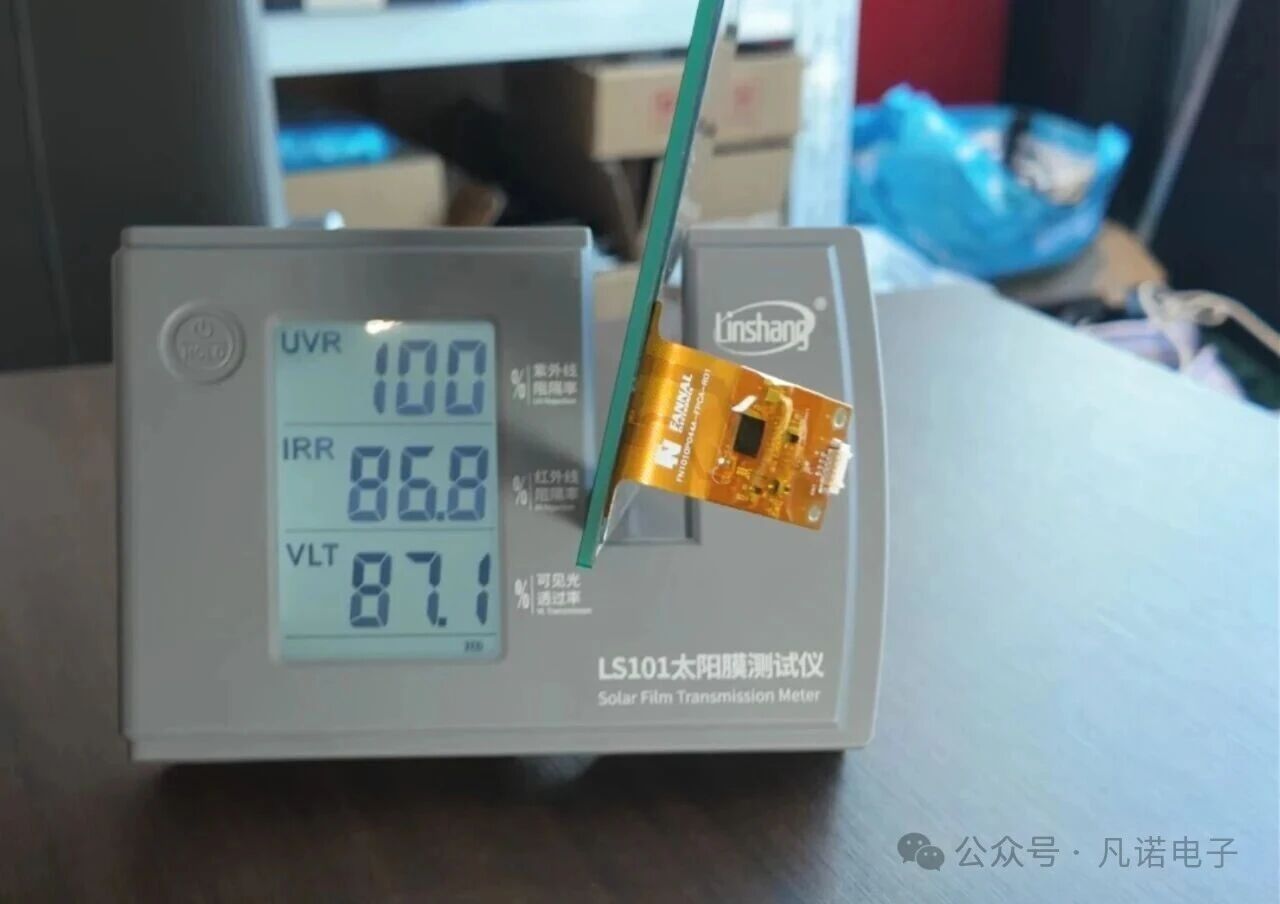

With UV Cutoff Treatment

• UV blocking rate: up to 99.9%

• IR blocking rate: ~86.8%

• Visible light transmittance: ~87.1%

Notably, visible light transmission remains high — even slightly improved — meaning brightness and display clarity are not sacrificed.

Why UV Protection Matters in LCD Displays

The most UV-sensitive components in a TFT LCD stack include:

• Polarizers

• Color filters

• Optical bonding adhesives (OCA / OCR)

• Certain backlight materials

Prolonged UV exposure can cause:

• Yellowing of polarizers

• Whitening or haze formation

• Contrast reduction

• Permanent color shift

• Reduced readability under sunlight

For industrial buyers, this translates to:

• Increased warranty risk

• Field replacement costs

• Reduced product reputation

• Shortened service intervals

In outdoor equipment with a 5–10 year lifecycle expectation, UV protection becomes a structural design decision — not an optional feature.

UV Cutoff vs. High Brightness: Not the Same Thing

A common misconception is that high-brightness displays are automatically outdoor-ready.

High brightness (1000–2000 nits) improves sunlight readability.

UV cutoff improves material durability and lifetime stability.

They solve different problems:

For robust outdoor systems, these technologies are often combined.

Typical Applications That Require UV Cutoff

UV cutoff is especially recommended for:

• Outdoor self-service kiosks

• EV charging stations

• Industrial HMI terminals

• Smart parking systems

• Marine displays

• Vehicle-mounted industrial equipment

In regions with high UV index (Middle East, Southeast Asia, Australia), the requirement becomes even more critical.

UV Cutoff as Part of a Complete Outdoor Display Strategy

UV protection should not be treated as an isolated feature.

A reliable outdoor touch display solution typically integrates:

• High-brightness TFT LCD

• Optical bonding

• Anti-glare / anti-reflection coating

• IK-rated cover glass (impact protection)

• Wide temperature support

• UV cutoff treatment

The combination ensures:

• Long-term optical stability

• Reduced maintenance cost

• Consistent image quality

• Improved product lifecycle performance

Conclusion: Think Beyond Brightness

If your product is deployed in direct sunlight for extended periods, UV radiation is a silent but continuous stress factor.

UV cutoff technology acts like an invisible protective layer — blocking harmful radiation while preserving brightness and clarity.

For industrial-grade outdoor displays, it is not merely an enhancement but a durability safeguard.

If you are designing or sourcing outdoor touch displays, evaluating UV protection at the glass level can significantly improve long-term reliability.

FAQ

1. How can UV cutoff performance be verified?

Request a spectral transmission report covering the 280–400nm UV range.
A reliable UV cutoff solution should show near-zero transmission in the UV band while maintaining high visible light transmittance (400–700nm).
For critical projects, accelerated UV aging test data is recommended.

2. Does UV cutoff affect touch sensitivity?

No, if properly integrated.
UV cutoff is applied at the glass level and does not interfere with PCAP signal transmission.
However, full-stack validation with optical bonding and thermal cycling tests is recommended.

3. Is UV cutoff still needed if optical bonding is used?

Yes.
Optical bonding improves contrast and structural stability but does not block ultraviolet radiation.
Without UV protection, internal layers such as polarizers can still degrade over time.

4. Does UV cutoff significantly increase system cost?

It slightly increases material cost.
However, for outdoor equipment with 5–10 year lifecycles, it reduces aging-related failures and may lower total cost of ownership.

5. In which environments is UV cutoff most critical?

High UV index regions, high-altitude areas, and installations with constant direct sunlight exposure require UV cutoff most urgently.

6. Can UV cutoff be added after production?

No.
UV cutoff must be specified at the glass or touch panel manufacturing stage.
It cannot be retrofitted after final assembly.
