In industrial, medical, and outdoor equipment, insufficient LCD brightness is one of the most common—and most critical—pain points. Low brightness does not just affect visual comfort; under direct sunlight, the screen may become completely unreadable, rendering the device ineffective.
So why do LCDs often suffer from brightness limitations, and how can brightness be effectively improved? This article breaks it down clearly from an engineering perspective.
1. Common Causes of Insufficient LCD Brightness
Brightness issues usually stem from several core factors rather than a single cause.
The backlight is the primary light source of an LCD.
Typical standard backlight: 250–400 nits
Outdoor or high-brightness requirements: 600–2000+ nits
An underpowered backlight is by far the most common reason for poor brightness.
An LCD uses both upper and lower polarizers. If their transmittance is low, overall brightness drops significantly.
High-quality optical films improve light utilization efficiency. Inferior films cause substantial light loss within the backlight stack.
Air gaps in framed bonding structures introduce refractive index changes, reducing effective luminance.
Improper driver IC settings, PWM dimming parameters, or gamma curves can artificially limit achievable brightness.
Examples include:
Direct sunlight
Highly reflective cover glass
Display area partially blocked by housing or bezel
In these cases, the panel brightness itself may be adequate, but visibility is still compromised.

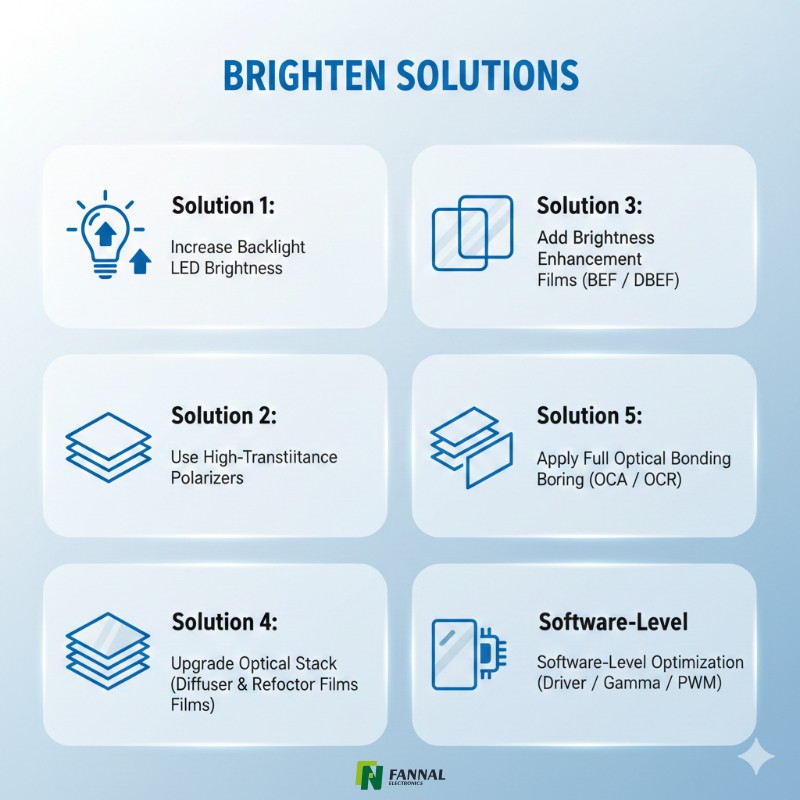

2. How to Increase LCD Brightness: 6 Proven Engineering Approaches
The following methods are widely used in the industry, each with its own trade-offs.
The most effective and commonly used approach:
Increase LED quantity
Increase LED driving current
Use higher-efficiency or dual-chip LEDs
✔ Advantages
Significant brightness improvement
Essential for outdoor and high-brightness displays
✘ Limitations
Higher power consumption
Increased thermal load
Backlight redesign often required
Polarizer transmittance typically ranges from 35% to 44% depending on grade.
✔ Advantages
Improves brightness without increasing power
Enhances overall clarity
✘ Limitations
Requires polarizer replacement process
Higher material cost
BEF (Brightness Enhancement Film)
Uses prism structures to concentrate light
Typically increases brightness by 30–60%
DBEF (Dual Brightness Enhancement Film)
Recycles polarized light through reflection
Brightness gain can reach 70–100%
Particularly suitable for high-brightness designs
✔ Advantages
No increase in power consumption
One of the most cost-effective brightness enhancement methods
Immediate and visible improvement
✘ Limitations
Higher material cost
Sensitive supply chain
Strict assembly requirements (orientation and angle critical)
Using higher-quality diffuser and reflector films reduces internal light loss and improves output efficiency.
✔ Advantages
Relatively low cost
Improves luminance uniformity
✘ Limitations
Limited brightness gain
Requires backlight stack-up adjustment
Compared with framed bonding, full bonding eliminates the air gap and associated light loss.
✔ Advantages
Brightness improvement of approximately 5–10%
Higher contrast
Better sunlight readability
Reduced surface reflection
✘ Limitations
Higher process complexity
Increased manufacturing cost
Applicable when brightness is limited by configuration rather than hardware.
Increase driver IC brightness parameters
Optimize PWM duty cycle
Adjust gamma curves
✔ Advantages
No additional hardware cost
Fast implementation
✘ Limitations
Limited improvement
Cannot exceed hardware capability
3. What If Outdoor Display Brightness Is Still Insufficient?
Outdoor environments combine two major challenges: direct sunlight and strong reflections.
A recommended combined solution includes:
1200–2000 nits high-brightness backlight
DBEF dual brightness enhancement films
Full optical bonding
AR / AG / AF surface treatments
This combination ensures reliable readability even under harsh outdoor lighting conditions.
4. Summary
Insufficient LCD brightness is not caused by a single factor. It is the combined result of backlight capability, optical materials, structural design, bonding method, and driving parameters.
Effective brightness enhancement typically involves one or more of the following:
High-brightness backlight upgrade (largest impact)
BEF / DBEF brightness enhancement films
High-transmittance polarizers
Optimized optical stack design
Full optical bonding to reduce reflection
Display driver parameter optimization
The optimal solution always depends on the specific application scenario.
With over 15 years of experience in differentiated display and touch solutions, FANNAL supports industrial, medical, outdoor, and custom applications with engineering-driven designs. If you have display or touch requirements, feel free to follow us or contact our team directly.
FAQ
Q1: Why is thermal management the biggest technical limiting factor when simply increasing LED current to achieve high brightness?
A1: Driving LED strings at maximum rated currents significantly accelerates heat generation. In enclosed industrial or automotive housings, excessive heat causes localized thermal stress, which accelerates LED phosphor degradation, shifts color coordinates toward yellow tones, and drastically drops the backlight MTBF below the required 50,000-hour industrial baseline.
Q2: How does integrating a Dual Brightness Enhancement Film (DBEF) impact the viewing angle profile of an industrial HMI display?
A2: DBEF works by recycling misaligned polarized light and redirecting photons back into the normal on-axis path. The trade-off is that while it drastically amplifies center-point brightness by 70% to 100%, it can slightly restrict extreme off-axis luminance, making precise mechanical layout and panel alignment validation critical during the prototyping phase.
Q3: Why do two LCD modules with identical 1000-nit specification ratings show completely different legibility outcomes under direct outdoor sunlight?
A3: Sunlight readability depends on the net effective contrast ratio rather than raw nits. A 1000-nit panel utilizing traditional air-gap lamination suffers from a 4-5% surface reflection at each internal interface, washing out the screen under intense ambient light. Conversely, a 1000-nit display featuring full optical bonding combined with anti-reflective (AR) coatings lowers total reflection below 1%, preserving viewable contrast.
Q4: What hardware limitations must engineers consider when trying to override display brightness through software-level PWM modifications?
A4: Software optimization can only maximize the duty cycle within the bounds of the existing hardware backlight driver board. Pushing the PWM cycle to 100% will not increase maximum luminance if the hardware rail's output current is already capped by the DC-DC converter circuitry. Additionally, poorly matched PWM frequencies can induce acoustic noise or noticeable display flicker under low-temperature environments.
Q5: How do customizable 3A optical surface treatments complement high-brightness backlights to reduce terminal power consumption?
A5: By applying Anti-Glare (AG) chemical etching and Anti-Reflective (AR) physical vapor coatings to the top cover lens, engineers can suppress external mirror reflections by over 80%. This optical enhancement allows an 800-nit bonded panel to achieve identical or superior sunlight legibility compared to an unoptimized 1500-nit backlight array, substantially lowering active power draw and battery drain.
