An LCD display can look perfectly normal when viewed directly, yet become noticeably darker—or even appear almost black—when viewed through polarized sunglasses.
This is not necessarily a problem with the display's brightness.
The reason is often related to polarization. A conventional LCD uses polarizers as part of its optical system, while polarized sunglasses contain another polarizing filter. Depending on the relationship between these two polarization axes, the sunglasses can significantly reduce the amount of light reaching the viewer.
For outdoor industrial displays, automotive instruments, handheld equipment, and other applications where users may wear polarized sunglasses, this interaction should be considered during display selection and optical design.
The Role of Polarizers in an LCD
A polarizer is an optical filter that preferentially transmits light with a particular polarization orientation.
In a conventional LCD, polarizers are not simply an additional optical treatment. They are fundamental to how the display controls light.

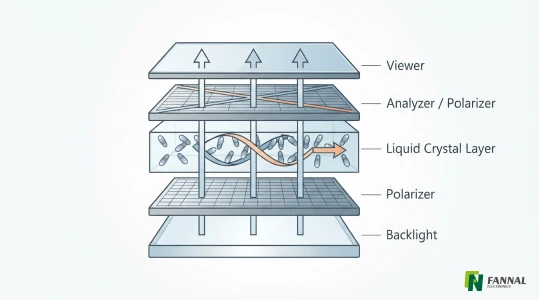

A simplified LCD optical path can be represented as:
The actual structure of a TFT-LCD contains more optical layers, but this simplified model is useful for understanding why polarized sunglasses can affect the image.
First Polarizer
The backlight produces light that is not restricted to one polarization direction.
The first polarizer filters this light and produces polarized light with a defined orientation.
Liquid Crystal Layer
The liquid crystal layer changes the polarization state of the light according to the electrical condition of each pixel.
This is how the LCD controls the amount of light that can eventually pass through the second polarizer.
Second Polarizer
The second polarizer, often described as an analyzer in simplified explanations, filters the light again.
Depending on the polarization state produced by the liquid crystal layer, different amounts of light pass through.
The viewer therefore sees different brightness levels and an image is formed.
The important point is that polarization is built into the optical operation of a conventional LCD.
That becomes relevant as soon as another polarizing filter is placed in front of the display.
How Polarized Sunglasses Affect LCD Light?
Polarized sunglasses work by filtering light according to its polarization direction.
When you look at an LCD through polarized sunglasses, the optical path is effectively:
The sunglasses therefore become another optical filter in the system.
If the polarization relationship is favorable, a relatively large portion of the display light can pass through.
If the relationship is unfavorable, substantially less light reaches the eye.
A simplified comparison is:
Polarization Relationship
Typical Appearance
Favorable orientation
Display remains relatively visible
Partially crossed orientation
Display appears darker
Near-crossed orientation
Significant reduction in visible light
This is why an LCD that looks completely normal without sunglasses can suddenly appear very dark when viewed through polarized lenses.
It is also why simply increasing the display brightness is not necessarily the first solution.
If the main problem is polarization filtering, the optical relationship between the display and sunglasses still exists.
Why Can the Display Sometimes Look Almost Black?
When the polarization axes are close to a crossed orientation, the sunglasses can strongly suppress the light coming from the display.
The exact result depends on the display's optical construction and the sunglasses themselves, so it would be misleading to say that every LCD will become completely black at one specific angle.
In practice, the visual effect can range from a small reduction in brightness to a severe loss of visibility.
Why Some LCDs Are More Affected Than Others?
Not every LCD behaves the same way with polarized sunglasses.
Two displays can have the same diagonal size, resolution, and nominal brightness but show very different results through the same sunglasses.
Several factors can contribute.
Polarizer Orientation
The orientation of the LCD's polarizers determines the polarization state of the light leaving the display.
This is one of the most important factors when evaluating compatibility with polarized sunglasses.
LCD Optical Architecture
Different LCD configurations can have different optical characteristics.
Viewing-angle behavior, contrast, and polarization response can vary with the display architecture and optical stack.
Therefore, knowing only the panel size and brightness is not enough to predict how a display will behave through polarized sunglasses.
Brightness and Contrast
Brightness still matters, particularly outdoors.
However, brightness and polarization compatibility are different issues.
A high-brightness LCD can still become difficult to read if the sunglasses significantly attenuate the display light.
Likewise, a display with good polarization behavior may still struggle outdoors if its luminance and contrast are inadequate.

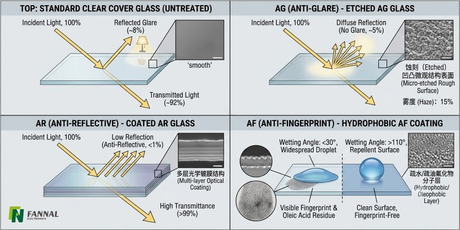

Cover Glass and Optical Layers
The display does not operate in isolation.
Cover glass, adhesive layers, optical bonding, surface treatments, and other components can affect the overall optical performance seen by the user.
This is why evaluating only the bare LCD panel can sometimes give an incomplete picture of the final product.

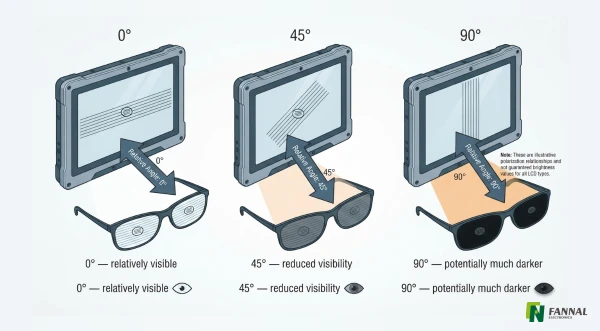

Does Display Orientation Affect Polarized-Sunglasses Compatibility?
Yes, and this is particularly important for equipment with a fixed or rotatable display.
Consider an LCD that is evaluated in landscape orientation.
A user may find it reasonably readable through polarized sunglasses.
Now rotate the display by 90 degrees.
The display's physical orientation relative to the sunglasses has changed, even though the LCD itself has not.
The sunglasses have not changed either.
But the relative angle between the display's polarization characteristics and the sunglasses' polarization axis has changed.
As a result, the display may become noticeably darker.
This is one reason why a display should be tested in its actual installation orientation, rather than assuming that the result will remain the same after mechanical integration.
For a fixed industrial HMI, this is relatively straightforward: test the orientation that will be used in the finished product.
For a device that can rotate, tilt, or be viewed from different directions, the validation requirements become more demanding.
Sunlight Readability vs. Polarized-Sunglasses Compatibility
These two problems are related, but they are not the same.
Outdoor readability is influenced by factors such as:
Display luminance
Contrast
Ambient illumination
Surface reflection
Anti-glare treatment
Anti-reflective treatment
Cover glass
Optical bonding
Polarized-Sunglasses Compatibility
The main concern is the interaction between:
LCD polarization
Polarizer orientation
Sunglasses polarization
Display orientation
Viewing angle
A useful way to think about it is:
A brighter display is not automatically a more polarization-compatible display.
For example, increasing backlight output may help when sunlight overwhelms the display.
But if polarized sunglasses are filtering a large portion of the display's light because of an unfavorable polarization relationship, simply adding more backlight does not remove that relationship.
For an outdoor industrial display, both problems may need to be addressed.

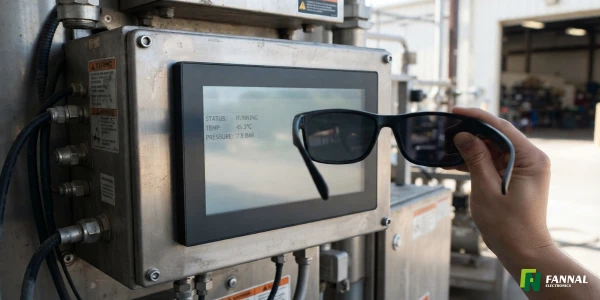

How to Test an LCD With Polarized Sunglasses
A relatively simple test can determine whether polarization is contributing to a visibility problem.
1. Start Without Sunglasses
View the display under the intended lighting conditions.
Use a representative interface rather than relying only on a full-white test screen.
For an industrial HMI, it can be useful to test:
White text on a dark background
Dark text on a light background
Gray areas
Icons
Typical interface graphics
2. Put on Polarized Sunglasses
Use the actual sunglasses intended for the application if they are known.
Compare:
Overall brightness
Contrast
Text readability
Dark areas
Color appearance
3. Rotate the Sunglasses
Keep the display fixed and slowly rotate the sunglasses.
If visibility changes significantly as the sunglasses rotate, polarization is likely contributing to the problem.
This is a useful practical diagnostic because it changes the relative polarization orientation without changing the display itself.
4. Check the Display Orientation
If the display can be installed in different orientations, repeat the test after changing the display orientation.
For a product with a fixed installation angle, use the actual mechanical configuration.
5. Test in Realistic Lighting
A laboratory environment may not reproduce the conditions in which the product will actually be used.
Outdoor testing should consider:
Direct sunlight
Reflected light
Different viewing angles
Typical UI content
Actual cover glass
Actual sunglasses
The objective is not simply to determine whether the bare LCD works.
The objective is to determine whether the complete display assembly remains usable in the actual application.
Can an LCD Be Designed for Polarized-Sunglasses Use?
Yes, but this should be treated as part of the display design rather than a last-minute correction.
If polarized sunglasses are expected in the application, this requirement can be considered while selecting and configuring the LCD.
The relevant factors may include:
Polarizer orientation
Display mounting orientation
LCD optical architecture
Required viewing angle
Brightness
Contrast
Cover glass
Optical bonding
Ambient light
Final mechanical integration
The key is that these factors interact.
For example, a display might have excellent outdoor brightness but still have an unfavorable polarization relationship with the user's sunglasses.
Another display might have more suitable polarization behavior but insufficient luminance for the intended environment.
The correct configuration therefore depends on the complete application requirement.
This is particularly important for customized industrial displays, where the LCD, touch panel, cover glass, FPC, bonding structure, and mechanical housing may all be defined together.
Engineering Checklist for Polarized-Sunglasses Compatibility
Before approving an LCD for an outdoor or industrial application where polarized sunglasses may be used, check the following:
Engineering Factor
What to Check
LCD polarizer
Consider the display's polarization orientation and optical characteristics
Display orientation
Confirm the actual mounting direction in the finished product
Polarized sunglasses
Test with representative sunglasses when possible
Viewing angle
Check whether readability changes at the required viewing angles
Brightness
Verify luminance for the actual ambient-light conditions
Contrast
Check readability of the actual interface, not only test patterns
Cover glass
Evaluate reflection and optical transmission
Optical bonding
Consider the complete optical stack
Mechanical integration
Test the display in its final installation configuration
Outdoor validation
Test under realistic lighting and viewing conditions
One practical lesson is worth emphasizing:
Do not treat polarized-sunglasses compatibility as a specification that can always be predicted from brightness alone.
It is an interaction between the display's optical system, the viewing orientation, the sunglasses, and the environment.
Conclusion
If an LCD looks normal without sunglasses but becomes very dark through polarized sunglasses, the first question should not automatically be whether the LCD needs a brighter backlight.
The more useful starting point is to check the polarization relationship between the display and the sunglasses.
Conventional LCDs rely on polarizers as part of their normal optical operation. A polarized sunglass lens adds another polarizing filter, and the relative orientation between the two can significantly affect how much light reaches the viewer.
For industrial and outdoor displays, this issue should be evaluated together with brightness, contrast, cover glass, optical bonding, viewing angle, and the final display orientation.
In other words:
Sunlight readability and polarized-sunglasses compatibility are related optical requirements, but they are not interchangeable.
The most reliable approach is to test the actual display configuration in its intended installation orientation, using representative sunglasses and realistic viewing conditions.
For applications where polarized-sunglasses visibility is a requirement, FANNAL also provides Sunglasses-Readable and Anti-Blackening Touch Display solutions. These solutions can be customized around the application's optical, touch, mechanical, and environmental requirements for outdoor and demanding industrial equipment.
If your display needs to remain readable through polarized sunglasses, this requirement is best addressed during the display design stage—not after the final product has already been built.
Frequently Asked Questions
Why does my LCD look normal without sunglasses but black with polarized sunglasses?
An LCD uses polarizers as part of its optical system. Polarized sunglasses introduce another polarizing filter, and an unfavorable relationship between the two can greatly reduce the amount of display light reaching the eye.
Does rotating polarized sunglasses change how an LCD looks?
Yes, it can. Rotating the sunglasses changes the angle between their polarization axis and the polarized light from the LCD. A significant change in visibility during rotation is a useful indication that polarization is affecting the display.
Can increasing LCD brightness fix the problem?
Not necessarily. Increasing brightness may help with strong ambient light, but it does not eliminate polarization mismatch. If the sunglasses are strongly filtering the display light, the optical relationship needs to be evaluated separately.
Are all LCD displays affected by polarized sunglasses?
They can be affected to different degrees. Polarizer orientation, LCD optical architecture, display orientation, viewing angle, and the characteristics of the sunglasses all influence the result.
Can the LCD polarizer be changed to improve compatibility?
Polarizer configuration can be considered during display design, but it is not simply a universal replacement. Any change needs to be evaluated with the LCD architecture, viewing orientation, optical performance, and other application requirements.
Can polarized sunglasses be used with outdoor industrial displays?
Yes, but compatibility should be validated using the actual display configuration. Outdoor evaluation should consider polarization as well as brightness, contrast, reflection, cover glass, viewing angle, and the intended installation orientation.
