FN0784D002A
7.84
-20~70
-30~80
400x1280
LVDS
1000
Customizable
| Quantity: | |
|---|---|

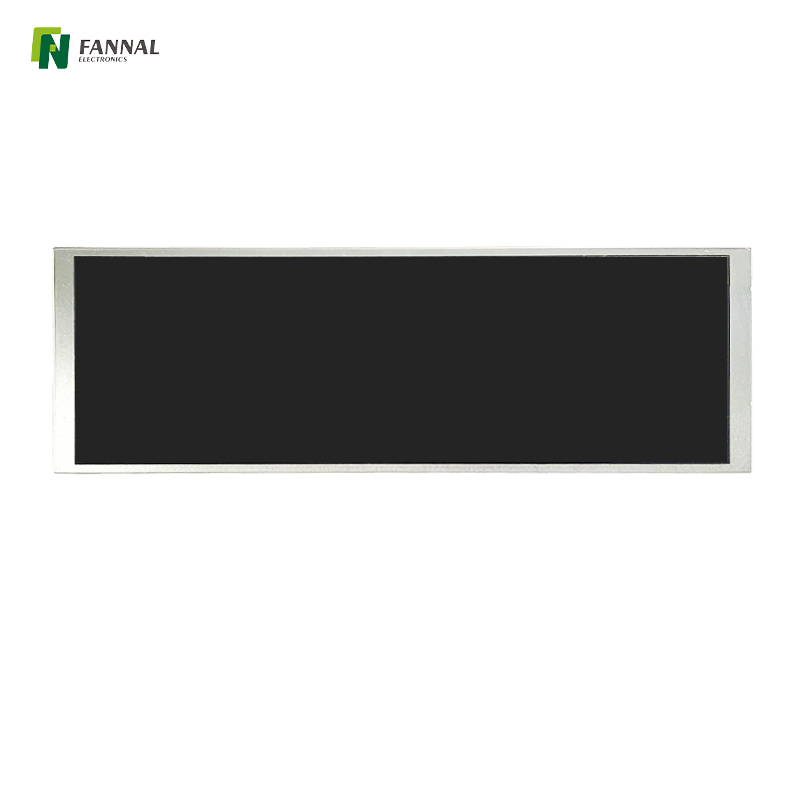

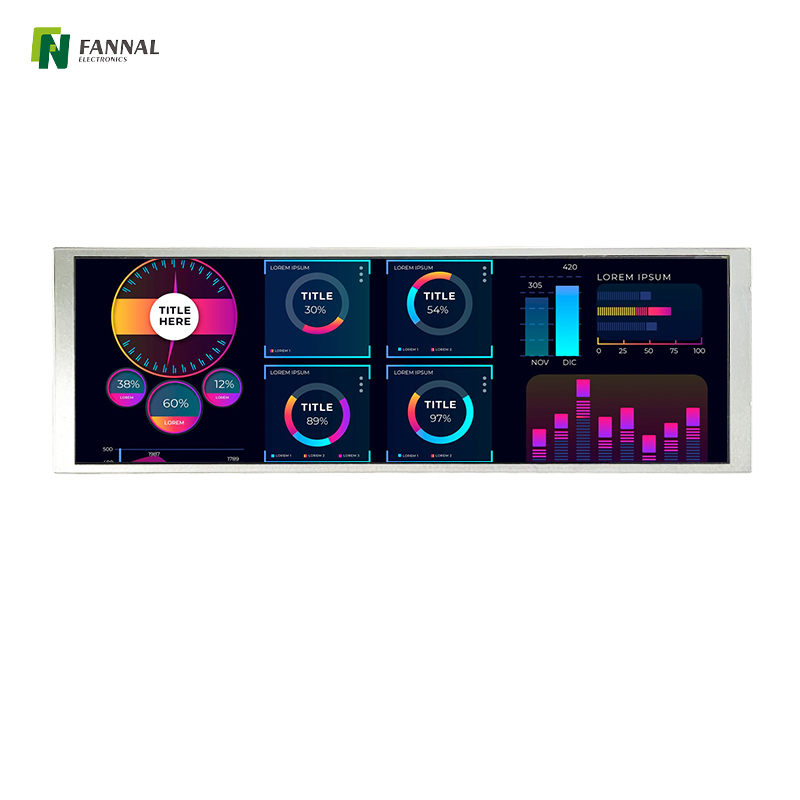

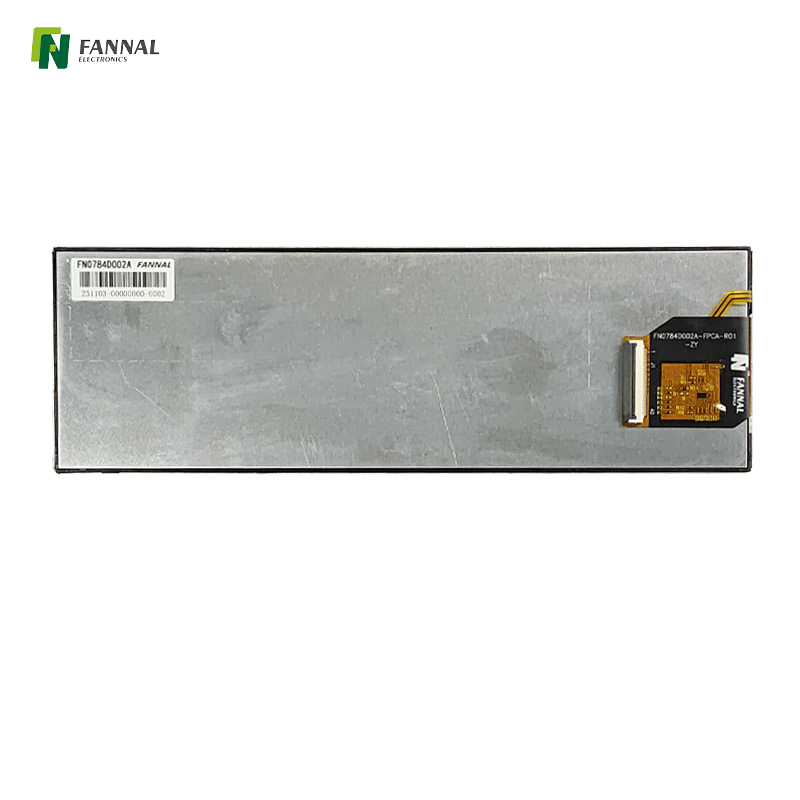

7.84 inch TFT display, 400x1280, LVDS, Industrial LCD Screen, 1000cd/m²
This 7.84 inch is developed with a standard 400x1280 high-resolution IPS screen and LVDS interface. With this TFT screen, users gain a high-resolution, vibrant display that seamlessly integrates with various systems and ensures long-lasting performance. Whether it's for prototyping, industrial automation, or commercial kiosks, this display is the perfect solution to meet the needs of both today’s and tomorrow’s technology-driven world. A bar type TFT display is a compact and versatile screen designed for various applications, particularly in automotive and industrial settings. Its elongated shape allows for clear visual representation of information, such as speed, temperature, or system status. The display features vibrant colors and high contrast, ensuring excellent visibility in different lighting conditions. With touch-sensitive capabilities, users can interact directly with the display for real-time updates and adjustments. Its robust construction ensures durability, making it suitable for harsh environments. This technology enhances user experience by providing essential data at a glance, promoting safety and efficiency.
Features |
 |
This 7.84-inch bar type TFT display features an ultra-wide aspect ratio with a 400×1280 resolution, specifically designed for applications where horizontal or vertical information needs to be displayed in a compact, elongated form factor.
Built with an IPS LCD panel, this bar type TFT display provides consistent color performance and clear visibility from wide viewing angles, ensuring information remains readable even when viewed from off-axis positions.
The 400×1280 resolution is well suited for displaying:
Status indicators
Menus and navigation bars
Scrolling data or segmented information
This makes the bar type TFT display ideal for functional, information-driven interfaces rather than full-screen multimedia.
With a 7.84-inch diagonal and bar-shaped structure, this display fits easily into space-constrained embedded systems, where standard 16:9 or 4:3 displays are impractical.
Designed for industrial and commercial environments, this bar type TFT display emphasizes stable performance and long-term usability for embedded equipment and professional devices.
Drawing |
|
Specification |
|
LCD size(inch): | 7.84 (Diagonal) |
Resolution: | 400(H)×1280(V) |
Pixel Pitch: | 0.1485(H)x0.1485(V) |
Active Area(mm): | 54.9(H)×190.08(V) |
Module Size(mm): | 67.8(W)x206.18(H) ×4.5(D) |
Display Mode(mm): | Normally Black, Transmissive |
Interface: | LVDS |
Pixel arrangement: | RGB Vertical stripe |
View Direction: | ALL |
Weight(g): | 95(Typ.) |
Luminance(cd/m2): | 1000(Typ.) |
Operating Temperature(°C): | -20~+70 |
Storage Temperature(°C): | -30~+80 |
Pin No. | Symbol | I/O | Description |
1 | NC | - | No Connection. |
2-3 | VDD | P | Supply analog voltage. |
4 | NC | - | No Connection. |
5 | RESET | I | Reset signal input. |
6 | STBYB | I | Standby mode setting. |
7 | GND | P | Ground. |
8 | RXIN0N | I | LVDS Negative differentialdara sighnal. |
9 | RXIN0P | I | LVDS Positive differential data signal. |
10 | GND | P | Ground. |
11 | RXIN1N | I | LVDS Negative differential data signal. |
12 | RXIN1P | I | LVDS Positive differential data signal. |
13 | GND | P | Ground. |
14 | RXIN2N | I | LVDS Negative differential data signal. |
15 | RXIN2P | I | LVDS Positive differential data signal. |
| 16 | GND | P | Ground. |
| 17 | RXCLKN | I | LVDS Negative differential data signal. |
| 18 | RXCLKP | I | LVDS Positive differential data signal. |
| 19 | GND | P | Ground. |
20 | RXIN3N | I | LVDS Negative differential data signal. |
21 | RXIN3P | I | LVDS Positive differential data signal. |
22 | GND | P | Ground. |
23 | SDA | I | SPI Mode serial data input. |
24 | SCL | I | SPI Mode serial clock input. |
25 | GND | P | Ground. |
26 | CS | I | SPI Mode serial chip signal. |
27 | NC | - | No Connection. |
| 28 | LVBIT | I | Ground. |
| 29 | NC | - | Power for LED backlight(Cathode). |
| 30 | GND | P | No Connection. |
| 31 | LEDK | P | Power for LED backlight(Cathode). |
| 32-38 | NC | - | No Connection. |
| 39-40 | LEDA | P | Power for LED backlight(Anode). |
Parameter | Symbol: | Min. | Typ. | Max. | Unit |
Forwaed Current Voltage | VF | 16.8 | 18.0 | 20.4 | V |
Backlight Power Consumption | Wbl | - | 2.88 | - | W |

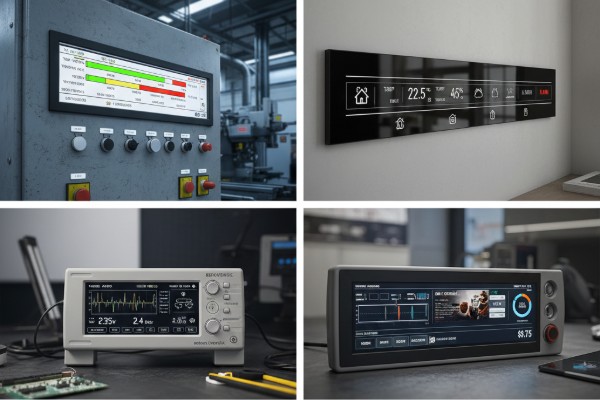

Application |
|
Why it fits:
The elongated bar type format is ideal for showing real-time status, alarms, or operating indicators without occupying excessive panel space.
Typical use cases:
Equipment status bars
Machine operation indicators
Auxiliary displays on industrial control panels
Why it fits:
The bar-type TFT display allows key information—such as mode status, temperature, or system notifications—to be displayed clearly in narrow installation spaces.
Typical use cases:
Wall-mounted control strips
Smart home control panels
Building automation interfaces
Why it fits:
The vertical resolution and wide layout support segmented data presentation, making the bar type TFT display suitable for measurement readouts and monitoring tools.
Typical use cases:
Test instruments
Monitoring equipment
Diagnostic devices
Why it fits:
Bar type TFT displays are often used as secondary or auxiliary screens, complementing a main display by presenting navigation, branding, or dynamic information.
Typical use cases:
Embedded UI extensions
Control strips for terminals
Information panels in commercial equipment
Why it fits:
The non-standard form factor makes this bar type TFT display a strong choice for custom OEM projects where product differentiation and layout flexibility are required.
Customization |
|
To meet diverse integration needs, we offer extensive customisation for you, including:
• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)
• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP
• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.
• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.
• Optimised design for stable image transmission and performance.
• Available Sizes: Up to 65"
• Structure Options: G+G, G+F+F, designed for industrial and automotive applications
• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection
• Operating Temperature:
Industrial Grade: –20°C ~ +70°C
Automotive Grade: –30°C ~ +85°
• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards
• Material Options:
Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion
Optical Bonding | Size Range | Notes |
OCA | Up to 15.6” | Two fully automated production lines for high-volume manufacturing |
LOCA / OCR | Up to 32” | Excellent for high contrast and durability |
Silicone | Up to 32” | Ideal for rugged, large-size industrial applications |
About FANNAL |
|
FANNAL, founded in 2011, is a specialist in touch display solutions, delivering high-quality products and technical services worldwide. We design and manufacture in-house custom Displays, PCAP touch screens, and optical bonding. Our solutions serve industrial, outdoor, medical, automotive and other applications.
We are a fast-growing high-tech company financially backed by SECO, a European leader in electronic devices and embedded computing. We hold ISO 9001, ISO 14001, ISO 45001, ISO 13485, and IATF 16949 certifications. Our products are REACH and RoHS compliant, with test reports or declarations available upon request.
With stable quality and engineering support, FANNAL helps customers stay competitive and differentiate their products globally.
 | Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Touchscreens, and Touch Monitors manufacturing. |
| One-Stop Solution: Full in-house process for touch screen, display, and optical bonding |
| Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more — timely local support. |
| Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions. |
| Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons. |
| Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant. |
Album |
|
FAQ |
|
A bar type TFT display is an LCD panel with an ultra-wide aspect ratio, designed for displaying information in a long, narrow format rather than a traditional rectangular screen.
Yes. The IPS panel provides wide viewing angles and stable color performance, which is important for industrial and shared-view applications.
Yes. Bar type TFT displays are often selected for custom mechanical designs where standard display sizes do not fit the product layout.
Yes. As an industrial display manufacturer, FANNAL supports long-term availability for embedded and OEM projects.
