When selecting or replacing an LCD, engineers often compare screen size, resolution, interface, and connector type first.
But one detail can determine whether the display can actually work with the existing system:
the LCD FPC pinout.
Two displays can have the same screen size, resolution, interface, and even the same 40-pin connector, while using different pin assignments.
That means:
Same pin count does not mean the same pinout.
A matching connector does not automatically mean electrical compatibility.
The pinout is determined by the electrical architecture of the display, while the physical FPC design also has to fit the requirements of the final product.

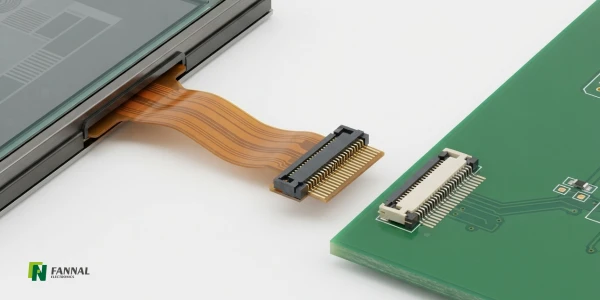

An LCD FPC pinout defines the electrical function assigned to each contact on the flexible printed circuit (FPC) connecting the display to the host system.
Depending on the display design, the FPC may carry:
Display data and clock signals
Power and ground
Control signals
Backlight power and control
Touch interface signals, for touch display modules
A simplified example might look like this:
Pin Group | Possible Function |
|---|---|
GND | Ground |
VDD / I/O Power | Display power |
Data | Display interface signals |
CLK | Clock or differential signal |
Control | Reset, enable, etc. |
LED+ / LED- | Backlight |
Touch | I⊃2;C, USB, interrupt, reset, etc. |
This is only an illustration. There is no universal LCD FPC pinout.
The actual assignment must be checked against the specific LCD model and its electrical documentation.
An LCD FPC pinout is not normally determined by one specification. It is the result of several parts of the display architecture working together.
The display interface is one of the main factors.
Common LCD interfaces include:
RGB / TTL
LVDS
MIPI DSI
eDP
SPI
MCU interfaces
Each interface uses different signaling methods and therefore requires different electrical connections.
For example, an LVDS panel needs differential signal pairs, while a MIPI DSI panel uses MIPI data lanes and a clock lane configuration.
So even if two displays have the same resolution:
Same resolution ≠ same interface ≠ same pinout.
The interface needs to be checked before comparing individual pin assignments.
The LCD driver IC and related display architecture also influence which signals and power connections the panel requires.
Depending on the design, the FPC may need to carry:
Display data
Clock or differential signals
Logic power
Control signals
Reset or enable
Other panel-specific connections
This is why two displays using the same interface can still have different pinouts.
For example, two MIPI DSI displays may both use four data lanes, but their connector assignments, power pins, control signals, or FPC layouts can still be different.
So:
Same interface ≠ same pinout.
An LCD FPC does more than carry image data.
The panel may require different power rails for its logic and display circuitry, along with ground connections and, depending on the architecture, additional control or operating voltages.
The exact requirements vary between LCD designs.
This is one reason you should never assume that two connectors are compatible simply because they have the same number of contacts.
A pin assigned to power on one panel could have a completely different function on another.
The backlight also affects the FPC connection.
An LED backlight may require connections for:
LED power
Ground
PWM
Enable or control
Multiple LED channels, depending on the design
Some displays integrate these connections into the main FPC, while others use a separate connection.
Therefore, two panels with similar display interfaces can still require different FPC arrangements because their backlight configurations are different.
For a bare LCD panel, the FPC may only need to accommodate the display and backlight connections.
A touch display module can require additional connections for the touch controller, such as:
I⊃2;C
USB
Interrupt
Reset
Touch power
Ground
This means an integrated touch display can have a substantially different FPC configuration from the LCD panel itself.
When evaluating a touch display, the display interface and touch interface should therefore be checked separately before considering the complete FPC pinout.
This is where LCD replacement often becomes more complicated than it first appears.
Imagine two displays with:
1920 × 1200 resolution
MIPI DSI interface
40-pin connector
They may look like obvious alternatives.
But these specifications still do not define the complete electrical connection.
The panels could differ in:
Pin assignment
Power connections
Ground distribution
MIPI lane arrangement
Control signals
Backlight connections
Connector orientation
Touch connections
So the practical rule is:
Same size does not mean same pinout.
Same resolution does not mean same pinout.
Same connector does not mean same pinout.
Same pin count does not mean compatibility.
A replacement LCD should be checked against the complete pin definition, not selected based only on the number of pins or the connector appearance.
No.
The connector determines part of the physical connection, but it does not define what each contact means electrically.
For example, two LCDs may both use a 40-pin connector, while one assigns certain pins to MIPI signals and another assigns them to power, ground, or control signals.
Connector orientation can also differ.
So when checking an LCD replacement, the useful question is not:
“Does the connector fit?”
It is:
“Do the pin assignment, electrical requirements, connector, and mechanical configuration all match?”
That distinction can prevent a surprisingly common compatibility mistake.
FPC length and shape do not normally change the electrical function of a pin, but they can determine whether an otherwise compatible LCD can actually be installed in the product.
This distinction is important:
Pinout is an electrical definition. FPC geometry is a mechanical requirement.
For example, an LCD may have the correct interface and pinout, but its standard FPC may still be unsuitable because:
The host connector is too far away
The FPC needs to bend in another direction
The connector is positioned differently
Available installation space is limited
The FPC interferes with other components
The FPC needs a different outline or stiffener position
In these situations, the LCD itself may be suitable. The FPC simply needs to be designed around the actual system.
A standard FPC can work well when the LCD and host system already have compatible electrical and mechanical interfaces.
A custom FPC becomes useful when the standard configuration does not fit the product.
Requirement | Standard FPC | Custom FPC |
|---|---|---|
Pin assignment | Fixed | Designed for the target system |
Length | Standard options | Application-specific |
Shape | Limited | Custom geometry |
Connector position | Fixed | Can be optimized |
Bend direction | Limited | Designed around installation |
Host connection | Must match | Can be adapted |
Best suited for | Standard integration | Product-specific integration |
Custom does not automatically mean better. If an existing FPC already meets the electrical and mechanical requirements, there may be little reason to redesign it.
The value of a custom LCD FPC is that it allows the display connection to be designed around the actual product constraints.
A standard LCD may need a custom FPC even when the panel itself is suitable for the application.
Common situations include:
The LCD works electrically, but the standard FPC cannot reach the host PCB or routes through an unsuitable area.
The standard FPC may exit or bend in a direction that conflicts with the enclosure.
Industrial handheld equipment, instruments, and compact control systems often leave little room around the display connection.
The LCD may have the required display interface, but the system-side connector or connection arrangement does not match the standard FPC.
The FPC may need to avoid a battery, PCB component, screw boss, housing feature, or other internal structure.
These are practical integration problems, not necessarily reasons to select a completely different LCD.

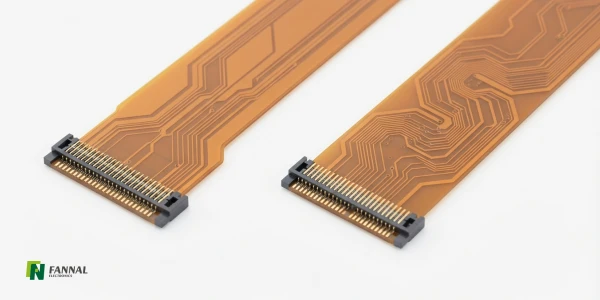

Two 40-pin FPCs can have completely different electrical assignments.
Pin count is only the number of contacts. It does not describe their functions.
A connector that physically mates with the host does not guarantee that the signals are assigned correctly.
The complete pinout still needs to be verified.
The display interface may match while the LED backlight power or control requirements do not.
This is easy to overlook when comparing only resolution and interface.
For a touch display module, the display and touch connections both need to be compatible.
A matching LCD interface does not automatically mean the touch system is compatible.
Even when the electrical connections are correct, the FPC may be too long, too short, incorrectly oriented, or unable to fit the available space.
This is why electrical compatibility and mechanical compatibility should be evaluated separately.
A practical compatibility check should follow the complete connection rather than starting with the connector.
Start with the exact panel model and its datasheet or FPC drawing.
Do not rely only on:
10.1-inch + 1920 × 1200 + MIPI
The exact model matters.
Confirm:
Display interface
Data lanes or channels
Power requirements
Control signals
Backlight
Touch interface, if applicable
Check the function of each pin rather than simply comparing the number of contacts.
Confirm:
Connector type
Pitch
Pin count
Orientation
Mating direction
Position
Confirm:
Length
Width
Shape
Bend direction
Bend area
Connector location
Stiffener requirements
The FPC needs to work together with the:
LCD → FPC → Host PCB → Housing
A design that works on a workbench can still fail when the complete assembly is installed.
If a standard FPC does not fit the application, the following information is useful for custom FPC development:
LCD information
LCD model
Datasheet
Existing FPC drawing
Pinout
Interface specification
Connector information
LCD-side connector
Host-side connector
Pitch
Contact orientation
Mating direction
Electrical requirements
Display signals
Power
Backlight
Touch signals, if applicable
Mechanical requirements
FPC length
Width and outline
Bend direction
Connector position
Stiffener location
Available installation space
System information
Host PCB position
Final display orientation
Nearby components
Housing constraints
The more complete these details are, the easier it is to determine whether a standard FPC is sufficient or a custom design is more appropriate.
A custom FPC can solve certain connection and integration problems, but it cannot eliminate fundamental electrical incompatibility.
For example, a custom FPC may adapt:
FPC length
Connector position
Connector orientation
Routing
Mechanical shape
Certain host-side connection requirements
But the LCD's required electrical interface, power conditions, signal characteristics, and internal architecture still have to be respected.
So a custom FPC should not be viewed as a way to make any two LCDs interchangeable.
It is better understood as a way to adapt a suitable display to the mechanical and connection requirements of a specific system.
When evaluating an LCD FPC, the following sequence is more reliable than simply matching connectors:
LCD model
↓
Display interface
↓
Complete pinout
↓
Power & backlight
↓
Touch interface, if applicable
↓
Connector
↓
FPC geometry
↓
Host PCB & mechanical installation
If all of these are compatible, the display has a much stronger basis for integration.
An LCD FPC pinout is determined primarily by the display's electrical architecture, including its interface, driver configuration, power requirements, backlight, and touch system.
The FPC's physical design then has to connect that electrical architecture to the actual product.
That is why:
40-pin does not mean universal 40-pin.
And:
A matching connector does not necessarily mean a compatible LCD.
When a standard LCD meets the application's display requirements but its FPC does not fit the host system, a custom FPC can sometimes provide a practical solution by adapting the connection and mechanical layout.
The key is to evaluate the electrical pinout and mechanical FPC requirements together, before the display and host-system design are finalized.
Yes. Pin count only indicates the number of contacts. The electrical function assigned to each contact can be completely different between two 40-pin LCDs.
No. The connector defines the physical connection, while the pinout depends on the display's electrical architecture and required signals.
Not necessarily. The interface, pin assignment, power, backlight, touch configuration, connector orientation, and FPC geometry should also be checked.
A custom FPC may be appropriate when the existing FPC does not match the required length, shape, bend direction, connector position, host connection, or installation space.
A custom FPC can be designed to adapt connections within the limits of the LCD and host system, but the LCD's fundamental electrical requirements cannot simply be reassigned arbitrarily.
The most useful starting information includes the LCD model and datasheet, existing pinout and FPC drawing, connector specifications, host-side connection, required FPC dimensions, bend direction, and available installation space.
