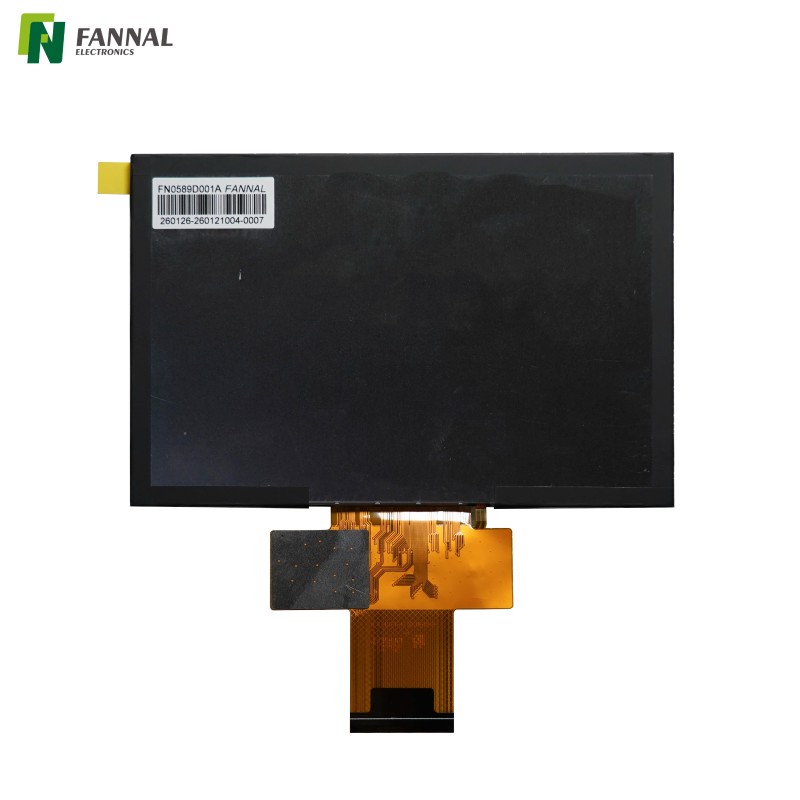

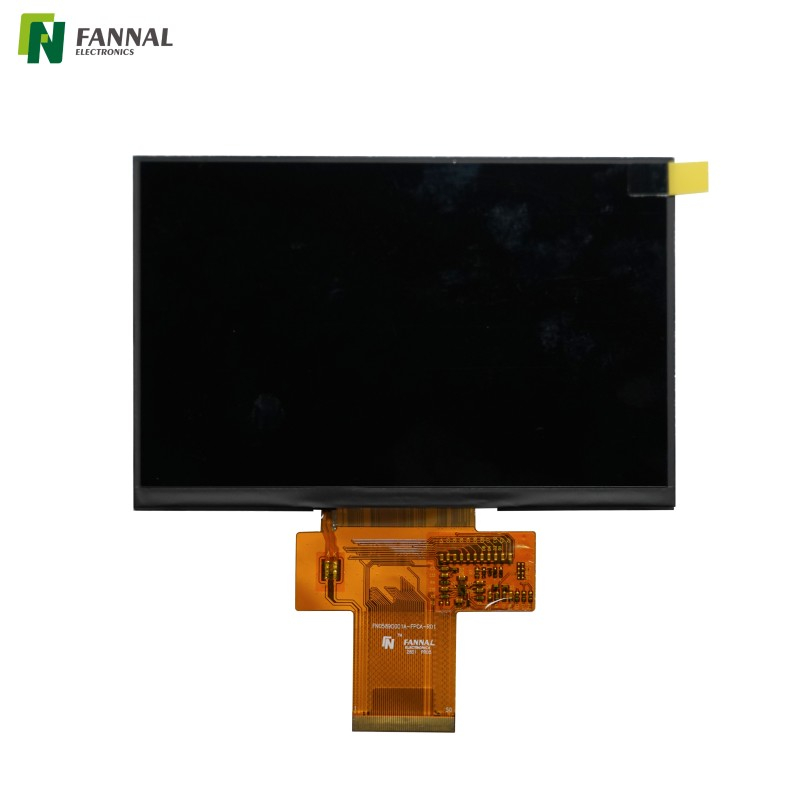

5.89 Inch Sunlight Readable TFT LCD Display | 840×512 RGB Interface

Name: 5.89 Inch Sunlight Readable TFT LCD Display | 840×512 RGB Interface
Brand: FANNAL
Rating: 5.0 (49 reviews)

5.89 Inch High Brightness TFT LCD Display

Model:
FN0589D001A
Brand:
FANNAL
Size(inch):
5.89
Display AA(mm):
127.764 (H) x 77.8752 (V)
Operation Temp(℃):
-20 ~ +65
Storage Temp(℃):
-30 ~ +75
Contrast Ratio:
800:1
Resolution:
840*512
Display Interface:
RGB 24bit
Brightness(cd/m²):
1000

Quantity:
Availability:





Inquiry Add to Basket

Sunlight Readable TFT

Key Features

Drawing & Specifications

Applications

Customizations

FAQ

Key Features

1. High Brightness for Outdoor Visibility

Designed with 1000 cd/m² typical luminance, this display remains clear and readable in bright ambient light, making it suitable for outdoor terminals, transportation devices, and semi-outdoor industrial equipment.

2. Wide 5.89-Inch Display with Practical Resolution

The 840 × 512 resolution on a 5.89-inch panel provides a balanced combination of screen size and pixel density, ideal for graphical interfaces, control dashboards, maps, and real-time status monitoring.

3. Normally Black Technology for Better Visual Quality

Using Normally Black mode, the panel delivers deeper blacks, improved contrast perception, and a more modern visual appearance compared with traditional Normally White displays.

4. Stable RGB 24-Bit Interface for Embedded Integration

Equipped with an RGB 24-bit interface, the module supports reliable high-speed signal transmission and is compatible with many embedded control boards and industrial systems.

5. Compact Mechanical Design for Space-Limited Devices

With a slim 3.06 mm module thickness and compact outline size, the display fits well into handheld devices, compact HMIs, portable instruments, and narrow front-panel designs.

6. Reliable Performance in Industrial Temperatures

Supporting -20°C to +65°C operating temperature, the module is suitable for equipment exposed to changing environments such as kiosks, vehicle systems, and factory applications.

7. Balanced Contrast for Clear UI Presentation

The 800:1 contrast ratio helps improve readability of icons, text, and interface elements, especially for industrial control screens requiring clear visual separation.

Drawing

Specifications

Parameter	Specification	Unit
LCD Size	5.89 (Diagonal)	inch
Resolution Ratio	840 (H) x 512 (V)	pixels
LCD Type	Transmissive	-
Display Mode	Normally Black	-
Pixel Pitch	0.0507 (H) x 3 x 0.1521 (V)	mm
Active Area	127.764 (H) x 77.8752 (V)	mm
Module Size	134.22 (W) x 87.39 (H) x 3.06 (D)	mm
Interface	RGB 24bit	-
Driver IC	JD9168S	-
Luminance	1000 (Typ.) / 800 (Min.)	cd/m²
Contrast Ratio	800:1	-
Operation Temp.	-20 ~ +65	°C
Storage Temp.	-30 ~ +75	°C

Pin Definition

Pin NO.	SYMBOL
1	LEDA
2	LEDA
3	LEDK
4	LEDK
5	GND
6	NC
7	VDD
8	NC
9	DE
10	VSYNC
11	HSYNC
12	B7
13	B6
14	B5
15	B4
16	B3
17	B2
18	B1
19	B0
20	G7
21	G6
22	G5
23	G4
24	G3
25	G2
26	G1
27	G0
28	R7
29	R6
30	R5
31	R4
32	R3
33	R2
34	R1
35	R0
36	GND
37	DCLK
38	GND
39	SHLR
40	UPDN
41	NC
42	NC
43	NC
44	RESET
45	NC/CSX
46	NC/SCL
47	NC/SDI
48	GND
49	STBYB
50	NC

Typical Applications

1. Industrial Control Panels

Suitable for PLC interfaces, factory HMIs, machine status displays, and automation terminals that require stable brightness and reliable operation.

2. Smart Transportation Devices

Well-suited for vehicle-mounted systems, fleet terminals, charging stations, parking equipment, and transit control interfaces.

3. Outdoor Self-Service Equipment

Ideal for kiosks, ticketing machines, access terminals, and information stations where higher brightness is needed for daylight readability.

4. Medical & Diagnostic Devices

Can be integrated into portable analyzers, monitoring devices, and professional instruments requiring compact size and clear image output.

5. Handheld Industrial Instruments

A good fit for testing meters, portable controllers, scanners, and rugged field equipment with limited installation space.

6. Smart Home & Building Systems

Suitable for smart control panels, security systems, elevator interfaces, and building automation displays.

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

1. Is this display readable under direct sunlight?

With 1000 nits typical brightness, it performs well in bright indoor areas and semi-outdoor environments. For full outdoor direct sunlight applications, optical bonding and anti-glare enhancements are recommended.

2. Can this 5.89 inch LCD work in cold or hot environments?

Yes. It supports an operating temperature range of -20°C to +65°C, suitable for many industrial and commercial devices exposed to temperature changes.

3. Does this display support touch screen integration?

Yes. Capacitive or resistive touch panels can typically be integrated depending on your project requirements, housing structure, and interface needs.

4. Is the RGB interface easy to integrate with embedded systems?

RGB 24-bit is widely used in embedded platforms and industrial control boards. Compatibility depends on your controller timing, voltage, and connector design.
