An embedded display system is more than a screen connected to a device. It is a combination of a display panel, display controller, memory, processor, and communication interface that work together to turn digital data into visible information.
In a typical embedded system, the processor generates or receives image data, stores it in memory, and sends that data through a display controller and interface to the display panel. The exact architecture varies by device, but the basic data flow remains similar.
Processor / SoC → Framebuffer → Display Controller → Display Interface → Display Panel
Understanding this data path is important when selecting an embedded display because display resolution, interface, memory, processing capability, and power consumption all need to work together.
The display panel is the part that converts image data into visible content. Common technologies include TFT-LCD, OLED, and, in more specialized low-power applications, E-Ink.

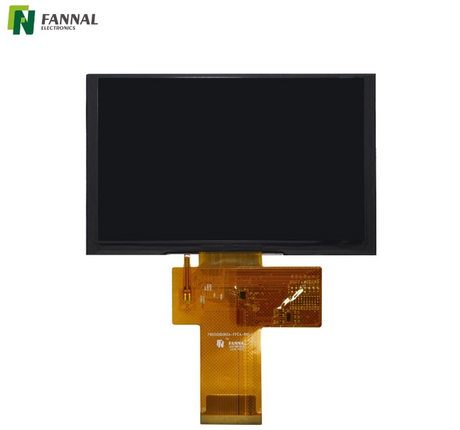

For industrial and embedded equipment, TFT-LCD remains widely used because it is available in many sizes, resolutions, brightness levels, and interface configurations.
The panel specification determines important characteristics such as:
Resolution
Brightness
Viewing angle
Color performance
Operating temperature
Power consumption
Physical dimensions
The display panel, however, does not normally process application data by itself. It depends on the electronics around it to receive and drive the image information correctly.
The display controller manages the transfer of image data to the panel.
Depending on the system architecture, the display controller may be integrated into the MCU or SoC, included in a separate controller IC, or built into the display module.
Its responsibilities can include:
Reading pixel data from memory
Generating the required display timing
Sending image data through the selected interface
Controlling refresh operations
Managing display-specific signals
For a simple embedded display, an MCU with an integrated display controller may be sufficient. Larger or higher-resolution displays may require a more capable processor or dedicated graphics hardware.
Before image data reaches the display, it usually needs to be stored in a framebuffer.
A framebuffer is a section of memory containing the pixel information that represents the current screen image. The amount of memory required depends mainly on resolution and color depth.
For example, a 320 × 240 display using 16-bit color requires:
320 × 240 × 2 bytes = 153,600 bytes
The same calculation can be used for other resolutions:
Resolution | Color Depth | Framebuffer Size |
|---|---|---|
320 × 240 | 16-bit | 153,600 bytes |
480 × 272 | 16-bit | 261,120 bytes |
640 × 480 | 16-bit | 614,400 bytes |
800 × 480 | 16-bit | 768,000 bytes |
1280 × 720 | 16-bit | 1,843,200 bytes |
These figures represent the memory required for a single framebuffer and do not include additional memory that may be needed by the operating system, graphics engine, double buffering, or application software.
This distinction matters in embedded design. A display may be electrically compatible with a processor, but the system can still run into performance or memory limitations when handling higher resolutions or more complex graphics.
The MCU or SoC provides the processing power behind the display system.
It may generate the user interface, process sensor data, receive information from other devices, and determine what should appear on the screen.
For a simple control panel, the processor may only need to update a few values or graphics elements at a time. A more advanced interface may require significantly more processing power for animations, video, 3D graphics, or a full operating system.
This is why display selection should not be made independently from the system processor.
A 7-inch display and a 7-inch display may have completely different system requirements depending on their resolution, interface, refresh rate, graphics content, and intended application.
The basic process can be simplified into several steps:
1. The processor generates image content
The MCU, CPU, or SoC determines what should be displayed based on application data and user input.
2. Pixel data is stored in memory
The image is written to a framebuffer or another graphics memory area.
3. The display controller reads the data
The controller retrieves pixel information and organizes it according to the timing and format required by the display.
4. Data is transmitted through the display interface
Depending on the display architecture, interfaces such as RGB, LVDS, MIPI DSI, or SPI may be used.
5. The display panel converts the electrical signals into an image
The panel receives the pixel data and updates the corresponding pixels to produce the final image.
This entire process happens continuously while the display is operating. The actual implementation can be much more complex, particularly when graphics acceleration, video processing, touch input, or an operating system is involved.
The interface is the connection between the display controller and the panel, and it affects bandwidth, wiring, system architecture, and integration complexity.
Common interfaces include:
Interface | Typical Characteristics | Common Applications |
SPI | Simple, low bandwidth | Small embedded displays |
RGB | Parallel pixel data | MCU-based TFT displays |
LVDS | Differential, high-speed | Industrial and larger TFT displays |
High-speed serial interface | Compact embedded and mobile systems |
The correct interface depends on more than the display size.
For example, a high-resolution display with a high refresh rate requires considerably more data bandwidth than a small panel displaying relatively static information. The processor and controller must also support the required interface and timing.
This is one reason why an embedded display should be evaluated as part of the complete system rather than as an isolated panel.
A typical embedded display system can therefore be understood as five connected layers:
Application / UI
Determines what information needs to be shown.
↓
MCU / CPU / SoC
Processes application data and generates graphics.
↓
Framebuffer / Graphics Memory
Stores pixel data.
↓
Display Controller + Interface
Converts and transfers the data according to the panel requirements.
↓
Display Panel
Converts the incoming signals into the visible image.
Once this architecture is clear, the choice between LCD, OLED, different interfaces, touch technologies, and power-saving approaches becomes much easier to evaluate.
Once the basic data path is understood, the next consideration is the display technology itself. LCD, OLED, and E-Ink behave differently and therefore suit different embedded applications.

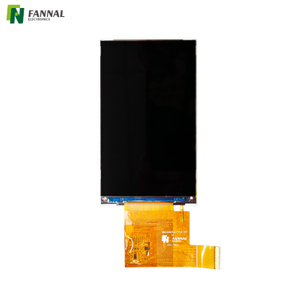

TFT-LCD remains one of the most widely used display technologies in embedded equipment. It offers a broad range of sizes, resolutions, brightness levels, interfaces, and operating-temperature options.
For industrial equipment, TFT-LCD can be configured with features such as:
High-brightness backlights
Wide viewing angles
Anti-glare or anti-reflective treatments
Customized mechanical dimensions
This makes TFT-LCD suitable for HMIs, measurement equipment, medical devices, automotive systems, and other embedded applications where long-term availability and predictable performance matter.
OLED pixels generate their own light, so an OLED display does not require a conventional LCD backlight.
This allows OLED modules to achieve:
High contrast
Deep black levels
Thin construction
Fast response
Low power consumption when displaying darker content
However, OLED is not automatically the better choice for every embedded system. Long-term brightness requirements, operating temperature, lifetime, burn-in considerations, and cost all need to be evaluated for the specific application.
E-Ink displays are fundamentally different from LCD and OLED. They are particularly useful when the displayed information changes infrequently and extremely low power consumption is important.
Typical applications include electronic labels, e-readers, and other low-power devices.
The trade-off is refresh speed. E-Ink is generally not suitable for interfaces requiring continuous animation, fast video, or rapid screen updates.
Many embedded display systems also include a touchscreen. In this case, the display system has another data path in addition to the image path.
A simplified architecture looks like this:
Display:
Processor → Display Controller → Display Panel
Touch:
Touch Sensor → Touch Controller → MCU / SoC
The two systems work together but perform different functions.

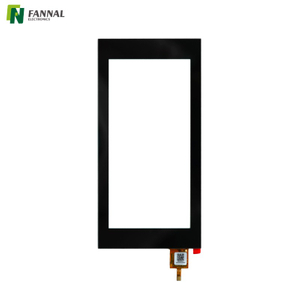

A capacitive touch panel detects changes in electrical characteristics caused by a touch and sends the detected position to the host system. Resistive touch panels instead detect physical pressure between conductive layers.
The choice depends on the application.
PCAP touch is generally preferred when the system requires:
Multi-touch
Light-touch operation
High optical clarity
Gesture interaction
A glass-based surface
Resistive touch can be advantageous when the system requires:
Glove or stylus operation
Input with non-conductive objects
Simple single-touch interaction
Operation in demanding environments
For industrial equipment, touch performance also depends on factors beyond the sensor itself. Cover glass thickness, bonding, grounding, EMI, moisture, controller tuning, and enclosure design can all affect the final result.
Power consumption is not determined by display size alone.
The total power budget can include:
Display panel
LCD backlight or OLED pixels
Display controller
MCU or SoC
Touch controller
Backlight driver
Communication interfaces
For an LCD, the backlight is often one of the largest contributors to display power consumption. Increasing brightness can therefore increase the system's power requirement.
OLEDs behave differently because their pixels emit light directly. Power consumption varies with the content being displayed.
E-Ink is different again: it uses very little power to maintain a static image, but requires energy when the image changes.
This means the right technology depends on the device's actual operating pattern rather than simply choosing the technology with the lowest nominal power consumption.
Industrial equipment often places more constraints on an embedded display than consumer products do.
A display may need to operate continuously while exposed to:
Wide temperature variations
Vibration and shock
Dust or moisture
Electromagnetic interference
Direct sunlight
Limited installation space
For this reason, industrial display selection often involves more than choosing resolution and screen size.
For example, an outdoor control terminal may require a high-brightness TFT-LCD, optical bonding, anti-glare treatment, and a touch controller capable of handling moisture and gloves.

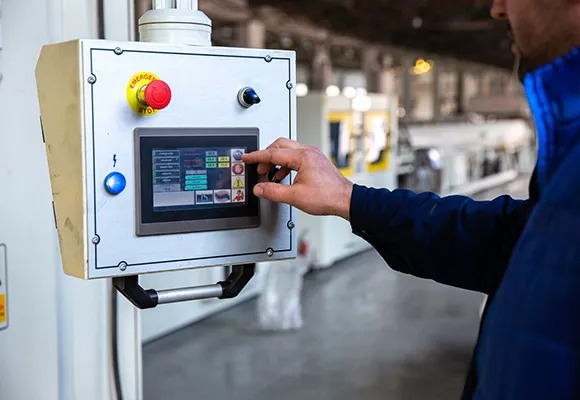

A factory HMI may instead prioritize wide-temperature operation, long-term availability, reliable touch performance, and compatibility with the host controller.
Medical equipment can require high readability, stable operation, and carefully controlled mechanical and electrical integration. Depending on the device, factors such as brightness consistency, viewing angle, touch response, cleaning requirements, and operating temperature may all matter.

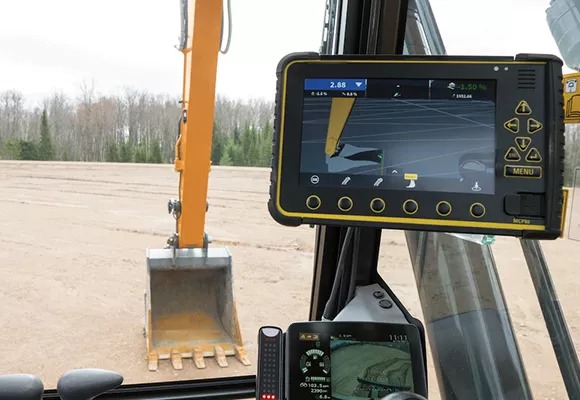

Automotive systems introduce another set of constraints, including temperature variation, vibration, sunlight exposure, electromagnetic compatibility, and mechanical integration.
In both cases, the display should be considered as part of the complete device rather than as a standalone component.
Before selecting an embedded display, it is useful to define the system requirements first.
Check:
Screen size
Resolution
Brightness
Viewing angle
Contrast
Operating temperature
Mechanical dimensions
Confirm that the display interface is compatible with the host system.
Common options include:
RGB
LVDS
MIPI DSI
SPI
The available bandwidth should also be sufficient for the required resolution, refresh rate, and color depth.
If touch is required, specify:
Capacitive or resistive
Number of touch points
Glove operation
Water tolerance
Cover glass thickness
Surface treatment
Touch controller and communication interface
For industrial equipment, also consider:
Operating and storage temperature
Humidity
Vibration and shock
Dust and water exposure
ESD and EMI
Sunlight readability
Required lifetime
These requirements should be defined before choosing the panel, because changing the display later can affect the mechanical structure, controller, firmware, power design, and enclosure.
An embedded display system is a combination of hardware and software rather than simply a display panel.
The processor generates the content, memory stores pixel data, the display controller manages timing and data transfer, and the display interface delivers that information to the panel. If touch is included, a separate touch sensor and controller handle user input.
The display technology then determines how the system presents that information and what trade-offs are involved in power consumption, optical performance, durability, and integration.
For embedded products, the most suitable display is therefore not necessarily the one with the highest resolution or most advanced technology. It is the one that fits the complete system architecture and operating environment.
At FANNAL, we develop customized display and touch solutions for embedded, industrial, medical, automotive, and other application-specific systems, including customized panel specifications, touch integration, bonding, and interface configurations.
An embedded display system is a display integrated directly into an electronic device. It typically combines a display panel with a processor or controller, memory, communication interface, and, when required, a touchscreen.
The processor generates image data and stores it in memory. A display controller reads the data and sends it through an appropriate interface to the display panel, which converts the signals into the visible image.
A typical system includes a display panel, processor or SoC, display controller, framebuffer or graphics memory, and display interface. A touch sensor and touch controller may be added when touch input is required.
The appropriate interface depends on resolution, refresh rate, bandwidth, processor support, and system architecture. SPI is common for smaller displays, while RGB, LVDS, and MIPI DSI are used in systems with different performance and integration requirements.
Start with the actual operating environment and system requirements. Consider brightness, temperature range, viewing angle, interface, touch method, power consumption, mechanical dimensions, EMI/ESD requirements, and expected service life rather than choosing based on screen size or resolution alone.
