A standard LCD can work perfectly from a display-performance perspective and still be difficult to integrate into a finished product.
The problem is often not the LCD itself, but the connection between the display and the customer's main board.
The FPC, or Flexible Printed Circuit, carries electrical signals between the display and the system electronics while also fitting into the mechanical space around the display. When the standard FPC does not match the required cable length, routing direction, pinout, connector, or installation space, a custom FPC may be needed.
For industrial and embedded display applications, FPC design is therefore part of the display integration process—not simply a matter of adding a flexible cable.
What Is an FPC in an LCD Display?
An FPC is a flexible printed circuit used to electrically connect components while allowing the connection to bend or follow a constrained mechanical path.

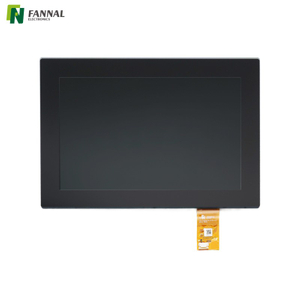

In an LCD display assembly, the FPC may connect the display panel to the customer's main board or another display controller.
Depending on the display architecture, the FPC can carry:
Power
Ground
Display data
Control signals
Touch signals
Backlight-related connections
Other system signals
The exact signals depend on the display and interface architecture.
For example, an LCD using MIPI DSI, LVDS, eDP, RGB, or another interface may require a different electrical arrangement on its FPC. The connector, pin assignment, routing, and signal requirements therefore need to match the receiving electronics.
This is why an FPC should not be treated as a generic cable that can simply be made longer or shorter.
Usually because the display specification and the customer's product specification are not exactly the same thing.
A standard LCD may have a fixed FPC designed around a particular:
Connector
Pin assignment
FPC length
FPC width
Exit direction
Mounting structure
Main-board position
That configuration may work perfectly in the original design but become inconvenient—or impossible to use—in another product.
Consider a simple example.
The LCD connector may be located at the bottom of the panel, while the customer's main PCB is positioned on the side because of the enclosure layout.
The display itself is suitable. The resolution, brightness, interface, and dimensions may all meet the requirement.
But the standard FPC is pointing in the wrong direction.
A custom FPC can potentially change the routing and connector position so that the display fits the actual product architecture.
This is one of the main reasons custom FPC design appears in customized display projects.
What Can Be Customized on an LCD FPC?
The exact possibilities depend on the display construction and manufacturing process, but several FPC characteristics can commonly be considered during a custom display project.
FPC Length
Length is one of the most obvious requirements.
The distance between the LCD and the customer's main board may not match the standard FPC.
A longer FPC may be required when the electronics are positioned farther away.
A shorter or differently routed FPC may be preferable when the available space is limited.
However, simply specifying a longer FPC is not always the right solution.
The longer the flexible circuit becomes, the more attention may be needed for routing, mechanical support, bending, and signal integrity—particularly when carrying high-speed display signals.
FPC Shape and Routing
The FPC does not always need to be a straight strip.
Depending on the mechanical design, it may need a specific shape or routing path to fit around components inside the enclosure.
For example, the FPC may need to:
Exit from a different direction
Fold around the edge of the display
Follow a narrow internal path
Avoid mechanical components
Reach a connector located away from the display
This is where FPC becomes particularly useful compared with a conventional rigid PCB connection.
The flexibility allows the electrical connection to follow the mechanical architecture of the product.
But the bend area still needs to be designed properly. A flexible circuit should not be treated as something that can be folded arbitrarily during assembly.
Pinout
Pinout describes how electrical signals are assigned to the individual pins of the connector.
This can become a problem when the LCD's standard pin assignment does not match the customer's electronics.
For example, the customer's system may require a particular arrangement of:
Power and ground
Differential display pairs
Control signals
Backlight connections
Touch signals
A custom FPC may allow the connection to be adapted to the required electrical architecture.
However, pinout changes should not be treated as simply rearranging wires.
For high-speed interfaces such as MIPI DSI, LVDS, and eDP, the electrical routing itself matters. Differential pairs, impedance, grounding, routing geometry, and other signal-integrity considerations may need to be taken into account.
So a custom pinout can require actual FPC design work rather than a simple connector change.
Connector Type and Position
The connector is another common integration constraint.
A standard LCD may use a particular FPC connector with a specific:
Pitch
Number of contacts
Contact orientation
Contact side
Connector position
The customer's PCB may use a different connector arrangement.
Even when the electrical interface is otherwise compatible, the physical connector may not fit the available space.
Changing the connector position can also be important.
For example, a connector facing upward may work in one enclosure but interfere with a mechanical component in another. A different connector orientation or FPC exit direction may provide a more practical installation.

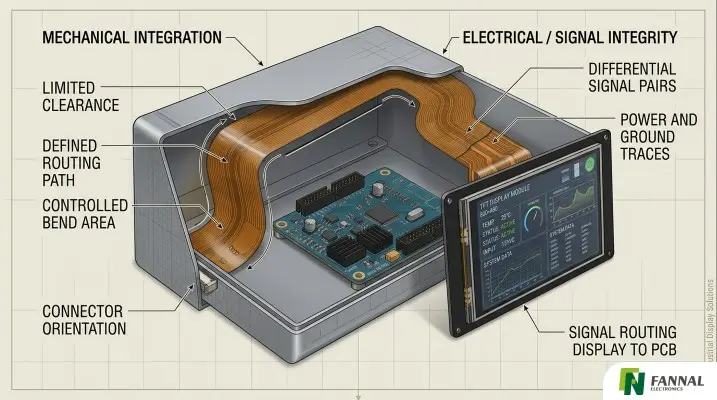

Mechanical Fit Comes Before the Datasheet Sometimes
One common mistake in display integration is to evaluate the LCD primarily through its electrical specifications:
and only later consider how the display will physically connect to the system.
In an actual product, the connection may need to fit within a very specific mechanical envelope.
The available space behind the display may determine:
FPC length
FPC width
Exit location
Bend direction
Connector orientation
Stiffener position
Clearance around the connector
This is especially relevant for industrial equipment, handheld devices, control panels, and other products where the display is integrated into a constrained enclosure.
A display can therefore be technically compatible and still be mechanically incompatible with the intended product.
FPC Design for High-Speed Display Interfaces
Not all FPC signals have the same design requirements.
A simple low-speed control connection is very different from an FPC carrying high-speed differential display signals.
can require careful consideration of signal integrity.
Depending on the interface and system design, factors such as differential-pair routing, impedance control, trace geometry, grounding, length matching, and connector transitions can become relevant.
This is one reason why a custom FPC should not be specified only by:
"Make it 100 mm long."
The physical dimensions are only part of the design.
The FPC needs to work electrically as well as physically within the intended display system.
Custom FPC Is Not Always Necessary
A custom FPC should not automatically be treated as an upgrade over a standard FPC.
If the standard LCD already matches:
The required connector
Pinout
Cable length
Exit direction
Mechanical space
Electrical interface
then changing the FPC may add unnecessary development work and cost.
In that situation, using the standard configuration can be the more sensible engineering decision.
Custom FPC becomes useful when the standard configuration creates a real integration problem.
That might be a connector that cannot reach the main board, a pin assignment that does not match the system, insufficient clearance behind the display, or a routing path that cannot be accommodated by the enclosure.
The objective is not to make the FPC more customized.
The objective is to make the display assembly fit the actual product.
How to Choose a Custom FPC for an LCD Display
Once a standard FPC no longer fits the mechanical or electrical requirements of the product, the next step is to define what actually needs to change.
A good custom FPC specification should start with the display, main board, and physical installation relationship, rather than with the FPC alone.
What Information Is Needed for Custom LCD FPC Design?
Before designing the FPC, the display manufacturer normally needs enough information to understand both ends of the connection.
Useful information includes:
Requirement
Why It Matters
LCD model/display specification
Defines the electrical and mechanical starting point
Interface
Determines the signal architecture
Pinout
Defines how signals are assigned
FPC length
Determines the physical connection distance
FPC width and outline
Must fit the available space
Connector type
Must match the receiving board
Connector position/orientation
Affects mechanical integration
Bend direction and area
Determines how the FPC is installed
Main-board location
Defines the required routing path
Available clearance
Prevents interference with surrounding components
Touch/backlight connections
May add additional signals to the FPC
For a new custom display project, a mechanical drawing of the enclosure or PCB location can be particularly useful.
It is much easier to design an FPC correctly when the manufacturer knows where the display is going and where the FPC needs to end.
Common Custom FPC Compatibility Problems
Many FPC problems are discovered during integration rather than when the LCD is first tested.
The FPC is too short
The LCD works on the bench, but the connector cannot reach the customer's PCB once the display is installed.
A longer FPC may solve the physical problem, but the required routing and bend conditions still need to be considered.
The FPC exits in the wrong direction
The connector may be electrically compatible but physically blocked by the enclosure or another component.
Changing the exit direction or FPC geometry can sometimes solve the problem without changing the LCD itself.
The pinout does not match
The display and controller may use compatible electrical interfaces but different connector pin assignments.
This needs to be checked carefully before connecting the two devices.
For high-speed interfaces, pin mapping cannot be considered independently from the actual signal routing.
The connector does not fit
The pitch, number of pins, contact orientation, or connector height may not match the customer's PCB.
A connector that looks similar mechanically is not necessarily electrically or physically compatible.
The bend area is too tight
An FPC may technically reach the connector but require a bend that is too sharp or occurs too close to a connector or stiffened section.
Repeated flexing can also create different reliability requirements from a one-time assembly bend.
The allowable bend conditions therefore need to be considered as part of the design rather than left to the assembly operator.
FPC Bend Radius and Mechanical Reliability
Flexibility is one of the main advantages of an FPC, but flexibility does not mean unlimited bending.
The appropriate bend radius depends on factors such as:
FPC construction
Copper thickness
Number of layers
Stiffener design
Whether the bend is static or dynamic
Number of bending cycles
Location of the bend
A display installed once and then left stationary has different requirements from a product in which the display or cable is repeatedly moved.
This distinction matters for industrial equipment with moving mechanisms, adjustable displays, or hinged assemblies.
For a fixed installation, the FPC may only need to survive the assembly process and remain within its designed bend condition during operation.
For repeated movement, the mechanical design becomes more demanding and should be evaluated accordingly.
FPC vs FFC: Are They the Same?
FPC and FFC are sometimes used interchangeably in casual product discussions, but they are not the same construction.
An FFC (Flexible Flat Cable) is generally a flat cable with parallel conductors embedded between insulating layers.
An FPC (Flexible Printed Circuit) is a flexible circuit board manufactured using a printed-circuit construction, allowing more complex circuit geometry and component or connector integration.
The distinction matters when the connection needs more than a simple straight cable.
For example, an FPC can provide greater freedom for:
Non-straight routing
Custom shapes
Branching or more complex circuit layouts
Connector integration
Component mounting
Controlled electrical routing
An FFC can still be the more practical choice when a simple, standardized flat connection is sufficient.
So the question should not be:
"Is FPC better than FFC?"
It should be:
"Which connection structure best fits the mechanical and electrical requirements of the product?"
Custom FPC for MIPI, LVDS, and eDP Displays
High-speed display interfaces deserve additional attention because the FPC becomes part of the signal path.
For MIPI DSI, LVDS, and eDP, the FPC carries high-speed differential signals between the display and the system electronics.
Changing the FPC geometry can therefore affect electrical behavior.
Depending on the design, engineers may need to consider:
Differential-pair routing
Controlled impedance
Trace geometry
Ground reference
Pair-to-pair relationships
Connector transitions
Overall routing length
This does not mean every custom FPC requires the same level of signal analysis.
The appropriate design requirements depend on the interface, data rate, FPC construction, system architecture, and target operating conditions.
The important point is simply that a high-speed display FPC should be designed as part of the signal path, not treated as a passive piece of flexible wiring.

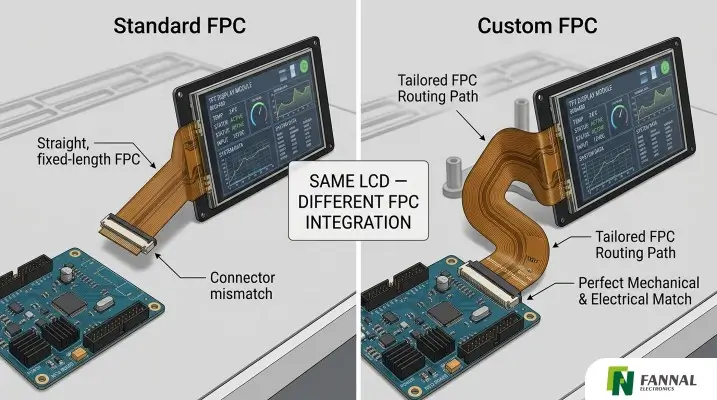

Custom FPC vs. Standard FPC
The decision can usually be simplified.
Requirement
Standard FPC
Custom FPC
Standard connector
✓
✓
Standard pinout
✓
✓
Standard length
✓
✓
Non-standard length
—
✓
Custom shape or routing
Limited
✓
Different connector arrangement
Limited
✓
Customer-specific pinout
Limited
✓
Tight mechanical integration
May be difficult
✓
High-speed custom routing
Depends on standard design
Can be designed for the application
Development effort
Lower
Higher
A standard FPC is preferable when it already satisfies the product requirements.
Custom FPC becomes worthwhile when the standard configuration creates a genuine integration constraint.
This distinction is important because customization adds development and manufacturing considerations. It should solve a specific problem rather than be introduced simply because a custom solution sounds more sophisticated.
What Should You Ask the Display Manufacturer?
If a standard LCD is almost suitable but the FPC does not fit your product, provide the manufacturer with the actual integration requirements rather than only asking for "a custom FPC."
For example:
LCD: 10.1-inch TFT display Interface: MIPI DSI Main board: Located 60 mm from the display edge Connector:Customer PCB uses a specific ZIF connector FPC: Requires a side exit and defined bend area Mechanical constraint: Limited clearance behind the display Touch: Touch signals also need to be integrated
This gives the display manufacturer a much better basis for evaluating whether the existing FPC can be modified or whether a new FPC design is required.
For more complex projects, the relevant mechanical drawings, PCB connector specifications, interface details, and existing display documentation may also be needed.
When Should You Consider a Custom FPC?
Custom FPC is most useful when the standard display already meets the core requirements but the connection prevents practical integration.
Typical situations include:
The main board is not positioned where the standard FPC can reach it.
The standard FPC exits in the wrong direction.
The connector does not match the customer's PCB.
The pinout needs to be adapted.
The available installation space is too limited.
The FPC needs a specific shape or routing path.
Touch, display, or backlight connections need to be integrated into a specific assembly.
A high-speed interface requires a different routing arrangement.
In these cases, changing the FPC can sometimes solve the integration problem without changing the LCD panel itself.
That can be particularly useful when the display size, resolution, brightness, or optical characteristics have already been selected and are otherwise suitable for the product.
Conclusion
A custom FPC is not simply a longer flexible cable.
In an LCD display assembly, it can determine how the display connects electrically to the main board and how that connection fits into the mechanical structure of the final product.
Length, shape, connector, pinout, bend conditions, and available space all need to work together. For high-speed interfaces such as MIPI DSI, LVDS, and eDP, the FPC also becomes part of the signal path and may require additional electrical design considerations.
The best approach is therefore to start with the actual product constraints.
If a standard FPC already fits the mechanical and electrical requirements, there may be no reason to customize it. If it does not, custom FPC design can be considered as part of the broader LCD or touch display integration rather than treated as a separate component.
Frequently Asked Questions
Can the FPC length of an LCD be customized?
Often, yes. FPC length can be adjusted for the required distance between the display and main board, provided the resulting mechanical and electrical design remains suitable for the application.
Can an LCD FPC have a custom shape?
Yes, depending on the display construction and manufacturing process. Custom FPC geometry can help the connection follow the available routing path inside an enclosure.
Can the pinout of an LCD FPC be changed?
It can be designed for a different pin assignment in a custom display project, but the complete electrical interface must be checked. High-speed interfaces require particular attention to signal routing and integrity.
Does a custom FPC work with MIPI DSI or LVDS?
It can. However, FPC design for high-speed interfaces such as MIPI DSI, LVDS, and eDP requires consideration of the electrical characteristics of the connection, not just its physical dimensions.
What is the difference between FPC and FFC?
FPC is a flexible printed circuit with more freedom for custom circuit geometry and integration, while FFC is generally a standardized flat flexible cable. The appropriate choice depends on the required mechanical and electrical design.
What information is needed to design a custom LCD FPC?
At minimum, the display model, interface, pinout, required FPC dimensions, connector requirements, main-board position, and mechanical constraints should be defined. For complex projects, mechanical drawings and PCB connector specifications can help the manufacturer evaluate the complete connection.
