When engineers first review a TFT display datasheet, they may encounter power labels such as VCC, VDD, VSS, VEE, AVDD, VGH, and VGL.
These names can look interchangeable, but they do not necessarily refer to the same electrical function. More importantly, power naming conventions are not universal across display manufacturers or driver ICs.
A TFT display may use separate voltage rails for digital logic, analog circuits, gate driving, common electrode control, and backlight operation. The exact voltage levels and power architecture depend on the panel and its driver electronics.
Understanding these labels can make display integration easier, but the names themselves should never be used as a substitute for the manufacturer's datasheet.

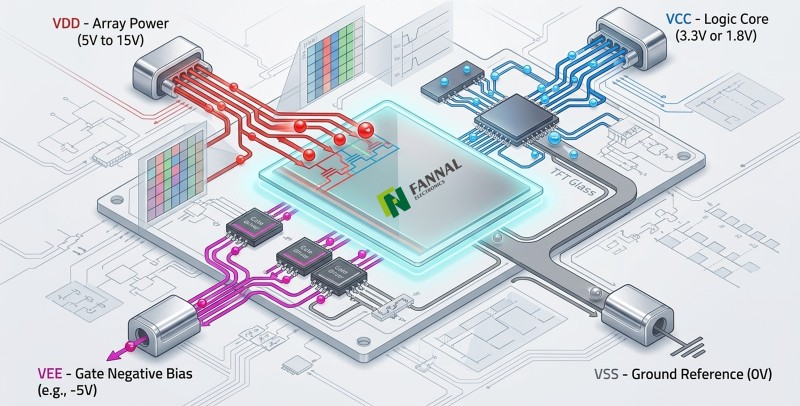

What Do VCC, VDD, VSS, and VEE Mean?
The terms have historical roots in different electronic circuit technologies. In modern display systems, however, their practical meanings can vary.
A useful starting point is:
Signal | Common Meaning | Typical Role |
VCC | Positive supply rail | Main or positive power supply |
VDD | Supply for digital or IC circuitry | Logic and driver circuits |
VSS | Ground or reference rail | Electrical reference |
VEE | Negative supply or bias rail | Negative bias or contrast-related circuits |
These are general conventions, not universal definitions.
For example, a particular TFT module may use VCC as its main module supply, while another may use VDD for the same type of input. VEE may be present in one display architecture but completely absent from another.
The actual pin definition and voltage requirement in the datasheet always take precedence.
VCC
VCC commonly refers to a positive power supply.
The name originated from bipolar transistor terminology, where the second letter relates to the collector supply. Over time, VCC became a widely used label for a positive voltage rail.
In a display system, VCC may be used for:
The actual voltage can vary significantly between modules. Therefore, seeing a pin labeled VCC does not tell you whether it should be connected to 3.3 V, 5 V, or another voltage.
The specified voltage range must be checked in the datasheet.
VDD
VDD is commonly used for a positive supply associated with digital or MOS-based circuitry.
In TFT display modules, VDD may supply functions such as:
Modern display modules often use relatively low logic voltages, but the actual VDD requirement is determined by the driver IC and module design.
A key point is that VDD does not universally mean a specific voltage.
One module may specify 1.8 V, another 2.8 V or 3.3 V, while another may use a different supply architecture altogether.
VSS
VSS commonly represents the ground or reference supply rail.
It provides the electrical reference against which other voltages and signals are measured.
In a TFT display system, a proper VSS connection is essential for both power and signal integrity.
An incorrect or unstable ground connection can contribute to problems such as:
Communication errors
Display instability
Flickering
Electrical noise
Failure to initialize
This is why ground connections should be treated as part of the power and signal design rather than simply as a return wire.
VEE
VEE commonly refers to a negative supply or bias voltage.
The term is historically associated with bipolar transistor circuits and has also been used for negative voltage rails in display systems.
In some LCD architectures, VEE can be associated with negative bias or contrast-related functions. In other modern TFT modules, the equivalent voltage may be generated internally by the display driver and may not appear as an external pin at all.
This means that VEE should not automatically be interpreted as a fixed negative voltage.
Its function and voltage level depend on the specific display architecture.
Why Do Different Naming Conventions Exist?
The different names largely result from the historical development of electronic circuits.
Different semiconductor technologies traditionally used different power-supply naming conventions. For example, VCC and VEE became common in bipolar transistor systems, while VDD and VSS became associated with MOS-based circuits.
As electronic systems evolved, these conventions continued to be used even as different circuit technologies were combined.
Modern TFT displays can contain:
As a result, a single module may contain several different voltage labels.
For example, a datasheet might list:
VDD
AVDD
VGH
VGL
VCOM
LED+
LED-
Another module may use a different naming scheme for similar functions.
Therefore, the name of a power pin provides a useful clue, but the electrical specification defines what the pin actually does.
VCC, VDD, VSS, and VEE are only part of the power architecture you may encounter in a TFT display.
Depending on the panel and driver IC, additional rails may be used for analog operation, TFT gate driving, common electrode control, and the backlight.
Signal | Common Function |
VDD | Digital or logic supply |
AVDD | Analog supply |
VGH | TFT gate ON voltage |
VGL | TFT gate OFF voltage |
VCOM | Common electrode voltage |
LED+ | Backlight positive connection |
LED− | Backlight negative connection |
Not every TFT display will expose all of these signals. Some voltages are generated internally by the display driver or power-management circuitry.
VDD: Logic Power
VDD commonly supplies the digital circuitry of the display module.
Depending on the architecture, this may include:
A stable logic supply is necessary for the display to communicate correctly with the host system and initialize normally.
AVDD: Analog Power
AVDD is commonly associated with the analog supply used by the display driving circuitry.
The analog section of a TFT display requires controlled voltage levels to drive the panel. AVDD may therefore be separate from the lower-voltage digital supply.
An incorrect AVDD level can affect display performance and may result in symptoms such as:
The exact AVDD value and tolerance must be taken from the panel or driver IC specification.
VGH and VGL
VGH and VGL are commonly associated with TFT gate-driver operation.
In general:
These voltages control the switching behavior of the TFT elements in the panel.
If the required gate-drive voltages are incorrect, the display may exhibit abnormal image behavior or fail to operate correctly.
In many modern modules, the voltages are generated internally. Whether they are externally supplied or internally generated depends on the display architecture.
VCOM
VCOM refers to the common electrode voltage used in the LCD driving structure.
Its correct level is important for the electrical balance of the panel and can affect image quality.
An incorrect VCOM setting can contribute to symptoms such as:
Flickering
Incorrect contrast
Image instability
Other display artifacts
VCOM is therefore another example of why a voltage label cannot be interpreted independently of the panel's electrical design.
LED+ and LED−
LED+ and LED− are typically associated with the LED backlight rather than the TFT pixel-driving circuitry.
The LCD panel itself does not generate light. The backlight provides the illumination that passes through the liquid crystal and color-filter structure to produce the visible image.
The backlight may have its own electrical requirements, including:
These specifications should be checked separately from the TFT panel's logic and analog power requirements.
Common Power Connection Mistakes
Understanding the names of power rails is useful, but the more important step is connecting each rail correctly.
A defective panel does not always cause TFT display problems. An incorrect voltage, missing power rail, incompatible logic level, or incorrect power sequence can all prevent a display from starting correctly.
Mistake 1: Assuming VDD and VCC Are Always the Same
VDD and VCC can refer to similar types of positive supply rails, and some manufacturers may use them almost interchangeably.
However, this does not mean they can automatically be connected together.
The name of the pin does not define its voltage requirement.
For example, one display may specify:
VDD = 3.3 V
while another may use:
VCC = 5 V
The labels alone do not tell you whether the two rails are electrically compatible.
Always check:
Recommended operating voltage
Minimum and maximum voltage
Current consumption
Power-up requirements
Whether the rail is internally generated
before connecting the display to the host system.
Mistake 2: Assuming Every TFT Display Uses the Same Power Rails
A TFT module does not necessarily expose every voltage discussed in this article.
One module may require only a main supply and ground because the driver IC generates the internal rails.
Another module may expose several inputs or test points, such as:
VDD
AVDD
VGH
VGL
VCOM
LED+
LED-
The power architecture depends on the panel, driver IC, and module design.
Therefore, do not add external power rails simply because another TFT display uses them.
Mistake 3: Ignoring Logic Voltage Compatibility
Powering the display with the correct main voltage does not automatically guarantee that the interface signals are compatible.
For example, the display may use one voltage domain for its power supply while its communication interface operates at a different logic level.
Depending on the interface, you may need to verify:
This is particularly important when connecting a TFT display to an MCU, SBC, processor, or custom controller board.
Mistake 4: Overlooking Ground Connections
A display can have the correct supply voltage and still fail to communicate or operate properly if its ground connection is poor.
VSS or the designated ground connection provides the reference for both power and electrical signals.
Poor grounding can contribute to:
For systems with high-speed interfaces or sensitive analog circuitry, grounding and PCB layout can become just as important as selecting the correct voltage.
Mistake 5: Connecting the Backlight Directly to the Main Supply
The TFT logic supply and LED backlight are separate electrical functions.
A backlight may require a specific current rather than simply a fixed voltage source. Depending on the module, the LED driver may be integrated into the display or may need to be provided externally.
Before powering the backlight, check:
A backlight connection should therefore be designed according to the manufacturer's specification rather than treated as another general-purpose power input.
How to Verify the Correct Power Configuration
When integrating a new TFT display, the safest approach is to work from the actual electrical specifications rather than infer the configuration from familiar pin names.
Start With the Pin Definition
First, identify every power-related pin in the datasheet.
Do not look only for VCC or VDD. Check for other signals such as:
VSS
AVDD
VGH
VGL
VCOM
LED+
LED−
Enable or control pins
Then determine whether each rail is an input, output, internally generated voltage, or reference point.
Check the Voltage Range
For every externally supplied rail, verify the specified voltage range.
Do not rely on a typical value alone.
For example, if a datasheet specifies a supply of 3.3 V with a defined tolerance, the host system should be designed around the permitted operating range rather than simply assuming that any voltage close to 3.3 V will work.
Also check whether the specification distinguishes between:
These values have different meanings and should not be treated as interchangeable.
Check Current Requirements
Voltage is only one part of the power design.
The host system should also account for the current required by:
The backlight can be particularly significant because its current requirement may be substantially different from that of the display logic.
Check Power-On and Power-Off Sequence
Some display driver ICs require specific timing relationships between power rails, reset signals, interface signals, and backlight control.
For example, the module may require the main power supply to become stable before reset is released or before the backlight is enabled.
If the datasheet specifies a power sequence, follow it rather than assuming that all rails can be switched on simultaneously.
Incorrect sequencing can result in:
The exact sequence is panel- and driver-specific.
Check Whether the Voltage Is Generated Internally
A particularly important question is whether a listed voltage needs to be supplied externally.
For example, a datasheet may show VGH and VGL because these voltages exist inside the display architecture, while the module may generate them internally through a power-management circuit.
In that case, they should not automatically be treated as external power inputs.
The pin table, block diagram, and electrical characteristics should be checked together to determine the actual connection requirements.
A Practical TFT Power-Integration Checklist
Before connecting a TFT module to a host board, verify the following:
Check | What to Verify |
Main supply | Correct voltage and tolerance |
Ground | Correct VSS/GND connection |
Logic supply | Interface voltage compatibility |
Analog supply | AVDD requirements, if externally supplied |
Gate voltages | VGH/VGL requirements, if externally supplied |
VCOM | Whether externally configured or internally generated |
Backlight | LED voltage and current requirements |
Control signals | Enable, reset, PWM, or other control requirements |
Power sequence | Required startup and shutdown timing |
Current capacity | Whether the host supply can handle the total load |
Absolute maximum | Ensure no rail exceeds its specified limit |
A checklist like this is usually more useful during integration than memorizing what every voltage abbreviation means.
Why the Datasheet Should Always Be the Final Reference
The biggest lesson is that VCC, VDD, VSS, and VEE are naming conventions, not universal electrical specifications.
The same label can have different practical meanings between display modules, while different labels can sometimes describe similar supply functions.
For a specific TFT display, the most reliable sources of information are:
Pin definition table
Electrical characteristics
Power sequence diagram
Driver IC documentation, when available
Reference circuit or application notes
If these documents conflict with assumptions based on the pin names, follow the actual electrical specification.
This is especially important when replacing one TFT module with another. Two displays with the same size, resolution, and interface may still have different power requirements because their driver ICs and internal architectures are different.
Conclusion
VCC, VDD, VSS, and VEE are common power-related labels, but their exact meaning depends on the electronic architecture of the display.
For TFT modules, the power system can include several separate voltage domains for logic, analog driving, gate control, common electrode operation, and backlighting. Some of these voltages may be externally supplied, while others may be generated internally.
The safest approach is therefore simple:
Use the pin name as a clue, but use the datasheet as the authority.
Before integrating a TFT display, verify the voltage range, current requirement, logic compatibility, power sequence, backlight requirements, and whether each voltage rail is internally or externally generated.
This approach reduces unnecessary debugging and helps avoid damage caused by incorrect power connections.
FAQ
Is VDD always lower than VCC?
Not necessarily. VDD and VCC are naming conventions, and their actual voltage levels depend on the specific circuit and display module. Although VDD is often associated with a lower-voltage logic supply, it should never be assumed to have a particular voltage without checking the datasheet.
Why do some TFT modules require multiple power rails?
TFT displays can contain separate digital, analog, gate-driving, and backlight circuits. These circuits may operate from different voltage domains. Some modules expose these rails externally, while others generate them internally.
Can incorrect power sequencing affect a TFT display?
Yes. Some display driver ICs require specific relationships between power, reset, interface, and backlight signals during startup and shutdown. An incorrect sequence can cause initialization failures, abnormal images, or other operating problems.
Why do two TFT displays with the same size use different voltage requirements?
Display size does not determine the power architecture. Driver ICs, panel technology, interface design, backlight configuration, and internal power-management circuits can all affect the required voltage rails.
Should engineers rely on pin names during integration?
No. Pin names provide useful clues, but they are not universal electrical specifications. Always verify the pin function, voltage range, current requirement, and connection method in the display's datasheet.
Does a display module generate all required voltages internally?
Not always. Some TFT modules generate internal rails such as VGH and VGL through integrated power circuits, while other designs may require external power inputs. The specific module documentation should be used to determine which rails need to be supplied externally.
