LCD brightness uniformity describes how consistently luminance is distributed across the display's active area. A screen may achieve its specified brightness at the center while appearing brighter in some areas and darker in others.
For industrial displays, this difference can affect the appearance of solid-color backgrounds, interface graphics, and images. Brightness uniformity is therefore an important parameter to evaluate when selecting or developing a custom LCD module.
However, a uniformity value alone does not fully describe display quality. The measurement method, backlight architecture, optical components, and intended application all influence how the result should be interpreted.
LCD brightness uniformity indicates how evenly luminance is distributed across the active display area. It is commonly expressed as a percentage calculated from the highest and lowest luminance measurements.

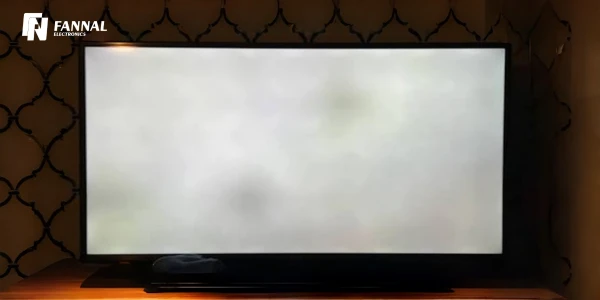

A display with consistent luminance across its surface generally presents a more uniform visual appearance. Poor uniformity may produce visible bright areas, dark corners, or uneven backgrounds, particularly when displaying white or other solid colors.
Brightness and brightness uniformity describe two different characteristics:
Brightness: The luminance level of the display, typically measured in candelas per square meter (cd/m²), also called nits.
Brightness uniformity: The consistency of luminance across the display area, expressed as a percentage under a defined measurement method.
For example, two LCD modules may both have a typical brightness of 500 cd/m², but one may have a uniformity of 85% while the other measures 75%. Their overall brightness specifications are the same, but their luminance distributions differ.
This distinction matters when evaluating displays for industrial HMI systems, medical equipment, embedded terminals, and other applications where consistent visual presentation is important.
A common method calculates brightness uniformity by dividing the minimum measured luminance by the maximum measured luminance.
Formula:
Uniformity (%) = (Lmin / Lmax) × 100%
Where:
U = brightness uniformity
Lmin = minimum luminance measured across the specified test points
Lmax = maximum luminance measured across the specified test points
Calculation example
Suppose an LCD module produces the following luminance readings during a uniformity test:
Measurement parameter | Value |
Maximum luminance | 500 cd/m² |
Minimum luminance | 400 cd/m² |
Brightness uniformity | 80% |
The calculation is:
U = 400 ÷ 500 × 100% = 80%
The measured brightness uniformity is 80%.
A higher result indicates a smaller difference between the brightest and darkest measured points under this calculation method. A result of 100% means all included measurement points have the same measured luminance.
It is important to distinguish the uniformity percentage from the display's brightness specification. An 80% uniformity result does not mean that the screen operates at 80% of its rated brightness or that 80% of its surface meets a particular luminance level.
The calculation also depends on the selected measurement points. A result obtained from one test layout should not automatically be compared with a result obtained using a different layout or evaluation method.
LCD brightness uniformity is commonly evaluated by measuring luminance at multiple locations across the active display area (AA). A nine-point measurement method is widely used for practical LCD module evaluation.
In this method, luminance is measured at nine locations distributed across the display area: four corner regions, four edge regions, and the center. The readings are then used to calculate brightness uniformity based on the specified evaluation formula.
The exact measurement point positions should follow the applicable product specification or test procedure. For custom LCD modules, the measurement layout may need to account for the display dimensions, active area, and measurement equipment.
Nine-Point Measurement for Different Display Sizes
The measurement approach should be suitable for the physical dimensions of the LCD module. Although the same nine-point concept can be applied to different screen sizes, the practical measurement conditions may differ.
Small-size LCD modules: The active display area provides less space for measurement. The measurement instrument's spot size and the distance between each measurement point and the AA boundary must be considered to avoid including non-display areas in the readings.
Large-size LCD modules: The larger active area provides more room for measurement, but luminance variation may occur across a wider surface. The nine-point method offers a practical assessment of the center, edge, and corner regions. Additional measurements may be appropriate if a more detailed evaluation of local brightness variation is required.
The measurement layout should be defined consistently for the product being evaluated. Different measurement positions can produce different uniformity results, so the test method should remain consistent when comparing samples or verifying production quality.
Key Conditions for Reliable Measurement
Several conditions should be controlled to ensure meaningful and repeatable results:
Test pattern: A full-screen white pattern is commonly used to evaluate luminance distribution.
Backlight setting: Keep the backlight operating conditions consistent across all measurement points.
Stabilization: Allow the display to reach a stable operating condition according to the applicable test procedure.
Measurement equipment: Use a suitable luminance meter, ensuring that its measurement spot is appropriate for the selected locations.
Viewing direction: Define the measurement angle and maintain it consistently.
Ambient conditions: Control stray light and reflections that could affect luminance readings.
Test configuration: Specify whether the measurement applies to the LCD module alone or to the complete assembly, including the touchscreen, cover lens, and optical bonding.
These conditions help ensure that brightness uniformity results are meaningful and comparable. The nine-point method provides a practical assessment of luminance distribution, but it does not necessarily identify every localized bright or dark area across the display.
What Causes Uneven Brightness in LCD Displays?
Brightness uniformity depends on the complete optical system rather than a single component. Several factors can contribute to luminance variation.
Backlight LED arrangement
The number, spacing, position, and operating conditions of the LEDs influence how light enters and spreads through the backlight system.

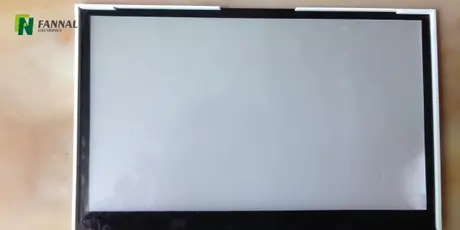

In an edge-lit design, LEDs inject light from the edge of a light guide plate. The resulting luminance distribution depends on the LED arrangement, light guide design, optical films, and mixing characteristics. The region nearest the LEDs is not necessarily always the brightest because the optical system is designed to redistribute the light.
Direct-lit backlights use LEDs positioned behind the display area. Their spacing, optical distance, and diffusion design also influence uniformity.
Light guide plate design
In edge-lit LCD modules, the light guide plate distributes light from the LEDs across the display area. Its extraction pattern is designed to compensate for changes in light propagation and produce a more consistent output.
The pattern must be matched to the backlight dimensions, LED arrangement, and optical stack. A design optimized for one module size or configuration may not deliver the same distribution when those parameters change.
Diffuser and optical films
Diffuser sheets and other optical films help redistribute light and control the output characteristics of the backlight.
Their optical properties, alignment, surface condition, and assembly quality can influence the final luminance distribution. Adding or changing optical layers may improve one characteristic while affecting brightness efficiency or other aspects of optical performance.
Mechanical structure and assembly
The mechanical design also affects optical consistency. Variations in component positioning, pressure, spacing, or assembly can change how light travels through the backlight and display stack.
For custom LCD modules, the bezel, supporting structure, bonding configuration, and available space should therefore be considered alongside the optical design.
Operating conditions
Backlight output can change with operating temperature, drive conditions, and component variation. Measurements taken under different conditions may produce different results even when the module design is unchanged.
For applications with wide operating temperature ranges or demanding duty cycles, uniformity should be evaluated under the conditions relevant to the intended product.
The importance of brightness uniformity depends on the displayed content and the operating environment.

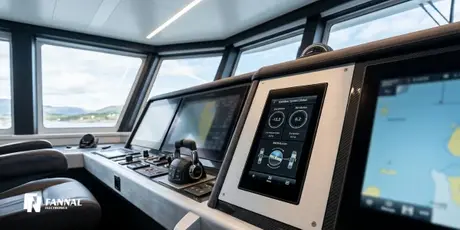

Industrial HMI and embedded equipment: Uneven luminance may become noticeable on large white backgrounds, parameter screens, or uniformly colored interface areas. The required level should be considered alongside readability, ambient lighting, and viewing distance.
Medical equipment: Applications displaying images, charts, or visual information may require careful control of luminance distribution. The appropriate acceptance criteria depend on the device's intended use and applicable performance requirements; uniformity alone does not establish diagnostic display performance.
Outdoor and high-brightness displays: High luminance helps improve visibility under strong ambient light, but it does not automatically ensure uniformity. Backlight design and optical performance must be evaluated separately.
Automotive and mobile equipment: Displays may need to operate across changing temperatures and lighting conditions. Uniformity requirements should be assessed together with viewing-angle performance, brightness, contrast, and environmental reliability.
A higher uniformity value is generally desirable, but the target should be determined by the application and the complete display specification rather than by the percentage alone.
There is no single uniformity threshold that is appropriate for every LCD application. Requirements vary with product design, measurement method, viewing conditions, and customer expectations.
For applicable FANNAL products, the stated internal brightness uniformity requirement is at least 80%. The exact acceptance criteria should be confirmed against the relevant product specification and test conditions.
When evaluating a uniformity specification, consider the following:
The calculation method: Confirm whether the result uses minimum-to-maximum luminance or another evaluation method.
The measurement layout: Check the number and distribution of measurement points.
The tested assembly: Establish whether the measurement covers the bare LCD module or the complete display assembly.
The operating conditions: Confirm the backlight setting, stabilization conditions, measurement direction, and relevant environmental requirements.
The acceptance criteria: Determine whether the stated value is a minimum requirement, a typical result, or a target for a particular product configuration.
A specification such as “Brightness Uniformity ≥ 80%” is more useful when accompanied by a defined test procedure. Without that information, the same numerical threshold may not produce directly comparable results across different products.
When developing a custom display, brightness uniformity should be considered during the optical and mechanical design stages rather than only during final inspection.
A practical specification should address four areas.
1. Define the performance target. Establish the required uniformity level according to the application's visual requirements, screen dimensions, and operating environment.
2. Specify the measurement method. Define the measurement layout, calculation formula, test pattern, and measurement equipment requirements. If a customer requires a particular standard or test procedure, identify it explicitly.
3. Evaluate the complete optical configuration. Consider the LED arrangement, light guide plate, diffuser, optical films, display dimensions, and mechanical structure together. Changes to one part of the optical stack may affect both uniformity and overall brightness.
4. Establish acceptance conditions. Document the relevant backlight setting, stabilization conditions, tested assembly, and acceptance threshold. For products that operate across a wide temperature range, determine whether additional testing under specified operating conditions is required.
These steps help align the display design, verification process, and customer expectations before production.
Conclusion
LCD brightness uniformity is an important optical parameter that describes how consistently luminance is distributed across the active display area. It is commonly calculated using the minimum and maximum luminance readings, but the result depends on the measurement layout and test conditions.
Uneven brightness can originate from the backlight architecture, light guide plate, optical films, mechanical assembly, and operating conditions. For custom LCD modules, evaluating these factors together is more effective than treating uniformity as an isolated specification.
FANNAL provides customized display and touch solutions for industrial and other demanding applications. When defining a new display module, customers should consider brightness uniformity alongside luminance, viewing angle, operating temperature, mechanical constraints, and the requirements of the final application.
Frequently Asked Questions
No. Brightness uniformity describes luminance consistency across the display area. Brightness accuracy concerns how closely a measured brightness value matches a specified target. A display can have uniform luminance but still deliver a brightness level different from the intended target.
Yes. Two modules can have the same rated or typical luminance but different luminance distributions. Their backlight architecture, optical components, mechanical design, and manufacturing variation can all influence uniformity.
No. Screen size alone does not determine uniformity. A larger display introduces different optical and mechanical design considerations, but the result depends on the backlight system, light distribution, optical stack, and manufacturing quality.
Not necessarily. Increasing the backlight drive level may increase overall luminance, but it does not inherently correct an uneven luminance distribution. Uniformity depends on how light is distributed across the active area, not simply on the total light output.
The choice depends on the specification being verified. Testing the LCD module helps evaluate its optical performance in the defined configuration. Testing the complete assembly, including a touchscreen, cover lens, or optical bonding, evaluates the optical performance of the integrated product. The tested configuration should be clearly stated when specifying acceptance criteria.
