Marine control displays operate in environments where sunlight, salt spray, humidity, UV exposure, temperature changes, vibration, and moisture can affect both display readability and touch performance.
For this reason, selecting a marine display requires more than choosing a high-brightness LCD. Optical performance, touch response, environmental conditions, and mechanical integration need to be considered together.
What Makes a Marine Display Different?
Marine control systems can be exposed to conditions that are significantly more demanding than typical indoor industrial applications.
Depending on the installation location and vessel, a marine display may need to operate under:
Strong direct sunlight and reflected ambient light
Operation while the user is wearing polarized sunglasses
These conditions can affect both the optical performance of the display and the reliability of touch interaction. A marine display therefore needs to be designed around the actual operating environment rather than a single specification.
Direct sunlight is one of the most important optical challenges for marine displays. High ambient light can reduce perceived contrast and make information more difficult to read, particularly when light is reflected from the display surface.
High Brightness and Contrast
Higher display luminance can help maintain visibility under strong ambient light, but brightness alone does not determine outdoor readability.
Contrast also affects how clearly text, graphics, and control information can be distinguished from the background. The required luminance and contrast should therefore be evaluated according to the actual lighting environment and viewing conditions.
Reducing Surface Reflection
Reflections from the cover glass and other display surfaces can reduce perceived image clarity in direct sunlight.
Depending on the application, display readability can be improved through an appropriate combination of:
Cover glass selection
Anti-glare (AG) or anti-reflective (AR) treatment
Optical bonding
Display contrast and luminance
Appropriate viewing angle
The optical structure should therefore be evaluated as a complete system rather than by LCD brightness alone.
Anti-Blackout for Polarized Sunglasses
Marine operators may frequently wear polarized sunglasses to reduce glare from sunlight and reflective water surfaces.
Depending on the display's polarization characteristics, polarized sunglasses can affect perceived brightness and may cause parts of the screen to appear dark at certain viewing angles. This can become a significant usability issue for outdoor marine control interfaces.
Marine display selection should therefore consider:
LCD polarization characteristics
Viewing angle
Optical structure
Display orientation
Compatibility with polarized sunglasses
Anti-blackout performance should be evaluated under the actual viewing conditions expected during operation rather than assumed from a single display specification.
Optical Bonding in Marine Displays
Optical bonding can be an important part of a marine display's optical and mechanical structure.
Reducing Internal Reflection
Air gaps between the LCD, touch sensor, and cover glass can introduce additional internal reflections, particularly under strong ambient light.
Optical bonding replaces the air gap with an optical adhesive layer, helping reduce internal reflection and improve perceived image clarity.
This can be particularly useful when the display needs to remain readable under direct sunlight.
Supporting Long-Term Display Reliability
The display stack also needs to withstand the environmental conditions expected during long-term marine operation.
Depending on the display structure and materials used, optical bonding can help reduce risks associated with internal fogging and improve the integration of the display layers.
Material selection, adhesive selection, and the overall optical structure should be evaluated together rather than treating optical bonding as an isolated component.
Touch Performance in Marine Environments
A marine touchscreen may need to remain responsive while the vessel is moving, the display surface is wet, or the operator is wearing gloves.
Wet Touch Operation
Water or moisture on the touch surface can affect capacitive touch detection.
For marine touch displays, the touch sensor structure and controller tuning should therefore be evaluated according to the intended operating conditions, particularly when water or moisture may be present during use.
Gloved Touch
Operators may need to interact with the display while wearing gloves.
Touch sensitivity depends on factors such as the touch sensor, cover glass, controller, and system configuration. These components should be considered together when designing a touchscreen for gloved operation.
Stable Touch Under Vibration
Marine equipment can experience vibration and dynamic movement during operation.
A marine touchscreen should maintain stable and accurate touch response under the vibration conditions expected in the final application. Touch performance should therefore be evaluated together with the mechanical structure and installation environment.
Environmental Requirements for Marine Displays
Marine displays can be exposed to environmental conditions that differ significantly from those encountered by indoor equipment.
Salt Spray and High Humidity
Continuous exposure to salt spray and high humidity can place additional demands on the materials and assembly of a display module.
The cover materials, adhesives, touch structure, and other exposed or environmentally sensitive components should be selected according to the expected marine environment.
Operating Temperature
Marine equipment may operate across different climatic regions and installation locations, resulting in significant temperature variation.
The required operating temperature range should be defined according to the actual application. The LCD, touch panel, adhesives, and other components should then be evaluated against the target temperature range.
Long-Term UV Exposure
Marine displays installed in outdoor environments may be exposed to UV radiation for extended periods.
Long-term UV exposure can affect exposed materials and optical components. Cover materials, optical films, adhesives, and other relevant components should therefore be selected with the expected outdoor exposure in mind.
Marine Display Applications
Marine displays can be used in a range of control and monitoring systems, including:
Thruster control systems
Stabilizer control systems
Marine control panels
Navigation and monitoring interfaces
Engine and equipment controls
Yacht and recreational vessel controls
The required display configuration can vary significantly depending on the installation location, lighting environment, operator requirements, and environmental conditions.
FANNAL Marine Control Display Case Study
FANNAL developed customized touch display solutions for marine control systems where sunlight readability, environmental durability, and reliable touch operation were critical requirements.

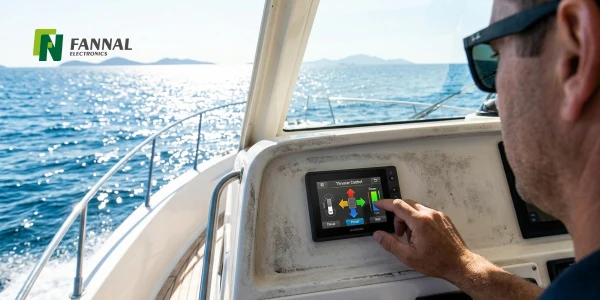

3.5-Inch Thruster Control Display
The thruster control display was designed around demanding outdoor and marine operating conditions, with features including:
320 × 240 resolution
1000 nits brightness
Anti-blackout design
1.1 mm AG cover glass
OCA full optical bonding
-20°C to +70°C operating temperature

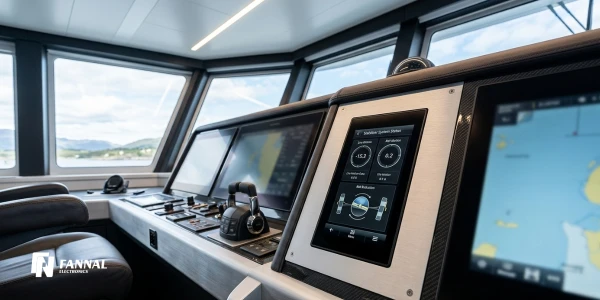

4.3-Inch Stabilizer Control Display
The stabilizer control display was configured for a different set of optical and environmental requirements, including:
Selecting a marine display should start with the actual operating environment rather than a predefined display specification.
1. Define the Lighting Environment
Consider whether the display will be exposed to direct sunlight, reflected light, indoor conditions, or changing day and night environments.
2. Define the Optical Requirements
Consider target luminance, contrast, surface reflection, viewing angle, cover glass, optical treatment, and compatibility with polarized sunglasses.
3. Define the Touch Requirements
Determine whether the display needs to support bare-finger, wet, or gloved operation and whether stable touch performance is required under vibration or movement.
4. Define the Environmental Conditions
Identify the expected operating temperature, humidity, salt spray, UV exposure, and other environmental conditions at the installation location.
5. Define the Display Structure
The final display configuration may include the LCD, touch sensor, cover glass, AG/AR treatment, optical bonding, FPC, interface, and mechanical integration.
A marine display should therefore be specified according to the complete operating environment rather than a single display specification.
FAQ
What is a marine display?
A marine display is a display module or display system designed for marine applications such as vessel control, monitoring, navigation, and equipment interfaces. Its configuration is typically selected according to the optical, touch, environmental, and mechanical requirements of the application.
What makes a display suitable for marine applications?
Marine displays may need to address strong sunlight, surface reflection, salt spray, humidity, UV exposure, temperature changes, vibration, and wet or gloved touch operation. The specific requirements depend on the installation environment and application.
How do you make a marine display readable in sunlight?
Sunlight readability can be improved through an appropriate combination of display luminance, contrast, reflection control, cover glass, optical treatment, viewing angle, and optical bonding. Brightness alone does not determine outdoor readability.
Can marine touch displays work with wet or gloved hands?
Yes, a marine touch display can be configured for wet or gloved operation. Touch sensor design, cover glass, controller tuning, and the intended operating conditions all affect touch performance.
Why is optical bonding used in marine displays?
Optical bonding can reduce internal reflections caused by air gaps between display layers and improve perceived image clarity. Depending on the display structure and materials, it can also help reduce risks associated with internal fogging and improve overall display integration.
Conclusion
Marine display requirements extend beyond brightness and resolution. Sunlight readability, polarized-sunglasses compatibility, touch performance, salt spray, humidity, UV exposure, temperature, and vibration can all influence the performance of a marine control display.
For custom marine applications, these requirements should be evaluated together when defining the LCD, touch panel, cover glass, optical bonding, and overall display module.
