Optical bonding improves the optical performance and mechanical integration of a display by bonding the display layers together with a transparent adhesive. It can reduce internal reflections, improve readability under ambient light, and help protect the display assembly from moisture, dust, and mechanical stress.
For custom display projects, the adhesive is only one part of the decision. OCA, SCA, and LOCA/OCR use different material forms and bonding processes, so the appropriate option depends on the display structure, size, environmental conditions, optical requirements, and production process.
What Are OCA, SCA and LOCA (OCR)?
OCA, SCA, and LOCA are transparent adhesive materials used in optical bonding. The main difference is whether the adhesive is supplied as a solid film or applied as a liquid and cured during the bonding process.
OCA: Optically Clear Adhesive
OCA is a transparent solid adhesive film with no liquid carrier. It is normally supplied in a precisely controlled thickness and laminated between display components such as a cover glass, touch sensor, or LCD.
Because the adhesive is already formed as a film, the bonding process can provide good thickness uniformity and optical consistency when the mating surfaces are suitable.
OCA is commonly considered for flat display structures with controlled dimensions and relatively uniform bonding areas.
SCA: Solid Clear Adhesive
SCA is also supplied as a solid adhesive film. Like OCA, it can be laminated between display layers rather than being dispensed and cured as a liquid.
The terminology used for OCA and SCA can vary between suppliers, and their actual material properties depend on the specific adhesive formulation. For a display project, parameters such as thickness, modulus, optical performance, temperature resistance, and adhesion are more meaningful than the name alone.
SCA can be used where a solid-film bonding process is preferred and the display structure is compatible with film lamination.
LOCA and OCR: Liquid Optical Bonding
LOCA stands for Liquid Optically Clear Adhesive, while OCR, or Optical Clear Resin, is a commonly used term for the liquid resin used in optical bonding. In many display applications, LOCA and OCR refer to the same general liquid optical bonding approach rather than two completely different technologies.
Unlike OCA or SCA, the liquid material is dispensed onto the bonding surface and then cured, typically using UV or another appropriate curing process depending on the material.
The liquid nature of LOCA/OCR allows the adhesive to conform to certain surface geometries and can be useful for display assemblies with structures that are less suitable for solid adhesive films.
OCA vs SCA vs LOCA (OCR): Key Differences
The most important difference is not simply whether the adhesive is called OCA, SCA, or LOCA. It is the material form and bonding process.
Feature | OCA | SCA | LOCA / OCR |
Material form | Solid adhesive film | Solid adhesive film | Liquid resin |
Application | Film lamination | Film lamination | Liquid dispensing and curing |
Thickness control | Highly controlled by film | Highly controlled by film | Depends on dispensing and process control |
Surface adaptation | Best suited to suitable flat surfaces | Best suited to suitable flat surfaces | More adaptable to certain geometries |
Process | Lamination | Lamination | Dispensing + curing |
Typical consideration | Flat, controlled structures | Solid-film bonding requirements | Complex geometry or liquid-bonding requirements |
These are general characteristics. The actual performance depends on the adhesive formulation, display structure, bonding equipment, and process parameters.

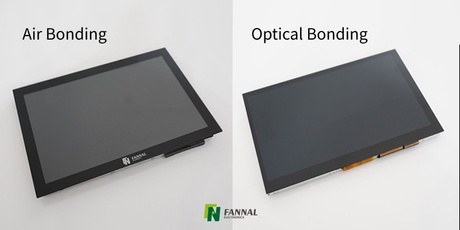

How Does Optical Bonding Work?
In a conventional display assembly, small air gaps can remain between the cover glass, touch sensor, and display panel. These interfaces can cause additional reflections because light passes between materials with different refractive indices.
Optical bonding replaces one or more air gaps with a transparent adhesive layer.
A typical touch display structure may include:
Cover Glass → Optical Adhesive → Touch Sensor → Optical Adhesive → LCD
The exact stack-up varies according to the display design. Some products bond only the cover glass to the touch sensor, while others use full lamination between the cover glass, touch layer, and display panel.
By reducing air interfaces, optical bonding can improve outdoor readability and reduce the visual effect of reflections. It can also improve the mechanical integration of the display assembly.
OCA, SCA or LOCA (OCR): Which One Should You Choose?
There is no universal adhesive that is suitable for every display.
The selection should start with the display structure and operating requirements, rather than choosing an adhesive first.
1. Display Size and Bonding Area
As the bonding area increases, maintaining uniform adhesive thickness and avoiding bubbles, voids, wrinkles, or other defects becomes increasingly important.
Large displays may require different equipment, process parameters, or adhesive properties from small displays. Therefore, the same bonding method should not automatically be applied to every screen size.
2. Surface Geometry
Solid adhesive films such as OCA and SCA are well suited to compatible, relatively flat bonding surfaces.
LOCA/OCR can provide more flexibility when the bonding structure includes certain steps, recesses, or geometries that are difficult to accommodate with a pre-formed adhesive film.
However, liquid bonding is not automatically better for complex structures. The actual geometry, resin flow, curing conditions, and optical requirements must be evaluated together.
3. Optical Requirements
The adhesive affects more than transparency.
For applications exposed to strong ambient light, factors such as haze, transmittance, refractive index, reflection, and adhesive uniformity can influence the final display performance.
For outdoor and automotive displays, optical bonding is often considered together with high-brightness LCDs, anti-reflective treatments, cover glass design, and other measures for sunlight readability.
4. Temperature and Humidity
Industrial, automotive, outdoor, and medical displays may operate across wider temperature and humidity ranges than consumer devices.
The adhesive must maintain adhesion and optical stability under the required environmental conditions. Material selection should therefore consider the actual operating and storage requirements of the complete display assembly.
A material that performs well in a room-temperature laboratory environment may not provide the same reliability after long-term exposure to heat, cold, humidity, or repeated temperature cycling.
For touch displays, the adhesive layer becomes part of the overall touch and optical stack.
Adhesive thickness, uniformity, dielectric characteristics, and mechanical properties can affect the interaction between the touch sensor and the display assembly.
This is particularly important when designing a custom touch display rather than simply bonding a standard cover glass onto an existing LCD.
6. Rework and Production Process
OCA, SCA, and LOCA/OCR also differ in how they fit into manufacturing and rework processes.

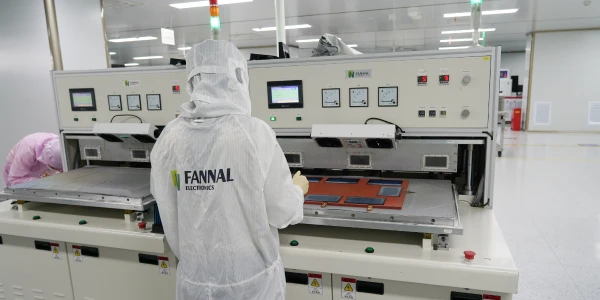

Film-based bonding requires accurate lamination and handling of the adhesive film. Liquid bonding requires controlled dispensing, resin flow, bubble management, and curing.
For a custom project, the preferred process may therefore depend on production volume, equipment, product structure, quality requirements, and rework strategy rather than adhesive type alone.
Common Applications of OCA, SCA and LOCA (OCR)
Different bonding materials can be used across a wide range of display applications.
Industrial Displays
Industrial touch displays may require optical bonding to improve readability under factory lighting or outdoor conditions and to strengthen the display assembly.
The appropriate adhesive depends on the display size, touch structure, temperature range, and mechanical requirements.
Automotive Displays
Automotive displays can combine large bonding areas with demanding optical and environmental requirements. Temperature cycling, sunlight exposure, touch performance, and long-term optical stability are important considerations when selecting the bonding material and process.
Medical Displays
Medical equipment may require high optical clarity and consistent image quality, while the display assembly may also need to withstand repeated cleaning and controlled environmental conditions.
The adhesive selection should be evaluated together with the cover glass, touch sensor, display panel, and cleaning requirements.
Outdoor and Heavy-Duty Equipment
Displays used in outdoor equipment, vehicles, agricultural machinery, and construction equipment may experience temperature changes, vibration, moisture, and strong ambient light.
Optical bonding can be combined with other display design measures to improve readability and mechanical durability, but the adhesive must be selected according to the actual environmental requirements.
Why Optical Bonding Is More Than an Adhesive Choice
Choosing OCA, SCA, or LOCA/OCR is only one part of an optical bonding project.
A reliable display assembly also depends on:
Display and cover glass design
Touch sensor structure
Adhesive thickness
Surface preparation
Lamination or dispensing process
Bubble and void control
Curing conditions
Optical requirements
Temperature and humidity resistance
Mechanical stress
Long-term reliability testing
For this reason, optical bonding should be treated as a display integration process, rather than simply selecting an adhesive from a material list.
OCA vs SCA vs LOCA (OCR): A Practical Selection Approach
For a new custom display project, the selection process can start with several basic questions:
Is the bonding surface flat and suitable for film lamination?
If yes, OCA or SCA may be considered.
Does the display structure contain steps, recesses, or other geometries that make film lamination difficult?
LOCA/OCR may be worth evaluating.
Does the display operate outdoors, in vehicles, or across a wide temperature range?
The adhesive's environmental and optical specifications become particularly important.
Is the project a high-volume production product or a lower-volume customized display?
The manufacturing process, equipment, cycle time, and rework requirements may influence the practical choice.
The final selection should be based on the complete display stack-up and validation requirements, not simply on the general advantages of one adhesive type.
Optical Bonding for Custom Display Projects
For a custom touch display, optical bonding is normally considered during the display design stage rather than added as a separate process at the end.
The display panel, touch sensor, cover glass, adhesive, FPC, controller, and mechanical structure all need to work together. This is especially important when the display must meet requirements for outdoor readability, wide-temperature operation, waterproofing, glove touch, or long-term industrial use.
FANNAL provides customized display and touch solutions with optical bonding as part of the display integration process. The bonding method and material can be evaluated according to the display structure, optical requirements, environmental conditions, and production requirements of the project.
FAQ
What is the difference between OCA and SCA?
Both OCA and SCA are solid transparent adhesive films used for bonding display components. The terminology and material formulations can vary between suppliers, so specifications such as thickness, optical performance, adhesion, modulus, and temperature resistance should be compared rather than relying on the product name alone.
Is LOCA the same as OCR?
In many display bonding applications, yes. LOCA means Liquid Optically Clear Adhesive, while OCR means Optical Clear Resin. Both generally describe a liquid optical bonding material, although terminology can vary between suppliers.
Is OCA or LOCA better for optical bonding?
Neither is universally better. OCA can be suitable for compatible flat structures and controlled film lamination, while LOCA/OCR can be useful for certain geometries that are difficult to bond with a solid film. The appropriate choice depends on the display structure, optical requirements, environment, and production process.
Optical bonding can reduce reflections caused by air gaps between display layers, which can improve perceived readability in bright environments. However, sunlight readability also depends on display brightness, surface treatment, cover glass, polarizer performance, and the overall optical design.
Can optical bonding be used for industrial touch displays?
Yes. Optical bonding is commonly considered for industrial touch displays where readability, mechanical integration, and environmental reliability are important. The bonding material and process should be selected according to the display structure and operating conditions.
