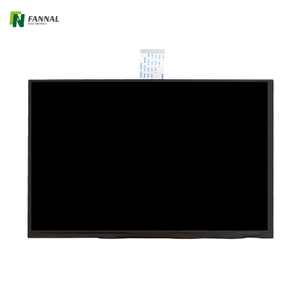

7.0 Inch Automotive TFT Display Hight Resolution 1280*768 Wide Operating Temperature

7.0-inch Outdoor TFT LCD Display

Model:
FN0700D123A
Operation Temp(℃):
-30~+85
Storage Temp(℃):
-40~+90
Resolution:
1280×768
Direction:
ALL
Interface:
LVDS
Brightness(cd/m²):
1000
Touch Screen:
Customizable

Quantity:
Availability:





Inquiry Add to Basket Download

Automotive TFT

Product Features

Product Drawing

Specification

Add Ons

Product Application

详情页宽温

7.0 inch TFT display, 1280x768, LVDS, Industrial LCD Screen, 1000cd/m²

This 7.0 inch is developed with a standard 1280x768 high-resolution IPS screen and LVDS interface. This TFT display is designed to meet the demanding requirements of embedded systems. Developers working with Raspberry Pi, Arduino, or other microcontrollers will appreciate the ease of integration offered by the HDMI interface and the robustness of the IPS panel. Whether you're building a DIY project, an IoT solution, or a prototype, this display offers everything needed to visualize data and provide user feedback efficiently.

屏幕截图 2024-09-30 154549

General Specifications：

LCD size(inch):	7.0 (Diagonal)
Resolution:	1280(H)×768(V)
Pixel Pitch:	0.1191(H)x0.1191(V)
Active Area(mm):	152.45(H)×91.47(V)
Module Size(mm):	165.2(W)x104.4(H)×12.64(D)
Display Mode(mm):	Normally Black, Transmissive
Interface:	LVDS
View Direction:	ALL
Weight	180(Typ.)
Operating Supply Voltage	-30~+85℃
Storage Temperature	-40~+90℃
Luminance(cd/m2):	1000(Typ.)

Interface:

Pin No.	Symbol	I/O	Description
1	NC	-	No connection.
2-3	VDD	P	Ground.
4	NC	-	No connection.
5	XRES	I	Reset signal input.(Active low)
6	NC	-	No connection.
7	GND	P	Ground.
8	RXIN0N	I	LVDS Negative differential data signal.
9	RXIN0P	I	LVDS Positive differential data signal.
10	GND	P	Ground.
11	RXIN1N	I	LVDS Negative differential data signal.
12	RXIN0N	I	LVDS Positive differential data signal.
13	GND	P	Ground.
14	RXCLKN	I	LVDS Negative clock signal.
15	RXCLKP	I	LVDS Positive clock signal.
16	GND	P	Ground.
17	RXCLKN	I	LVDS Negative clock signal.
18	RXCLKP	I	LVDS Positive clock signal.
19	GND	P	Ground.
20	RXIN3N	I	LVDS Negative differential data signal.
21	RXIN3P	I	LVDS Positive differential data signal.
22	GND	P	Ground.
23	SCL	I	Serial Clock. Write: Data is latched at rising edge. Read: Data is outputted at falling edge
24	SDI	I	Serial Data Input. When XCS is H, input data is ignored.
25	SDO	O	Serial Data output.
26	XCS	I	Chip Select Signal. (Active Low)
27	NTC-	I	Heat sensor cathode.
28-29	NC	-	No connection.
30	GND	P	Ground.
31-32	LEDK	P	Power supply for LED cathode input.
33	HVR	I	Vertical and Horizontal Flip.
34	NC	-	No connection.
35	NTC+	I	Heat sensor anode.
36-38	NC	-	No connection.
39-40	LEDA	P	Power supply for LED anode input.

Electrical Characteristics:

Parameter	Symbol:	Min.	Typ.	Max.	Unit
Forward Voltage	Vf	-	18.0	-	V
LED Lifetime	-	-	50000	-	Hrs
Forward Current	If	-	210	240	mA

Customization

CTP

Structure: GG, GFF,Size:1.8* ~ 55",Touch with Water/Salt Water/Sweat,Meet EMI/RFI Standards,Linux/Windows/IOS and Android,Customization on Cover: AG/AR/AF Meet IK Standards,Multi-touch Solution,True Touch with Gesture and Palm Rejection,Finger/Glove and Passive Pen Input

AD Board

We can provide complete accessories, including backlight board, AD Board and wire sets.

Application

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
