Reflective, transmissive, and transflective describe how an LCD uses light to produce a visible image. Transmissive LCDs use a backlight, reflective LCDs primarily use ambient light, and transflective LCDs combine both approaches.
This classification is different from LCD liquid-crystal modes such as TN, IPS, VA, and FFS. A display can, for example, use a transmissive IPS LCD or a transflective TFT LCD.
What Do Reflective, Transmissive, and Transflective Mean?

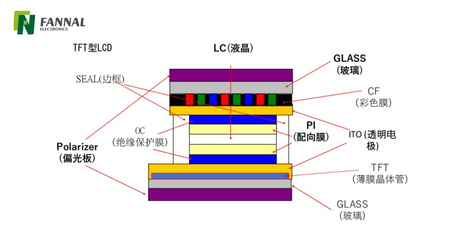

LCD pixels do not generate their own light. Instead, the liquid-crystal layer controls how light passes through the display.
Depending on the display architecture, that light can come mainly from a backlight, from the surrounding environment, or from both.
LCD architecture | Primary light source | Backlight | Main characteristic |
Transmissive | Integrated backlight | Required | Consistent image brightness |
Reflective | Ambient light | Usually not required | Low power and strong daylight visibility |
Transflective | Ambient light + backlight | Available | Adaptable to changing lighting conditions |
The three architectures therefore solve different lighting requirements rather than representing different liquid-crystal modes.
Transmissive LCD

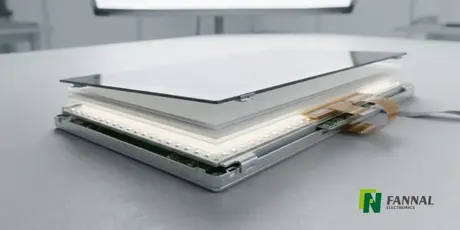

In a transmissive LCD, light from an integrated backlight passes through the LCD cell toward the viewer.
The liquid-crystal layer acts as an optical switch. Electrical signals change the orientation of the liquid-crystal molecules, controlling how much backlight passes through each pixel.
A simplified light path is:
Backlight → LCD cell → viewer
Advantages of Transmissive LCDs
Because the display has its own controlled light source, transmissive LCDs can provide relatively consistent image brightness regardless of moderate changes in ambient lighting.
They are widely used when the display needs to support graphical interfaces, high resolution, controlled brightness, and operation in environments where ambient light may be limited.
The backlight can also be designed around the application. Depending on the module, designers can optimize LED arrangement, brightness, uniformity, power consumption, and thermal behavior.
Limitations
The main limitation is that the backlight consumes power whenever it is operating. Higher brightness generally requires more optical output and can increase power and heat.
Outdoor visibility also requires more than simply increasing backlight brightness.
In strong sunlight, ambient light reflected from the display surface can reduce perceived contrast. If the reflected light is sufficiently strong, the image may appear washed out even when the backlight itself is bright.
For this reason, outdoor transmissive LCDs often require a combination of:
A high-brightness backlight is therefore only one part of an outdoor-readable display design.
Reflective LCD
A reflective LCD primarily uses ambient light rather than an integrated backlight.
Light from the environment enters the display from the viewing side and is reflected back toward the viewer by a reflective layer behind the LCD cell.
A simplified light path is:
Ambient light → LCD cell → reflector → LCD cell → viewer
Because the display uses available environmental light, a reflective LCD can operate with very low display power consumption, particularly when no active backlight is required.
Advantages of Reflective LCDs
The main advantage is efficiency in bright environments.
As ambient light increases, there is more available illumination for the display. This makes reflective LCDs suitable for applications where low power consumption and daylight readability are important.
They can be particularly useful for battery-powered equipment that spends significant time outdoors during the day.
Limitations
The same characteristic that makes reflective LCDs efficient outdoors can become a limitation in dark environments.
When there is insufficient ambient light, there is little light available to reflect back to the viewer. Additional front lighting or another illumination method may therefore be required for nighttime or low-light operation.
Reflective LCDs can also involve optical trade-offs between reflectivity, contrast, color performance, and other display requirements. The exact result depends on the optical structure and panel design.
A reflective LCD should therefore not be understood simply as a transmissive LCD with its backlight removed. Its optical structure is designed specifically to make use of ambient light.
Transflective LCD
A transflective LCD combines transmissive and reflective characteristics in the same display.
It incorporates both a backlight and a reflective optical structure, allowing the display to use ambient light when conditions are favorable and the backlight when additional illumination is required.
A simplified concept is:
Bright environment → ambient light contributes strongly
Dark environment → backlight provides illumination
This makes transflective LCDs particularly interesting for equipment that operates across changing lighting conditions.
How Does a Transflective LCD Work?
A transflective structure typically uses a partially reflective optical layer that allows part of the backlight to pass through while reflecting part of the ambient light back toward the viewer.
The exact structure varies between panel designs. Reflective and transmissive regions may be created within the pixel structure, and the reflector can be implemented at different positions within the optical stack.
The basic objective remains the same: allow the display to use both external and internal light sources.
Advantages
A transflective LCD can reduce dependence on the backlight in bright environments while still providing illumination when ambient light is insufficient.
This makes it useful when a device may move between:
Indoor and outdoor environments
Daytime and nighttime operation
Bright and low-light conditions
It can also reduce backlight operating time in some applications, which may be useful for battery-powered equipment.
Limitations
The combination of reflective and transmissive optical paths introduces trade-offs.
For example, the optical efficiency of the reflective and transmissive paths may not be identical. Depending on the structure, the light path can also interact with the liquid-crystal cell differently in the two operating conditions.
As a result, transflective LCDs do not automatically provide the maximum performance of both a dedicated reflective and a dedicated transmissive display.
Possible trade-offs include:
Brightness
Contrast
Color performance
Optical efficiency
Backlight efficiency
Module thickness
Manufacturing complexity
Cost
The actual balance depends heavily on the specific panel and optical design.

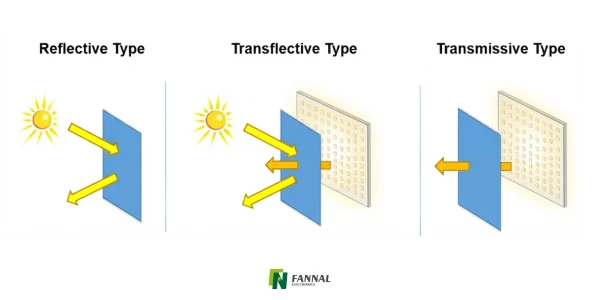

Reflective vs. Transmissive vs. Transflective LCD
The main differences can be summarized as follows:
Factor | Transmissive | Reflective | Transflective |
Main illumination | Backlight | Ambient light | Ambient light + backlight |
Backlight | Required | Usually not required | Integrated |
Low-light operation | Good | Limited without additional lighting | Good with backlight |
Bright daylight | Requires optical and brightness optimization | Strong potential | Strong potential |
Backlight power | Continuous when active | Very low / none | Adjustable |
Dependence on ambient light | Low | High | Moderate |
Main design priority | Consistent image output | Low power and daylight visibility | Variable lighting conditions |
There is no single architecture that is appropriate for every application.
A transmissive LCD may be suitable when stable image brightness and controlled illumination are more important than minimizing backlight power. A reflective LCD may be considered when daylight operation and low power are the primary requirements. A transflective LCD becomes useful when the same equipment needs to operate across substantially different lighting conditions.
How Are These Different from TN, IPS, VA, and FFS?
Reflective, transmissive, and transflective describe how light is supplied to the LCD.
TN, IPS, VA, and FFS describe how the liquid-crystal layer controls that light.
They are therefore different classification dimensions.
For example, a display specification can include:
Transmissive IPS TFT LCD
or:
Transflective TFT LCD with PCAP touch
This distinction is important when selecting an LCD because choosing an IPS panel does not by itself determine whether the display is transmissive, reflective, or transflective.
How to Choose the Right LCD Architecture
The appropriate architecture depends primarily on the lighting environment, power budget, and required image performance.
Application condition | Architecture to consider | Main considerations |
Controlled indoor environment | Transmissive | Brightness, power, image performance |
Bright outdoor operation | Reflective / Transflective / high-brightness transmissive | Ambient light, reflection, thermal behavior |
Battery-powered outdoor equipment | Reflective / Transflective | Backlight operating time and daylight readability |
Indoor + outdoor operation | Transflective | Optical efficiency and backlight control |
Day + night operation | Transflective / Transmissive | Low-light visibility and daylight performance |
Low-light or enclosed equipment | Transmissive | Controlled backlight and stable brightness |
However, the lighting architecture should not be selected from the application name alone.
For an industrial display, the complete specification may also need to consider:
For example, simply specifying a “high-brightness LCD” does not guarantee outdoor readability. A transmissive display operating in direct sunlight may still suffer from reflected ambient light, while a transflective or reflective architecture may require different compromises in color, contrast, or optical efficiency.
The display architecture should therefore be evaluated together with the complete optical and mechanical design.
What Affects Real-World LCD Readability?
Reflective, transmissive, and transflective architecture is only one part of outdoor or variable-light display performance.
Actual readability can also depend on:
Display luminance: Higher luminance can help a transmissive display compete with strong ambient light, but increases power and heat.
Surface reflection: Cover glass and other external surfaces can reflect sunlight toward the viewer and reduce perceived contrast.
Optical treatment: Anti-glare and anti-reflective treatments can reduce different types of unwanted reflection, but their effects on haze, contrast, and image appearance need to be considered.
Optical bonding: Reducing air gaps between display layers can reduce internal reflections and improve optical coupling.
Contrast: A bright image is not necessarily a readable image if the difference between image content and background is reduced by reflected light.
This is why outdoor readability should be treated as a system-level optical requirement, rather than a brightness specification alone.
FAQ
What is the difference between reflective and transmissive LCD?
A transmissive LCD uses an integrated backlight as its primary light source, while a reflective LCD primarily uses ambient light reflected through the display. Transmissive LCDs provide more controlled illumination, while reflective LCDs can offer very low power consumption in suitable lighting conditions.
Is transflective LCD better for outdoor use?
Transflective LCDs can be suitable for equipment that operates across changing lighting conditions because they can use ambient light and a backlight. However, suitability depends on the required brightness, power consumption, optical performance, and complete system design.
Does a reflective LCD need a backlight?
A conventional reflective LCD primarily uses ambient light and does not require a backlight for normal operation. Additional illumination may be needed when ambient light is insufficient.
Can an IPS LCD be transflective?
Yes. IPS describes the liquid-crystal mode, while transflective describes the way the display uses illumination. A transflective LCD can therefore use an IPS liquid-crystal structure if the panel is designed accordingly.
What is the difference between a transflective LCD and a high-brightness LCD?
A high-brightness transmissive LCD increases backlight output to improve visibility, while a transflective LCD uses both ambient light and a backlight. They address challenging lighting conditions through different optical approaches.
Conclusion
Reflective, transmissive, and transflective LCDs describe three different approaches to illuminating an LCD. Transmissive displays rely on a backlight, reflective displays primarily use ambient light, and transflective displays combine both.
The right architecture depends on the complete system requirements, including lighting conditions, power consumption, brightness, contrast, touch, cover glass, optical treatment, bonding, and operating temperature.
