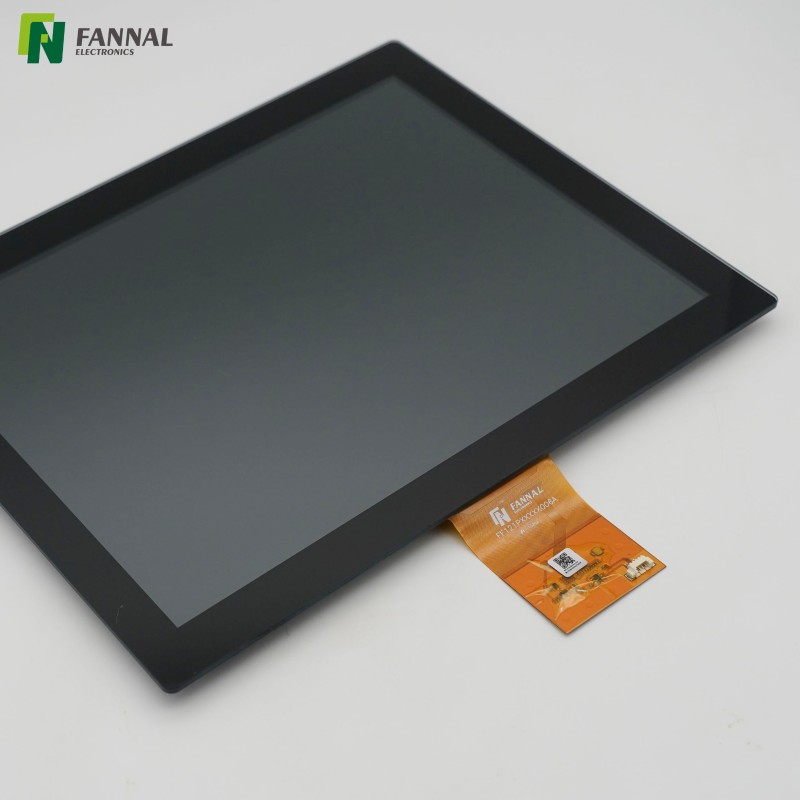

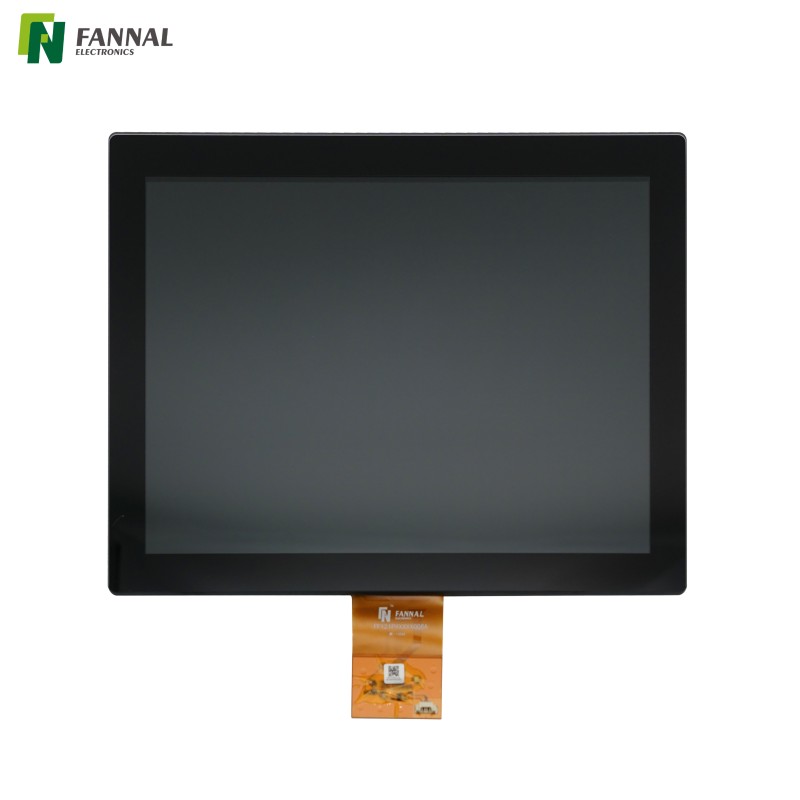

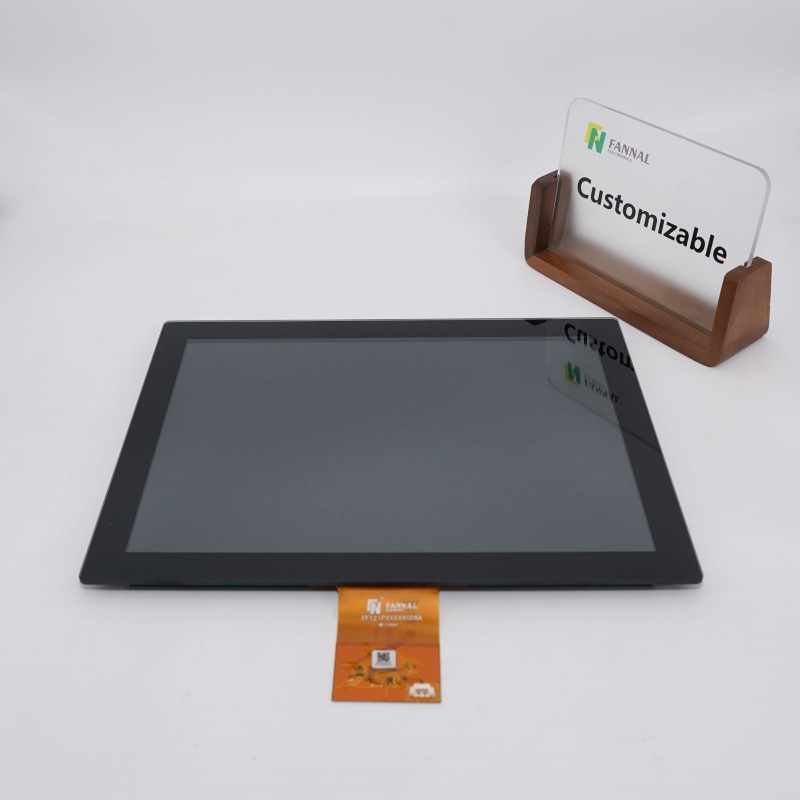

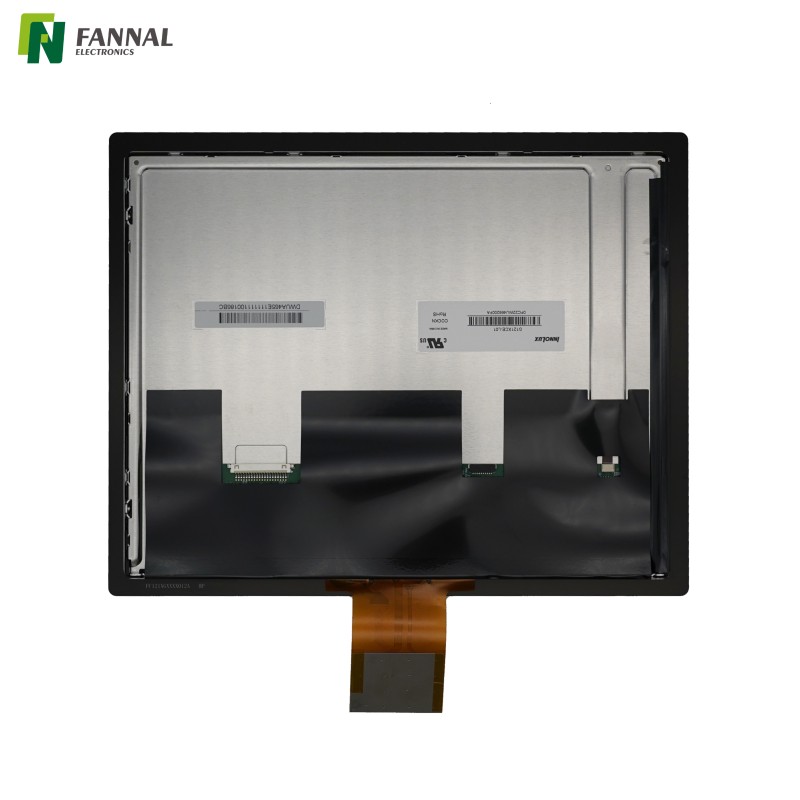

12.1 Inch IPS Industrial Touch Display with G+G PCAP Touch

Name: 12.1 Inch IPS Industrial Touch Display with G+G PCAP Touch
Brand: FANNAL
Rating: 5.0 (24 reviews)

12.1 inch industrial touch display featuring a USB projected capacitive touchscreen, XGA resolution, and wide operating temperature support. Suitable for HMI systems, medical devices, factory automation, and embedded equipment.

Model:
FN121PGRGUL012A
Brand:
FANNAL
Size(inch):
12.1
Cover OD (mm):
281.5*225*12.94
Display AA(mm):
245.76*184.32
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
246.76(H)×185.32(V)
Structure:
G+G
Resolution:
1024×768
Direction:
ALL
Display Interface:
LVDS
TP Interface:
USB
Brightness(cd/m²):
510

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

This 12.1 inch touch display combines a 1024×768 IPS TFT panel with a USB projected capacitive touchscreen. Featuring 510 nits typical TPM brightness, wide viewing angles, and an operating temperature range of -20°C to +70°C, it is suitable for industrial HMI systems, medical devices, test equipment, and embedded control applications requiring long-term reliability.

Features

IPS Panel with Wide Viewing Angles

The IPS TFT panel supports all-direction viewing, helping maintain image consistency when operators view the display from different positions. This can be beneficial for medical equipment, industrial control systems, and shared user interfaces.

510 Nits Typical TPM Brightness

The TFT panel provides up to 600 nits typical luminance. After integration with the projected capacitive touchscreen, the complete TPM delivers approximately 510 nits typical brightness due to the touchscreen's 85% minimum light transmittance.

This value reflects the actual optical performance of the complete touch display assembly rather than the bare LCD panel.

XGA Resolution for Long Lifecycle Platforms

Although higher resolutions are widely available, 1024×768 remains common in industrial and medical equipment where existing software, controller boards, and certification requirements favor platform stability and long-term support.

USB PCAP Touchscreen with maXTouch Controller

The module utilizes the Microchip maXTouch mxT1664T3 controller, supporting up to 5 touch points through a USB interface. This architecture is commonly adopted in embedded systems, industrial PCs, and medical equipment.

Wide Operating Temperature Range

Supporting operation from -20°C to +70°C and storage from -30°C to +80°C, the module can accommodate a wide range of indoor industrial environments.

Chemically Strengthened Cover Glass

The 3.0 mm chemically strengthened cover glass helps improve durability and impact resistance while maintaining good optical performance and touch responsiveness.

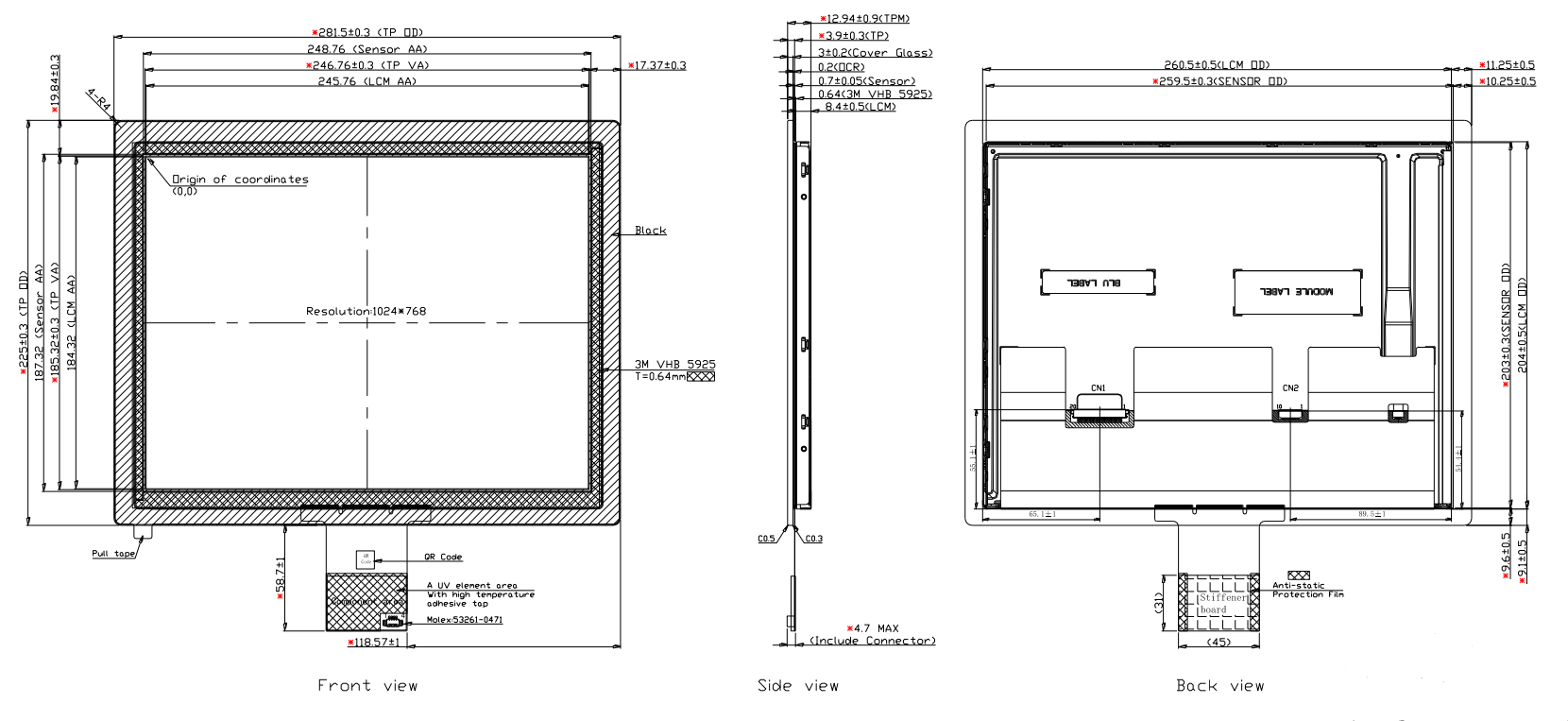

Drawing

Specifications

Technology Characteristics CTP/LCM

Item	Specification	Unit / Remark
Structure	G+G	-
Bonding Type	Air bonding	-
Touch IC	mxT1664T3	-
No. of Touch	5	-
Cover Lens Thickness	3.0	mm (Chemically strengthen)
ITO glass Thickness	0.7	mm
Surface Hardness	≥6H	-
Light Transmittance	85% Min	-
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
TP+LCM Brightness	510 (Typ.), 400 (Min.)	cd/m²

TFT General Specifications (Model Name: G121XCE-L01)

Item	Specification	Unit / Remark
Screen Size	12.1 (Diagonal)	Inch
Resolution	1024 (RGB) x 768	pixels
Display Mode	Normally Black	-
Dimensional Outline	260.5(H) x 204.0(V) x 8.4(D)	mm (Note 1)
Active Area	245.76(W) x 184.32(H)	mm
Pixel Pitch	0.24(W) x 0.24(H)	mm
Pixel Arrangement	RGB vertical stripe	-
Display Colors	16.2M / 262K	colors
Viewing Direction	ALL	O'clock
Interface	1 channel LVDS	-
Surface Treatment	Anti-glare, Hardness 3H	-
Luminance, White	480(Min), 600(Typ.)	cd/m²
Weight	490	g (Note 2)
Power Consumption	12.02	W (white pattern)

Note 1: Please refer to the attached drawings for more information of front back outline dimensions. Note 2: LCM weight tolerance: ±5%.

CTP General Specifications

Item	Specification	Unit / Remark
Active Size	12.1 (Diagonal)	Inch
Outline Size	281.5(H) x 225(V) x 3.9(T)	mm
View Area	246.76(H) x 185.32(V)	mm
Surface Hardness	≥ 6H	-
Surface Treatment	-	-
Transparency	85% Min	-
Driver IC	mxT1664T3	-
Detect Points	5	-
Touch Handling	-	-
Interface	USB	-
IIC Address	-	-
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
